For precise troubleshooting, start by locating the main harness connector near the engine bay–it’s the central hub linking ignition, lighting, and charging circuits. Pin A2 (red/white wire) feeds the CDI unit; interruption here disrupts spark delivery. Verify continuity between the stator and regulator/rectifier using a multimeter set to ohms–expected resistance is 0.1–0.3 ohms across phase pairs. If readings exceed 1.0 ohm, replace the stator coil assembly immediately.
Observe the kill switch wiring: the black/yellow lead connects to ground when engaged, bypassing the ignition system. A corroded switch or frayed lead can cause intermittent stalling–clean terminals with dielectric grease after disassembly. For headlight circuits, trace the yellow wire from the handlebar switch to the bulb socket; voltage should read 12.6–14.2 volts with the engine running. Dim output indicates a failing stator or voltage regulator–test rectifier diodes individually with a diode checker.
Critical connections include the battery’s positive terminal (red cable) and ground strap (black) to the frame. Loose or oxidized terminals drop voltage under load, leading to erratic electronics. Use a wire brush to clean all ground points, then secure with star washers to prevent vibration loosening. For the taillight, the brown/white wire carries signal voltage–intermittent operation often stems from a faulty flasher relay or poor chassis ground near the rear fender.

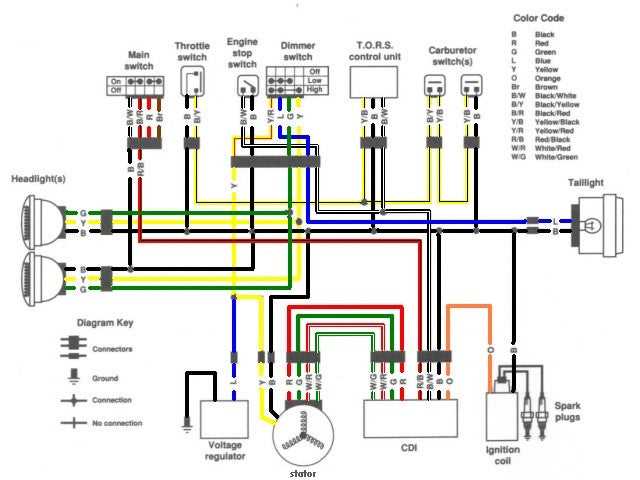

Electrical Schematic for the 650cc Twin-Cylinder ATV
Locate the main harness connector near the battery tray–it’s a 12-pin plug with color-coded wires terminating in bullet connectors. Disconnect it first before probing any circuits to prevent shorts. Test continuity between pins 3 (black/white stripe) and 5 (solid orange) with a multimeter; resistance should read 0.3 ohms or less. If readings exceed this, inspect the stator windings for frayed enamel or melted insulation beneath the flywheel cover.
- Ignition coil primary: red/green (pin 8) → spark plug lead (resistance: 0.5–1.2 Ω)
- CDI unit ground: solid brown (pin 1) → engine case (verify less than 0.1 Ω)
- Lighting circuit: yellow/red (pin 12) → headlight switch (12V DC under load)
Replace the voltage regulator if the battery overcharges (above 14.8V) or undercharges (below 13.2V) at 3000 RPM. Mount the new unit within 15 cm of the battery using heat-resistant adhesive; orient the cooling fins upward for optimal airflow. Splice the wiring harness with solder and shrink tubing rather than crimp connectors–crimps corrode in as little as 18 months under high-vibration conditions.
- Unplug the ECU (small black box behind the airbox).
- Connect a 9V battery across pins 4 (gray) and 7 (green/white) to simulate throttle position.
- Reattach the harness and twist the key–verify both coils fire within 2 milliseconds of cranking (use an inductive timing light).
- If misfire persists, swap the ECU before replacing ignition components.
Finding Key Electrical Link Points on the Off-Road Twin-Cylinder Model

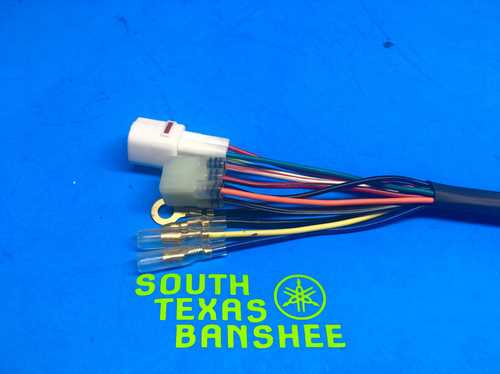

Begin by identifying the central electrical loom near the battery compartment, typically secured beneath the seat or rear storage panel. Trace the thickest bundle–this houses primary connectors for ignition, lighting, and charging circuits. The main plug interface, a 12-terminal rectangular connector (OEM part #3JX-82590-00-00), will be attached to the frame’s left side, just above the swingarm pivot. Label each wire by function before disconnecting: red (12V constant), black/white (ground), yellow/red (CDI trigger), and blue/white (stator output). Use a multimeter to verify continuity if corrosion or discoloration is present.
Smaller auxiliary links branch toward the handlebar controls and taillight assembly. The kill-switch harness terminates in a 3-pin connector near the right handlebar clamp; locate it by following the clutch cable guide. Engine sensors (temp, TPS) interface via color-coded spade terminals at the cylinder base–match these carefully when servicing. Always inspect rubber grommets at frame entry points for cracks; replace immediately to prevent moisture ingress.
Identifying Ignition System Cables and Their Roles
Locate the CDI unit first–it’s the compact black box near the engine’s electrical hub. Trace the 5-pin connector wires: the red (battery supply, 12V), black/white (ground), orange (pulse generator), blue (ignition coil primary), and green (pickup coil). Test continuity with a multimeter; resistance for the pulse and pickup coils should read 50–150 ohms, while the ignition coil primary should measure 0.5–3 ohms. Deviations signal internal damage or corrosion–clean terminals with contact cleaner or replace the harness if readings fluctuate.
| Wire Color | Component | Expected Voltage (Key ON) | Testing Method |
|---|---|---|---|
| Red | Main power feed | 12.6–14.2V | Probe both ends; drop >0.5V indicates resistance |
| Orange | Pulse generator | 0.3–1.5V AC (engine cranking) | AC setting, check for sinusoidal wave |
| Blue | Ignition coil trigger | 0.1–0.8V DC (idle) | DC setting, confirm rapid spikes at 2000+ RPM |
If the engine misfires at high RPM but runs smoothly below 3000, inspect the blue and green wires for intermittent breaks–vibration fatigue often occurs near the coil mounts. For dual-coil setups, swap the left/right coil connectors; if the issue shifts to the opposite cylinder, the stator or CDI is faulty. Always route wires away from exhaust headers; excessive heat degrades insulation, causing sporadic spark loss. Secure looms with zip ties every 6 inches to prevent chafing against the frame rails.
Ground Path Verification
The black/white ground wire must terminate directly to the engine block–not the frame or battery tray. A non-conductive path increases resistance, leading to weak spark. Scrape paint off mounting points, apply dielectric grease, and torque bolts to 8–12 ft-lbs. Test voltage drop across the ground circuit: attach the multimeter’s positive lead to the red wire and the negative lead to the black/white wire’s engine-side terminal. A reading above 0.2V confirms corroded connections–disassemble and clean with a wire brush.
Step-by-Step Guide to Tracing Lighting Circuit Pathways
Locate the main fuse panel first. Remove its cover to expose individual fuses–most off-road vehicles have a dedicated 10-amp fuse for illumination circuits. Use a multimeter set to continuity mode to confirm power flows through this fuse when the lighting switch engages. Probe both fuse terminals while toggling the switch; zero resistance confirms an intact connection. If readings fluctuate, inspect the fuse holder for corrosion or loose contacts.
Follow the color-coded conductors from the fuse panel. Primary power lines are typically red or yellow, while grounded returns use black or green insulation. Trace these lines toward the handlebar switch cluster. Document each junction point–bullet connectors, solder joints, or crimp terminals–on paper or a schematic sketch. Note wire gauge deviations; thinner wires often indicate branching to auxiliary components like indicator lamps.
Key Junctions to Examine
- Handlebar Switch: Disassemble the switch housing to access internal terminals. Look for melted plastic or discolored contacts, common failure points under high load. Clean oxidized surfaces with electrical contact cleaner and a fiberglass pen brush.
- Relay Module: If equipped, test the relay by swapping it with a known-good unit (e.g., horn relay). Use a jumper wire to bypass relay pins 85 and 86; if lights activate, the relay or its triggering circuit is faulty.
- Ground Points: Scrape paint or oxidation from grounding bolts until bare metal is exposed. Reattach wires using star washers to ensure solid contact. Poor grounding causes dim or flickering lights.
Test each bulb socket by inserting a test light or multimeter probe. Verify power at the hot terminal and ground at the return terminal. Replace sockets showing arcing or heat damage–these often use ceramic bases with screw-in connectors. For LEDs, ensure polarity matches; reversed connections cause instant failure.
Final Checks
- Reconnect all components and power up the system. Observe light behavior–steady illumination confirms success; flickering indicates a missed bad connection.
- Check for voltage drops across long runs using a multimeter in DC voltage mode. Any drop exceeding 0.5V suggests excessive resistance; replace the wire or upgrade to a thicker gauge.
- Secure all conductors with zip ties every 15 cm, avoiding sharp edges or moving parts. Route wires away from heat sources like exhaust headers.
Solving Electrical Faults with Schematic Guides
Start by isolating the charging circuit if the battery drains excessively. Locate the stator’s three-phase output on the reference sheet–yellow wires typically indicate AC output–and verify voltage across each pair at idle and wide-open throttle. Readings should range between 12–24V AC; discrepancies below 8V suggest a faulty stator or shorted rectifier. Swap the regulator with a known-good unit to confirm, as heat-compromised diodes mimic stator failure.
Trace ignition faults by examining the CDI box connectors. Disconnect the black/white (trigger) and white/red (pickup) wires, then measure resistance: 60–180 ohms between pickup terminals and infinite to ground. A reading outside these values indicates a damaged stator pole. Ensure the trigger wire’s pulse aligns with coil firing; an oscilloscope reveals missing or distorted spikes, pinpointing a fractured flywheel key or misaligned sensor.
Inspect lighting circuits for intermittent flickering by probing the brown (ground) and colored load wires. Use a multimeter in continuity mode to verify uninterrupted paths–corroded bullet connectors or frayed harnesses often introduce 3–5 ohm resistance, causing voltage drop. Bypass suspect sections with jumper wires; if lights stabilize, replace the compromised segment rather than patching with electrical tape.
Test kill-switch functionality by monitoring the black/red wire’s voltage relative to chassis ground–should toggle from 12V to 0V when engaged. A floating voltage indicates a failed switch or stray current; isolate by disconnecting the switch and retesting. Persistent voltage suggests a grounded wire, often hidden behind panels near the handlebar or engine mounts.
