Begin troubleshooting by locating connector C2 on the vehicle’s factory amplifier–typically mounted behind the left rear trim panel near the wheel well. Pin assignments for this 12-pin connector follow this sequence clockwise from the keyway: 1 (B+), 2 (Ground), 3 (Left Front Speaker +), 4 (Left Front Speaker -), 5 (Right Front Speaker +), 6 (Right Front Speaker -), 7 (Left Rear Speaker +), 8 (Left Rear Speaker -), 9 (Right Rear Speaker +), 10 (Right Rear Speaker -), 11 (Illumination +), 12 (Remote Turn-On. Verify continuity between each speaker wire and the corresponding pin using a multimeter set to 200Ω; expected resistance ranges between 3.9Ω and 4.1Ω.
When splicing aftermarket components, use crimp-style butt connectors rated for 20-22 AWG wire. Avoid soldering near factory wiring harnesses–the insulation melts at 160°F, risking shorts under dashboard heat. The power antenna lead (green/white stripe) carries 12V only when the ignition is in ACC or ON; tap this wire rather than the main power feed to prevent parasitic battery drain. For ground connections, use only unpainted metal surfaces; sand down to bare metal and apply dielectric grease before securing with a #10 self-tapping screw.
If the system lacks bass response, probe the amplifier’s output stage. Measure DC voltage across the RCA pre-outs (if equipped): front channels should read 1.8V RMS, rear channels 0.8V RMS. Any asymmetry indicates a failed amplifier or corroded harness–common with aftermarket installations where moisture seeps into unsealed splices. Replace the entire amplifier pigtail if corrosion is visible; patching individual wires reduces reliability.
For vehicles with retained accessory power (RAP), the delayed accessory relay must be bypassed if adding a high-current device like a subwoofer amp. Locate fuse F27 (15A) under the dash, then trace its red/yellow wire to the under-hood fuse box–splice into this wire instead of tapping the ignition circuit directly. Failure to follow this step risks burning the factory RAP module, which costs $189 to replace.
Audio System Electrical Layout for the 2002 Chevrolet Monte Carlo
Start by locating the factory harness behind the head unit–yellow (12V constant), red (accessory), black (ground), and orange (illumination) wires are primary connections. Match these to the aftermarket radio’s color-coded leads; deviations exist in older models, so verify with a multimeter. Label each wire before cutting.
- Yellow: Battery (fused, 12V) – supplies memory retention.
- Red: Ignition-switched (12V) – enables unit power.
- Black: Chassis ground – clean metal surface required.
- Orange: Dash light dimmer control – connects to vehicle’s dimmer circuit.
Speaker wires follow a consistent pattern: gray (+) and gray/black (-) for front right, white (+) and white/black (-) for front left, purple (+) and purple/black (-) for rear right, and green (+) and green/black (-) for rear left. Strip ¼ inch of insulation, twist securely, and solder or use crimp connectors. Avoid twisting dissimilar metals (copper/aluminum) to prevent corrosion.
- Disconnect negative battery terminal first to prevent shorts.
- Remove trim panels using a plastic pry tool–clips break easily.
- Pull head unit straight out, supporting with both hands to avoid damaging rails.
- Attach harness adapter if available; direct splicing adds complexity but works for non-standard systems.
For amplified systems, trace the blue/white remote turn-on wire to the amplifier–interrupting this signal disables power to subwoofers. Test each connection with a 9V battery before reassembly; a quick beep confirms speaker polarity. Reinstall trim in reverse order, ensuring seals are intact to prevent rattles.
Finding the Original Audio Connector Bundle in the 2002 Chevrolet Coupe
Begin beneath the driver-side dashboard panel–remove the single 7 mm bolt securing the lower trim cover. The harness bundle emerges from behind the climate control module, identifiable by its 12-pin rectangular plug encased in black plastic with several smaller auxiliary connectors fanning out toward the center console. Trace the main bundle downward to the kick panel area, where it terminates in a multi-colored cluster of wires usually held by two white plastic clips.
Pull back the passenger-side carpeting to expose the ECU harness crossover. The audio loom runs parallel to the main body harness, bundled together with clear loom tape until splitting near the firewall grommet. Locate the junction where the head unit feed separates–a group of violet, gray, brown, and light green wires branches off here, often taped to the heater hoses for strain relief. Mark this split point before proceeding further to avoid confusion with HVAC circuits.

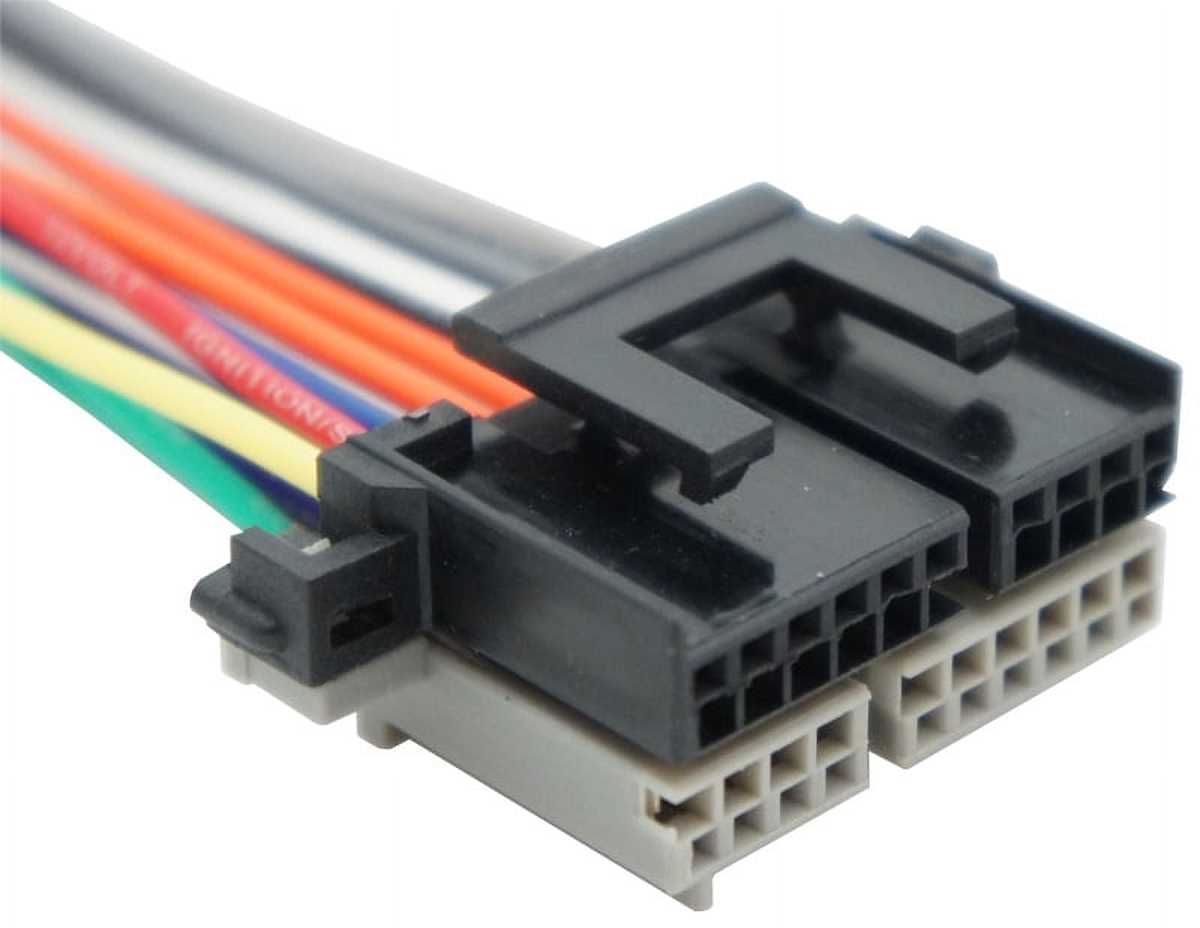

Remove the radio bezel carefully–use a panel removal tool to pry the trim without cracking the tabs. Behind the DIN slot, the main harness connects via a 16-pin Metra-compatible plug; unplug it entirely to follow the wires back to their source. The wires snake upward behind the instrument cluster, secured by a plastic conduit that also contains the turn signal and power window harnesses. Avoid yanking–some wires terminate at the fuse block behind the glovebox.
Disconnect the negative battery terminal first. Behind the glovebox, release the three retaining screws to drop the fuse panel cover. The audio harness travels behind this panel, sharing a pathway with the ambient lighting module. Identify the thicker wires–typically the orange constant power and red switched power leads–before they merge with the thinner blue and green speaker outputs. These outputs continue downward behind the center console, where they split again for rear deck and door connections.
Check the trunk area if rear speaker wiring is missing. The harness exits the cabin through the firewall grommet near the brake master cylinder, then runs along the driver-side chassis rail. Here, the wires are often encased in corrugated tubing and secured with zip ties every 18 inches. Follow them to the rear quarter panel, where they terminate under the spare tire well liner–a secondary harness feeds the subwoofer if equipped.
Label each connection before cutting or splicing–use colored electrical tape matching the original factory codes. Violet/white stripe is front right positive, solid gray is front left negative, brown/dark green stripe handles rear left, and light green/white stripe manages rear right. Cross-reference with a multimeter set to continuity mode before finalizing any changes, especially near the amplifier module hidden behind the rear seat.
Inspect the door jambs–each door speaker harness branches from the main bundle within the hinge pillar. Remove the plastic kick panel inserts to reveal these wires, often wrapped in foam tape to prevent rattling. Each door harness contains four wires: two for speaker signal, one for the door lock actuator, and one for the courtesy light. The front doors’ harnesses are thicker than the rear, often requiring partial door panel removal to access fully.
Reassembly requires routing wires identically to factory paths–missed clips can cause rattles or wire rub-through. Secure all harnesses with the original white plastic harness clips rather than zip ties; these clips lock into factory-drilled holes along the chassis rails. Verify all plugs are fully seated and test each connection with a power probe before reattaching battery power to prevent accidental shorts near the fuse block.
Decoding Wire Color Codes for the Vehicle’s Sound System Installation
Begin by locating the 12-pin connector behind the factory radio unit–focus on the upper row where critical audio wires terminate. The first wire on the left, labeled solid yellow, delivers constant 12V power directly from the battery, ensuring memory retention for presets even when the ignition is off. Never splice into this line for accessory loads; doing so risks draining the battery overnight.
Solid orange carries switched 12V from the ignition circuit, activating only when the key is in the “ACC” or “RUN” position. This wire powers the amplifier and delayed accessory functions like motorized antennas. Pair it with a 10-amp fuse within 3 inches of the harness to prevent fire hazards from short circuits. For aftermarket upgrades, route this line to the new head unit’s red power input.
- Solid gray: Left front speaker (+), typically paired with striped gray ground (-). Impedance should measure 4 ohms; deviations indicate damaged voice coils or poor grounding.
- Solid white: Right front speaker (+), matched with striped white ground (-). Test polarity with a 9V battery–positive should push the cone outward.
- Solid green: Left rear speaker (+); striped green serves as the return (-). Factory systems often use these for surround sound; confirm with a multimeter before connecting subwoofers.
- Solid purple: Right rear speaker (+), paired with striped purple (-). These wires may double as amplifier triggers in premium trim levels.
The solid pink wire near the center of the connector handles the power antenna/amplifier turn-on signal. In base models, this triggers the antenna motor; in Bose-equipped versions, it activates the external amp. For aftermarket installations, splice this into the blue/white “remote” lead of the new unit, but add a 200-ohm resistor if the amplifier fails to power on–a common issue with mismatched voltage thresholds.
Ground wires (black) cluster at the right side of the connector. Each ground must directly attach to bare metal chassis points using star washers; sandwiching paint or corrosion can cause buzzing. For troubleshooting, probe voltage drop between ground and the battery’s negative terminal–values above 0.1V signal high resistance requiring re-termination. The solid brown wire often carries dimmer control signals; avoid splicing here unless the new head unit supports variable-voltage illumination.
Factory harnesses occasionally include solid light blue (mute) and striped blue/orange (speed-sensitive volume) wires. The former cuts audio during phone calls or navigation prompts, while the latter adjusts volume based on vehicle speed (via VSS input). Disabling these functions without reprogramming may trigger error codes in OBD-II systems. For wiring diagrams, cross-reference the RPO code sticker in the glovebox–option UQ3 indicates amplified systems requiring specialized connectors.
