Start by downloading the official service manual PDF from Kia’s technical resources portal. The 2.0L powertrain harness map spans pages 17-4 to 17-12, detailing pin assignments for fuel injectors, ignition coils, and the ECU connectors–marked J1 (black, 60-pin) and J2 (brown, 48-pin). Verify wire colors against the legend: red with black stripe (R/B) transmits constant 12V, while white with green stripe (W/G) carries ground to sensors.
Trace the instrument cluster circuit before troubleshooting intermittent gauges. The tachometer signal originates at ignition coil pack terminal 2, routed through a 1.5 Ω resistor (part #93702-22030) before entering the cluster connector C103, pin 14. If voltage drops below 9V at this point, inspect the fusible link FL1 (30A) behind the driver’s kick panel–corrosion here mimics sensor failures.
For power window malfunctions, check relay K6 under the passenger dash. The motor circuit runs through a 25A fuse (F17) and two-door switches wired in parallel; bypass the master switch with a multimeter to isolate open circuits. The passenger window motor shares ground with the door lock actuator–poor grounding causes simultaneous failures.
Locate the anti-theft module behind the glove box, connector C205. The immobilizer signal wire (light blue with yellow stripe, L/Y) must show 5V pulsed at 125Hz during cranking. If static, replace the transponder ring encircling the ignition cylinder–magnetic interference from aftermarket stereos often disrupts this frequency.

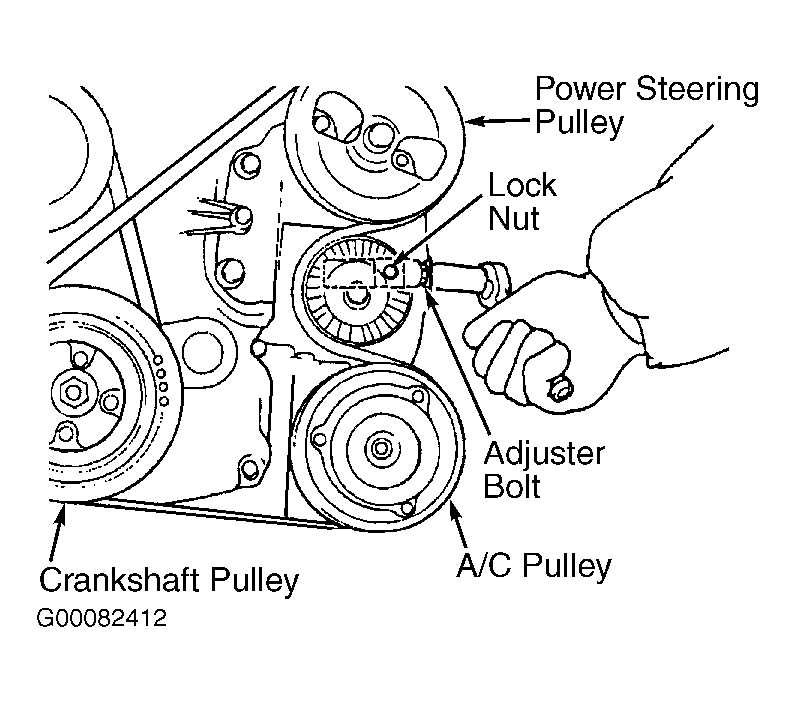

Use a 10A test light to probe the A/C compressor clutch wire (dark blue with orange stripe, D/B O). The ECM cuts power during wide-open throttle; if the clutch engages at idle but not under load, reflash the ECM with software version SANAT-V1.8 or later–earlier builds misinterpret MAP sensor input.
For tail light flickering, focus on the BCM connector C201. The brake light feed splits into two paths: one through the hazard switch (1N) and another through the brake switch (1G). Both merge at splice S115; oxidation here appears as a 1.2V drop when measured under load. Clean with DeOxit D5 and secure with heat-shrink.
Electrical Blueprint for the 2.0L Sedan Variant
Locate the under-dash fuse box schematic on page 12 of the official service manual–pinout identifiers (e.g., “IG1,” “ACC,” “ILL+”) align with labeled terminals on the multi-connector relay module. Cross-reference these with the engine bay junction block (J/B) using a continuity tester: ignition coil harness (white/blue stripe) connects to pin 8, while the MAF sensor (black/white stripe) routes to pin 14. For ABS wiring, trace the red/black wire from the wheel speed sensor to the ECU plug (C303), ensuring resistance readings between 800–1200 ohms. Faulty grounds typically cluster near G101 (front left strut tower) or G202 (rear passenger kick panel); clean surfaces with a wire brush and apply dielectric grease to prevent corrosion.
Critical Circuit Checks
| Component | Wire Color | Pin (Connector) | Expected Voltage | Failure Indicator |
|---|---|---|---|---|
| Alternator Exciter | Yellow | 3 (A70) | 13.8–14.4V | Battery warning light |
| Throttle Position Sensor | Green/Orange | 2 (C202) | 0.5–4.5V (linear) | Erratic idle, P0122 code |
| Fuel Pump Relay | Black/Yellow | 1 (F10) | 12V (key ON) | No prime sound, hard start |
| O2 Sensor (Pre-Cat) | White | 4 (C55) | 0.1–0.9V (oscillating) | Check engine light, P0130–P0134 |
Use a non-powered test light to verify ignition-switched circuits before probing with a multimeter; back-probing connectors risks damaging pins. For CAN bus diagnostics, splice into the orange/white (high) and green/black (low) wires at the OBD-II port–proper communication shows 2.5V differential. Aftermarket stereo harnesses often misroute the pink/black illumination wire, causing dashboard lights to flicker; relocate this to the factory dimmer circuit (gray/blue stripe).
Primary Cable Bundle Placement in the Model Year Vehicle
Trace the central cable assembly along the driver-side firewall. Remove the lower dash panel beneath the steering column–secured by seven plastic clips–to expose a black corrugated conduit running horizontally. This conduit houses the main harness, connecting the fuse box to the engine compartment and interior systems. Mark the clips with tape before removal to ensure correct reassembly.
Follow these key landmarks:
- Left kick panel: A secondary branch splits off here, supplying power to door controls and ambient lighting.
- Steering column: The ignition sub-harness merges with the main bundle via a 12-pin white connector hidden behind the instrument cluster.
- Under the hood: The harness exits the cabin through a grommet near the brake master cylinder, branching into three segments–engine bay sensors, headlights, and cooling fans.
Troubleshooting Access Points
For relay or sensor faults, target the harness junction behind the glovebox. Press the release tabs on the glovebox door hinge covers–two Phillips screws hold a metal access plate. Behind it, a blue-and-green spliced section feeds the blower motor, A/C, and cabin electronics. Probe this area with a multimeter, focusing on circuits 15 (blower), 23 (A/C clutch), and 31 (ground). Corrosion often accumulates here–clean terminals with 400-grit sandpaper and dielectric grease.
Decoding the Vehicle’s Circuit Blueprint: A Practical Approach

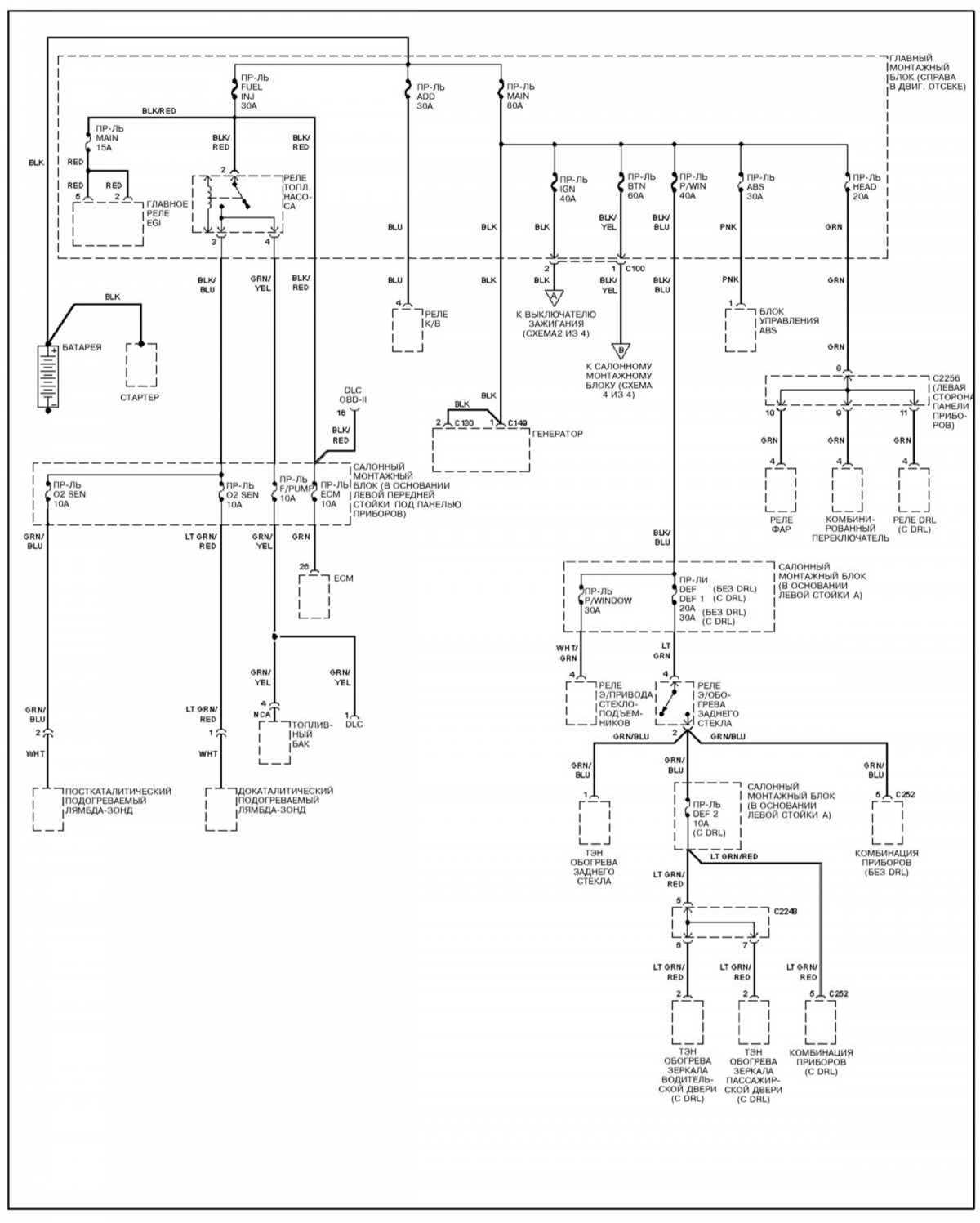

Locate the power distribution block first–typically marked near the upper-left corner of the schematic sheet, often labeled B+ or IGN. Trace each fuse identifier (e.g., F15 for the headlight circuit) horizontally to its connected relay or component, noting splice points (S symbols) where multiple wires converge. Use a multimeter set to continuity mode to verify paths if visual confirmation is unclear; probe between the splice and the component terminal to prevent misreading corroded connections.
Identify grounding points next–indicated by a downward arrow or GND label–usually clustered on the lower-right side. Cross-reference each ground with its corresponding circuit: ECU grounds (e.g., G101) must match engine control wiring, while body grounds (e.g., G301) serve lighting and accessories. Label each segment on a printed copy with a highlighter: power red, signal yellow, ground black for rapid troubleshooting.
Frequent Electrical Problems and Solutions in the Compact Sedan
Check the fuse box under the dashboard on the driver’s side if the power windows stop responding. Locate fuse #15 (labeled “Power Window”)–a 20A fuse often blows due to motor overload. Replace it with an identical amperage fuse, but first inspect the window regulator for seized components. A grinding noise before failure indicates worn gears; lubricate or replace the assembly to prevent recurrence.
Blown headlights or taillights usually trace back to corroded ground connections near the battery tray. Scrape oxidation from the grounding eyelet and tighten the 10mm bolt with dielectric grease. For intermittent failure, probe the wiring harness behind the light housing–broken strands inside insulation cause voltage drops. Use a multimeter to confirm continuity; splice damaged sections with marine-grade heat shrink tubing.
Dashboard Warning Light Malfunctions
Erratic ABS or check engine lights often stem from a failing alternator. Test output voltage at the battery terminals with the engine running–readings below 13.5V signal rectifier diode failure. Disconnect the alternator harness and measure resistance across the stator windings; readings outside 0.2-0.5 ohms require replacement. Clean the alternator’s ground strap connection to the engine block to eliminate false voltage readings.
Non-functional HVAC blower motors frequently link to a faulty resistor pack mounted on the evaporator case. Remove the glove box and access the resistor by unclipping the plastic duct–burnt traces on the circuit board confirm failure. Replace the entire resistor pack, not just the fuse, as overheating from debris buildup recurs. Verify the blower motor spins freely; a seized shaft demands full motor replacement.
Radio or instrument cluster blackouts suggest a bad ignition switch. Remove the lower steering column cover and probe the switch’s terminal 30 (red wire) with the key in the “on” position–absence of 12V indicates internal contact failure. Replace the switch assembly, not just the cylinder, to prevent future intermittent power loss. Ensure all connectors snap securely to avoid vibration-induced disconnects.
Intermittent horn failure usually ties to a cracked clockspring. Rotate the steering wheel fully in both directions while pressing the horn–if the connection returns, the spiral cable inside the clockspring is broken. Replace the entire clockspring unit, not just the ribbon cable, to avoid airbag light triggers. Align the clockspring indexing mark with the steering wheel center before installation to prevent damage.
Rear defroster grids with dead zones require grid repair paint. Clean the glass with alcohol and apply conductive epoxy to the broken lines–ensure enough overlap on both sides. Dry completely before testing; incomplete drying creates resistance. For persistent failure, check the relay in the under-dash fuse box; relay #11 (labeled “Defrost”) often sticks, causing intermittent operation.
How to Isolate and Verify Electrical Paths in Your Vehicle’s Schematic
Start by locating the fuse box cover–typically beneath the dashboard on the driver’s side. Remove the panel to expose the internal layout map; each fuse and relay position correlates directly with labeled terminals on the electrical blueprint. Verify the amperage rating of the suspect fuse before testing; a blown fuse will show a broken filament under a flashlight beam. Use a multimeter set to continuity mode: probe both fuse terminals–audible beep confirms integrity, silence indicates failure.
Critical connectors often hide behind trim panels near the steering column or under the center console. Disconnect the battery negative terminal first to prevent short circuits during inspection. Label each harness plug with masking tape before unplugging; misalignment during reassembly can trigger false fault codes. Check for corrosion on pins by gently wiggling each connector–visible greenish residue or pitted metal demands immediate cleaning with electrical contact cleaner and a fine wire brush.
Key Testing Procedures for Common Faults
- For lighting circuits, probe the socket ground wire (typically black or green striped) against chassis ground. Voltage drop over 0.2V across the connection indicates resistance–clean with a dedicated terminal file.
- Sensor circuits (e.g., MAF, oxygen) require a scan tool for active voltage readings. Backprobe the signal wire at the ECU connector while monitoring live data; expected range varies–consult the pinout chart for exact specifications (e.g., 0.5-4.5V for throttle position).
- Power windows or locks use a dedicated control module. Test supply voltage (12V) at the module harness with the ignition ON; absence suggests a broken feed traceable via the schematic’s power distribution section.
When tracing complex harnesses, split the bundle into manageable segments. Visually follow the colored wiring paths in the guide, matching each stripe pattern to the physical cable. Use a non-powered tone generator on disconnected wires; the accompanying probe helps pinpoint exact routes without puncturing insulation. For intermittent faults, flex the harness near connectors or bends–sudden voltage spikes on the multimeter signal weak spots requiring repair or replacement.
- Disconnect the battery positive terminal only after securing all tools–metallic contact can melt harness insulation if dropped.
- Never bridge fuses with paperclips; use appropriately rated fuse links for temporary testing.
- Solder all splices with rosin-core solder; crimp connectors alone will corrode within months in humid conditions.
- After repairs, clear all stored DTCs via OBD-II scanner to avoid false positives during subsequent diagnostics.
