To properly integrate aftermarket sound components into your vehicle’s audio network, match wire colors precisely: gray/violet (+) and gray/violet (-) for front right, white/black (+) and white/black (-) for front left, with green/red (+) and green/black (-) handling rear right outputs. Ground connections must terminate at a clean chassis point–avoid shared grounds to prevent interference.
Factory harnesses often include pin connectors; bypass them by stripping 1/4″ of insulation and soldering directly or using crimp connectors rated for 16-18 AWG. Avoid twist-and-tape methods–vibration from road conditions loosens these over time, leading to signal loss or popping noises.
For premium installations, insert a 10Ω resistor inline with turn-on leads if the amplifier lacks delay circuitry. This prevents thumps during power cycles. Verify speaker polarity by temporarily connecting a 9V battery–correct polarity moves the cone outward.
Legacy models use a single DIN connector for both signal and power; separate these using a line output converter if retaining the head unit. Keep RCA cables at least 12″ from power wires to minimize electromagnetic interference. Fuse all positive leads within 7 inches of the battery terminal.
Schematics may label inputs as “A+” or “B+”–ignore these; focus instead on physical wire positioning under the dash near the glovebox. If rear fill outputs are absent, tap into the rear door harness using T-taps rather than splicing into the main harness to maintain factory functionality.
Audio System Connection Guide for 2002 Model Year Compact SUV

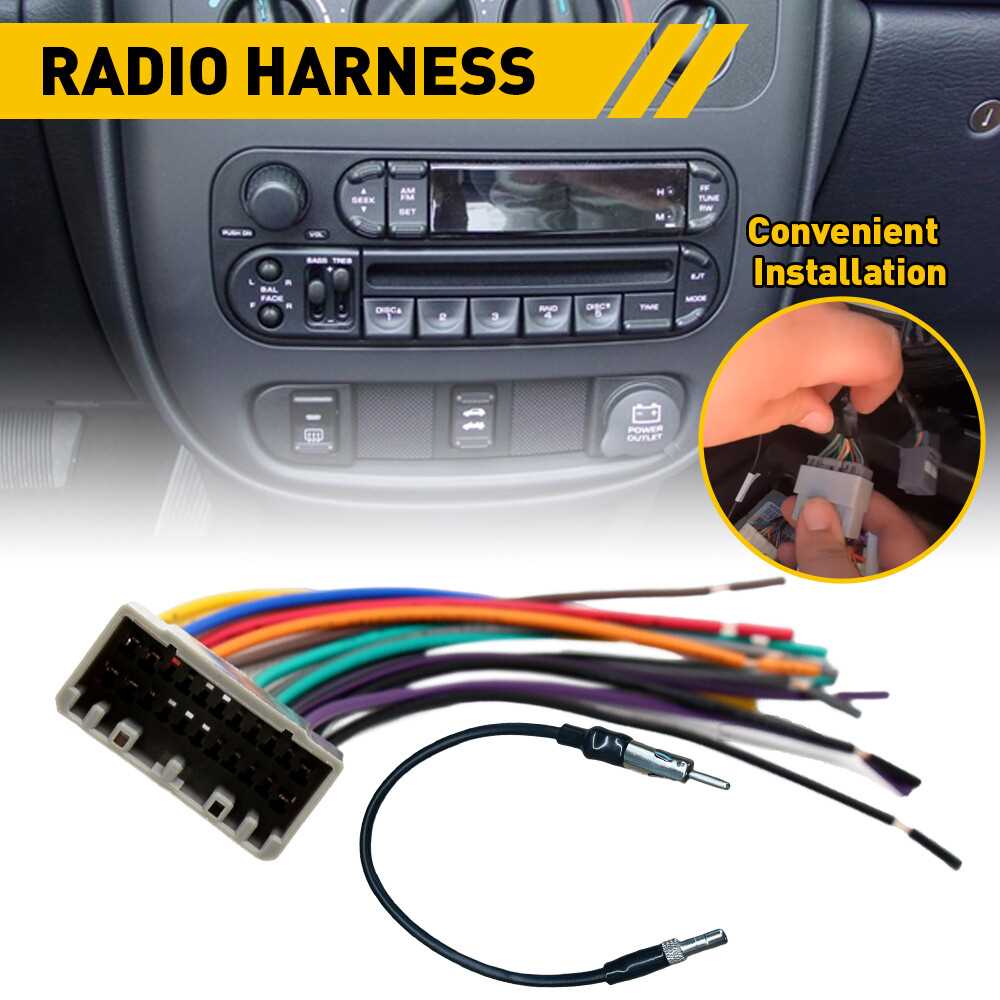

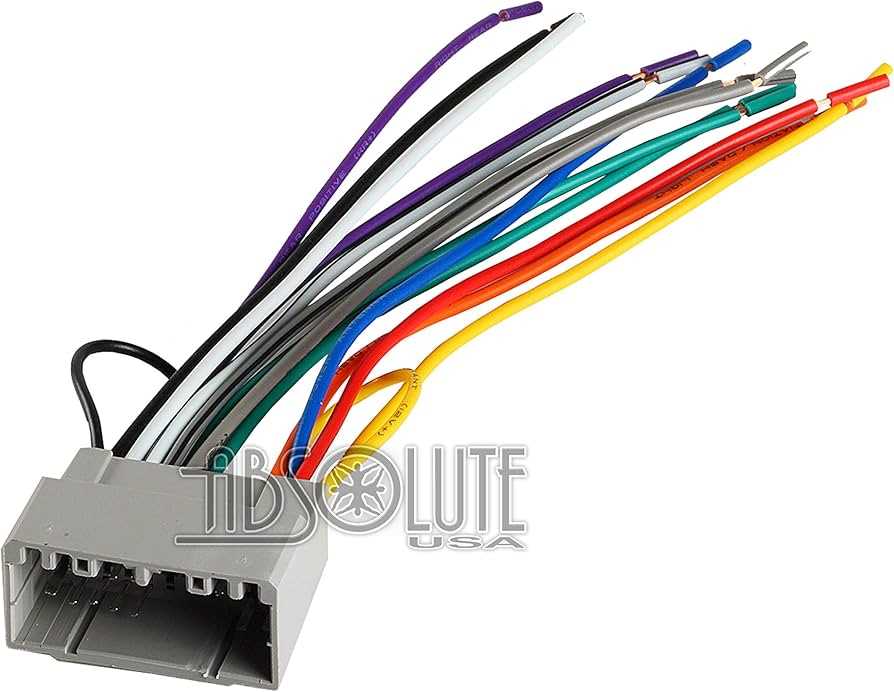

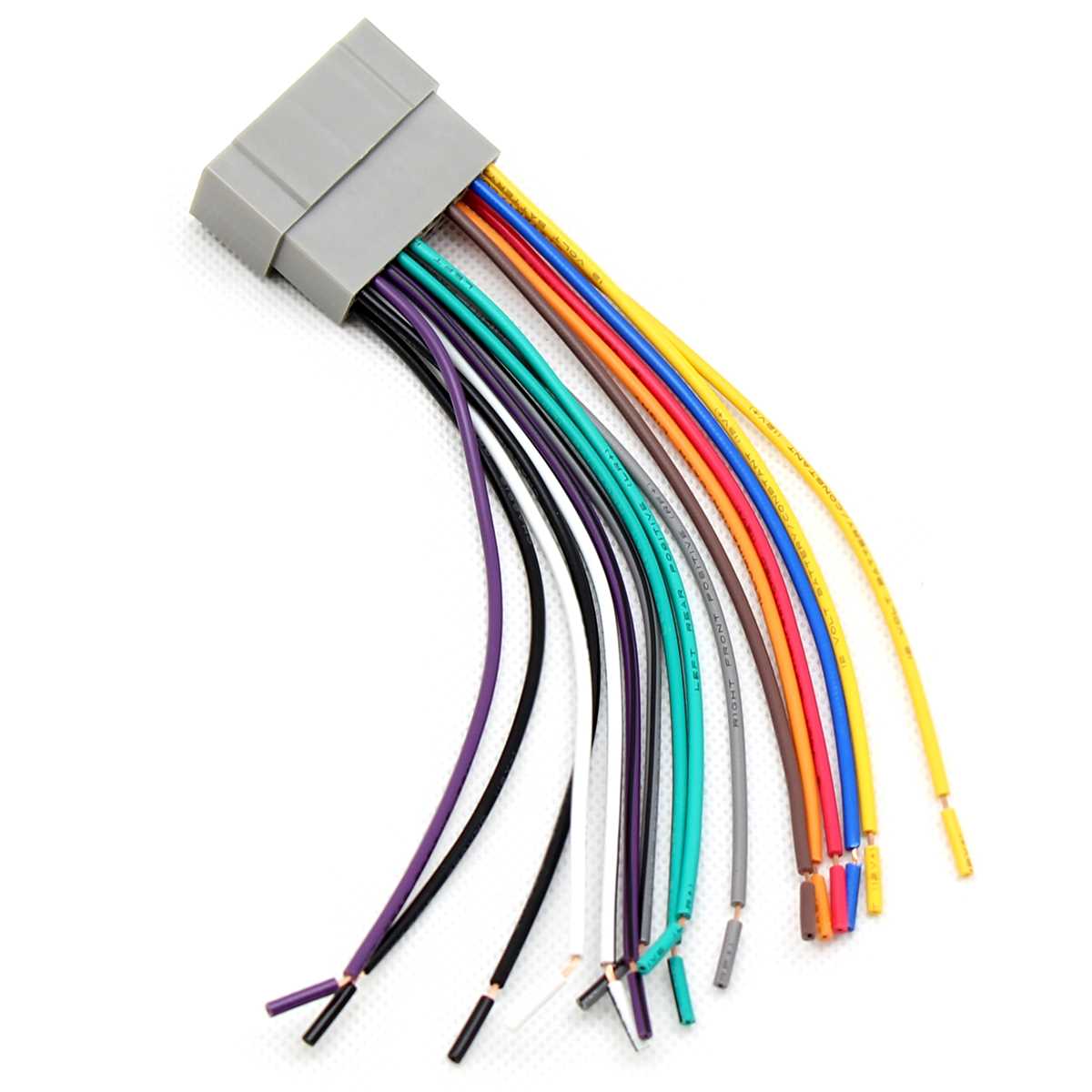

Start by locating the vehicle’s harness behind the factory radio unit. Connect the aftermarket harness adapter to the car’s OEM plug using these color codes:
- Front Left (+): Gray wire
- Front Left (-): Gray/Black stripe
- Front Right (+): Purple wire
- Front Right (-): Purple/Black stripe
- Rear Left (+): Brown wire
- Rear Left (-): Brown/Black stripe
- Rear Right (+): Dark Green wire
- Rear Right (-): Dark Green/Black stripe
- Amplifier Remote Turn-On: Blue/White wire (12V, 200mA max)
Ensure all connections are secured with solder or crimp connectors to prevent signal loss or short circuits. Avoid twisting wires directly–this can degrade sound quality over time.
Troubleshooting Common Issues
If audio cuts out intermittently, check for loose ground connections. The factory ground point is typically located near the driver-side kick panel, marked with a 10mm bolt. Scrape away any paint or corrosion before reattaching. For distorted output at high volumes, verify the amplifier’s impedance compatibility–this model supports 4-ohm speakers natively. Using 2-ohm components without a line output converter can damage the head unit.
Rear door audio units in this variant use a separate harness. Disconnect the door panel by removing the three 7mm screws under the pull handle and two plastic clips near the bottom edge. The tweeter and midrange driver share a single connector: white for positive, white/black for negative. Replace any frayed wires with 18-gauge oxygen-free copper cable to maintain clarity.
- Disconnect the vehicle’s battery negative terminal before handling any connectors.
- Test each channel with a multimeter set to 20V DC–proper voltage at the speaker terminals should read ~4-6V with the radio on.
- Insulate all exposed connections with heat-shrink tubing or electrical tape rated for automotive use.
- Avoid mounting new amplifiers directly to the chassis–use rubber grommets to prevent vibration-induced noise.
Identifying the Correct Factory Radio Connector for Aftermarket Upgrades
Locate the OEM harness adapter matching the vehicle’s original audio system model. Chrysler/Dodge/Plymouth vehicles from this era typically use a 10-pin or 12-pin square connector, often labeled as “Chrysler Premium” or “Infinity” integration. Verify the connector type by cross-referencing the part number etched on the factory harness–common identifiers include Metra 70-1002, Axxess ASWC-1, or Scosche CR02.
Check for color-coded wires on the factory plug to confirm compatibility. Standard configurations include:
- Front Left (+): Gray/Light Blue
- Front Left (-): Dark Blue/Orange
- Front Right (+): Gray/Yellow
- Front Right (-): Dark Blue/Green
- Rear Left (+): Gray/Red
- Rear Left (-): Dark Blue/Brown
- Rear Right (+): Gray/Black
- Rear Right (-): Dark Blue/Tan
- Constant 12V: Red or Pink
- Switched 12V: Yellow or Purple
- Ground: Black
- Illumination: Violet
- Antenna Trigger: Light Green
Use a multimeter to test wire voltages if documentation is unclear. Probe the connector pins while the ignition is on to distinguish between constant power (12V at all times) and switched power (only when ignition is active). A failing test suggests either a blown fuse or incorrect wire identification–replace fuse F6 (10A) or F21 (20A) in the junction box before proceeding.
Adapter-Specific Troubleshooting
If the aftermarket head unit powers on but produces no sound, verify the following:
- Ensure the factory amplifier (if present) is bypassed. Amplifiers in premium systems require the “amp turn-on” signal (typically a 5V-12V wire) to function. Aftermarket harnesses often include a dedicated blue/white wire for this purpose.
- Check speaker impedance. Factory systems frequently use 2-ohm speakers, while aftermarket units default to 4-ohm. Mismatches can cause overheating or distorted output.
- Inspect for parasitic loads. Some vehicles retain door chime modules or warning systems connected to the audio harness. Disconnecting these may disable unrelated vehicle functions.
For vehicles with steering wheel controls, integrate a dedicated interface module (Pac Audio SWI-JACK or iDatalink Maestro RR). These modules require configuration via a vehicle-specific firmware download–consult the manufacturer’s compatibility matrix before purchase. Incorrect pairing risks damaging the CAN bus or disabling critical controls.
Secure all connections with soldering and heat-shrink tubing instead of crimp connectors. Factory harnesses often use thin-gauge wires prone to corrosion or short circuits. Route wires away from sharp edges or moving components to prevent chafing. Test system functionality after each step–addressing issues incrementally avoids compounding errors during installation.
Front and Rear Audio System Connector Pinout Guide
Begin by locating the factory harness behind the driver-side dashboard panel–here, the 12-pin connector interfaces with the front left and right drivers. Pin 1 (gray/violet) carries the positive signal for the front right tweeter, while Pin 6 (gray/orange) handles the negative return. For the front left channel, Pin 2 (gray/light blue) delivers the positive feed, and Pin 7 (gray/yellow) completes the circuit. Verify continuity with a multimeter before splicing aftermarket adapters.
At the rear door panels, the 8-pin connectors service the midrange units. The rear right speaker relies on Pin 1 (brown/white) for the positive input and Pin 5 (brown/red) for ground. The rear left configuration mirrors this: Pin 3 (brown/dark blue) positive and Pin 7 (brown/dark green) negative. Cross-check these against the vehicle’s service manual; colors occasionally deviate on export models.
| Position | Positive (+) | Negative (-) |
|---|---|---|
| Front Right | Gray/Violet | Gray/Orange |
| Front Left | Gray/Light Blue | Gray/Yellow |
| Rear Right | Brown/White | Brown/Red |
| Rear Left | Brown/Dark Blue | Brown/Dark Green |
When integrating a subwoofer, tap into the unused pins at the amplifier harness–Pin 4 (black/light green) and Pin 8 (black/light blue) provide the low-frequency pre-amp outputs. Polarity mismatches here will invert bass response, so label wires during disassembly. For component upgrades, use 18-gauge oxygen-free copper wiring; thinner gauges risk signal degradation under high power.
Door harnesses often conceal additional connectors for tweeters–inspect the A-pillar for auxiliary leads (tan/white stripe) on premium trim levels. These typically require a separate crossover, but direct wiring risks damaging the voice coils. Instead, splice into the main 12-pin connector, ensuring the resistor networks remain intact if the factory equalization depends on them.
For vehicles equipped with a factory navigation system, the rear deck speakers share a multiplexed signal–Pin 2 (purple/black) and Pin 6 (purple/white) combine audio and chime alerts. Disconnect the battery before working on these circuits; shorting them can trigger airbag fault codes requiring a dealer reset. Always trace wires from the head unit outward to avoid misidentifying unrelated modules.
Aftermarket amplifiers may require bridging the front and rear outputs; use a line-level converter if the head unit lacks dedicated RCA pre-outs. The rear channels frequently suffer from clipped signals–measure voltage at the speaker terminals during test tones and compare against the 1.5V RMS standard. Excessive deviation indicates a failing amplifier or corroded ground (check the chassis connection at G301 near the rear hatch).
Twist harness wires every 6 inches to reduce electromagnetic interference, especially near the alternator and ignition coils. Avoid zip-tying audio cables to power wires; separation of at least 8 inches prevents noise induction. If static persists, install a noise filter on the 12V accessory circuit–poor grounding is the most common culprit in aftermarket installations.
