For accurate troubleshooting, begin with the engine compartment fuse block schematic–located near the battery on the driver’s side. Pin 12 (yellow/black wire) carries a 12V feed from the ignition switch to the powertrain control module (PCM). A break here causes intermittent stalling or failure to crank. Verify continuity with a multimeter before replacing any connectors.
Focus next on the instrument cluster wiring. The tachometer signal (pin 3, gray wire) comes directly from the ignition coil pack (cylinders 2 and 3). Resistance should measure between 0.5Ω and 1.5Ω; readings outside this range indicate a short or grounded wire. Replace the coil pack only after confirming the harness integrity.
The rear defroster relay circuit uses a dedicated 30A fuse in the interior fuse panel. Trace the violet/white wire from the fuse to the rear window grid; corrosion at the window terminals is a common failure point. Clean connections with electrical-grade contact cleaner, then apply dielectric grease to prevent recurrence.
For power window issues, check the door module ground (black wire at pin 2) at the driver’s door jamb. A weak ground causes erratic operation or complete failure. Secure the ground screw with thread-locking compound to prevent loosening from vibration.
Download the official factory service manual section for full-color connector pinouts. Cross-reference wire colors with your vehicle’s build date–mid-2001 models have revised ABS wiring (blue/orange replaced by blue/black at pin 18). Print and laminate the relevant pages for under-hood reference during diagnostics.
Electrical Schematics for 2002 Amigo SUV: Hands-On Reference

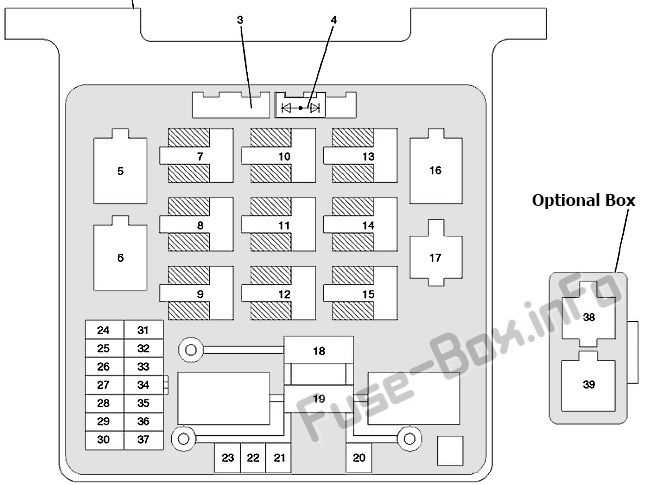

Locate the fuse block under the dashboard on the driver side–pull the release tab beneath the panel to access. Fuse positions correlate directly to this chart:

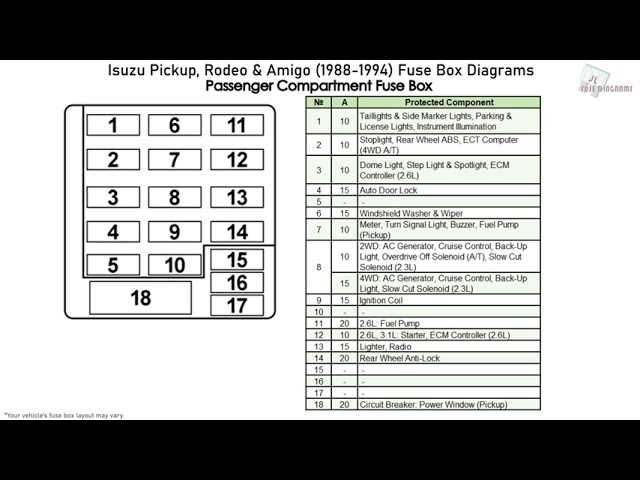

| Fuse # | Amperage | Circuit designation |
|---|---|---|
| 1 | 10 | Front fog lamps |
| 2 | 15 | Hazard flasher |
| 3 | 10 | Parking lamps |
| 4 | 10 | Dome illumination |
Traces from the under-hood relay center terminate in bullet connectors colored red (constant hot), yellow (keyed ignition), and black (ground). Splice samples taken at the rear tail light assembly should register ~12.4 VDC on yellow when ignition is toggled to ON; failure indicates open in harness between relay and tail lamp socket.
Power window regulators share an eight-pin harness plug; white-orange wire feeds the driver door regulator, white-blue feeds front passenger door. Probe continuity at pin 2 of each connector while cycling the switch–absence confirms severed conductor inside the door frame.
Instrument cluster LEDs blink.erratically if the alternator field diode fails. Replace diode pack mounted beneath the alternator rotor; part #8-94491-651-0. Ignore aftermarket diode packs rated below 3A as they cause premature regulator failure.
Cooling fan low-speed mode draws 12A and connects via a 4 mm green wire to temperature switch #1; high-speed pulls 22A via a 6 mm blue wire to switch #2. Both switches thread into the radiator header at 195°F and 225°F thresholds respectively–test switches submerged in heated coolant bath with calibrated thermometer.
Door ajar circuits use two micro-switches per door. Switch #1 closes at latch engagement (orange-red wire), switch #2 opens at striker contact (white-purple wire). Both signals merge at GEM (Generic Electronic Module) pin 37–measure voltage swing 0-5 VDC during door cycle; no swing indicates faulty switch or corroded connector at hinge pillar.
Keyless entry antenna loop nests inside the center console cupholder surround; its dual-core shielded cable terminates at BCM pin 18 (antenna +) and pin 19 (antenna -). Verify nominal impedance 120 Ω across terminals–readings outside 110-130 Ω suggest broken cores within the console harness.
Finding Primary Electrical Conduit Junctions in the Engine Bay
Begin by identifying the fuse box on the driver’s side near the firewall. Remove the cover to expose bundled leads; the largest cluster connects to the main harness beneath the relay panel. Trace the thickest cable–typically black or dark brown–downward, where it splits into subsidiary branches near the battery tray.
Inspect the area behind the coolant reservoir for a secondary junction. Look for a white or gray plastic clip securing 8–12 wires in a corrugated sleeve. This segment often links sensors on the intake manifold to the central system. Use a flashlight to follow the path toward the throttle body; the connectors here are snug but detachable with a firm twist.
Common Connection Points and Tools
- Battery terminal: The positive post includes a fused link bolted directly to the harness; a 10mm socket removes the nut for access.
- Air intake snorkel: Disconnect the clamp at the airflow meter to reveal hidden splices feeding the ECU.
- Strut tower: A ground strap, often overlooked, ties the chassis to the engine block–clean the contact surface with sandpaper if corrosion is visible.
Mark each connector with masking tape before separation. Use a multimeter set to continuity mode to verify circuits–probe the female terminal while activating the corresponding component (e.g., headlights, fuel pump). If resistance exceeds 0.5 ohms, inspect for frayed strands or corroded terminals at unsealed joints.
Hidden Junctions and Diagnostic Checks
- Pop the hood release lever’s protective cover to find a small harness plug powering the latch mechanism.
- Under the windshield washer bottle, a T-shaped splitter controls wiper motor and washer pump–label these wires for reattachment.
- Behind the radiator support, a coiled segment connects to the A/C compressor; tug gently to expose kinked sections prone to internal breaks.
- Shine a mirror underneath the brake master cylinder to locate the ABS module’s inlet–squeeze the tabs while pulling to release.
Reassembly requires aligning each connector flush; listen for a distinct click before moving to the next. If a connector refuses to seat, check for bent pins–use needle-nose pliers to straighten them. Reattach grounds last, tightening bolts to 12 Nm to prevent intermittent shorts.
Decoding Electrical Schematics: Color Codes for Power, Ground, and Sensor Leads
Start by locating the main harness connector for the vehicle’s central control unit–typically a 12-pin or 16-pin block near the fuse panel. Power feeds are almost always red or orange, but variations exist: solid red denotes constant 12V direct from the battery, while red with a colored stripe (red/yellow, red/green) indicates switched power tied to ignition. Ground leads are consistently black, though chassis grounds may use black/white or black/brown stripes for secondary return paths. Sensor wires differ–MAP sensors use blue (signal), blue/red (5V reference), and blue/black (ground); oxygen sensors follow green (signal) and black (ground), with heated circuits adding white (power) and gray (control).
Refer to the repair manual’s pinout charts for exact match-ups–color codes often shift between years or trims even within the same platform. For example, throttle position sensors may use gray (signal), gray/purple (5V reference), and gray/black (ground), while crankshaft position sensors switch to yellow (signal), yellow/black (5V reference), and yellow/red (ground). Avoid assumptions: a red wire in one circuit may carry 12V, but in another (like a fuel pump relay) it might be red/light blue. Use a multimeter set to DC voltage to confirm: probe the suspect lead against a known ground–steady 12V indicates power, 0V suggests ground or unused pin, and fluctuating voltage (0.5–4.5V) identifies sensor outputs.
Cross-Referencing with Known Circuits
Label every wire with masking tape before disconnection to prevent misrouting. The vehicle’s horn circuit, for instance, uses a black/white ground paired with a purple/pink power feed–a rare but critical exception to standard color rules. Airbag systems introduce another layer: yellow wires carry high-voltage trigger signals, while light blue wires manage the diagnostic line. ABS sensors typically split into gray (signal), gray/white (ground), and gray/red (excitation). Compare findings against the schematic’s legend–some manufacturers invert stripe color priorities (e.g., blue/red vs. red/blue) for differentiation. If documentation is unavailable, trace the wire to its source: power wires lead to fuse boxes or relays, grounds terminate at chassis studs or the battery negative, sensor wires connect to computer modules or dash instruments.
Test sensor wires dynamically: connect a scan tool to monitor live data while backprobing. A coolant temperature sensor’s signal wire (usually white) should sweep from 0.5V (cold) to 4.5V (hot). MAF sensors often use pink (signal) and black (ground), with a brown 5V reference. If voltage reads fixed at 0V or 5V, suspect an open circuit or short to ground. For power feeds, verify continuity from the fuse block–fuses labeled “IGN” (ignition) feed switched circuits, while “B+” labels denote constant power. Ground wires should show less than 0.2Ω resistance to the battery negative; higher readings indicate corrosion or broken strands.
Common Pitfalls and Exceptions
Traction control modules reuse sensor colors: wheel speed sensors may mirror ABS wiring (gray signal, gray/white ground), but the control module adds a brown 12V power feed. Fog light circuits often violate norms–green/yellow power with black ground instead of standard red/black. Alternator charge circuits typically use blue for the sense wire and white for the field control, but aftermarket modifications may substitute arbitrary colors. Always check for aftermarket splices or tap-ins, especially in audio or alarm systems–these often repurpose factory wires without updating documentation. If a wire’s behavior contradicts the schematic, probe both ends: a ground wire terminating at the engine block might pick up interference, requiring relocation to the chassis.
For advanced diagnostics, use a tone generator on sensor wires to trace continuity through harnesses–this reveals hidden breaks under tape wraps. Relay-switched circuits (like fuel pumps) may use purple (control) and pink (load), but these colors also appear in A/C clutch signals–context matters. Keep a notebook of verified circuits: note wire gauges (power feeds are thicker), insulation textures (sensor wires often have thin insulation), and connector shapes (oval vs. rectangular). When repinning connectors, match terminal sizes precisely–power terminals (1–2.5mm) differ from signal terminals (0.5–1mm). If uncertainty persists, compare with a known-good vehicle of the same generation–the color-coding consistency usually holds within a 3–4 year production span.
