For owners of this compact sedan model released in the early 2000s, locating the correct electrical connections for the fuel delivery module is critical before attempting repairs. The power distribution to this component follows a specific path: a 10-amp fuse (No. 16 in the under-dash panel) leads to the main relay, which then supplies 12V to the module’s positive terminal. Ground is typically routed through the chassis or a dedicated wire terminating near the rear assembly.
Key components to inspect: The relay (often labeled “PGM-FI” or “ECU”) sits behind the dashboard on the driver’s side; its failure mimics issues with the delivery unit itself. Test for voltage at the harness connector–pin assignments vary slightly between DX and EX trims, with earlier models using a 4-pin layout (red/white: power, black: ground, blue/yellow and yellow/blue: signal circuits) while later versions integrate a 5-pin design. Use a multimeter to confirm continuity; a drop below 11V indicates corrosion or a faulty relay.
Pro tip: The inertia switch–located behind the left-side kick panel–can disable power during impact events. Reset it by pressing the button if no current reaches the assembly. For splices or replacements, match wire gauges precisely: 18-20 AWG for signal wires, 14-16 AWG for power feeds. Avoid twisting connections; solder and heat-shrink tubing prevent corrosion better than crimp connectors.
Schematics for this year’s variant are embedded in section 16-40 of the official service manual. If tracing wires manually, begin at the tank-side plug, noting color-coding remains consistent across most trims except hybrid versions, which introduce an additional purple/white circuit for the auto-stop system. Always disconnect the negative battery terminal before probing circuits to avoid triggering diagnostic codes or damaging sensitive components.
Electrical Layout for Automotive Fuel Delivery System (7th Gen Model)
Begin by locating the main relay box under the dashboard on the driver’s side. The beige-colored connector labeled “PGM-FI” handles power distribution to the injection and pressurization circuits. Pin 1 (white/blue stripe) supplies 12V from the ignition switch, while Pin 4 (yellow/black stripe) delivers voltage through the fuse labeled “ECU” or “Fuel Injector.” Verify continuity between these pins and the sending unit’s harness using a multimeter set to 200Ω.
The pressurization module’s ground connection terminates at a bolt near the rear suspension crossmember. Scrape away corrosion from the bolt head and chassis contact point, then apply dielectric grease before reassembling. A degraded ground path creates voltage drops that mimic failed relays or clogged strainers. Check for 0.2V or less across the ground wire while cranking–readings above 0.5V indicate surface oxidation requiring cleaning.
Follow the loom from the rear sender to the firewall grommet where it enters the cabin. The pink wire (Pin C on the sender plug) carries the tank level signal to the instrument cluster. If the gauge remains static, splice a 10Ω resistor between the pink wire and chassis ground–the gauge should sweep to empty, confirming a severed sender trace or internal float failure.
For models with security immobilizers, the gray/red wire (Pin A7 on the ECM) pulses 5V to the relay coil during cranking. Probe this wire with an oscilloscope; a flatline pattern indicates a dead ECM or cut wiring behind the kick panel. Replace the ECM only after verifying continuity in the gray/red path through the main harness, as splicing repairs often introduce resistance.
Caution: Sidestep generic aftermarket schematics–only factory manual diagrams label critical splice points like the A15 connector junction near the steering column. Use heat-shrink tubing rather than electrical tape on any repair to prevent moisture ingress. Recheck all repaired circuits under load after 100 miles to catch intermittent opens.
Voltage Reference Values
Measurements taken at 75°F ambient, engine off, ignition on:
- Main relay Pin 1: 12.4–12.6V
- ECM relay Pin 3: 0.1V or less
- Sender pink wire: 0.5–4.5V (varies with tank level)
- Injector resistance: 11–14Ω
Finding the Electrical Connector Plugs for the Sender Unit in an Early 2000s Sedan
Begin under the rear seat cushion. On the driver’s side, pry up the carpet retainer clips and fold back the carpet to expose a rectangular access panel, approximately 8×12 inches, secured with four 10mm bolts. Remove these bolts and lift off the panel to reveal the top of the reservoir assembly. The primary harness plugs for the sender unit sit directly on this module–identify the two multi-pin connectors: the larger one (gray or tan) handles sensor signals, while the smaller (black or green) carries power and ground.
Trace the harness upward through the floorpan grommet. The main loom follows a rigid fuel line bracket mounted along the chassis rail–check for a 3/8-inch rubber grommet where the wiring exits the cabin into the underbody. Use a flexible inspection mirror and flashlight to locate the junction where three wires split: a 14-gauge pink/black lead for constant ignition-switched voltage, a 16-gauge black/yellow stripe serving as primary ground, and a 18-gauge white/blue stripe relaying level readings back to the instrument cluster.
- Pink/black wire: Ignition-controlled 12V power input, typically fused at 15A (Fuse #22 in the under-dash box)
- Black/yellow stripe: Chassis ground, often tied to the sender mounting stud
- White/blue stripe: Sender signal output, varies between 0.5V (empty) and 4.5V (full)
Verify connections by unplugging the smaller harness and probing the male pins with a multimeter. Set the meter to DC voltage range: with ignition ON, the pink/black pin should read 11.8-13.2V against ground (exposed chassis). Probe the black/yellow pin–voltage here should be less than 0.1V, confirming proper grounding. Reconnect and measure across the white/blue pin and any chassis point; observed voltage should fluctuate smoothly when manually moving the sender float arm. If readings deviate, inspect for corroded pins or broken solder joints on the internal board.
Step-by-Step Guide to Testing Electrical Relay and Fuse Circuits in Fuel Delivery Systems

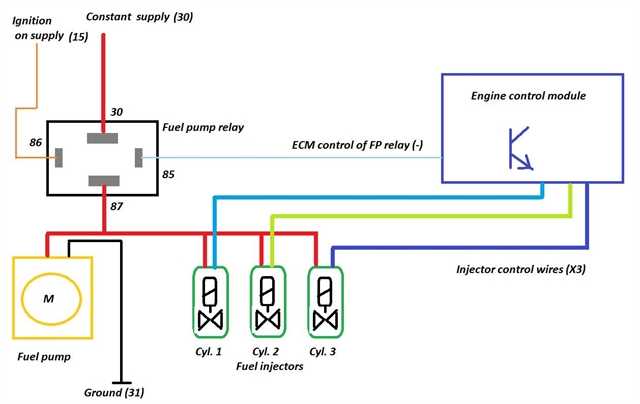

Locate the relay box under the driver side dashboard–most vehicles label circuits on the cover. Remove the relay for the injection system; shake it gently–if no audible click confirms internal movement, replace it immediately. Use a multimeter set to ohms (Ω) to probe relay terminals: pin 85 to 86 should read 50–120 Ω, while 30 to 87 should show infinite resistance. If readings deviate, the relay is faulty.
Verifying Circuit Integrity with Power Applied
Connect the multimeter in DC voltage mode. With the ignition key in the ON position, probe terminal 30 (relay socket) against chassis ground–expect 12V. If absent, trace the red/white (or orange) wire back to its origin at the main power distribution block, checking for corrosion or broken strands. Repeat for terminal 87; no voltage here indicates an open fuse or severed feed line. Check fuse ratings against manufacturer specs–most high-current circuits use 15–20A units.
For ground-side diagnostics, attach one meter lead to battery positive and probe terminal 85–voltage should match battery levels. If low, inspect the shared ground point (often bolted near the strut tower) and clean with a wire brush to remove oxidation. Test terminal 86 for ignition-switched 12V; failure here mandates inspection of the anti-theft module or ignition harness for intermittent breaks. Use a fused jumper wire to bypass the relay temporarily–if the system engages, the relay or its control circuit requires replacement.
Electrical Connector Color Standards and Terminal Layout
Identify the harness side of the power delivery plug by matching the following wire hues to their corresponding functions: B/Y (battery-positive feed, 12V constant), B/Y-W (switched relay output), Gr/R (ground return, chassis connection), and Y/R (ECU-sourced activation signal). Splice resistance between Gr/R and B/Y during baseline diagnostics should not exceed 0.5 ohms; deviations above 2 ohms confirm corroded terminals or a broken conductor path requiring immediate re-termination.
Check activation logic with a back-probe piercing tool–probe Y/R while cycling ignition; voltage must spike to 10–14V within 300ms or inspect the PCM relay coil and starter interlock diode. Never substitute jumper wires for B/Y to Gr/R without a 30A inline fuse; bypassing the relay directly risks melting the 18-gauge lead.
How to Safely Test an Electric Delivery Module Without Full Circuit Activation
Locate the inertia switch under the dashboard or in the trunk–press its reset button before proceeding. Disconnect the main relay or fuse linked to the power supply circuit to isolate voltage from the assembly. Use a 10-amp fused jumper wire to bridge the positive terminal of the tank sender unit to a live 12V source (e.g., battery post or ignition-switched terminal), ensuring the negative lead remains grounded to the chassis. Verify response by listening for a brief hum from the submerged unit or observing a temporary pressure rise on the gauge cluster.
| Component | Safe Voltage Range | Duration Limit | Risk Mitigation |
|---|---|---|---|
| Direct battery jumper | 12.0–14.5V | <5 seconds | Avoid sparks near fuel vapors |
| Ignition-switched circuit | 11.8–13.8V | <10 seconds | Monitor for overheating wires |
| External power pack | 12V regulated | Continuous | Use only for bench testing |
Never exceed 15V input–overvoltage risks damaging the impeller motor. If no hum is detected, probe the assembly’s two-wire connector with a multimeter set to 20VDC; expect 8–12V at the supply pin relative to chassis ground. Replace any corroded connectors før re-testing.
