Begin troubleshooting by isolating the main harness junction near the steering stem–this is the central hub for all primary circuits. Trace the red/white wire from the ignition switch to validate continuity; a break here disables the entire ignition system. Verify the black/white ground lead at the frame connection point under the seat–corrosion here mimics ECU failure symptoms. Use a multimeter set to 200 ohms for resistance checks; anything above 0.5 ohms indicates a poor connection.
The yellow/blue wire from the alternator delivers charging current–test for 13.5–14.5V DC at idle with lights off. If readings drop below 13.2V, inspect the regulator/rectifier’s diode bridge for shorts. The orange wire (right handlebar switch cluster) carries horn and starter signals; ensure the 30A fuse in the main fuse box isn’t blown before probing further. Fuel pump priming is controlled by the gray/black wire–listen for a 1-second buzz at key-on to confirm relay activation.
For lighting circuits, the gray wire feeds headlight high beam–swap bulbs if one side dims but both filaments test intact. Turn signals rely on the light blue and orange/blue wires; flasher unit failures typically show no click at the relay. Instrument cluster diagnostics start with the green/white speed sensor wire–voltage should pulse between 0–5V at 30 mph. If the tachometer reads erratically, inspect the white/black wire from the stator pick-up coil for signal integrity.
Document all findings on a printed schematic before disassembly–label each wire with heat-shrink sleeves to avoid misreconnection. Replace any wire with frayed insulation using 18-gauge Teflon-coated copper rated for 150°C. Solder joints must be crimped with gold-plated butt connectors then sealed with adhesive-lined heat shrink. Avoid twist-and-tape repairs; they degrade within 500 miles under vibration.
Electrical Schematic Analysis for the 2002 Suzuki GSX-R1000
Locate the main harness connector (33P) behind the instrument cluster and verify pin assignments using a multimeter before disassembly. Pin 1 (red/white) delivers 12V constant from the battery via the main fuse, while pin 17 (black/white) serves as ground–deviations here indicate corrosion in the frame grounds near the steering stem.

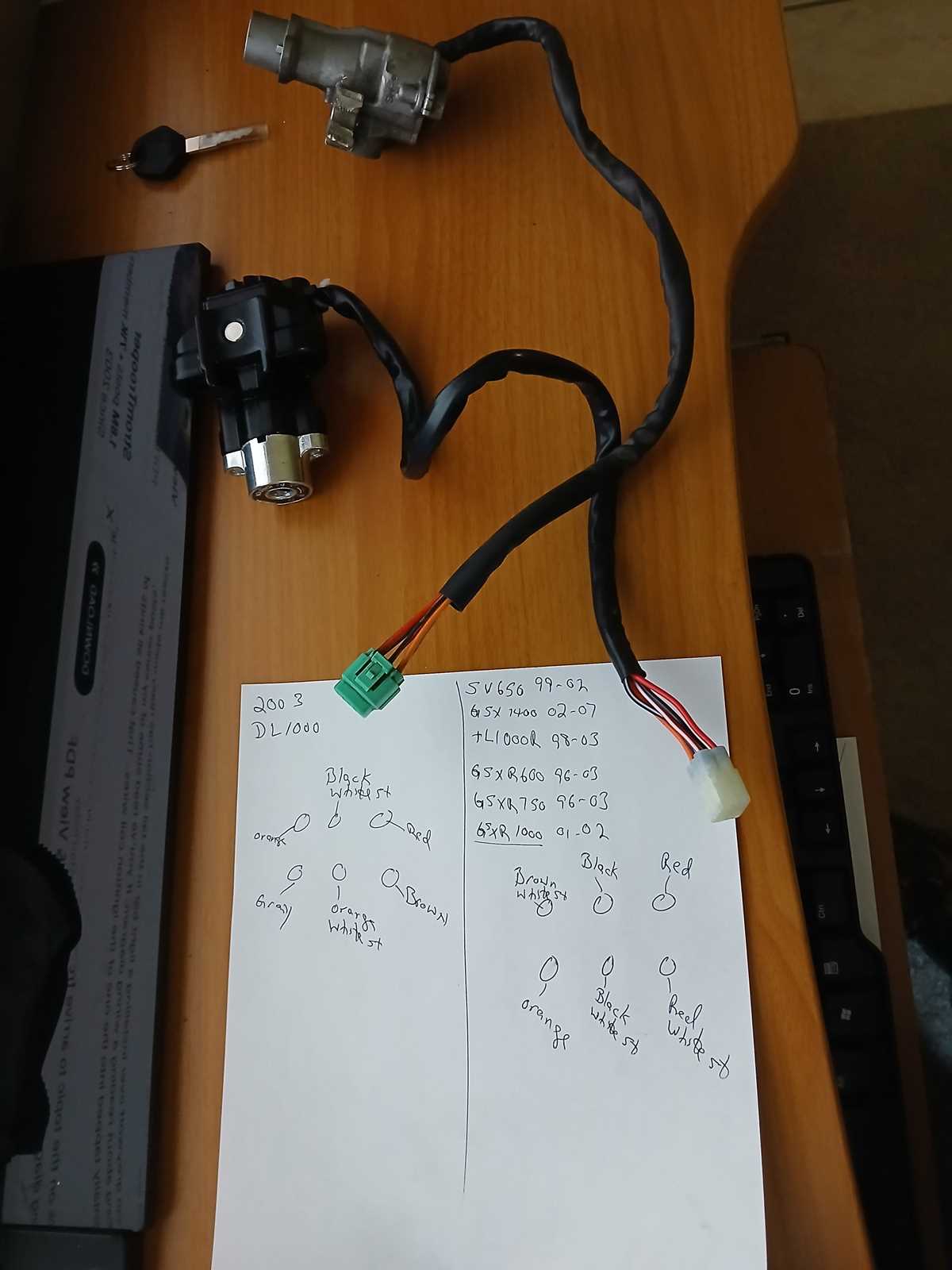

Trace the ignition circuit starting at the ignition switch (10P connector). Pins 1 (red) and 2 (black/yellow) route to the ignition relay, which activates the ECU (black 40P connector). Check for 0.3V voltage drop across relay contacts under load–excessive drop signals a failing relay or corroded terminals in the fusebox.
Inspect the fuel pump circuit by probing pin 3 (yellow/black) at the 5P pump connector. Voltage should rise to 13.8V within two seconds of key-on–delays point to ECU faults or a degraded pump relay (located near the rear shock). Replace the relay if resistance across coil terminals exceeds 120Ω.
Evaluate stator output by measuring AC voltage between any two of the three yellow wires at the 3P regulator connector. Minimum 40VAC at 5,000 RPM confirms stator health; readings below 35VAC require stator replacement. DC output (white/red) to the battery must exceed 14.2VDC at 3,000 RPM–lower values indicate regulator burnout.
Sensor Circuit Verification
Disconnect the throttle position sensor (TPS) 4P connector and measure resistance between pins 1 (gray/red) and 3 (yellow/blue). Closed-throttle baseline should read 1.0-1.5kΩ, rising smoothly to 4.5-5.0kΩ at wide-open throttle. Erratic readings necessitate adjustment or replacement–scrub the throttle bodies before reassembly to prevent false signals.
Test the coolant temperature sensor (CTS) using a decade box. Substitute the sensor’s 2P connector with adjustable resistance: ECU should log 20°C at 2.5kΩ and 80°C at 300Ω. Cranking voltages at the ECU (pin 17, brown/white) should spike to 9.5V–missing pulses confirm CTS failure or signal wire shorts to ground near the radiator fan.
Confirm camshaft position sensor (CMP) operation by monitoring pin 33 (blue/white) at the ECU with an oscilloscope. Each cam lobe should generate a 5V square wave at idle–absent pulses trigger ECU limp mode. Inspect the sensor’s air gap (0.3-0.5mm) and replace if teeth show wear.
Validate turn signal operation by checking the flasher relay (4P, beneath the seat). Pins 1 and 4 supply 12V; pins 2 and 3 output 7.2Hz pulses to the bulbs. Replace the relay if duty cycle exceeds 60% or bulbs illuminate steadily–corrosion in the handlebar switch cluster often mimics relay failure.
Finding Key Electrical Connector Points on the 2003 Suzuki Sportbike
Begin by tilting the fuel tank upward to expose the central frame cavity. The primary harness cluster sits beneath the tank’s rear bracket–two 12-pin connectors flank a single 8-pin unit, secured by black plastic tabs. Depress the tabs fully before attempting separation to prevent damage to the locking mechanism.
Trace the harness from the battery’s positive terminal toward the fuse box. A 6-pin rectangular connector attaches directly behind the fuse block, linking the ignition system and sensor feeds. This connector often collects moisture; inspect the seals for cracking before reconnection.
- Throttle position sensor (TPS): Locate the 3-pin oval connector near the right intake manifold, colored gray or black depending on the bike version.
- ECU interfaces: Two 22-pin connectors nestled beneath the seat subframe–detach the seat first, then remove the rubber grommet covering the harness entry point.
- Lighting clusters: Headlight housing contains a 4-pin connector for low/high beam and position lights; tail section uses a similar 6-pin connector for brake and running lights.
For the instrument cluster link, follow the speedometer cable downward behind the front fairing–look for a 10-pin connector with locking collar. This component rarely requires servicing, but check for loose pins if the tachometer fluctuates erratically.
Underneath the rear cowling, adjacent to the license plate mount, sits the turn signal and rear brake light connector–a 5-pin assembly with one larger ground pin. This area is prone to water ingress; apply dielectric grease during reassembly.
Exhaust sensor connections hide under the right fairing panel: a 4-pin connector joins the oxygen sensors to the main loom. Use needle-nose pliers to release the retaining clip, then twist slightly while pulling to avoid breaking the pigtail wires.
Step-by-Step Guide to Tracing Ignition Circuitry in Schematics
Locate the ignition switch symbol on the left side of the electrical layout–it’s marked by a key-shaped icon with labeled terminals “BAT,” “IGN,” and “ST.” Trace the red wire from “BAT” to the main fuse (30A) near the battery, verifying continuity with a multimeter set to 20V DC. If voltage drops below 11.5V at this point, inspect the fuse or corroded connections.
Follow the black/yellow (B/Y) wire from the “IGN” terminal to the ignition relay coil, then continue to the ignition control module. This path carries the activation signal–check for 12V pulses at the module’s input pin when cranking. A solid-state probe or oscilloscope confirms pulse integrity; random gaps indicate a failing sensor or wiring chafing against the frame.
Identify the pink/white (P/W) wire exiting the ignition module–this is the trigger line to each coil pack. At idle, expect 0.5ms pulses; anything above 2.5ms suggests an open loop or sensor drift. Test resistance across coil primary windings (0.5–1.5Ω) and secondary (5–15kΩ) to rule out internal shorts that distort timing.
Cross-reference the green/white (G/W) wire linking the sidestand switch and clutch lever–this safety interlock must read 0V when the engine is in gear and the stand retracted. Bypass temporarily by bridging the switch terminals to isolate intermittent faults, but never ride without restoring the circuit.
Inspect the brown/red (Br/R) ground wire from the coils to the engine block–corrosion here increases resistance, causing misfires. Scrape the contact surface to bare metal, then apply dielectric grease. Confirm ground integrity by measuring under 0.1Ω between the block and battery negative terminal.

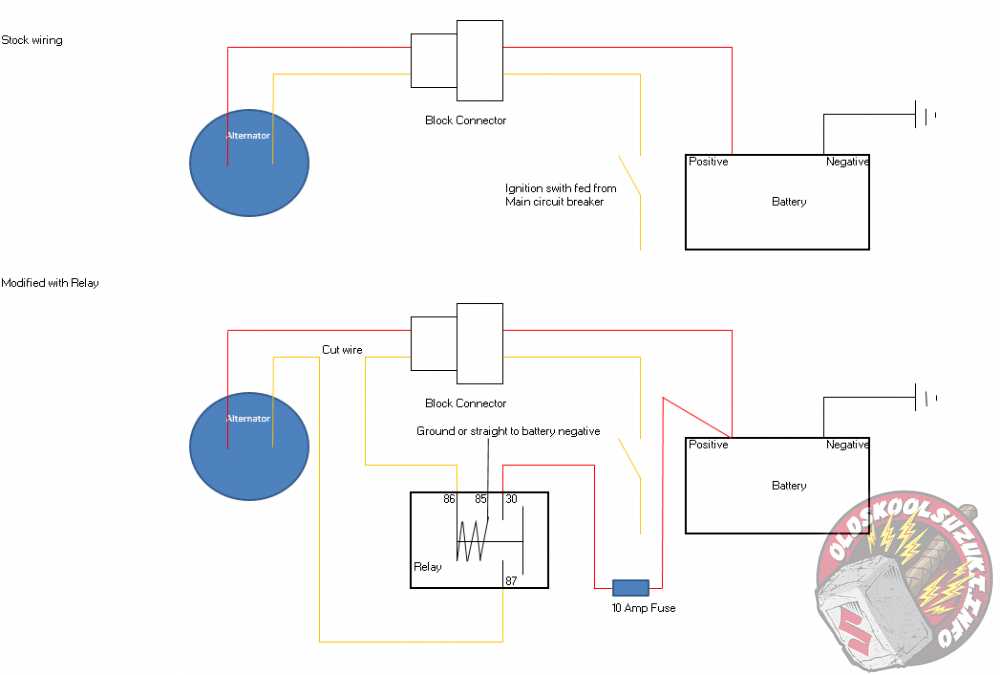

Identifying and Testing the Stator and Charging Circuit Conductors
Locate the stator leads behind the engine cover–typically three thick, yellow wires bundled with a grounding strap. Disconnect the regulator/rectifier connector to isolate the circuit. Using a multimeter on AC voltage (200V range), spin the engine to 4,000 RPM; healthy output should read 50–70V per phase. Below 45V indicates a weakened stator requiring replacement. Validate continuity between phases (0.1–0.5 ohms); infinite resistance confirms an open winding.
| Test Point | Expected Value (Engine Off) | Expected Value (4K RPM) | Fault Indication |
|---|---|---|---|
| Phase-to-Phase Resistance | 0.1–0.5 Ω | N/A | ∞ Ω = Open Circuit |
| Phase-to-Ground Resistance | >2 MΩ | N/A | |
| AC Voltage Per Phase | 0V | 50–70V | |
| DC Voltage at Battery | 12–13V | 13.8–14.5V |
For regulator/rectifier verification, switch the multimeter to DC and probe the red (positive) and green (ground) wires at the connector while running–values must stabilize above 13.5V. A drop to 12.2V suggests a failing rectifier. Confirm diode integrity by reversing probes; reverse current should block (∞ Ω). Replace the unit if forward voltage drop exceeds 0.6V on any diode pair.
How to Trace and Repair Faulty Turn Signal Circuit Paths
Inspect the flasher relay first–remove the fairing side panel to access the fuse box beneath the seat. Use a multimeter to verify voltage at the relay’s input terminal with the ignition on; 12V confirms power delivery. If absent, probe the main harness connector leading to the fuse block, checking for corrosion or broken strands near the battery’s positive lead.
Disconnect both front and rear signal bulbs, then test resistance across each socket’s hot terminal and ground. A reading below 3 ohms indicates a shorted path–commonly caused by chafed insulation where the harness passes through the steering stem or swingarm pivot. Peel back the split-loom tubing to expose damaged sections; apply heat-shrink tubing over bare spots, never electrical tape.
Follow the left-hand control pod circuit: unplug the handlebar switch connector and measure continuity between pins 3 and 5 with the turn lever engaged. No continuity here means an internal switch failure–replace the entire pod rather than attempting solder repairs. For the right-side signals, trace the yellow strip wire back to the junction near the ECU; corrosion at this splice often severs the blinker ground return.
- Remove the lens covers–oxidized bulb contacts cause false “burnt bulb” warnings. Scrub the brass tabs with a wire brush until shiny; re-seat the bulbs with dielectric grease.
- Check the canceling cam sensor behind the front fork tubes–misaligned tabs prevent auto-shutoff. Loosen the clamp and rotate the sensor until the canceling lobe aligns with the cam follower.
- Test the self-canceling module by jumping the turn signal relay socket pins 5 and 6 with a 12V bulb. Failure to flash at 70-90 cycles per minute confirms module failure, not the harness.
Use a tone generator on the blinker wire’s color-coded branches–start at the main harness near the headstock, then probe each fork, tail section, and rear fender junction. A weak signal indicates a partial break; flex the wire at suspected bends while monitoring the tone for dropouts. Cut and splice only when the exact fault point is isolated–redundant splicing introduces voltage drops.
Repair splices with butt connectors crimped at 60 lb•in torque, then soldered and sealed with adhesive-lined shrink tubing. Never use scotch locks–they corrode under vibration. Route replacement segments through existing looms, securing every 15 cm with zip ties to prevent chafing against sharp frame edges or exhaust brackets.
After repairs, verify operation at all speeds–signals should flash consistently at 3 Hz whether idling or at 7,000 RPM. Persistent dimming or rapid flashing indicates a remaining high-resistance fault; check the ground wire ring terminals under the seat rail for loose or painted-over contact points.
