Begin by locating the voltage regulator connector beneath the engine cover–it’s a three-pin plug colored gray or white. Pin A (orange wire) delivers battery voltage to initiate excitation. Pin B (yellow/light blue stripe) carries the sensing circuit from the battery terminal, while Pin C (dark green) grounds through the chassis. Disconnect the plug before probing with a multimeter set to 20V DC to verify 12+ volts at Pin A when the ignition is on but the engine off.
Follow the serpentine belt path to the rear-mounted power unit. The larger output terminal (stud-type, 10mm nut) connects via a thick red cable directly to the positive battery post. A fusible link–typically sectioned in the main harness–protects this circuit. Cut back the insulation sleeve 2 inches from the unit to inspect for corrosion or greenish deposits; clean with a wire brush if present.
Trace the smaller excitation wire–identify it by its thin gauge and thin insulation sleeve–running from the voltage regulator to the rear of the unit. This wire loops through the ignition switch circuit. Use a continuity tester between the wire’s free end and the ignition switch’s “I” terminal while turning the key; a single beep confirms a healthy path. If open, splice in 16-gauge automotive wire with heat-shrink tubing.
Ground integrity determines performance. Scrape paint off the bolt securing the unit’s metal case to the block until bare metal shows. Attach a dedicated chassis ground wire (minimum 12-gauge) between this bolt and a clean engine-mount stud. Test by clamping a voltage-drop meter between the case and the battery’s negative post–readings above 0.2 volts dictate immediate replacement of the ground wire.
Reconnect the three-pin plug last. Crank the engine while monitoring the battery voltage across the posts–healthy readings rise from 12.6 to 14.2-14.7 volts within three seconds. Voltages below 13.8 indicate weak stator fields; replace the entire unit. Keep the headlights on during testing to confirm stable output under load.
Electrical Flow Schematic for a Mid-Size Sedan’s Charging System

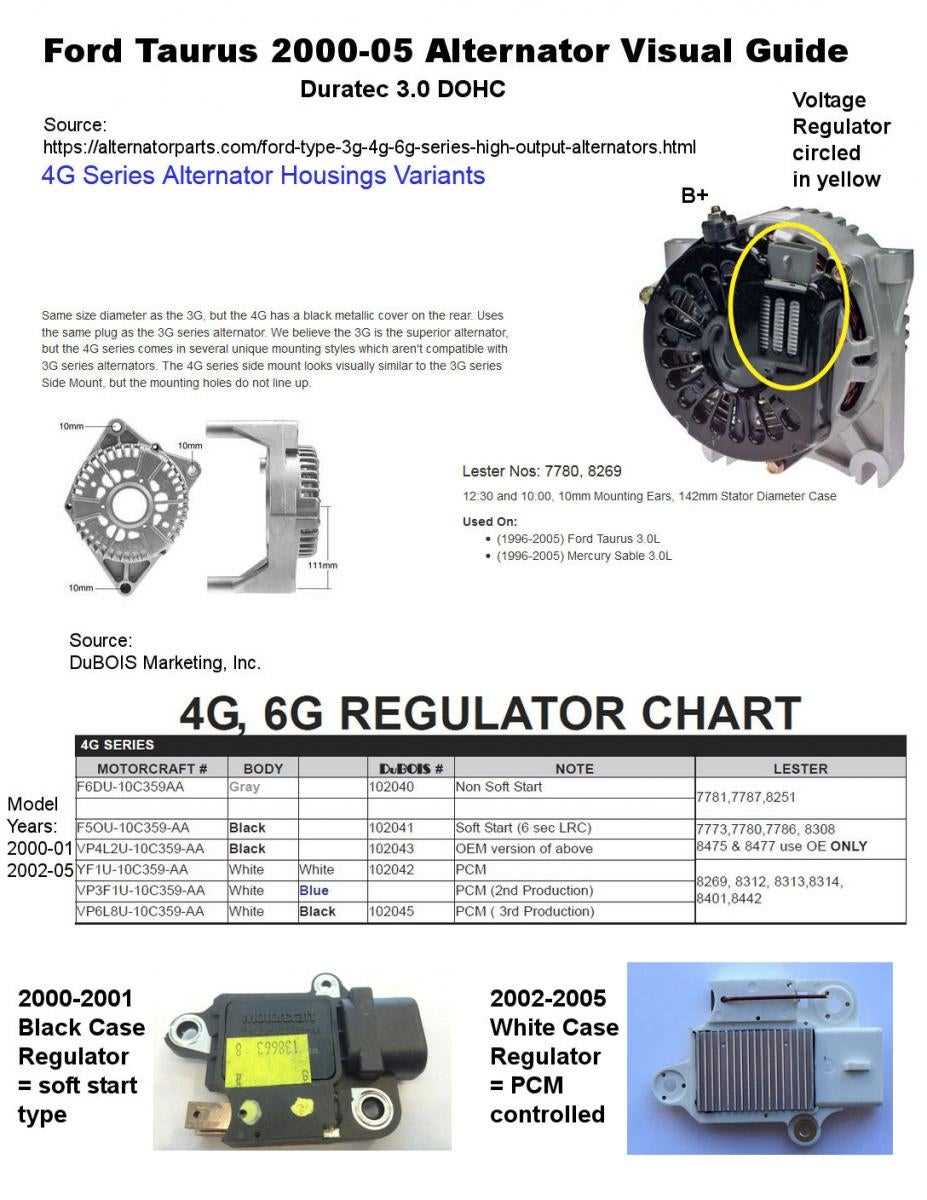

Locate the voltage regulator connector–it’s a 4-pin plug usually nestled near the rear of the engine bay. Pin A (yellow/light blue stripe) feeds the battery sense line, while Pin B (dark green/red stripe) handles the ignition input. Disconnect the plug before testing continuity to avoid false readings.
Trace the heavy-gauge output cable (thick orange wire) from the generator’s positive terminal to the starter solenoid. This cable carries the full charging current and should measure under 0.2 ohms resistance when cold. Clip an inductive amp clamp around it to verify output: 13.5–14.2 volts at 2000 RPM with all accessories off confirms proper excitation.
Examine the fusible link–a 14-gauge red wire spliced from the starter relay to the generator’s excitation circuit. This link acts as a sacrificial protection; if melted, inspect the diode trio for short circuits. Replace the link with same-gauge wire only after resolving any underlying faults.
The warning lamp circuit relies on a single pink/black wire from the instrument cluster to the regulator. If the bulb glows continuously, suspect an open in the generator’s internal diode bridge. Swap the cluster bulb first; many misdiagnoses stem from assuming component failure without checking simplest components.
For bench testing, apply 12V to the dark green/red ignition wire and monitor voltage on the yellow/light blue sense line. An immediate spike to battery voltage proves the regulator’s field transistor is operational. Absence of voltage indicates regulator failure–most mid-2000s models require full replacement rather than repairs.
Label every wire with masking tape before disconnecting connectors. Note connector orientation on the generator’s rear housing; misalignment during reassembly risks damaging plastic tabs and causing intermittent power loss.
Keep a multimeter set to diode-check mode ready when probing circuits. The charging system’s internal diodes should read 0.5–0.7V in one direction and open circuit reverse. Readings outside these parameters signal diode degradation–replace the unit immediately to prevent battery overcharging or premature failure.

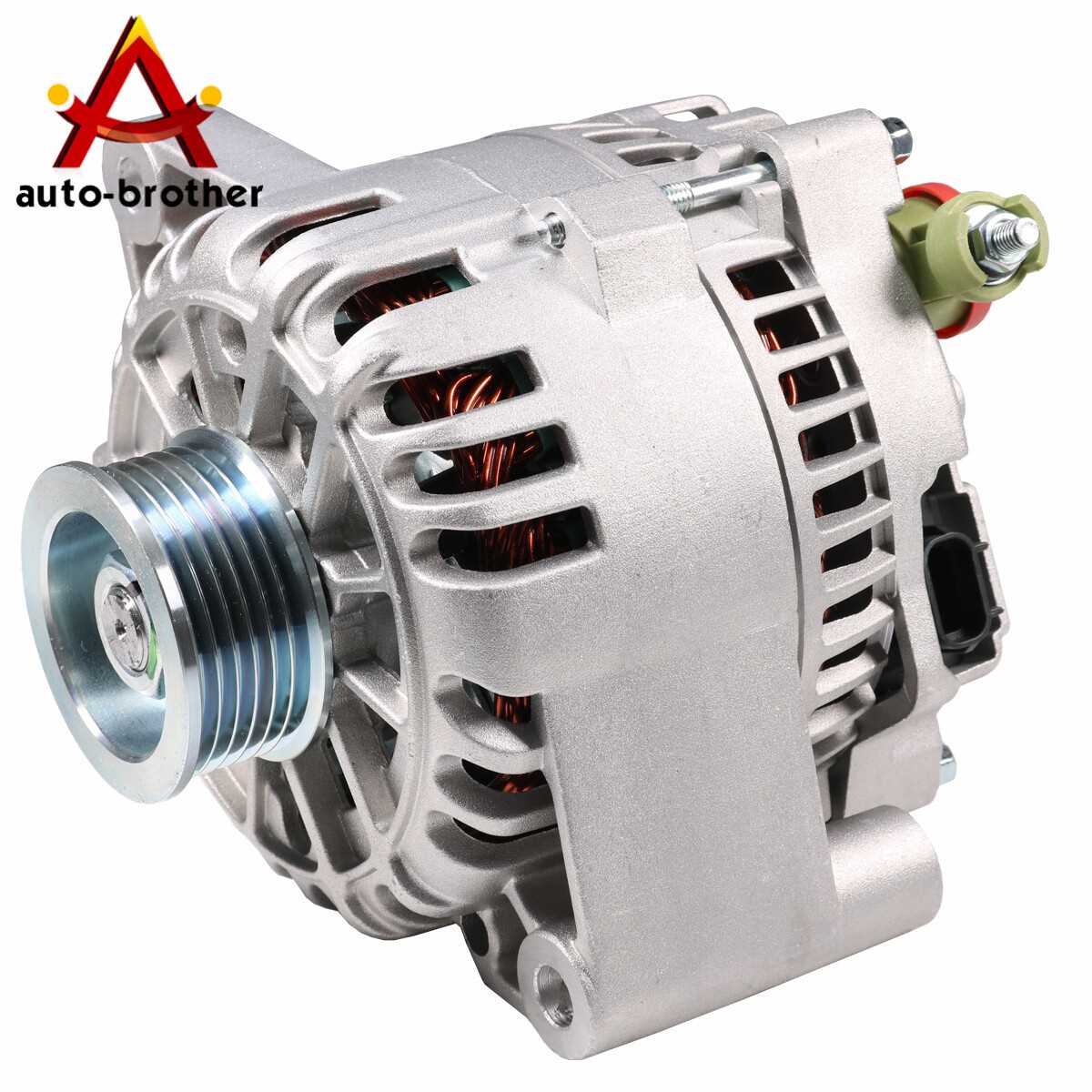

How to Find the Generator Electrical Link Connectors on Your Vehicle
Begin by popping the hood and securing it in place. The power-generating unit is typically mounted on the engine’s front-left side, near the serpentine belt. Follow the main positive lead–a thick cable with a protective boot–from the battery terminal down to the rear of the charging component. The primary connector is located directly behind it, often obscured by a plastic cover or heat shield.
Identify the two key connection points: the larger rectangular plug for the main electrical feed and a smaller two-pin connector for the voltage regulator. The larger plug is usually white or gray, while the smaller one may be black or dark green. Gently press the retaining clip on each connector to release it–avoid yanking wires, as this can damage the terminals inside.
If visibility is poor, use a flashlight to trace the color-coded leads. The primary plug typically contains these wires:
| Wire Color | Function |
|---|---|
| Yellow with a stripe | Battery voltage feed |
| Dark green | Voltage sensing |
| Orange | Ignition-controlled excitation |
| Light blue | Charge indicator (if equipped) |
Check for corrosion or bent pins before reattaching–clean contacts with electrical spray if needed.
For models with an accessory bracket covering the rear of the unit, remove the two mounting bolts first. The bracket often blocks access to the smaller connector, so set it aside carefully. On some variants, an additional ground wire may be bolted directly to the housing–ensure this connection is tight to prevent intermittent charging issues.
Troubleshooting tip: If the dashboard battery light stays lit, probe the smaller connector’s pins with a multimeter while the engine runs. Pin A (typically the top slot) should read 12V when the key is in the “on” position but not cranking. Pin B should show a pulsing signal if the internal regulator is functioning–absence of either indicates a faulty unit or broken circuit.
Label all connectors with tape before disconnecting to avoid confusion during reassembly. If replacing the charging component, transfer any custom brackets or heat shields from the old unit to the new one–failure to do so may cause clearance issues or overheating.
Final check: After reconnecting, start the engine and verify the dashboard charge indicator turns off within 2-3 seconds. If it stays illuminated, recheck connections for secure seating or consult the vehicle’s service manual for specific voltage readings at the battery terminals.
Decoding Electrical Lead Hues and Roles in the Charging System
Locate the yellow/orange lead–this is the voltage sense line that feeds the regulator’s brain, typically tied to the B+ terminal via a 10-gauge fusible link. Clip a multimeter set to 20 VDC here; engine off, expect ≈12.6 V; ignition on, expect ≈12.2–12.4 V. A drop below 12 V signals a corroded sensor path or blown fusible link. For the dark green/light green pair, trace them back to the dash exciter relay–ignition-switched 12 V rides the dark green, while the light green grounds when the relay energizes; continuity must read under 0.3 Ω at rest.
Peel the harness sheath to expose the white (field driver), black/white (ground lug), and striped purple (lamp indicator) conductors. Probe the white lead at idle: 4–6 VAC confirms rotor excitation; below 2 V or above 8 V flags regulator faults. The ground path through the black/white should register zero ohms to chassis; any resistance here elevates ground offset, causing erratic regulator behavior.
Step-by-Step Guide to Testing Voltage at the Generator Connector
Set the multimeter to DC voltage (20V range) and probe the rear of the two-pin plug with the ignition off. Pin A (typically the darker wire) should read 0V; Pin B (lighter wire) must show battery voltage (±0.2V). If Pin B is low, trace the feed back to the fusible link or ignition relay–corrosion at the under-hood junction box is the most common failure point.
Voltage Drop Under Load
Start the engine, let it idle, and re-measure Pin B; the reading should climb to 13.8–14.5V. If voltage sits below 13.2V, clamp an inductive amp probe around the output cable–current below 5A at 2000 RPM confirms an open diode trio or stator winding. Back-probe the regulator connector with a T-pin to isolate whether the drop originates from the exciter circuit or the internal bridge rectifier.
Mapping the Electrical Flow from Generator to Power Source and Protection Panel
Begin by locating the main output terminal on the charging component–typically marked with a “+” symbol or a bolt sized 10mm. This stud connects directly to a thick cable, usually 4-6 gauge, coated in red or orange insulation. Trace this line toward the front of the engine bay, noting any intermediate connections such as ring terminals secured under bolts on the engine block or chassis.
Follow the high-current conductor as it routes through the firewall into the vehicle’s interior. The path often passes through a grommet near the brake master cylinder or the steering column. Verify continuity at this transition point by probing both ends of the cable with a multimeter set to resistance mode–readings above 0.5 ohms indicate corrosion or partial breakage requiring immediate replacement.
Identifying Fuse Box Integration Points
The cable enters the distribution center through a large bolt-on terminal, often labeled “BAT” or “30.” Disconnect the negative battery clamp before inspecting this connection. Look for:
- A copper busbar with multiple attachment points.
- A high-amperage fuse (usually 80-120A) inline with the conductor.
- Smaller branch circuits feeding ignition systems and ECU modules.
Clean oxidation from all contact surfaces using a wire brush and apply dielectric grease to prevent future corrosion.
Check the fusible link–a short segment of specialized wire–between the main power cable and the fuse holder. This safety device melts under excessive current, protecting downstream components. Replace if showing any signs of bubbling, discoloration, or necking. Use only factory-specified gauge wire for repairs, never ordinary automotive wire which lacks heat-resistant insulation.
Examine the ground path originating from the rear housing of the charging unit. A braided strap or #2 gauge cable connects to the engine block, chassis, or a dedicated ground stud near the strut tower. Resistance between the generator case and battery negative should measure less than 0.2 ohms. Common failure points include:
- Loose mounting bolts causing intermittent contact.
- Paint or undercoating preventing proper conduction.
- Corroded body grounds near the rear suspension.
Scrape clean all mating surfaces and apply corrosion inhibitor after reassembly.
Inspect the voltage sense wire–a small-gauge conductor typically blue or yellow–trailing from a separate terminal on the charging system. This circuit delivers battery voltage readings to the internal regulator, enabling precise output adjustment. Route this wire away from moving parts and exhaust manifolds. Secure loose strands with cloth tape or spiral wrap to prevent chafing against sharp edges.
Verifying Voltage Regulation Circuits
Test the vehicle’s electrical system with a scan tool capable of reading charging voltages. With engine idling and all accessories off, voltage should stabilize between 13.8-14.5V at the battery posts. Readings outside this range suggest:
- Failed internal regulator.
- Faulty diode trio causing parasitic drain.
- Poor connection at the voltage sense terminal.
Replace defective components rather than attempting repairs–modern charging units use integrated circuits not serviceable through soldering.
Finally, confirm all connections meet torque specifications:
- Battery terminal clamps: 12-15 Nm
- High-current conductors: 18-22 Nm
- Voltage sense terminal: 3-5 Nm
Over-tightening splits terminal blocks while under-tightening causes resistive heating and premature failure. Apply anti-seize compound to threaded connections exposed to moisture.
