Locate the factory harness behind the dash panel on the driver’s side. The 18-pin connector labeled C250 will display color-coded leads: solid orange for 12V constant, striped yellow for switched ignition, brown with a black stripe for ground, gray for antenna trigger, and purple pairs for speaker outputs (front right and left). Verify each circuit with a multimeter before attaching aftermarket components to confirm voltage and continuity.
For aftermarket stereo integration, splice into the purple/white (+) and purple/green (-) wires to maintain OEM speaker balance. Bypass the factory amplifier if retaining stock sound–cut the pink wire at the C250 connector to prevent distortion. On models equipped with a premium audio package, the 8-pin harness (T62) near the glovebox supplies amplified signals; connect directly to these wires to preserve equalizer settings.
Reset security features after installation by disconnecting the vehicle battery for 30 minutes. Reconnect the negative terminal first to prevent surge damage. If the display shows “CODE,” retrieve the factory anti-theft sequence from the owner’s manual section 4-2 or use the key cycle method (turn ignition to RUN, press and hold the SEEK button until the code appears).
Aftermarket Sound System Integration for Heavy-Duty Super Duty Models
Locate the factory harness behind the dash cluster near the steering column–pinpoint the 12-pin rectangular connector labeled “C250” on the vehicle’s harness. Match color-coded wires to the aftermarket unit’s power, ground, and speaker leads to avoid splicing errors. The yellow (constant 12V), red (accessory), and black (chassis ground) wires demand direct connection to the truck’s fuse block for stable performance under heavy electrical loads.
Verify speaker polarity before finalizing connections. Factory tweeters and woofers on this chassis utilize reversed polarity (+/-) compared to standard aftermarket systems–swap leads if audio output distorts or lacks bass. For amplified models, tap the orange/light-blue striped wire (illumination) to maintain dimmer synchronization with dashboard controls. Avoid routing wires near the transmission tunnel or fuel lines to prevent interference or chafing.
Core Wiring Color Codes for Head Unit Replacement
| Component | Factory Wire Color | Aftermarket Connection |
|---|---|---|
| Battery (Constant) | Yellow with black stripe | Yellow (memory) |
| Ignition (Accessory) | Red with light blue stripe | Red (switched) |
| Ground | Black | Black |
| Front Left Speaker (+) | White with violet stripe | Gray |
| Front Left Speaker (-) | Brown with white stripe | Gray/Black |
| Front Right Speaker (+) | Dark green with yellow stripe | White |
| Front Right Speaker (-) | Light green with black stripe | White/Black |
For amplified setups, the factory harness includes a pink/black wire (power antenna trigger)–repurpose it to activate external amplifiers by splicing into the aftermarket unit’s remote turn-on lead. Test all connections with a multimeter before securing the head unit; voltage drops below 11.8V at the red wire indicate a faulty ignition relay or poor ground.
Upgrade the inline fuse between the yellow wire and battery terminal to a 20A blade fuse if installing high-power subwoofers–this chassis’ stock 10A fuse risks failure under sustained bass loads. Route RCA cables away from the engine bay and OBD-II port to eliminate engine noise interference. Secure harnesses with nylon zip ties every 6 inches to prevent vibration damage during off-road use.
Troubleshooting Common Integration Issues
No audio output? Check the brown/white wire (left speaker negative)–it’s prone to corrosion on older trucks. Static at higher volumes typically stems from a weak ground; relocate the black wire to a bare chassis bolt behind the glove box. If the head unit powers on but fails to retain settings, the yellow wire’s connection to the fuse panel may be loose–crimp a new terminal for better contact.
Finding the Audio System Connection Port in Your Heavy-Duty Pickup
Begin by removing the lower dash panel beneath the climate controls. A single 7mm bolt secures it–no hidden clips interfere. Once detached, the main electrical interface appears as a 12-pin rectangular plug with white, orange, and dark blue wires bundled together. This cluster is directly behind the factory-installed receiver cavity, tucked left of the HVAC housing.
If the harness isn’t immediately visible, trace the antenna cable downward. It leads straight to the connector block, which sits flush against the firewall brace. Gently press the release tab–no excessive force required–to disconnect the plug. Note the orientation: the side with larger gauge wires faces outward, matching the aftermarket head unit’s harness layout.
For Super Duty models equipped with premium audio, an additional 8-pin amplifier plug lurks behind the glove box. Lower the compartment door fully to expose it. The connector is wrapped in black corrugated tubing and shares the same orange power lead as the main harness–verify continuity before splicing.
Alternative Access Points
On crew cab configurations, removing the driver-side kick panel grants secondary access. Pry carefully along the perimeter to avoid snapping plastic retainers–three Philipps screws hold the panel in place. The wiring loom here branches into two connectors: one for the front speakers, another for the rear subwoofer if present. Label each before detachment.
For dual-receiver setups, the secondary harness hides behind the center console. Drop the storage bin by unscrewing four 8mm bolts, then tilt the unit forward. The ports mirror the primary connector’s pinout but include a distinct violet wire for delayed accessory power–critical for avoiding parasitic battery drain.
Verify all connections under a 100-watt LED work light. Stubborn debris often accumulates in these recesses; compressed air clears it without risking wire insulation damage. Reassembly order: secure the amplifier plug first, then the primary harness, and finally the dash panel–this prevents pin misalignment.
Understanding Harness Connector Pinouts for Factory Audio System Upgrades
Start by locating the 12-pin rectangular plug behind the dashboard’s center console–this is the primary interface for the vehicle’s audio harness. The upper row (pins 1-6) typically handles speaker outputs, while the lower row (pins 7-12) manages power, ground, and accessory feeds. Verify each connection with a multimeter set to DC voltage before proceeding.
Key color codes and their standard assignments:
- Dark Green/Violet (DG/V): Rear left speaker (+)
- Dark Green/Orange (DG/O): Rear left speaker (-)
- Gray/Light Blue (GY/LB): Front right speaker (+)
- Gray/Brown (GY/BR): Front right speaker (-)
- White/Light Green (W/LG): Front left speaker (+)
- White/Brown (W/BR): Front Left speaker (-)
- Violet/Yellow (V/Y): Rear right speaker (+)
- Violet/Black (V/BK): Rear right speaker (-)
Power feeds require special attention. The Yellow (Y) wire (pin 12) delivers constant 12V battery voltage, while the Red/Black (R/BK) (pin 10) supplies switched power from the ignition circuit. Ensure these wires are properly fused–10A for constant power, 5A for switched–to prevent electrical faults.
Ground connections use a Black (BK) wire routed directly to chassis metal, often near the original mount. Poor grounding causes interference, static, or intermittent operation. Scrape paint from the attachment point and secure with a ring terminal for reliable conductivity.
Illumination control wires–Orange/Light Blue (O/LB) (pin 11)–adjust display brightness in sync with dashboard lights. If dimming function is required, solder this wire to the new unit’s dimmer input; otherwise, tape it off to avoid shorts.
For vehicles equipped with premium audio systems, an additional 8-pin plug may include:
- Gray/Red (GY/R): Rear amplifier trigger
- Dark Blue/White (DB/W): Steering wheel control data
Isolate these unless the aftermarket head unit supports these features.
Label each wire with masking tape during disassembly to avoid misconnections. Use crimp connectors or solder joints sealed with heat-shrink tubing for weatherproofing. Test speaker polarity with a 9V battery–correct wiring produces outward cone movement.
Step-by-Step Guide to Integrating New Audio System with Stock Harness

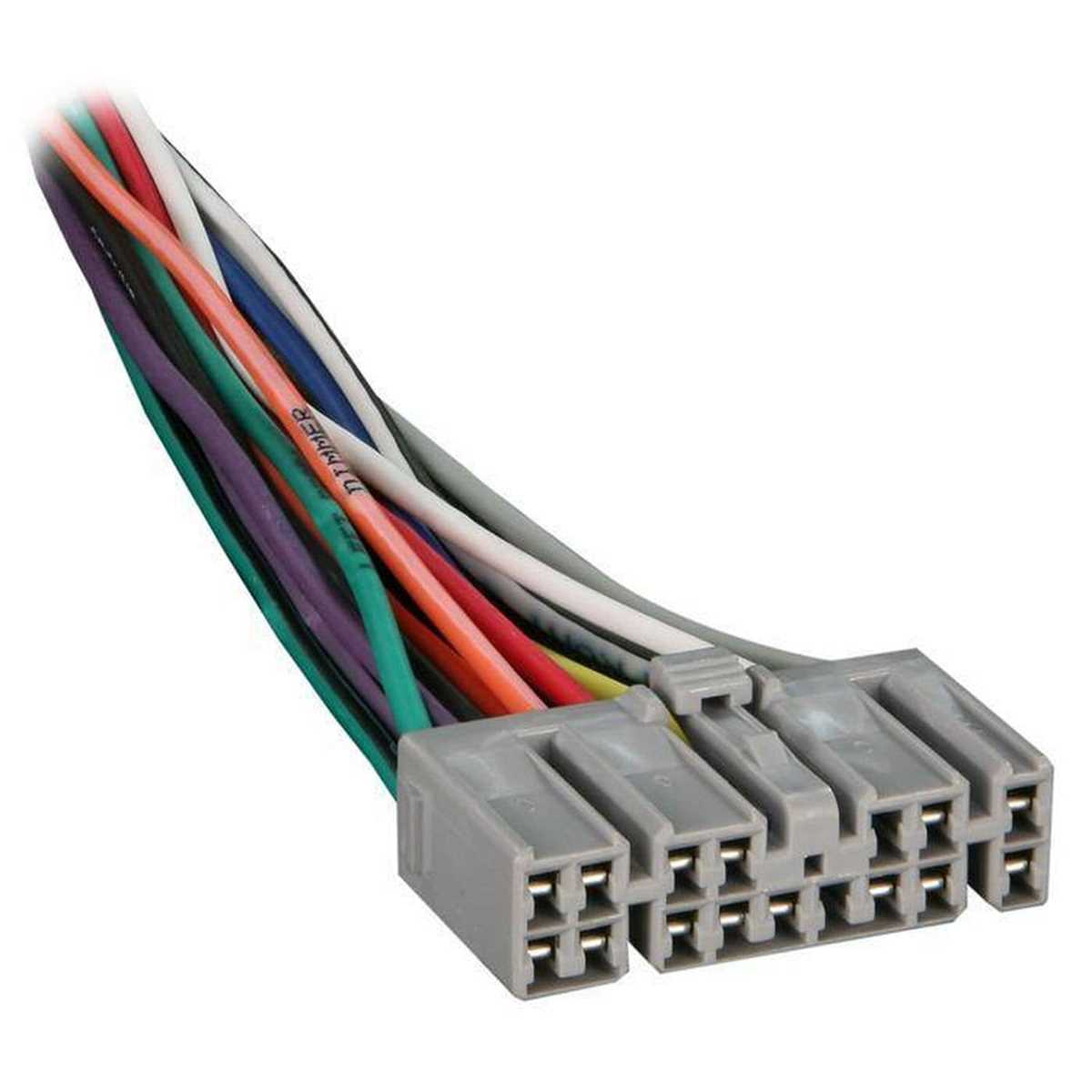

First, secure an adapter harness matching the vehicle’s original connection layout–OEM pins on one end, bare leads on the other. Cut the factory loom 3 inches from the plug, strip 1/4 inch of insulation, and twist strands tightly to prevent fraying. Match colors precisely: yellow (constant 12V), red (switched 12V), black (ground), orange/white (illumination), light blue (remote antenna turn-on), and purple (reverse signal). Solder each joint using 60/40 rosin-core solder, then wrap with adhesive-lined heat shrink tubing before heating to seal.
Testing Connections Before Finalizing
Before securing the unit, use a multimeter set to DC 20V to verify voltages. Probe yellow wire to chassis ground–expect 12.6V with ignition off (battery voltage). Check red wire–must read 0V off, 12V ignition-on. Ground black wire separately if chassis connection shows resistance above 0.1 ohms. For amplifiers, splice light blue wire into aftermarket head unit’s remote turn-on lead, ensuring it carries 12V when activated. Validate speaker outputs: front left (gray/light blue stripe), front right (white/light blue stripe), rear left (green/violet stripe), rear right (violet/green stripe)–each should measure 4-8 ohms to ground.
Route wires through dash cavities using existing loom paths, avoiding sharp edges or moving components. Bundle excess length with spiral wrap, not zip ties, to allow future adjustments. Connect RCA inputs to amplifier if present, using shielded cable to minimize interference. Power up the system, confirm all functions (tuner, Bluetooth, USB) operate without distortion or dropouts. Recheck connections if static persists–factory noise suppression may require inline filters on power feed.
