Start by locating the factory wiring harness behind the dash fascia–specifically the 18-pin gray connector on the back of the original receiver slot. Pin assignments follow a standardized pattern: yellow (constant 12V+), red (switched 12V+), black (ground), orange (illumination), blue-white (amplifier turn-on lead). Test each wire with a multimeter before splicing–voltage readings should stabilize at 12.6V for power feeds and 0Ω continuity for ground paths. Avoid guessing colors; miswiring risks blowing the 10A fuse linked to the accessory circuit.
For aftermarket units, match the ISO wiring standard using an adapter harness or direct soldering. Cut only the required wires–front left (+) gray, front right (+) violet, rear left (+) green, rear right (+) purple–and crimp with gold-plated butt connectors to prevent corrosion. If the steering wheel controls stop responding, splice in a resistor network (2.2kΩ for volume up, 470Ω for seek) or install an interface module designed for CAN bus protocols.
Common pitfalls include ignoring the antenna lead (usually a single-pin coaxial) and misaligning the vehicle speed sensor wire (typically pink/black), which enables speed-sensitive volume adjustment. Always disconnect the negative battery terminal before working to prevent airbag deployment or ECU resets. For persistent interference, wrap signal wires in aluminum foil ground shields and route them away from spark plug cables and alternator outputs.
Reference the pinout table from the OE service manual if labels differ–some variants use white/green for park brake instead of standard brake light signals. Keep a backup of factory presets using an OBD-II scanner if reprogramming the head unit’s security code (default: 0000). For troubleshooting no audio, check the speaker impedance (should measure 4Ω per channel) and verify the radio chassis isn’t shorting to the vehicle frame.
Vehicle Audio System Connection Guide for 2001–2003 SUV Models
Begin by locating the factory harness behind the dashboard’s lower panel–specifically the 12-pin plug labeled C9040. Pin assignments follow this sequence: pin 1 (dark green/violet) carries constant power from the battery; pin 2 (light green/orange) provides switched 12V ignition; pins 3–6 handle left and right front speaker outputs, with pin 3 (gray/red) delivering positive left front and pin 4 (gray/black) its ground, while pin 5 (white/violet) and pin 6 (white/brown) repeat the pattern for the right front. Rear speaker connections occupy pins 7 (violet/orange) for positive left rear and pin 8 (violet/black) for its return, with pins 9 (brown/yellow) and 10 (brown/light blue) mirroring the setup for the right rear channel. Illumination and dimming control are wired to pin 12 (light blue/white), which adjusts display brightness in sync with the instrument cluster.
Ground wires demand direct attachment to the chassis–preferably the mounting stud near the driver’s side kick panel. Factory amplifier models, if present, require an additional 8-pin plug (C9038) where pin 1 (black/pink) serves as the primary ground, pins 2–5 manage speaker-level signals for front and rear channels, and pin 8 (orange/light green) delivers accessory power. Avoid splicing into these leads unless replacing the head unit with an aftermarket deck, as impedance mismatches risk damaging the amplifier or causing low-volume distortion.
Critical Color-Code Deviations Across Trims
Certain mid-level trims substitute pink/light blue for the standard dark blue/red antenna lead, necessitating a test with a multimeter (set to DC volts) before connecting RF equipment. Hybrid subwoofer outputs–found only in premium packages–route through pin 11 (tan/yellow), a switched 4-ohm feed requiring an amplifier with dedicated sub outputs. If retrofitting a navigation module, ensure compatibility with the vehicle’s CAN bus protocol by tapping into pins 7 and 8 of the data link connector (DLC), located beneath the steering column; failure to do so triggers error codes U1900 or U2510, disabling audio feedback until cleared with a scan tool.

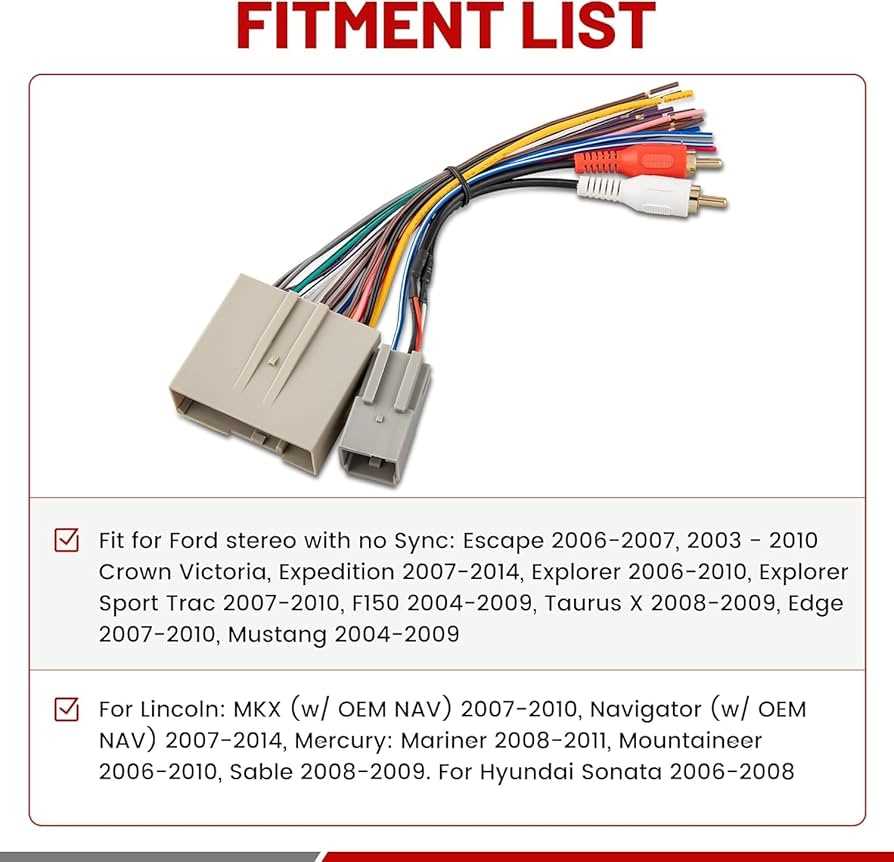

Aftermarket adapters like Metra AX-43 or Scosche FE02B simplify integration by remapping factory harnesses to ISO standards, but verify wire gauge–factory harnesses use 18 AWG for power and 20 AWG for signal, while budget adapters sometimes downgrade to 22 AWG, leading to voltage drop under high loads. For vehicles equipped with satellite readiness kits, the roof-mounted antenna harness (part #ML3T-18C815-AC) splits into three coaxial leads: blue for satellite, white for AM/FM, and black for ground–cross-connecting these disrupts signal lock.
Anti-theft systems rely on a small red/yellow wire (pin 3 of C9041) that grounds momentarily during unlock cycles; cutting this wire to extend power feeds bricks the PATS module, requiring dealer reprogramming. If static persists despite proper shielding, inspect the ground braid between the chassis and the transmission tunnel–corrosion here introduces noise into the audio signal path, particularly noticeable on CD playback. For manual transmissions, the backup lamp harness (light green/purple) can be repurposed for reverse-triggered amplifiers, but polarity must match the factory switch (12V+ on reverse, ground otherwise) to prevent inverter damage.
Final validation involves testing all channels at 75% volume with a pink noise generator; imbalance between front and rear suggests a broken trace in the factory harness or a failed amplifier relay (R90, located in the under-hood fuse box). If retrofitting a Bluetooth module, prioritize adapters with A2DP support–older FM transmitters inject hiss into the audio spectrum due to limited bandwidth. Retain the original antenna motor if replacing the head unit; bypassing it forces manual tuning, as modern receivers lack the voltage regulation (5V on orange/black) required for autoSeek functionality.
Locating the Proper Audio Interface Connector Terminals
Begin by acquiring a multimeter with continuity testing capability–probes rated for automotive voltage (12V DC) ensure accurate readings without false negatives. Probe the vehicle’s main entertainment system plug with the ignition off; ground the black lead to any unpainted chassis point, then touch each pin sequentially with the red lead while observing the meter.
Critical terminals typically include:
- Constant 12V – Delivers power regardless of ignition state, often fused at 10A.
- Switched 12V – Energizes only when key is in ACC or ON position, usually fused at 5A.
- Ground – Zero-volt reference; resistance should measure under 0.5 ohms.
- Illumination – Dimmer-controlled 5-10V output when headlights activate.
- Speaker outputs – Four pairs (front/rear, left/right), impedance between 2-8 ohms, often twisted pair configurations.
- Mute – Pulls to ground during phone calls or navigation prompts (1-2V drops).
- Antenna trigger – 12V pulse to power automatic antenna motor, max 300mA draw.
If meter readings deviate, cross-reference against the factory service manual’s pinout schematic–OEM documentation lists exact wire gauge, insulation color codes (e.g., pink/orange stripe for switched power, brown/white stripe for left rear speaker +). Avoid splices; direct crimp connectors (3M Scotchlok or TE Connectivity) maintain signal integrity better than solder.
For aftermarket upgrades, match the new device’s pin assignment to the vehicle’s harness using an adapter–never cut original wires. Verify speaker polarity by briefly touching each terminal: correct phase emits a distinct crackle from the respective door or dash unit, while reversed polarity produces muted, phase-cancelled audio.
Check for parasitic draws by disconnecting the main plug and measuring current between the battery positive terminal and the harness’s constant power wire–any reading above 50mA indicates a faulty module or short demanding immediate isolation via fuse removal. Probe each speaker wire individually while playing a 1kHz sine wave test tone at low volume; distorted output suggests damaged voice coils or corroded terminals requiring terminal block replacement.
Trace illumination circuits back to the dimmer switch with the multimeter–corrosion in the switch housing often mimics bulb failure. Use dielectric grease on terminals exposed to moisture (e.g., rear hatch harness), preventing oxidation that causes intermittent signal loss. Avoid generic “universal” adapters; model-specific harnesses (Metra or Axxess) pre-mold connector shells ensuring exact pin alignment.
Label each harness segment with shrink tubing flags before final assembly–include wire function and origin (e.g., “FR+ Door WHT/RED Stripe”). Store unused harness segments with desiccant packets to prevent moisture ingress during long-term installations. Validate installation by cycling through all media sources (AM/FM/CD/AUX) and climate controls–modern infotainment systems share LIN bus data lines, so interference may arise from incorrect grounding.
Step-by-Step Wire Color Coding for Aftermarket Audio System Integration

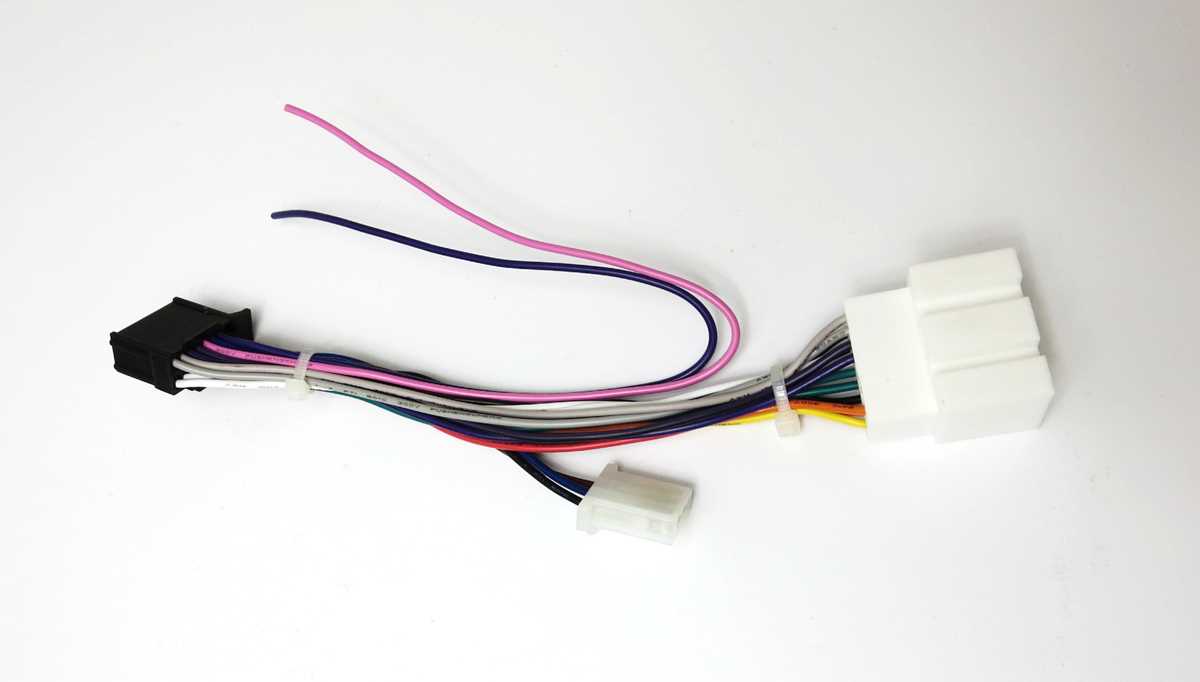

Locate the vehicle’s harness connector behind the factory unit and match its pins to the aftermarket harness adapter. The original 16-pin plug typically includes these standardized color assignments:
- Yellow: 12V constant power (battery-sourced)
- Red: 12V switched power (ignition-controlled)
- Black: Ground/chassis connection
- Blue/white stripe: Amplifier remote turn-on
- Green: Left rear speaker (+)
- Green/black stripe: Left rear speaker (-)
- Purple: Right rear speaker (+)
- Purple/black stripe: Right rear speaker (-)
- White: Left front speaker (+)
- White/black stripe: Left front speaker (-)
- Gray: Right front speaker (+)
- Gray/black stripe: Right front speaker (-)
- Orange: Illumination/dimmer (adjusts with headlights)
- Orange/white stripe: Memory/power antenna (if equipped)
Verify each wire using a multimeter set to DC voltage. Probe the yellow wire–it should read 12V regardless of ignition state. Test the red wire–voltage should only appear when the key is in the “on” or “accessory” position. Confirm the black wire shows 0V against chassis ground. Mismatches indicate a faulty connection or blown fuse (check 10A fuse #27 for constant power, 15A fuse #32 for switched power).
Handling Speaker Wires
Strip 1/4 inch of insulation from each speaker lead. Twist the corresponding aftermarket harness wires (typically thin-gauge with clear labeling) together using a small screwdriver to create a secure mechanical bond. Avoid solder unless working in a vibration-free environment–crimp connectors (non-insulated 22-18 AWG) provide reliable conductivity without heat risks. Verify polarity by temporarily connecting the new unit and testing each channel with a short tone burst (e.g., 1kHz sine wave). Incorrect polarity will produce weak, phase-cancelled audio.
Connect the blue/white stripe wire to the aftermarket harness’s remote lead (usually a thin blue wire). This activates external amplifiers or powered subwoofers when the system powers on. Omitting this step results in silent external components. If the vehicle has a factory amplifier (common in premium trim), locate the “amp out” wires (often pink or brown in older models) and splice them into the aftermarket harness’s RCA preamp outputs. Failure to do so will mute rear channels entirely.
- Disconnect the negative terminal of the battery before starting.
- Remove dash panels using a plastic trim tool–pry gently near securing clips (typically 4-6 clips per panel).
- Unbolt the factory unit (usually secured by 4x 8mm screws or spring clips).
- Align the aftermarket harness adapter with the vehicle’s plug, ensuring no wires are pinched.
- Secure the new unit in the dash kit using the provided brackets–test fit before final tightening.
- Reconnect the battery and verify all functions (power, speakers, illumination, fader).
Label all connections with masking tape or heat-shrink tubing to simplify future upgrades. Store the factory wiring diagram (if retained) behind the glove box–critical for troubleshooting voltage drops or speaker failures down the line. If the new unit lacks a dimmer function, cap the orange wire with a weatherproof connector to prevent short circuits.
