The factory sound system in your pick-up relies on a precise arrangement of wires–each serving a distinct function. Start by locating the harness behind the dashboard panel. The yellow cable (constant 12V) supplies power directly from the battery, ensuring memory retention for presets. Pair it with the red wire (switched 12V), which activates only when the ignition is on.
The black ground lead must be secured to a bare metal surface–use a self-tapping screw if the original mounting point is corroded. For speaker outputs, match polarity: front left tweeter uses light green (positive) and dark green (negative), while rear door woofers require gray (positive) and dark gray (negative). Reverse connections will result in phase cancellation, weakening bass response.
Avoid tapping into unrelated circuits, such as the orange illumination wire, unless dimming functionality is required. If integrating an aftermarket unit, splice the blue/white remote turn-on lead to trigger amplifiers. For vehicles equipped with steering wheel controls, the violet/white data bus carries multiplex signals–damage here will disable volume adjustment. Use a multimeter to confirm voltage levels before final connections.
Insulate all splices with heat-shrink tubing or dielectric grease to prevent oxidation. Store the original wiring harness in a labeled plastic bag as a backup. If static persists, check the antenna mast’s pink coaxial lead–a loose connection here introduces interference. For quick diagnosis, refer to the fuse box diagram; the audio system is typically protected by a 20A fuse in slot 15.
Complete Electrical Guide for Your Pickup’s Audio System
Locate the aftermarket harness adapter matching your vehicle’s original connectors–Metra 70-1002 or Scosche CR02B are proven replacements. Cutting factory wires risks permanent speaker damage or blown fuses in the auxiliary power circuit.
Trace the eight main leads before splicing: constant 12V (yellow), ignition-switched 12V (red), ground (black), front left positive (gray), front left negative (gray/black), front right positive (white), front right negative (white/black), and dimmer control (orange). Misrouted orange wires dim dashboard lights improperly during night driving.
| Wire Color | Function | Voltage (Key On) |
|---|---|---|
| Yellow | Battery Memory | 12.6V DC |
| Red | Accessory Power | 11.8–14.2V DC |
| Black | Chassis Ground | 0V |
| Orange | Illumination | 1.5–12V Variable |
Use a digital multimeter set to 20V DC scale to verify each connection–factory crimp caps degrade resistance over time. Replace any corroded splices with soldered joints wrapped in 3M Super 88 electrical tape for long-term moisture resistance.
Anticipate two additional harness loops behind the dash cluster: one for the amplifier remote turn-on (blue/white), another for the factory antenna motor (pink). Skipping either disables subwoofer output or retracts the power antenna immediately after startup.
Install a inline fuse holder rated 10A on the yellow wire within 18 inches of the battery terminal–stock fuse block lacks spare slots for aftermarket audio devices. Secure final harness bundles with zip ties every 6 inches to prevent vibration fatigue near the steering column support bracket.
Locating Pin Assignments on the Original Audio System Harness
Begin by disconnecting the negative battery terminal to prevent short circuits before examining the connector.

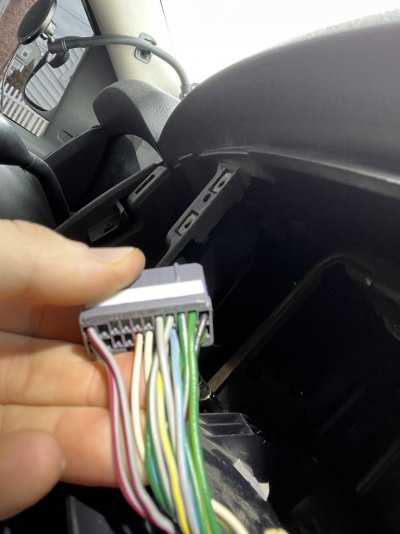

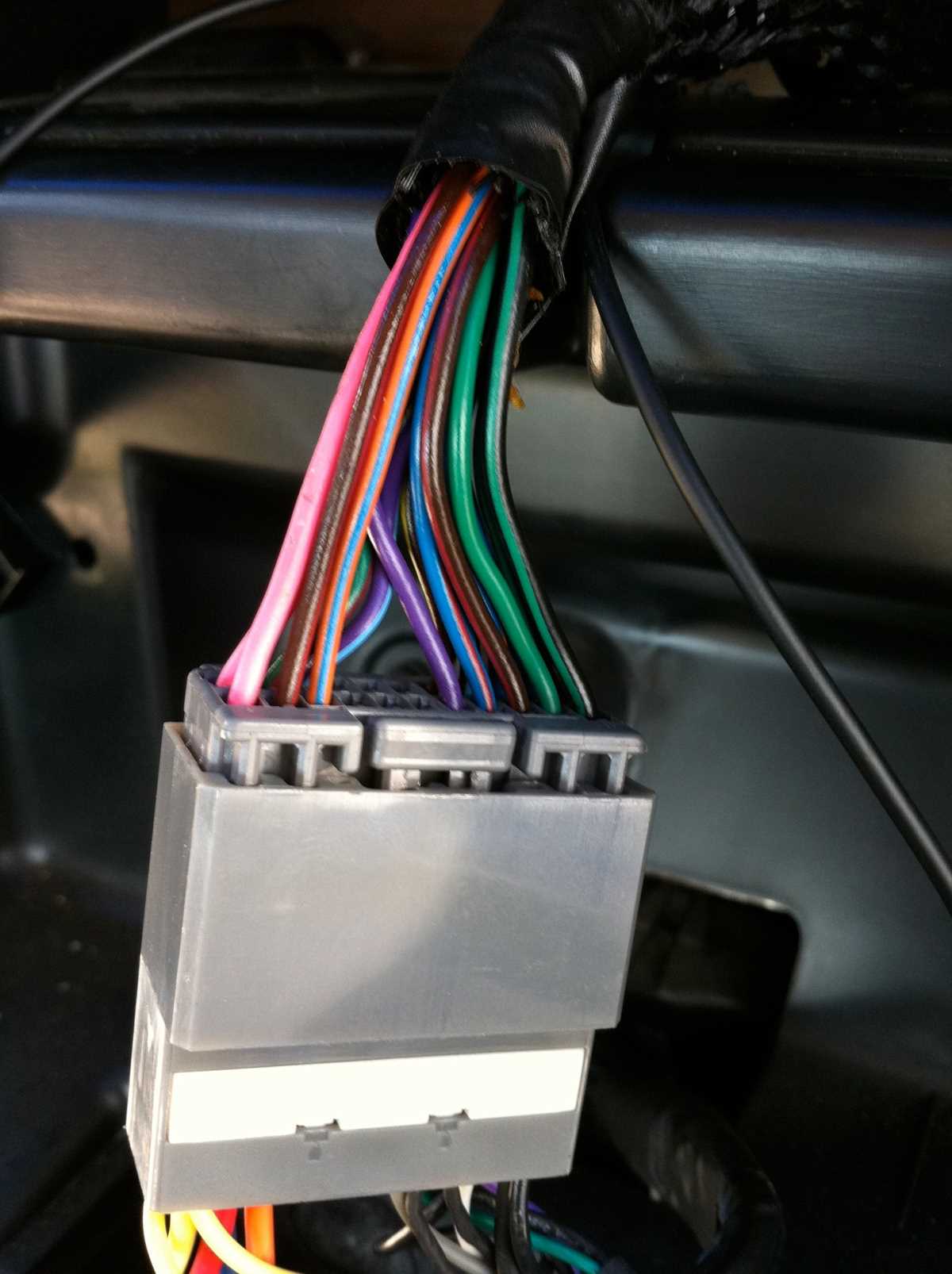

The standard audio unit harness on this pickup model uses a 16-pin rectangular plug, typically color-coded as follows:
- Pins 1-4 (black wires): Ground connections–verify continuity with chassis using a multimeter.
- Pins 5-8 (yellow/red wires): Constant 12V power feed–must show battery voltage even with ignition off.
- Pins 9-12 (violet/white wires): Switched 12V source–only energized when key is in ACC or ON position.
- Pins 13-16 (various colors): Speaker outputs–front left (gray), front right (white), rear left (green), rear right (purple).
Label each wire before cutting or splicing to avoid misconnections.
Use a pin-out chart specific to the vehicle’s trim level–base models may lack amplified outputs, while premium trims include separate harnesses for subwoofers or external amps.
If the connector is damaged or corroded, clean contacts with electrical contact cleaner and a small wire brush. Replace the entire harness if pins show excessive wear or discoloration–aftermarket replacements are available but may require slight modification to match the original pin layout.
For vehicles equipped with integrated navigation or satellite capabilities, additional pins (17-24) handle data buses and antenna power. These require specialized adapters when upgrading components–consult the manufacturer’s service manual for exact voltage requirements and signal types.
Probe each pin with a test light while cycling the ignition key to confirm proper function before finalizing any installation. Incorrect wiring can trigger dash warning lights or fuse blows–double-check all connections against the verified schematic.
Step-by-Step Guide to Removing the Dashboard for Stereo Unit Access
Disconnect the vehicle’s battery terminals to prevent electrical shorts or accidental airbag deployment. Use a 10mm socket to loosen the negative terminal first, then the positive, and set the cables aside where they won’t reconnect.
Remove the trim panel surrounding the instrument cluster. Gently pry along the edges using a plastic trim tool to avoid scratching the plastic. Work from the top corners downward, releasing the clips–there are nine in total on most models. Set the panel aside in a safe location.
Unscrew the four 7mm bolts securing the gauge cluster. Two are at the top, accessible without tools, and two at the bottom require a shallow socket extension. Tilt the cluster forward carefully; it’s still connected by wiring harnesses–do not force it.
Locate the lower dash cover beneath the steering column. This piece typically conceals additional fasteners. Remove the single Phillips screw near the brake pedal, then pull the cover downward to release three clips behind the knee bolster. This exposes the final obstacles to the entertainment system.
Identify the central bracket holding the stereo unit in place. It’s fastened by two 8mm bolts–one on each side. Remove these with a socket wrench, then slide the bracket outward slightly to disengage the mounting tabs. The unit should now be loose but still wired; avoid yanking it free.
Grasp the front of the stereo and pull it straight out. Two wiring harnesses and an antenna cable will be attached. Press the release tabs on the connectors–usually black and gray–and disconnect them one at a time. For the antenna, twist the collar counterclockwise and pull firmly. The unit is now fully removable.
If reinstalling components, reverse the steps while ensuring all clips and fasteners snap securely. Test the battery connection last–reattach the negative terminal first, followed by the positive, to confirm all systems power up correctly before closing the dashboard.
Understanding Wire Color Codes and Their Roles in the Pickup’s Audio System
Locate the dark green wire with a light blue stripe–this is the primary constant power feed supplying 12V regardless of ignition status. Verify its connection to the fuse block (typically fuse #18, 10A) before proceeding; incorrect attachment risks draining the battery. For aftermarket installations, this wire must be spliced directly to a dedicated power source with an inline fuse to prevent shorts.
Identify the light green wire (sometimes with an orange tracer) as the ignition-switched power lead. This line energizes the unit only when the key is in the “ACC” or “RUN” position. If the stereo fails to power on, test this wire first with a multimeter–voltage should read 12V when the ignition is engaged. For kits without a remote turn-on feature, this wire also triggers external amplifiers.
Speaker and Ground Connections
The front left speaker uses a gray wire (positive) and a gray wire with a black stripe (negative), while the front right relies on a white (positive) and white-black (negative). Rear speakers follow a similar pattern: violet (positive) and violet-black (negative) for the left, green (positive) and green-black (negative) for the right. Ensure polarity matches the aftermarket harness; reversed connections distort audio. Ground connections (black wires) must attach to unpainted metal–clean the surface thoroughly to prevent static interference.
Data communication wires, such as the yellow with a purple stripe (vehicle speed sensor input) and tan with a red stripe (amplifier control), require specialized adaptors for non-factory upgrades. Cutting or bypassing these wires may disable chimes or steering wheel controls. For retainable functions, use a bypass module like Metra ASWC-1 or consult the OEM service manual for pinout details.
Common Aftermarket Head Unit Installation Problems and Fixes
First, check for constant 12V wire mismatches. Most stock harnesses supply power via a yellow lead, while aftermarket units often expect red. Swapping these causes intermittent shutdowns or failure to save presets. Use a multimeter to confirm voltage before splicing–factory wiring may use thinner gauge wires that overheat if overloaded.
Ground loop hum appears as a low-frequency buzz through speakers, worsening with engine RPM. Ensure the ground connection terminates at the chassis, not painted metal or bolt threads. A star washer improves contact. For persistent noise, add a ground loop isolator between the amplifier output and speaker wires–cheap units often lack sufficient filtering.
Steering wheel controls stop working if the interface module isn’t properly programmed. Verify the model number of the stock control unit matches the aftermarket adapter’s compatibility list. Some vehicles require a specific resistor value on the data bus wire–incorrect values cause erratic button responses. Test each button individually with a scan tool before finalizing connections.
Speaker fade issues arise when polarity is reversed. Aftermarket sets often label white and gray wires as front left/right, but stock harnesses may swap them. Reversing polarity weakens bass and distorts midrange. Test each channel with a 9V battery–correct polarity produces an audible pop. If speakers remain weak, check for damaged voice coils or loose terminals.
Blown Fuses and Overloads
Antenna motor failures occur when aftermarket sets draw excessive current through the electric antenna lead. Factory systems use a dedicated relay; bypassing it risks burning the motor. Install an external relay to handle the load, or disconnect the motor entirely and use a fixed mast. USB ports and rear cameras also trigger overloads if wired directly to ignition. Dedicate a fused 10A line for each accessory to prevent voltage drops.
