Locate the under-dash fuse panel first–it sits left of the steering column. Pinpoint fuse #23 (15A) for the right rear lamp cluster and #25 (15A) for the left. Remove each fuse, shine a multimeter continuity probe into the clips; zero resistance confirms supply voltage.
Follow the harness loom from each fuse socket rearward. It threads through the driver-side kick panel, then merges into the main cross-body loom near the parking brake cable. Strip ½ inch of insulation at the loom exit; you’ll find two color-coded leads: tan with black stripe (supply) and brown (ground return). Clip a 12 V test lamp between supply and chassis ground–steady illumination verifies intact power.
Trace the tan/black wire aft: it splits at the rear quarter-panel gusset. One branch feeds the brake lamp filament, the second delivers running illumination. Cut back 3/4 inch of sheathing at the split; solder a blue 18-gauge pigtail to each. Use heat-shrink tubing rated UL 224 minimum, not electrical tape, to seal splices.
Ground return integrity is non-negotiable. Sand the chassis tab beneath the rear bumper where the brown wire terminates until bare metal glows. Tighten the ring terminal with two star washers and a stainless #10 self-tapping screw torqued to 8 in-lbs. Probe between bare ground and vehicle negative post–voltage drop must read less than 0.3 V or corrosion is present.
Final verification: switch ignition to RUN, enable parking lamps; both clusters must glow at 50 % intensity. Depress brake pedal–each lamp should jump to 100 %. Failure on either channel mandates repeating the ground test and checking the inline fuse holder beneath the rear seat cushion for melted terminals.
Electrical Layout for Rear Illumination on 2003 GM Full-Size Utility Models

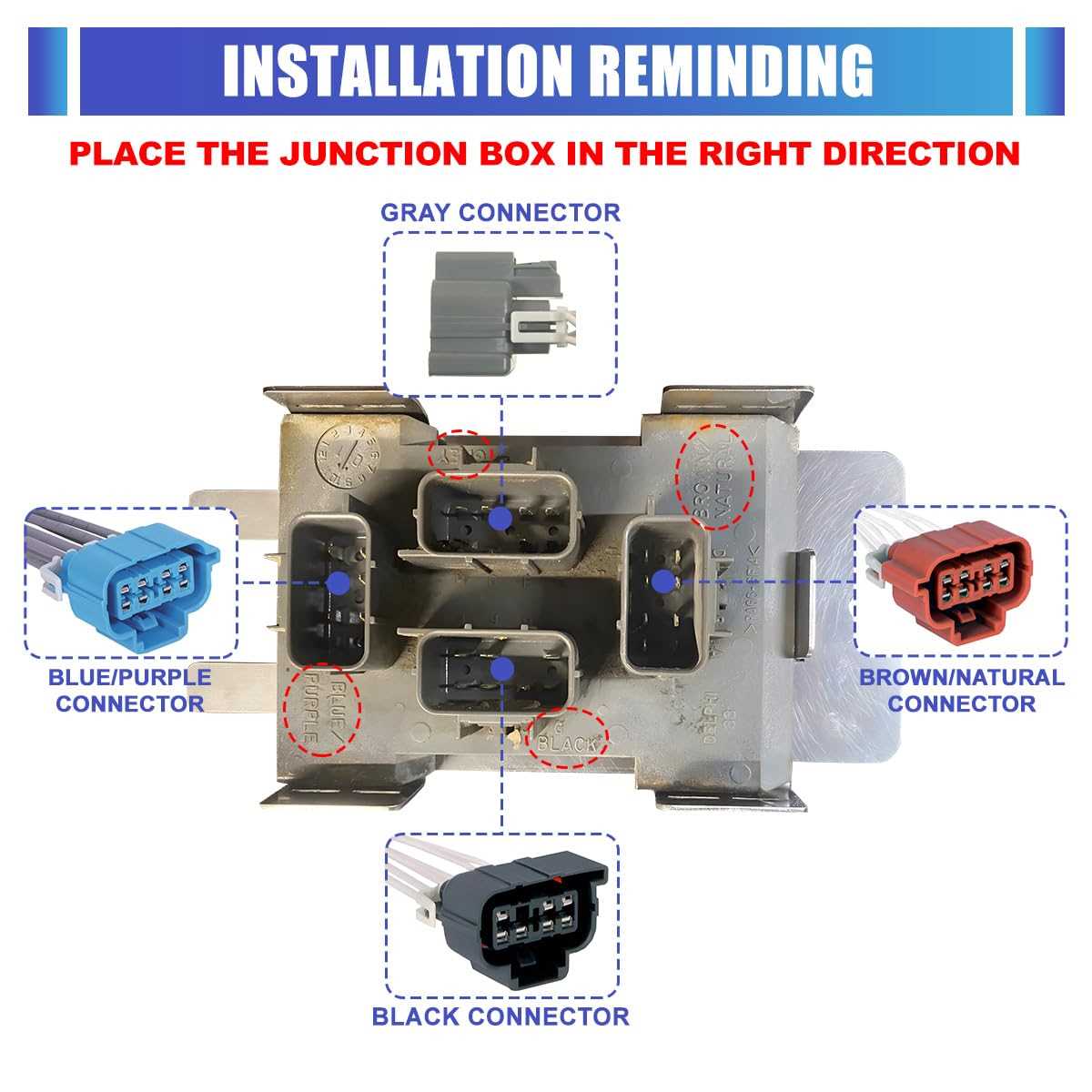

Locate the fuse box under the instrument panel on the driver’s side–relay R8 controls the brake signals, while R12 powers the reverse lamps. Trace the brown wire (18 AWG) from the left rear assembly connector (C1, pin 3) to the trailer harness splice near the spare tire well, ensuring continuity before reattaching. For the right side, follow the green/white striped conductor (pin 5 on C2) to the junction block behind the rear bumper; corrosion here often mimics bulb failure–clean terminals with 600-grit sandpaper and dielectric grease.
Verify ground G302 (bare wire cluster behind the rear fascia) maintains resistance below 0.5 ohms; use a dedicated circuit tester with a 12V load to confirm. If the cargo bed lamp flickers, inspect the purple/violet wire (pin 1, C1) for chafing against the frame near the spare mount–route it through nylon loom for protection. Replace any damaged sections with Teflon-insulated wire (20 AWG, 600V rating) and seal splices with adhesive-lined heat shrink tubing.
Finding the Rear Signal Cable Assembly Plug on Your Model-Year Version
Begin by removing the interior panel covering the cargo area side wall. Use a flathead screwdriver or trim removal tool to pry the eleven plastic retainers securing the panel–seven along the upper edge, four near the base. Once detached, fold the panel downward without unhooking the built-in cargo net to expose the harness routing pathway.
The main signal bundle connector sits behind a rectangular foam pad adhered to the body. Peel this pad back carefully; residue may remain, so keep isopropyl alcohol and a cloth handy for cleanup. The plug itself is a 12-pin Delphi WeatherPack unit, identifiable by its black latch and beige sealing grommet. Pin assignments are stamped on the plastic housing–match these against the reference below:
| Pin | Circuit | Wire Color | Function |
|---|---|---|---|
| A | 39 | Yellow | Left brake/signal |
| B | 58 | Pink | Running lamp supply |
| C | 40 | Dark green | Right brake/signal return |
| D | 68 | Light blue | Center third lamp |
Disengage the latch by squeezing both sides between thumb and forefinger while pulling outward. Never force the connector; if resistance is felt, check for debris or corrosion on the terminals. Apply dielectric grease after mating to prevent future oxidation, especially on pins A and C that carry higher intermittent current.
Trace the harness forward along the inner fender well–it merges with the body loom near the spare tire well. Secure any loose sections with plastic zip ties or factory-style adhesive clips; vibration-induced chafing against the frame rail can compromise circuits over time. The factory routing places the harness under the rear crossmember; route aftermarket extensions the same way for consistent ground clearance.
For supplemental modules like LED upgrades or trailer adapters, tap into the circuits at the plug rather than splicing mid-run. Label each branch connector with masking tape noting the pin number and date; this expedites troubleshooting if voltage drop tests become necessary later. Keep a multimeter set to 200-ohm continuity mode handy to confirm pin integrity before reassembling the interior panel.
Decoding Rear Signal Connector Color Codes and Terminal Functions
Locate the 12-pin rectangular connector behind the left assembly–this holds the key harness links. The dark green lead (pin 1) carries the brake function, while the light blue stripe (pin 2) handles the right turn indication. For running marker activation, trace the brown wire (pin 3); verify continuity with a multimeter set to 200Ω before splicing.
Avoid relying on generic GM schematics–pinouts shift across model years. The yellow stripe (pin 4) feeds the reverse lamp circuit, but some units reroute this to the orange stripe (pin 5), doubling as a high-mount stop feed. Use a
Ground faults often hide in the black wire (pin 6)–scrub the chassis attachment point with a wire brush to restore conductivity. The gray lead (pin 7) serves dual purposes: park illumination (12V constant) and side marker extension. Check for voltage drop under load; anything below 11.8V indicates a failing fuse or corroded junction.
For the right-side assembly, swap attention to the 10-pin oval connector. The red stripe (pin A) triggers the running lamp, while the purple (pin B) splits between brake and turn duties–use a clip-on diode to prevent feedback. The tan stripe (pin C) handles fog light relay control on equipped models; absence of 12V here suggests a faulty switch.
When replacing connectors, match terminal types exactly–Micro-Pack 150 for early builds, Metri-Pack 280 for later ones. Crimp new terminals with a ratcheting crimper, then seal splices with heat-shrink tubing and dielectric grease. Test each circuit at the bulb socket with power applied–flickering points to intermittent faults in the harness’s convoluted sections behind the bumper.
Step-by-Step Guide to Testing Rear Lamp Circuit Continuity
Disconnect the vehicle’s negative battery terminal first to prevent shorts or accidental power surges during testing. Use a multimeter set to continuity mode (or the lowest ohms setting) and probe the harness connector pins corresponding to each bulb socket–refer to the service manual for pin assignments if unsure. A reading below 1 ohm confirms an intact path; infinite resistance indicates an open circuit requiring further inspection of connectors, bulb sockets, or wiring harness sections. For ground-side verification, attach one multimeter lead to the battery’s negative post and the other to the ground wire at the socket–any resistance above 5 ohms suggests corrosion or a loose connection.
- Remove the interior trim panel covering the rear lamp assembly to access the wiring harness and socket connections.
- Inspect the bulb socket for melted plastic, discolored terminals, or debris–clean contacts with electrical cleaner if oxidation is present.
- Check inline fuses (typically 10A-15A) using the multimeter’s continuity setting before probing wires to confirm power delivery isn’t interrupted upstream.
- Trace the harness route from the lamp socket to the fuse box, flexing wires gently along the way to reveal intermittent breaks–look for nicks, chafing, or rodent damage.
- If continuity exists but the circuit remains non-functional, test voltage at the socket with the ignition on and light switch engaged: the power wire should read 12V (alternator running) or 11V (engine off).
- For LED assemblies, ensure the multimeter’s voltage setting can detect low-current signals (some meters require a simulated load test with a bulb).
- Reassemble components only after verifying all repairs–test functionality before finalizing trim installation.
Troubleshooting Rear Lamp Circuit Problems and Immediate Solutions
Check the fuse first–blown fuses are the simplest cause of non-functional lamps but often overlooked. Locate the fuse box beneath the dashboard or in the engine compartment, identify the fuse labeled “RHS” or “LHS signal,” and inspect the metal filament inside. If broken, replace it with an identical amp rating; using a higher-amp fuse risks overheating the circuit. Keep spare fuses in the glove box to avoid delays during roadside repairs.
Inspect the bulb sockets for corrosion or melted plastic. Remove the lens assembly by unscrewing the retaining bolts or releasing the clips, then pull the bulb straight out. Look for blackened contacts, greenish oxidation, or deformed socket tabs–these restrict current flow. Clean contacts with a wire brush or sandpaper, then apply dielectric grease to prevent future corrosion. Replace the socket if tabs are bent or broken; a new socket costs under $10 and snaps into place without tools.
Examine the wiring harness for chafing or exposed copper. Follow the bundle from the lamp housing toward the vehicle’s rear, feeling for brittle insulation, cracks, or bare wires. Wrap damaged sections with electrical tape, but splice in a new section if more than 2 inches are compromised. Match the wire gauge–typically 16-18 AWG for lamps–and use crimp connectors or solder for secure joints. Avoid twisting wires together; vibration can loosen connections.
Test the ground connection using a multimeter. Probe between a clean metal chassis point and the lamp’s ground wire; readings should show continuity (below 0.5 ohms). If resistance is high, trace the ground wire to its attachment point–often a bolt near the lamp assembly or frame. Scrape away paint or rust from the contact surface, reattach the wire, and tighten securely. A poor ground causes flickering or dim lamps, mimicking bulb or fuse failures.
Verify the turn signal relay if lamps blink erratically or stay on without activation. Remove the relay from the fuse box–it’s a small rectangular module–and shake it. A rattling sound indicates internal failure. Swap with a known-good relay, like the one for the horn, to test functionality. Relays cost $5–$15 at auto parts stores and plug in directly; no circuit modifications are needed.
Look for loose connectors behind the lens housing. Pinch the connector’s locking tabs to release it, then reseat firmly until it clicks. Feel for bent pins–straighten with needle-nose pliers–or push terminals deeper into the plug if they’ve retreated. A connector half-seated can cause intermittent failures, especially after bumps or vibrations. Apply contact cleaner to remove oil or dirt that impedes current flow.
- Dim lamp output often stems from voltage drop. Check voltage at the bulb socket with the lamp activated; readings below 11V suggest resistance in the circuit. Trace wires back to the battery, probing junctions with the multimeter to isolate the drop’s source.
- Rapid blinking usually signals a burned-out bulb, but if bulbs are intact, inspect the flasher module–commonly near the steering column–or swap the turn signal lever itself.
- Non-functional brake lamps may share a fuse with the high-mount stop lamp; if one works, the fuse and brake switch are likely fine. Focus on bulb filaments or the wiring to the non-working unit.
Replace the entire harness if repairs exceed two separate splices. Aftermarket kits include pre-terminated connectors, color-coded wires, and molded seals for waterproofing. Route the new harness along original clips to prevent snagging, secure with zip ties, and avoid sharp edges. Test each function–brake, turn, parking–before reinstalling trim panels to confirm all circuits operate correctly.
