Use the purple (PPL) wire for the right rear speaker positive lead and the light blue (LT BLU) for the right rear negative. The gray (GRY) and dark gray (DK GRY) pair serves the right front speaker–match polarity per factory harness. For constant 12V power, splice into the orange (ORG) wire at the fuse block under the dash; verify with a multimeter before crimping.
Ground the unit by attaching the black (BLK) lead to a bare metal surface on the chassis, scraping off paint if necessary. The yellow (YEL) wire delivers memory retention–connect it last to avoid draining the battery. If installing an aftermarket amplifier, run thick-gauge (8-10 AWG) cables directly from the battery, bypassing the factory wiring entirely.
Avoid connecting the pink (PNK) wire unless integrating hands-free–it carries ignition-switched power, not needed for standard audio. For steering wheel control retention, tap into the white/black (WHT/BLK) and green/white (GRN/WHT) wires behind the climate control module. Test each connection with a 10Ω resistor before finalizing splices.
Label all splices with heat-shrink tubing or numbered tags. If the dashboard bezel resists removal, pry gently at the vent seams–force causes broken clips. For late-model upgrades, remove the entire center stack; two Torx T20 screws secure the lower trim.
electrical guide for your pickup’s audio system
Begin by locating the factory harness behind the stereo unit–it’s a 12-pin connector labeled with colors matching the vehicle’s electrical schematic. The key wires to focus on are orange (+12V constant), gray (accessory), yellow (illumination), and black (ground). Ensure these are properly secured with crimp connectors or solder for long-term reliability.
For aftermarket integration, splice the new head unit’s power leads directly into the existing loom. Use a multimeter to verify voltage on the orange and gray wires before connecting–readings should be 12.6V and 0V respectively with the key off, switching to 12V on the gray wire when the ignition is turned to ACC.
Speaker outputs follow a standard pattern: front left (+) is light green, front right (+) is dark blue, rear left (+) is brown, and rear right (+) is pink. Their corresponding negative leads are striped with black. Avoid mixing channels or you’ll risk phase cancellation and muted audio quality.
If retaining the factory amp, the data bus wires (tan/white and tan) must remain intact. Cutting these will disable chime functions and door-lock synchronization. For amplified systems, the remote turn-on lead (usually blue/white) activates external amplifiers–route this carefully to prevent short circuits.
Ground the installation by attaching the black wire to a bare metal surface near the dash. Avoid painting or coated areas; a clean, secure contact prevents popping noises and intermittent operation. For vehicles with rusted frames, use a star washer or self-tapping screw to ensure a solid connection.
When testing, start with the headlights and accessories off to isolate parasitic draws. A sudden drop below 11.8V on the orange wire suggests a faulty battery or alternator–address this before proceeding. Fuse tap the accessory wire with a 10A fuse to protect against overloads during aftermarket upgrades.
The antenna lead (typically pink) connects to the power antenna or signal booster. If your unit has a powered motorized antenna, confirm continuity with a test light–no signal means the motor may be seized or the wiring frayed. Replace damaged sections with coaxial cable to maintain signal integrity.
Finalize by tucking wires away from moving parts like the steering column and pedals. Use zip ties every 4 inches to prevent rattling or abrasion. Recheck all connections with the vehicle running–if the display dims or flickers, re-examine the ground and accessory wire splices for resistance.
Matching the Proper Audio Interface Plug for Your Pickup’s Sound System

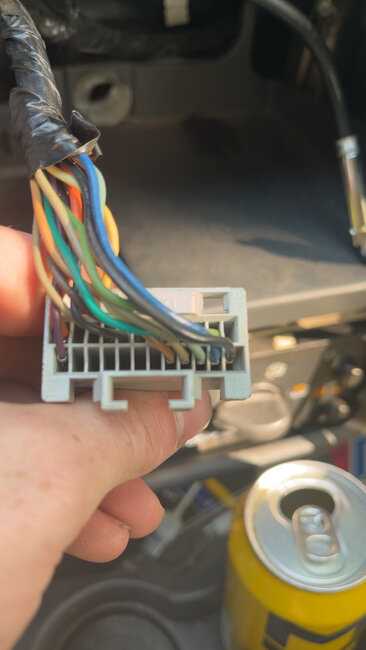

Locate the factory stereo plug behind the dashboard at the driver’s side kick panel. The connector is an 18-pin Metri-Pack C1 series rectangular housing, colored gray on base models and anthracite on premium trims. Pin assignments remain identical: pins 1–4 handle speaker outputs–front left (+/-) and front right (+/-)–while pins 5–8 manage rear channels in the same polarity sequence. Pins 9 and 13 deliver switched 12 V and constant battery voltage respectively, critical for memory retention.
Differentiate between the main harness and smaller satellite plugs often mistaken for primary connections. The secondary 4-pin mini plug adjacent to the main connector carries illumination and dimmer controls; forcing an aftermarket harness into this port risks damaging the head unit’s lighting circuit. Verify the plug’s shape–true factory interfaces have rounded corners on the male side, whereas aftermarket adapters typically feature squared edges.
Use a digital multimeter to confirm each pin’s function before attaching any new interface. Probe the switched ignition wire (pin 9) with the key in ACC position–expect 12–14 V; absence indicates a blown fuse or disrupted circuit. The constant power lead (pin 13) should register battery voltage regardless of ignition state. Reverse polarity on speaker wires (pins 1–8) causes immediate damage to premium amplifiers–test continuity and impedance before finalizing any connection.
Purchase an OEM-grade conversion adapter if retrofitting a non-stock head device. Brands like Axxess or Scosche manufacture direct-fit harnesses pre-terminated to match both the truck’s native plug and modern car stereos without splicing. Their part numbers AX-CAR-PNP-18 or SCOS-CHE-AU-18 align precisely with the vehicle’s audio loom–cross-reference packaging diagrams against your connector’s pinout to avoid misalignment.
Inspect the plug’s locking tab before mating it with any new harness. A cracked or missing retention clip causes intermittent disconnections–apply dielectric grease sparingly to prevent corrosion, but avoid coating electrical contact points as it impedes conductivity. Store unused adapters in anti-static bags; prolonged exposure to humidity degrades the thin copper traces inside the connector housing.
For installations involving amplified systems, note the presence of a separate 6-pin amplifier harness hidden behind the glovebox. This connector carries low-level preamp signals and ground–bridging it improperly to the main plug overloads the factory signal processor. Label each wire during disassembly; manufacturers seldom publish pinouts for this auxiliary plug, so rely on in-circuit testing or factory service manual schematics.
Step-by-Step Wire Color Coding and Pinout Configuration
Locate the aftermarket head unit harness adapter–pins 1 through 16 will align with the vehicle’s OEM connector. Pin 1 (dark green) carries the left front speaker positive signal, while Pin 2 (gray) delivers the right front speaker positive. Ground connections split across Pins 4 (black), 5 (brown), and 6 (yellow), but only Pin 4 serves as the primary chassis ground. Verify continuity with a multimeter before soldering; stray resistance above 0.5 ohms indicates corrosion in the dash frame or firewall grommet.
Critical Power and Signal Paths
| Connector Pin | Wire Color | Function | Voltage (Key-On) |
|---|---|---|---|
| 7 | Pink | Constant 12V | 12.6V |
| 8 | Orange | Switched 12V | 12.4V |
| 9 | Dark Blue/White | Illumination Negative | 0V (PWM) |
| 10 | Light Green | Left Rear Speaker Positive | 0.5–3V AC |
Feed wires through the lower steering column boot to prevent chafing–use conduit splitters for bundled runs near the fuse block. The orange wire (Pin 8) must bypass the factory anti-theft relay; splice it directly to the ignition circuit if the display flashes “LOC.” For vehicles with premium audio, Pin 15 (purple) carries the amplified turn-on lead–omit this for base models to avoid parasitic drain.
Strip 5mm of insulation, twist strands clockwise, and apply rosin-core solder before heat-shrinking connections. Tin the iron tip to 350°C for lead-free solder; hotter temps degrade the PVC coating. Test speaker outputs with a 100Hz sine wave at 1W–distortion above 0.1% suggests mismatched impedance or a short in the door jamb grommet. Route RCA cables perpendicular to power wires to minimize alternator whine; maintain 8-inch separation near the firewall.
Troubleshooting Non-Standard Pinouts
If the harness adapter lacks a purple wire (Pin 15), check the trunk for a standalone amplifier–some trims route the turn-on signal through the rear harness. For vehicles equipped with OnStar, Pin 16 (tan/black) carries the microphone input; shield this wire with foil tape if interference persists. When retrofitting a navigation unit, splice the GPS antenna lead (gray, Pin 3) into the OEM satellite radio harness–failure to do so results in “No Signal” errors after 3 minutes of ignition-on time.
Integrating Third-Party Audio Units with Factory Truck Electrical Schematics
Locate the factory harness adapter matching the vehicle’s original audio interface–Metra 70-1858 or Axxess ASWC-1 for plug-and-play compatibility. Cut the stock connector only if modifying the OEM setup directly; otherwise, use a T-harness to preserve functionality for future reversals. Wire colors on aftermarket units rarely align with manufacturer standards, so cross-reference pinouts:
- Constant 12V (yellow): Connect to the battery via a 10A fuse within 18 inches to prevent voltage drop
- Switched 12V (red): Tie to ignition-switched circuits, not accessory leads, to avoid parasitic drain
- Ground (black): Scrape paint to bare metal at chassis attachment points, use star washers for corrosion resistance
- Speaker wires: Run twisted pairs for front/rear channels, keep within 12 AWG for 50W+ RMS systems
- Illumination (orange/white): Link to dimmer wire to sync brightness with instrument cluster
- Antenna trigger (blue/white): Activate power antenna or amplified signal processors
For steering wheel control retention, integrate a PAC RP4-GM11 or equivalent module. Program button mapping using the manufacturer’s interface before finalizing permanent connections. Test each circuit with a multimeter–expected readings: 12-14V on power leads, 4-8Ω on speaker outputs, and 0Ω between ground and chassis. Secure all splices with heat-shrink tubing and solder for vibration resistance; avoid crimp connectors in high-current paths. Route harnesses away from sharp edges and moving components, using factory loom clips where possible.
