Locate the main harness connector behind the central console–pin assignments follow a standardized color scheme for premium 1998–2005 vehicle generations. The beige wire carries constant 12V power from the battery, while the purple/white stripe supplies ignition-controlled voltage. Ground connections terminate at the chassis near the climate control module; verify continuity with a multimeter before proceeding.
For aftermarket upgrades, disconnect the negative battery terminal first to prevent short circuits. The factory amplifier, if present, integrates with the harness via a 16-pin plug; diagram labels such as “AMP+” and “SPK-” denote speaker outputs. Retain original connectors to maintain compatibility with optional features like theft-deterrent systems.
Signal wiring for antenna and auxiliary inputs typically uses smaller-gauge wires bundled separately. The yellow cable transmits the antenna control signal, while orange and gray wires manage left and right audio channels, respectively. Test each lead with a 5V signal tester to confirm proper function before finalizing installation.
Should displays malfunction, inspect the data bus wires–light green and dark green–for continuity. These carry diagnostic codes between the head unit and vehicle computer. Replace damaged wires with exact gauge equivalents; splicing mistakes often cause intermittent failures.
For vehicles with navigation, the violet wire serves as the speed pulse input; errors here disrupt GPS calibration. Always consult OEM documentation for regional variations–some models omit certain pins or reroute circuits based on trim level discrepancies.
Aftermarket Sound System Wire Connection Reference for 2001-2003 Luxury Sedan Models
Locate the 12-pin harness connector behind the factory head unit–grey casing with “A” stamped near pin 1. Pinout reads clockwise from top-left: constant 12V (yellow, 20-gauge), ignition-switched 12V (red, 22-gauge), ground (black, 18-gauge), front left speaker (+) orange/white, front left speaker (-) grey, front right speaker (+) dark green/white, front right speaker (-) tan, rear left speaker (+) light blue/white, rear left speaker (-) brown, rear right speaker (+) dark blue, rear right speaker (-) pink, and amplifier remote (light green, 24-gauge). Confirm each wire’s polarity with a multimeter set to DC 20V before securing crimp connectors.
For aftermarket decks requiring single-DIN mounting, remove the climate control trim panel first–six T-20 Torx screws secure the lower dash bezel. Factory premium sound systems integrate a dual-voice coil subwoofer amplifier beneath the driver-side kick panel; bypass this module by tapping into the rear speaker leads directly at the harness or risk signal attenuation. Use ISO 10487-to-Metra AX-CAR2 adapters for OEM retention, but verify adapter pin alignment against the sedan’s wiring schematic–discrepancies in pin 10 or 16 void manufacturer warranty on theft-deterrent interfaces.
Retaining Factory Antenna and Data Bus Integration
Preserve the stock power antenna by splicing the light green amplifier remote wire into the aftermarket deck’s blue/white remote turn-on lead–connect via a 1N4001 diode to prevent back-feed into the sedan’s Class-2 serial data network. Directly splice the pink/red data bus wire (pin 11) to the aftermarket unit’s purple illumination wire to maintain dimmer functionality; failure here disables automatic headlight activation and dimming of interior LED clusters. For navigation-equipped models, retain the teal/white GPS antenna lead at pin 13 to avoid triggering “Service Vehicle Soon” warnings on the instrument cluster display.
Test each connection post-installation by cycling ignition modes (Off → Accessory → Run) while monitoring the aftermarket head unit’s display–delayed power-up or erratic backlight behavior signals reversed polarity on the red switched lead or a poorly grounded black wire. Recheck splices with a 10-amp fuse inline on the yellow constant power wire before finalizing wire loom placement behind the glovebox assembly; unsecured wires here chafe against the HVAC plenum, risking intermittent shorts.
Finding the Audio System Connector in Your Early 2000s Luxury Sedan
Start by removing the trim panel beneath the climate controls. Slide a plastic pry tool between the panel and the dashboard, working from the passenger side inward. Release the clips securing the panel–there are four along the bottom edge and two on the driver’s side near the air vent. Tilt the panel downward to expose the rear of the head unit without fully detaching it; the main harness should be visible as a rectangular plug with 24 pins in two parallel rows.
The primary connector sits directly behind the factory stereo, but the secondary harness (for amplified systems) may require dropping the glovebox. Remove the three 7mm screws on the underside of the glovebox lid, then press the side tabs inward to release the lower housing. The gray or black 8-pin connector for the amp is tucked above the HVAC blend door actuator, labeled with color-coded wires matching the schematic’s B+ (orange), ground (black), and speaker outputs (gray/light blue, gray/dark green, etc.).
If the main plug is missing–common in aftermarket swaps–trace the remaining wires. The orange/black stripe feeds constant 12V, pink delivers ignition-switched power, and each speaker uses a twisted pair with gray base colors. For navigation-equipped models, the teal data bus wire integrates with the BCM; splicing here risks disabling door locks and instrument cluster functions.
Verify connections with a multimeter before reassembling. Probe the orange wire for steady voltage, the pink for voltage only with the key in ACC or RUN. Speaker wires should show low resistance (4-6 ohms) with no continuity to ground. Reinstall panels carefully to avoid stressing the harness–press each clip until it clicks, starting with the upper corners of the climate control trim to prevent misalignment.
Matching Aftermarket Audio System Wires by Color Codes
Locate the 12-pin connector behind the factory head unit. Pin 1 (yellow with black tracer) carries constant 12V power–splice this directly to the aftermarket harness’s red wire. Pin 2 (light blue) triggers the amplifier turn-on signal; route it to the blue/white remote wire. Ground connects at pin 3 (black), which must be secured to bare metal using a star washer.
Critical Signal Wires
- Left front speaker: gray (pin 5) to aftermarket gray/black
- Right front speaker: purple (pin 6) to aftermarket purple/black
- Left rear speaker: tan (pin 7) to aftermarket tan/black
- Right rear speaker: green (pin 8) to aftermarket green/black
Bypass the factory data bus (pin 9, white) entirely–taping off this wire prevents error codes. For vehicles equipped with a CD changer, retain pin 10 (brown) only if integrating an auxiliary input adapter; otherwise, isolate it.
Verify each connection with a multimeter set to 20V DC before powering the system. Switched 12V (pin 4, pink) should read 0V with the ignition off and 12-14V when turned to ACC or ON. If voltages are absent, inspect the 15A fuse (labeled “RADIO”) in the under-dash fuse box–replace with an identical rating if blown.
Troubleshooting Common Issues
- No sound: Confirm speaker wires haven’t shorted–proper polarity ensures full-range output.
- Intermittent power: Strip insulation back ½ inch for crimp connections, then solder and heat-shrink.
- Static noise: Route RCA cables away from power wires; use ferrite cores if interference persists.
- Steering wheel controls inoperative: Add a resistor-based adapter (4.7kΩ) between the pink and purple wires.
Secure all splices with adhesive-lined heat shrink tubing–electrical tape degrades over time. Test every function (fade, balance, tone) before reinstalling trim panels.
How to Safely Remove the Original Audio System Harness

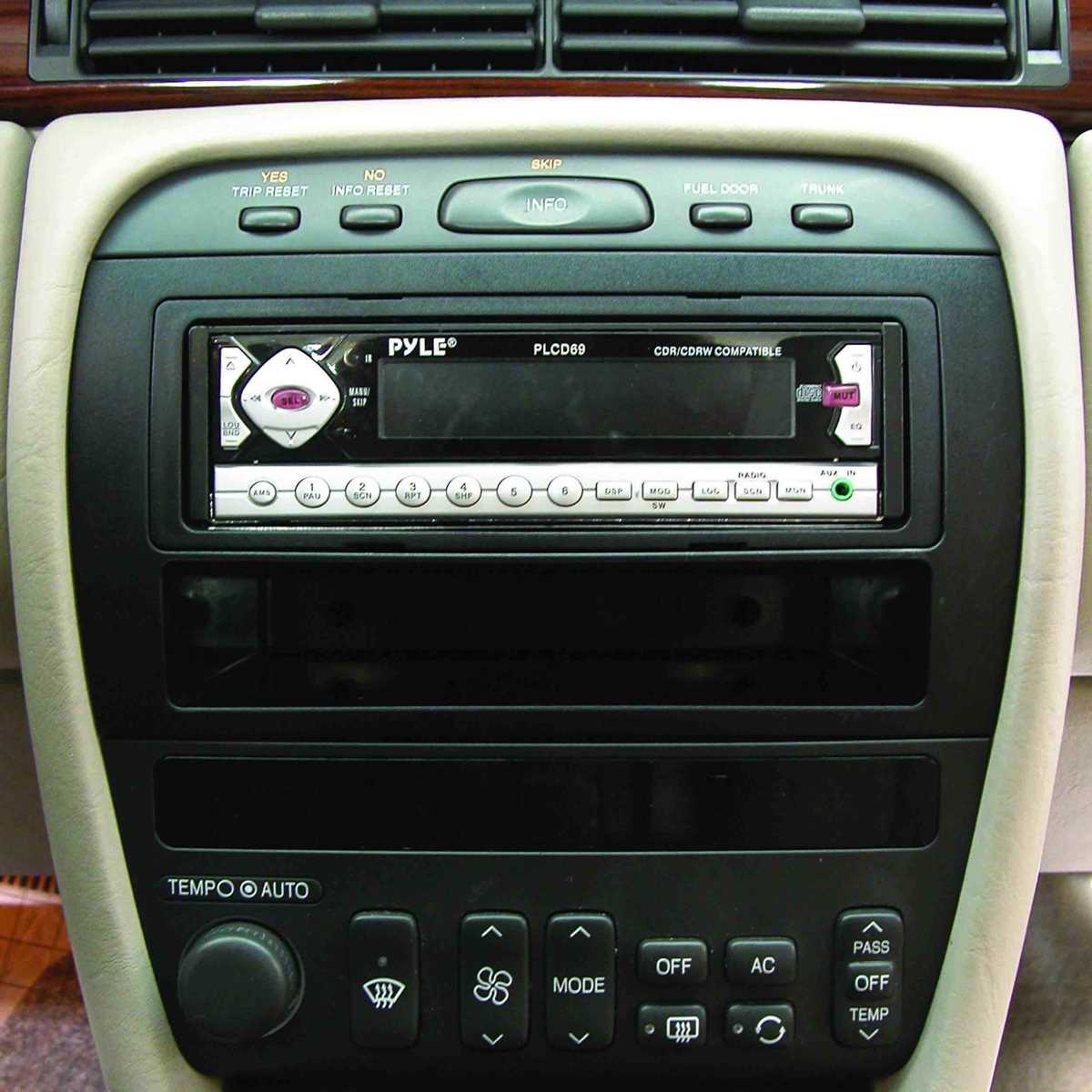

Locate the trim panel surrounding the audio unit–it is secured by hidden clips along the top and sides. Use a plastic pry tool to gently release each clip starting at the bottom edge, working upward to avoid cracking the fascia. Unplug the cigarette lighter harness and any auxiliary power outlets attached to the panel before fully removing it.
Critical Disconnection Sequence
Before cutting or unplugging connectors, verify battery disconnect to prevent triggering error codes or short circuits. The factory harness typically consists of four primary connectors: power, ground, speaker outputs, and antenna. Identify each connector by matching pin layouts against the following reference:
| Connector Type | Pin Count | Wire Colors (Primary) | Function |
|---|---|---|---|
| Main Power | 12-pin | Red, Yellow, Black | Constant +12V, Switched +12V, Ground |
| Speaker Output | 16-pin | Gray, Violet, Green, White | Front/Rear +/- signals |
| Antenna | Single coaxial | N/A | FM/AM feed |
| AUX/Data | 8-pin | Blue, Orange | Steering controls, Amplifier trigger |
Label each connector with masking tape and mark the corresponding wire origins for future reinstallation. For connectors with locking tabs, press down firmly on the release mechanism while pulling straight back–twisting or angling can damage internal contacts.

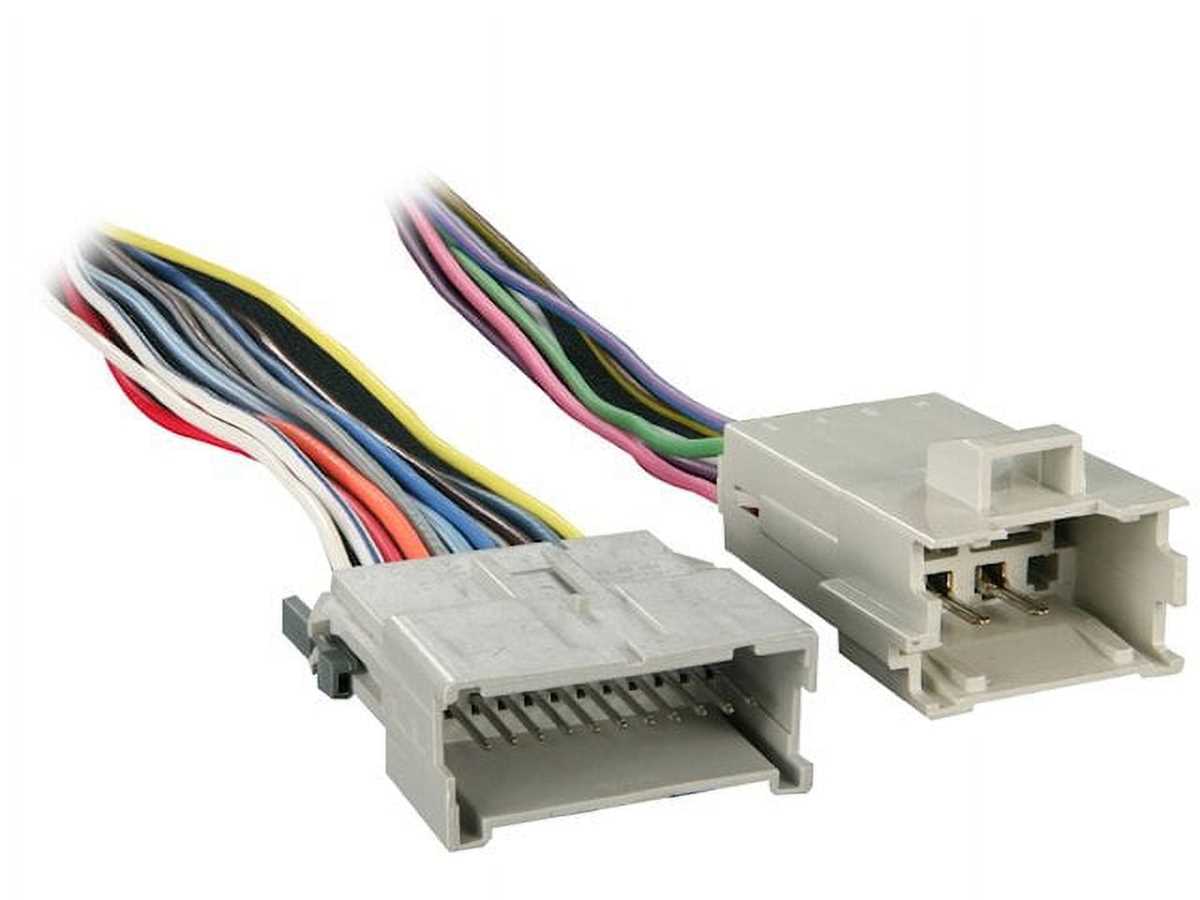

If replacing the unit with aftermarket hardware, use a harness adapter kit to bridge factory connectors to ISO standard plugs. Avoid soldering directly to vehicle wires unless necessary; crimp connections with heat-shrink tubing ensure durability and prevent corrosion. After disconnecting, reattach the battery and test dashboard illumination to confirm absence of warning lights before proceeding.
