Locate the fusible link near the battery terminal–marked G101 on factory schematics–for immediate fault tracing. This junction splits into three primary circuits: ignition, lighting, and accessory feeds. Use a multimeter set to 20V DC and probe wire harness connector C201 (black 14-pin plug) to verify voltage drop across pins 3 (yellow) and 8 (dark green). Values below 11.8V indicate a corroded ground at chassis point G403.
Trace the B+ supply from the alternator (Delco 1262442) to the power distribution module via a 6-gauge orange cable. This route directly powers the ECM (AC Delco 16273557) and the body control module at junction SP202. Avoid splicing–repairs require weatherproof crimp connectors (TE Connectivity 1466407-3) torqued to 8 Nm.
For instrument cluster anomalies, inspect serial data bus integrity at DL201 (orange/white stripe). Signal loss here cascades to erratic gauge readings; replace the BCM if resistance exceeds 120Ω between pins 3 and 11. Download Service Manual Supplement (GM document J-5263) for torque specs on module bracket bolts (12 Nm).
Address intermittent wiper failure by resoldering the park switch at the motor assembly (N107). Factory joints oxidize–use 60/40 rosin-core solder and apply dielectric grease (Dow Corning 4) before reassembly. Wiper relay K208 resides in the under-dash fuse block–swap with RKE relay (part 25945947) for functional diagnosis.
Diagnose HVAC actuator binding by commanding recalibration via Tech2. Failure to initialize points to damaged wiring at the door motor linkages (pins 2 and 6 at connector J104). Clip and replace the 16-gauge wire if insulation chafing is visible–factory color coding follows GM TSB 06-06-04-017B.
Electrical Schematics for Your Classic GM Sedan
Locate the underhood fuse block schematic on page 17 of the factory service manual–specifically fuse #14 controls the instrument cluster lighting circuit. If gauges dim erratically, inspect the orange/black wire at connector C201, pin 12, for corrosion or chafing against the A-pillar brace; this single strand often breaks under vibration, cutting power to the dimmer switch.
Critical Ground Points to Verify
Three primary grounds affect system reliability: G100 (driver’s side kick panel), G200 (passenger firewall), and G303 (trunk harness near the spare tire well). Clean each with a wire brush, then apply dielectric grease before reattaching; resistance above 0.5 ohms here triggers false fault codes in the body control module, mimicking sensor failures. For intermittent fuel pump issues, trace the dark green/white wire from the inertia switch to the pump relay–intermittent continuity drops often occur at the splice near the left rear wheel well, where road salt accelerates corrosion.
When troubleshooting the powertrain control module, use a pinout tester on the 80-pin connector: pins 54 (oxygen sensor heater), 71 (Throttle Position Sensor), and 78 (Mass Airflow Sensor) should read 450-550 mV at idle; values outside this range indicate a short in the engine harness, not the sensors. The PCM power relay, controlled by the ignition switch via the pink wire, fails frequently–swap it with the identical part from the adjacent AC relay to isolate the fault before replacing.
Finding the Right Electrical Blueprint for Your Custom Sedan Variant
Start by identifying the precise model iteration–whether it’s the baseline, mid-grade, or premium configuration. The differences in circuit layouts are subtle but critical, especially for components like the onboard computer, climate system, or optional trailer wiring harness. Check the vehicle identification sticker inside the driver’s door jamb for the RPO (Regular Production Option) codes, which dictate the installed electrical package.
Access the official service manual issued by the manufacturer, as third-party schematics often omit trim-specific modifications. The factory documentation includes a dedicated section titled “Electrical Diagnosis,” subdivided by system–SIR (Supplemental Inflatable Restraint), HVAC, powertrain control, and lighting. Use the VIN decoder to cross-reference the exact wiring bundle assigned to your build date, since mid-year updates introduced minor revisions.
| Trim Level | Distinct Electrical Components | Key RPO Codes |
|---|---|---|
| Base | Single-zone climate, basic instrument cluster, no rear-seat audio | C60, YF5, UE1 |
| Mid-Grade | Dual-zone climate, heated mirrors, auto-dimming rearview | B18, AU0, V18 |
| Premium | Heated seats, premium audio, remote start, trailer wiring prep | U77, YE2, Z49 |
For the premium trim, verify the presence of the rear defogger relay and its corresponding fuse location–this subsystem is absent in lower tiers. The power antenna, another premium-exclusive feature, requires a unique ground reference near the right rear quarter panel. Trace the wires from the radio harness back to the junction block to confirm exact connectors.
If troubleshooting the charging system, note that the alternator’s sense wire routing differs between the mid-grade (direct to the battery positive) and premium (through the body control module). Mislabeled schematics often confuse these paths, leading to incorrect voltage drop tests. Measure resistance at the alternator’s two-pin connector with the engine off to isolate trim-specific discrepancies.
Download the schematic in PDF format from the manufacturer’s technical portal using the VIN to ensure version accuracy. Avoid generic repair websites, as their diagrams may generalize across multiple years or omit trim-dependent fuses, such as the 30A “Power Seat” fuse found only in the premium variant. Print the relevant pages and use a highlighter to mark circuits tied to your specific RPO codes–this prevents overlooking small but critical divergences.
When inspecting the headlamp wiring, distinguish between the base model’s halogen-only setup and the premium’s automatic leveling system. The auto-leveling module, located behind the left front wheel well, adds three additional wires to the headlamp connector. If these are misrouted, the system defaults to a fixed-position error code. Remove the wheel liner to access the module for direct tracing.
For the rear window defroster, the premium trim integrates a timer relay that delays shutdown by 10 seconds after ignition off–a function absent in other variants. Locate the relay in the under-dash fuse box near the driver’s knee bolster. If the relay is missing but the wiring is present, the schematic for the mid-grade provides the baseline reference, though the connector order may shift between pins 3 and 4.
Always cross-check fuse ratings against the owner’s manual supplement; premium trims add fuses like the “Memory Seat” (20A) that are not present in base configurations. Use a multimeter to verify continuity on trim-specific circuits before replacing any modules, as mismatched schematics can lead to unnecessary part swaps. Keep a digital copy of the schematic open on a tablet for quick reference during hands-on diagnosis.
How to Interpret Your Vehicle’s Electrical Blueprint
Begin by locating the central power distribution panel on the schematic–usually marked with a bold border or shaded area. This block often sits near the top or left side and includes battery connections, fuses, and relays. Trace each line outward to identify components it powers; color codes adjacent to lines indicate wire gauges (red for 20 AWG, orange for 18 AWG, etc.). Cross-reference these with the legend at the document’s edge to confirm.
Identify symbols for connectors–each looks like a pair of vertical lines with small gaps. Numbers beside them (e.g., C101, S203) match physical plugs under the dashboard or behind the glove box. Use a multimeter set to continuity mode to verify circuits: probes on pin 1 of connector C101 and pin 3 of C102 should show closed loop if wiring is intact.
- Ground points appear as triangles or inverted “T” shapes–clustered near the chassis rail and engine block.
- Splices (marked with an “S” followed by a number) combine multiple wires; inspect insulation for chafing.
- Relays use a coil-and-switch icon; the coil side connects to switched power while outputs lead to accessories.

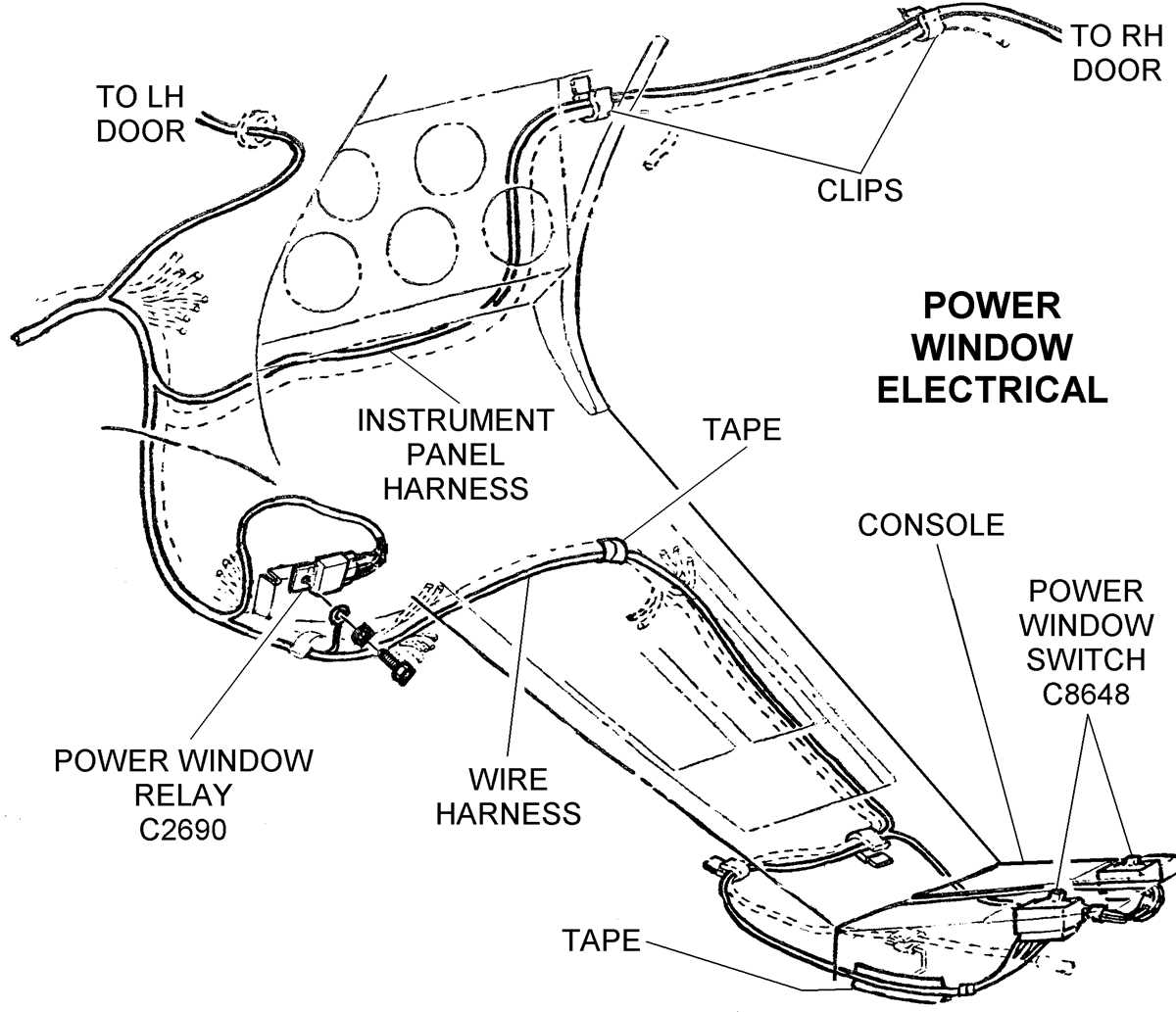

Focus on dashed or dotted lines–they represent optional or dealer-installed circuits (e.g., fog lights, heated seats). Solid lines indicate factory wiring. If troubleshooting a malfunctioning window motor, follow its circuit from the switchback to the door module, checking for breaks at splice points S205.
Sensor circuits appear as zigzag lines with labels like “ECT,” “TPS,” or “O2.” Locate their power source (+5V reference) and ground, then measure voltage drops: a reading below 4.8V at the TPS connector suggests a corroded pin or damaged harness near the throttle body.
- Isolate the circuit causing the fault by disconnecting the battery and probing with a test light.
- Compare readings against the schematic’s expected values (e.g., 12V at ignition coil terminal B+).
- Replace or repair wires showing resistance above 0.5 ohms between connectors.
End with the instrument cluster–each gauge (fuel, temp, speed) has dedicated lines branching from the IPC. Use a scan tool to verify data flow matches the schematic’s pin assignments; a discrepancy between displayed values and actual sensor readings typically traces back to a broken wire at splice S301 or a corroded ground near the firewall.
Locating Critical Elements in the Sedan’s Fuse Panel and Relay Circuitry
Begin by inspecting the instrument panel fuse block beneath the dash on the driver’s side–access requires removing the trim cover secured by plastic clips. Label C1 (gray, 10-pin) and C2 (tan, 14-pin) connectors serve as primary junctions for power distribution; probe terminals with a multimeter set to DC voltage to verify 12V presence at terminals A3 (C1) and D4 (C2) during ignition-on tests. Relay R3, marked “ECC” (Electronic Climate Control), slots into position five–swapping it with a known-good unit isolates HVAC failures linked to blower motor or compressor clutch issues.
Prioritize fuse ratings when tracing shorts: F16 (30A) protects the cooling fan circuit, while F2 (20A) safeguards the cruise control module. Use a fuse puller to extract suspected blown fuses, then check for continuity with the multimeter’s ohmmeter function–corroded fuse sockets require cleaning with electrical contact spray to prevent false positives. Relay R4 (anti-lock brakes) occupies slot eight; its absence or malfunction trips the “TRACTION OFF” dashboard warning–bypass testing involves jumpering terminals 85 and 30 with a paperclip (ignition on) to confirm ABS pump engagement.
For turn signal or hazard light failures, focus on relay R6 (flasher) and F11 (10A)–both located in the under-hood relay center near the battery. The relay center’s legend decal identifies R6’s position (upper right corner); a clicking sound during activation confirms functionality, while silence suggests relay coil failure or an open at terminal 86. If the issue persists, trace the tan/black wire from R6’s terminal 30 to the steering column’s turn signal switch–chafing often occurs near the firewall grommet.
Verify ground connections last: G101 (behind the left kick panel) grounds the transmission control module, while G200 (under the hood, passenger-side strut tower) serves the engine control system. Corrosion here mimics sensor or module failures; scrape clean and apply dielectric grease to prevent recurrence. For intermittent faults, gently wiggle harnesses while monitoring voltage drops–typically, loose terminals at C1’s B1 or C2’s E7 cause erratic PCM behavior.
