For precise wiring connections in factory-installed sound systems, refer to the color-coded harness layout specific to the model year variant. The power antenna lead (blue/white stripe) requires a direct splice to maintain automatic activation when the receiver powers on. Failure to connect this wire results in lost signal strength and erratic tuning behavior, especially in FM band reception.
Factory harnesses include four primary speaker outputs: front left (gray), front right (white), rear left (green), and rear right (purple). Each channel uses a positive and negative wire–confusing these causes phase cancellation, degrading sound quality. The subwoofer output (if equipped) uses a dedicated brown wire pair. Measure continuity before connecting aftermarket amplifiers to prevent damage to the head unit.
Ground connections demand attention–the chassis ground (black) must attach to bare metal with no paint or corrosion. A poor ground manifests as buzzing, distortion, or intermittent power loss. Use a multimeter to verify resistance below 0.5 ohms between the ground wire and chassis.
The memory wire (yellow) needs constant 12V from the battery, not the ignition switch. Tapping into the wrong circuit erases presets, clock settings, and security codes. Identify the correct fuse port–typically the 10A radio fuse slot–using a circuit tester before splicing.
Dimmer wires (orange or orange/white) integrate with dashboard lighting. Reverse polarity here causes backlight failure on the display. Verify compatibility with OEM dimmer systems when installing third-party receivers–some require additional resistors.
Hands-free integration wires (if present) include microphone input (pink) and mute control (gray/black stripe). Connecting these incorrectly disrupts phone pairing functionality. Test call clarity before finalizing the installation.
Audio System Connector Pinout for a 2001-2003 Honda Sport Coupe
Begin by locating the 20-pin harness connector behind the factory head unit. Pins 1 and 2 deliver constant 12V power (yellow wire), while pin 4 supplies switched ignition power (red). Ground connects to pins 3 and 17 (black). Avoid confusion between these lines–accidental cross-connection risks blowing the fuse or damaging the amplifier.
Front speaker outputs follow this arrangement: left positive via pin 5 (white/black stripe), left negative via pin 6 (white), right positive via pin 7 (gray/black stripe), and right negative via pin 8 (gray). Rear speaker outputs split similarly: left positive pin 9 (green/black stripe), left negative pin 10 (green), right positive pin 11 (purple/black stripe), and right negative pin 12 (purple). Verify continuity with a multimeter before securing crimp connectors.
Aftermarket Integration Key Points
Most OEM harnesses include a secondary 12-pin connector for the amplifier and antenna. Pin A supplies remote turn-on (blue/white), while pin B handles antenna motor control (pink). If retaining the factory amp, ensure aftermarket unit compatibility–Kenwood and Pioneer decks often require bypassing the internal crossover via jumper settings.
Subwoofer pre-out signals hide behind pins C and D (gray and green/blue stripes) for rear channels–useful when adding an external amplifier. Skip these if using passive speakers only. For vehicles equipped with navigation, pin E carries speed-sensor data (light green/red)–interference during installation can disrupt GPS calibration.
Insulation tape proves unreliable for wire joins; instead, splice using solder and heat-shrink tubing. Twist strands gently before soldering to prevent breakage. Misrouted cables near the climate control servos risk intermittent faults–secure bundles away from moving parts with zip ties.
Factory color codes occasionally deviate; cross-reference with a service manual for your trim level (Base, Premium, or Type S). The Premium trim’s harness includes an extra two wires (pin F: mute control; pin G: illumination) absent in the Base model. Test each connection under ignition, accessory, and off states to confirm proper voltage drop.
Final step: reattach the dash panel by aligning clips at the bottom first, then pressing firmly along the top edge. Misalignment risks snapping the brittle plastic–apply steady pressure, not force. Once reassembled, cycle through radio, CD, and auxiliary modes to ensure all functions operate without distortion.
Finding the OEM Head Unit Connector in Your 2001-2006 Sport Coupe
Drop the lower dash panel beneath the climate controls by unscrewing two 10 mm bolts–one near the hood release, the other above the driver’s left knee. Use a stubby Phillips screwdriver to remove two plastic push-clips securing the panel edge; the clips stay attached to the panel, so pull straight out to avoid breaking tabs.

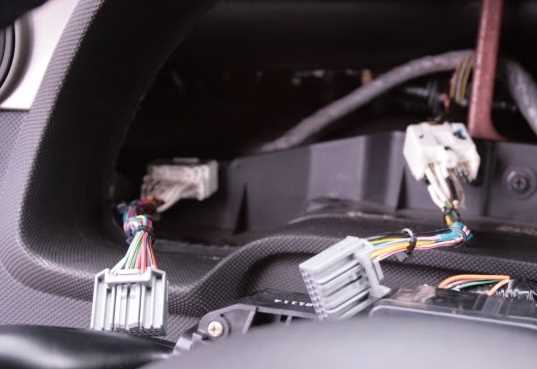

The connector sits on the back of the stock receiver’s metal cage, centered between the heater ducts. Follow the bundle of cables from the rear of the cage: the main harness is a 20-pin rectangular plug with a gray locking tab. A smaller 4-pin power antenna lead sprouts from the top right corner, distinguishable by a black sheath and single red wire.
| Connector Pin | Wire Color | Function | Voltage (Key ON) | Notes |
|---|---|---|---|---|
| 1 | Solid Red | Battery + | 12.6 V | Fused at 10 A, always hot |
| 4 | Yellow/Black stripe | Illumination – | Pulse-width modulated | Dimmed via instrument cluster |
| 11 | Green/White stripe | Front Right + | 1.2 V RMS | OEM capacitor-filtered |
| 20 | Blue/White stripe | Remote turn-on | 12 V when accessory | Triggers aftermarket amps |
Trace cables downward into the tunnel; they pass through a foam grommet pressed into a firewall notch behind the left kick panel. If removing the cage, disconnect the antenna plug first–it snaps off with finger pressure–then slide the cage forward while tilting the top edge away from the dash. The harness connector remains clipped to the cage bracket; depress the gray tab to release.
Check for corrosion on pins 6 (solid black, chassis ground) and 14 (pink/black stripe, memory keep-alive)–these carry parasitic loads and can develop surface oxidation. Use a 0.05 mm wire brush or contact cleaner spray; avoid abrasives that wear plating.

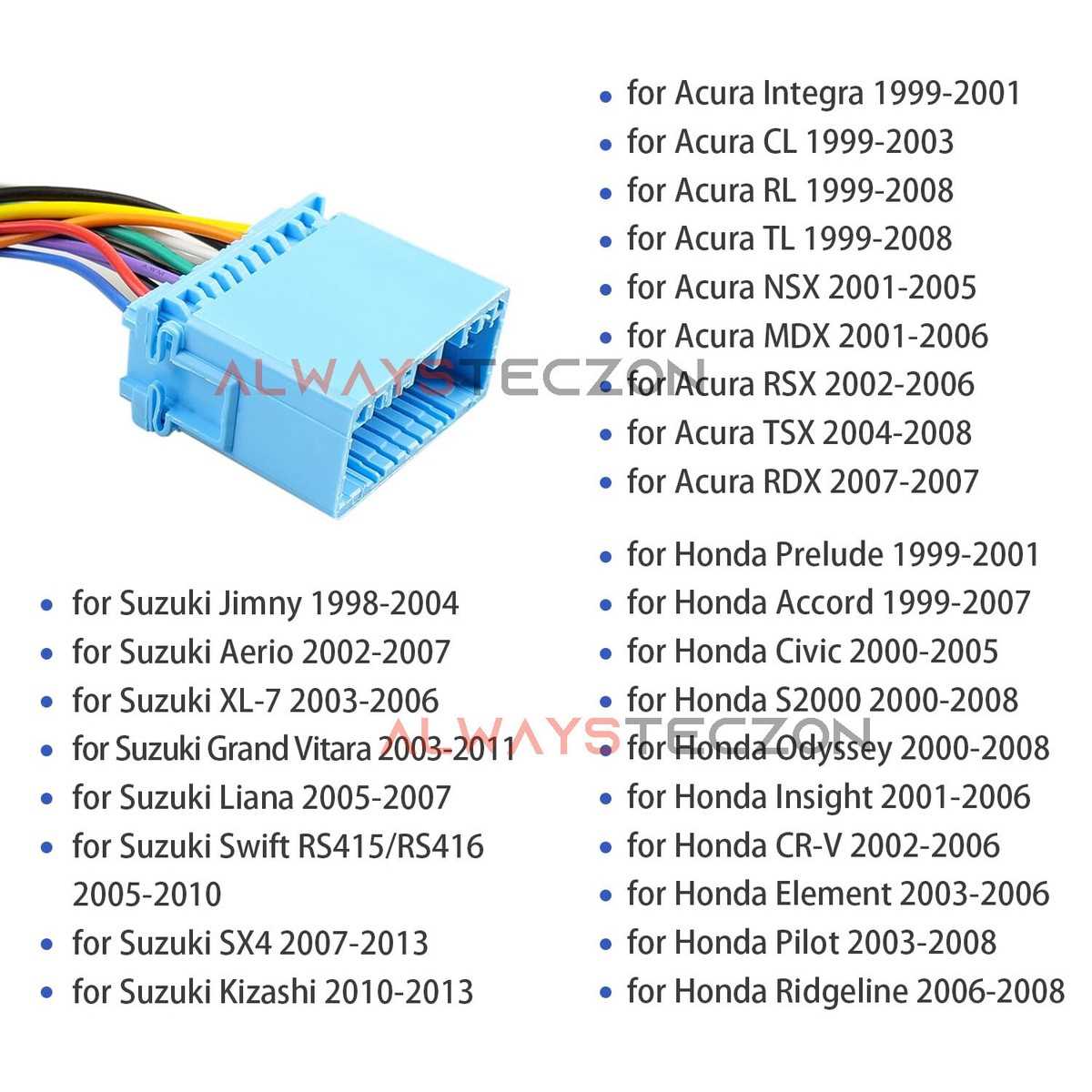

For retrofits requiring harness adapters, match pin assignments exactly–aftermarket adapters often omit RGB feed for the navigation unit, forcing manual soldering of pin 17 (green/red stripe, reverse signal) directly to the new head unit’s parking brake input.
Static shields run along pins 3 (white/green stripe) and 10 (gray/black stripe). After splicing, drain stray currents by connecting shielding braid to pin 6; loose strands can induce whine in door-mounted tweeters.
If diagnosing no audio from factory amplifiers, probe pin 12 (solid brown) with a multimeter set to 2 V DC scale: speaker output should register ~0.8 V peak during bass hits. Voltage below 0.4 V indicates blown channel fuse behind the amp module, located under the passenger seat.
Color Codes and Pinouts for Aftermarket Radio Integration

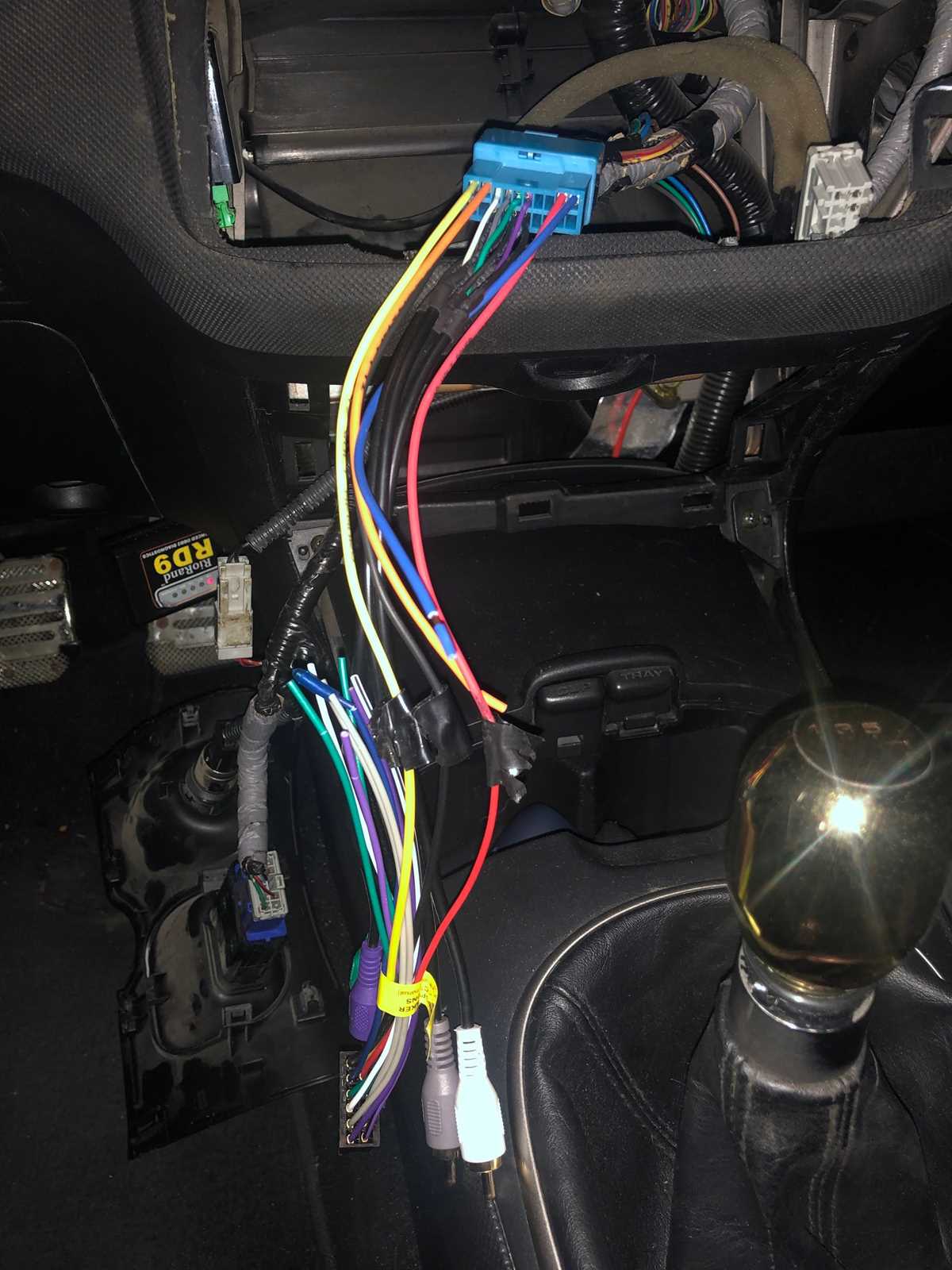

Begin by connecting the constant 12V power lead–typically marked in yellow–to the factory harness’s matching wire (solid red in OEM harnesses). Ground the black wire directly to chassis metal, ensuring a clean, unpainted surface near the original mounting location to prevent voltage drop.
The ignition-switched power (red) must align with the vehicle’s ignition feed (often light green/black stripe). Verify this with a multimeter set to DC voltage: probe should read 0V with the key off and 12V when turned to ACC or ON. If the factory harness lacks a clear match, splice into the fuse box’s ACC circuit (fuse #22, 10A) using an add-a-fuse adapter.
Speaker outputs follow a standard color scheme: fronts (grey/white for +, grey/black for -), rears (violet/white for +, violet/black for -). Cross-reference with the original radio’s connectors–aftermarket harnesses sometimes reverse polarity. For steering wheel controls, use a PAC RP5-GM11 adapter or equivalent; locate the data bus wire (solid white or white/blue stripe) behind the climate control unit.
For amplified systems (e.g., Bose), retain the factory amplifier by connecting the aftermarket unit’s RCA preouts to the amplifier’s input harness (check for a 16-pin white connector near the glovebox). If bypassing the amp, wire speakers directly, but expect reduced output unless adding an aftermarket amplifier; account for impedance (4Ω minimum for most headunits).
Connecting Aftermarket Drivers to the Factory Sound Setup
Start by verifying the color-coding on the OEM harness pins: front door outputs use solid blue (positive) and blue/black stripes (negative), while rear shelf units follow green (hot) and green/black tracers. If retaining the original amplifier (located behind the glove box), bridge the new driver’s 4-ohm coil directly to these leads–mismatched impedance drops power by 30%, muffling mid-high frequencies. For passive crossovers, wire 18-gauge copper after the factory outputs to prevent signal loss over 12-foot runs.
Splicing Without Voiding FCC Compliance
Use crimp connectors on the back of the head unit’s ISO plug–never splice into speaker-level wiring before the dash harness, as DC offset in the base model can fry aftermarket tweeters within hours. For component sets, route the tweeter’s RCA-equivalent leads (typically 22-gauge twisted pair) separately from door woofers to avoid EMI; vehicle chassis grounds act as antennas, introducing 1.2kHz harmonic distortion even at low volumes. Test continuity with a multimeter set to 200Ω–the stock loom shows 3-5Ω resistance; deviations indicate corroded terminals requiring DeoxIT treatment.
Dual-voice-coil subs demand careful phasing: connect the primary coil (color-matched to the factory rear green/green-black pair) to the amplifier’s bridged output; the secondary coil should float with a 100μF capacitor between its terminals and the battery’s accessory line. Skip inline fuses on subwoofer runs–their 0.2Ω resistance bleeds transient current, clipping bass at 80Hz. Instead, fuse the amp’s remote turn-on (purple wire, 18-22AWG) at the battery with a 5A ATO blade to prevent thermal runaway in parked idling scenarios.
