For accurate diagnostics, locate the battery voltage sensing wire–identified by its yellow with red stripe (Y/R) insulation. This conductor feeds directly from the positive terminal to the regulator, bypassing fusible links that often introduce resistance. Verify continuity with a load test: disconnect the field wire (light green with white stripe, LG/W) at the rear housing connector, then apply 12V momentarily. If the rotor fails to engage, suspect internal brush degradation rather than external faults.
Trace the charge indicator circuit using a multimeter in diode-test mode. Probe between the alternator output stud (B) and chassis ground; readings above 0.5V suggest parasitic drain through the instrument cluster. Isolate the issue by removing the 10A “GAUGE” fuse–if voltage stabilizes, the fault resides in the dashboard’s voltage stabilization network. Never disregard the stator winding integrity; perform an AC ripple test with the engine at 2000 RPM–fluctuations exceeding 0.3V peak-to-peak confirm diode trio failure.
Reconnect wiring harnesses only after confirming terminal cleanliness. Corrosion on the fusible link holder (located behind the air intake box) mimics intermittent charging failures. Use dielectric grease sparingly–apply a thin film to the connector shells after verifying that the B+ stud nut torques to 8 ft-lbs. Substitute aftermarket regulators cautiously; OEM units incorporate active temperature compensation that aftermarket versions lack.

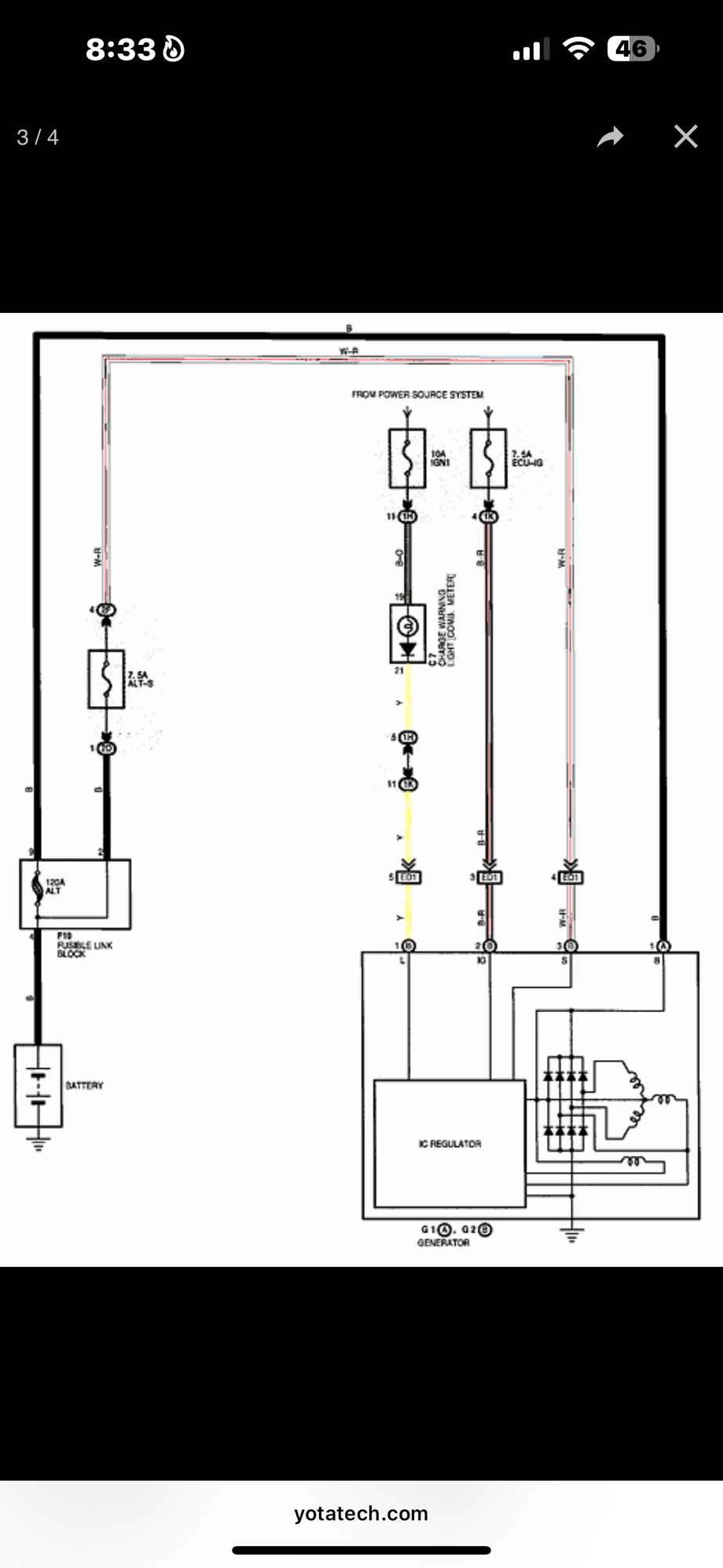

Electrical System Guide for the 2001 Model Large SUV
Check the charging circuit’s three key connections first: the battery positive terminal, the B+ lug on the voltage regulator housing, and the engine ground strap to the chassis. Remove corrosion with a wire brush and apply dielectric grease to prevent future buildup–this typically resolves intermittent charging faults without further disassembly.
- 4-pin connector labels (from back to front): S (sense), IG (ignition), L (lamp), FR (field relay).
- Voltage at B+ should read 13.8–14.4 VDC at 2000 RPM with no electrical loads.
- Resistance between ground and FR pin should measure 0.5–1.0 ohms when the engine is off.
If the dash warning light remains illuminated after startup, trace the lamp circuit: the L terminal inside the connector routes through a 1.5 A fuse, then the instrument cluster before reaching chassis ground. A broken trace in the cluster PCB is a common failure point–use a multimeter on continuity mode to isolate.
Quick Diagnostic Flow for No-Charge Conditions
- Verify belt tension and pulley alignment (no more than 3 mm deflection).
- Measure voltage drop across the positive cable: if >0.2 V, replace or clean terminals.
- Jump the IG terminal to B+ with a fused jumper wire–if output exceeds 13.0 VDC, the internal voltage regulator is faulty.
- Inspect the FR terminal for 12 VDC during cranking–absence indicates a main relay failure.
Replacement units require a 22 mm socket for the main B+ nut; torque to 45 Nm. Always disconnect the battery negative cable before servicing to avoid short circuits. After installation, clear any stored trouble codes with an OBD-II scanner to prevent false fault logs.
Identifying Key Electrical Charging System Elements in the Vehicle
Begin by raising the vehicle’s hood and securing it with the safety latch. The power-generating unit sits on the right side of the engine bay, adjacent to the serpentine belt tensioner. Look for a cylindrical component with a black plastic rear housing and a pulley at the front–this is the core of the charging system. The connector plug should have three terminals: a large B+ output (thick red cable), a smaller ignition input (thinner wire, typically green or yellow), and a ground or field control wire (often black or brown).
To access the wiring harness, trace the cables from the rear of the generator back toward the battery and fuse box. The B+ cable runs directly to the positive battery terminal, passing through a fusible link–a short, thick segment of wire with a higher gauge–located near the battery tray. The ignition input wire routes to the ignition relay or fuse panel under the dash, usually marked as “IG” or “ALT-S” in the fuse diagram. The ground wire typically connects to a nearby engine block stud or the chassis.
Common trouble spots include corroded terminals, frayed wires near the pulley, or a melted fusible link. Inspect these areas closely:
- The B+ cable connection at the back of the unit–ensure the nut is tightened to 10-12 ft-lbs.
- The fusible link–look for swelling, burns, or exposed copper.
- The connector plug–check for moisture or bent pins.
- The serpentine belt–if it’s loose or glazed, it can slip and prevent proper charging.
If the unit isn’t charging, use a multimeter to verify voltage at the B+ terminal. With the engine off, you should read ~12.6V; with it running, ~13.8-14.4V. Anything below 13V indicates a faulty voltage regulator or slipping belt. Replace the belt if cracks exceed four per inch or if it’s more than 60,000 miles old.
How to Trace Electrical Connections in Your Vehicle’s Charging System
Locate the power generator’s harness plug first–it sits near the front of the engine bay. Use a flashlight to spot three cables: a large red lead, a smaller black wire, and a thin blue or white signal line. Label them temporarily with masking tape to avoid confusion.
Set a multimeter to DC voltage (20V range) and confirm battery voltage is above 12.6V before proceeding. Probe the red cable with the positive lead; it should read full battery voltage at all times–this is the main supply line from the fuse block.
Attach the negative probe to the engine block ground. Touch the black wire–reading should drop to 0.0V or near zero, confirming it’s the ground return path. If voltage exceeds 0.1V, inspect the connection for corrosion or loose terminal crimps.
Check the signal line (blue/white) by running the engine at 1,500 RPM. Voltage should rise to 5-8V; if stuck at battery voltage, the voltage regulator or ECU feedback circuit may be faulty. Use a wiring schematic for reference if colors differ from standard patterns.
Disconnect the connector and inspect pins for oxidation. Clean terminals with electrical contact cleaner and a nylon brush–avoid metal brushes to prevent damage. Reconnect snugly; wobbling causes intermittent failures.
Trace each cable back to its source using a tone generator. The red lead typically routes to a 100A fuse under the hood. The ground wire loops to a chassis stud near the strut tower. The signal wire connects to the ECU harness near the firewall.
Test load response by turning on headlights and blower fan. Engine voltage should hold steady between 13.8-14.5V at 2,000 RPM. Drops below 13.5V indicate undercharging–replace the component if testing confirms internal failure.
Reassemble components only after confirming all readings. Recheck voltage after reinstalling belts, pulleys, and protective covers to ensure no interference occurs during operation.
How to Verify Power Output at Each Generator Connector Pin
Set a multimeter to DC voltage (20V range) before making contact. Ground the black probe to the engine block–avoid painted surfaces to prevent false readings. With the engine running at idle, probe each terminal directly: B+ (main output) should read 13.8–14.4V, while the IG (ignition input) terminal must show battery voltage when the key is on. Any drop below 12V at IG suggests a bad relay or corroded harness splice.
Check the S (sensing) terminal next. It should mirror B+ readings within 0.1V; discrepancies indicate a frayed voltage sense wire or poor ground loop. If voltage fluctuates while revving, suspect worn brushes or a slipping rotor. Use a back-probe technique to avoid damaging terminal seals–insert the red probe into the connector behind the wire, not at the metal pin.
For the L (lamp) terminal, expect close to 0V with the engine off and battery voltage when cranking. Anything above 0.5V at rest points to a shorted diode trio in the rectifier pack. Test with the ignition off to isolate charging system faults from parasitic draws. Always compare readings against a known-good battery; a weak cell can skew results.
Move to the F (field) terminal.Key-on, engine-off should yield full battery voltage; any deviation suggests a faulty voltage regulator or open field winding. If voltage holds steady but the main output stays low, rotate the pulley by hand while monitoring–intermittent drops confirm internal bearing wear or slip ring corrosion. Never exceed 1,500 RPM during testing to prevent voltage spikes.
Use a load test to confirm integrity: activate headlights, blower motor, and rear defroster simultaneously. Voltage at B+ should not dip below 13.2V. If it does, suspect a weak stator winding–each phase can be tested individually by probing stator leads with the engine off (expect 0.5Ω or less between phases). High resistance here means internal shorts; open circuits require full stator replacement.
Document all readings. A steady 14.2V at all connector pins with stable load response confirms proper operation. Deviations trace back to specific failures: low B+ but normal S = bad sense wire; fluctuating F but steady IG = bad regulator. Always disconnect the negative battery cable before probing stator leads to avoid damaging the rectifier stack.
Repairing Faulty Conductors in the Charging System
Disconnect the battery’s negative terminal first to eliminate shock risk during conductor repairs. Use a 10mm wrench to loosen the clamp–avoid prying or twisting the post to prevent thread damage. Inspect the harness for brittle insulation, greenish corrosion, or melted plastic near the generator’s output stud; these signs indicate localized overheating or moisture intrusion.
Locate the junction where the main feed splits toward the voltage regulator and excitation coil. On most powertrain configurations, this connection rests beneath the intake manifold, secured by a single T-20 torx bolt. Remove the fastener, then gently wiggle the connector body to release the locking tabs–ignore the temptation to force it, as brittle plastic can fracture under excessive pressure.
Measure conductor resistance before cutting damaged sections. Set a multimeter to 200 ohms and probe between the generator’s B+ terminal and the corresponding fuse block entry. A reading above 0.5 ohms confirms internal oxidation or partial breakage; assume total failure if the meter shows open circuit. Cross-reference expected wire gauges below:
| Circuit Segment | AWG Gauge | Max Amperage |
|---|---|---|
| Main output (generator to solenoid) | 4 | 80A |
| Excitation coil (sensing lead) | 12 | 10A |
| Ground strap (engine block to chassis) | 6 | 60A |
Strip insulation using a heat-shrink compatible wire stripper–adjustable blades prevent nicking the copper strands. For heavily corroded conductors, twist a fresh strand tightly around the existing core before soldering; flux-core 60/40 solder ensures optimal wetting without excessive heat. Slide heat-shrink tubing over the joint, then apply a heat gun until the sleeve conforms tightly–avoid direct flame, which can soften the insulation.
Reattach the harness with dielectric grease on terminals to prevent future oxidation. Route conductors away from sharp edges or pulley belts, securing with original-style adhesive-backed mounts if present. Reconnect the battery last, then verify output at idle: 13.8–14.4V across the battery posts indicates restored current flow.
Test drive the vehicle under electrical load–activate headlamps, rear defroster, and blower motor simultaneously. Monitor voltage drop at the battery; a decrease exceeding 0.2V suggests residual resistance in the circuit, necessitating re-inspection of splice integrity or ground path.
