Start with the main power distribution block under the dashboard near the driver’s side kick panel. Remove the plastic cover by releasing two retaining clips–avoid prying with sharp tools to prevent damaging the housing or adjacent fuses labeled for ABS and ignition. Locate terminals labeled C101 (red, thick gauge) and C102 (black, ground); these feed the instrument cluster and fuel injection module. Verify continuity using a multimeter set to 200 ohms–readings above 5 ohms indicate corrosion or fractured wiring requiring immediate attention.
The engine compartment relay center holds critical circuits for the cooling fan and alternator. Trace wire PK/WH (pink with white stripe) from relay slot #36 to the coolant temperature sensor–intermittent failures here cause erratic temperature gauge behavior. For the ignition system, focus on D-GN (dark green) leading to the crankshaft position sensor; disruptions here result in no-start conditions. Solder connections with 60/40 rosin-core solder (no acid-core substitutes) to prevent oxidation recurrence. Replace heat-shrunk terminals if insulation appears brittle or melted.
For the rear light assembly, inspect connector T308 near the spare tire well. Corrosion is common–clean contacts with electrical contact cleaner (not WD-40) and apply dielectric grease to the male pins before reconnecting. The brake light switch circuit uses YE/VT (yellow/violet) for signal transmission; test via a scan tool while actuating the pedal–no voltage change means a faulty switch or broken wire in the rubber grommet between the cabin and trunk. Avoid twisting wires during rerouting to prevent fatigue fractures.
When troubleshooting the HVAC blower motor, check fuse #18 in the interior fuse box first. If intact, probe wire OR/WH (orange/white) at the blower resistor pack–no power suggests a bad ground or failed motor. The resistor block fails progressively; replace the entire assembly rather than individual resistors to ensure matched impedance. For air conditioning compressor engagement, monitor wire DB (dark blue) at the pressure switch–voltage should drop below 0.5V when refrigerant levels are adequate.
Electrical Schematics for the 2001 Grand Am SE Model
Locate the underhood fuse block schematic on the driver’s side near the strut tower–it houses critical relays for the cooling fan, A/C compressor, and fuel pump. Pin 30 on the right connector (black/light blue stripe) supplies constant power to the PCM, while pin 85 (dark green/white stripe) triggers the fuel pump relay. Verify continuity between pin 87 of the relay socket and the fuel pump connector (gray/pink wire) before suspecting module failure–corrosion at the G107 ground near the battery tray is a frequent issue.
Key Circuit Paths for Troubleshooting
- BCM to IPC Communication: The Class 2 data bus (white wire) links the body control module (BCM) to the instrument panel cluster (IPC). Check for 12V pulses at pin 2 of the IPC connector (C2) with a DVOM set to AC voltage–absent readings indicate an open in the harness or a faulty BCM.
- Passenger Compartment Fuse Block:
- Fuse #18 (10A) powers the radio memory–replace if the clock resets persistently.
- Fuse #29 (15A) feeds the interior lights and trunk release–test with a test light at the orange/black wire at connector C1 (BCM).
- Red wire (pin B) delivers “Run/Crank” voltage–verify 12V at the starter solenoid (purple wire) during cranking.
- Pink wire (pin E) supplies “Accessory” power–probe at the radio connector (pink/black wire) with the key in ACC position.
For intermittent no-start conditions, focus on the purple/white wire from the ignition switch to the starter relay. Backprobe the wire at the relay socket (pin 85) and monitor voltage drop while cranking–readings above 0.5V indicate a corroded splice at S113 (located behind the left kick panel). Replace the 30-amp fusible link (red wire) between the underhood fuse block and the bulkhead connector if resistance exceeds 1 ohm.
Finding Electrical Schematics in Factory Repair Documentation
Open the official repair manual for the vehicle and locate section 8D, typically titled “Electrical System” or “Wiring Schematics.” Use the index to jump directly to page ranges 8D-15 through 8D-45, where the full-color fold-outs are printed. Each schematic is grouped by component cluster–body control module (BCM), instrument panel (IP), or powertrain control module (PCM)–and labeled with circuit identifiers, such as CKT 120 for power distribution or CKT 580 for ground paths.
Quick Reference Table for Schematic Pages
| System Group | Page Range | Key Circuit Labels |
|---|---|---|
| Lighting (Exterior) | 8D-18 to 8D-22 | CKT 6, CKT 22, CKT 51 |
| Instrument Panel Gauges | 8D-25 to 8D-29 | CKT 320, CKT 431, CKT 1050 |
| Engine & Transmission Sensors | 8D-35 to 8D-40 | CKT 416, CKT 460, CKT 900 |
| HVAC Controls | 8D-42 to 8D-45 | CKT 75, CKT 54, CKT 805 |
Trace circuits using a highlighter to mark paths between connectors and components. Verify connector pinouts by cross-referencing the connector view section on pages 8D-90 to 8D-120, which annotates wire gauge (AWG), color codes (DK GRN = Dark Green), and pin numbers (C101 Pin 12).
Identifying Core Vehicle Electrical Modules and Their Interlinks
Locate the under-dash fuse block first–it houses relays and fuses controlling critical circuits like the ignition feed, starter solenoid trigger, and powertrain control module (PCM) power. Pin 87 on relay sockets typically delivers switched voltage; trace these lines to downstream connectors serving fuel injectors, ignition coils, and sensor clusters. Verify continuity between the PCM’s C1 connector (grey 68-pin) and ground reference points–resistance above 0.5 ohms indicates corrosion or broken strands.
Examine the instrument panel cluster’s 12-pin plug; terminals A (fuel sender), B (tach signal), and F (battery gauge) interface directly with the engine bay’s harness via the firewall bulkhead connector. Probe pin F with a multimeter–expect 12V with ignition ON–deviations suggest a faulty voltage regulator or blown fuse in slot 14 of the interior fuse panel. Disconnect the throttle position sensor harness before checking signal output; spikes above 4.8V at wide-open throttle confirm a shorted trace.
Inspect the anti-lock brake system (ABS) controller’s 34-pin harness; pins 1-18 handle wheel speed sensor inputs–clean each terminal with contact cleaner to remove oxidation. Follow the main harness loom beneath the driver’s side carpet to the body control module (BCM); splice points here often fail–insulate all connections with heat-shrink tubing and dielectric grease. Swap relay R4 in the engine compartment junction box if the fuel pump prime cycle exceeds 3 seconds–this isolates a failing inertia switch or circuit interruption.

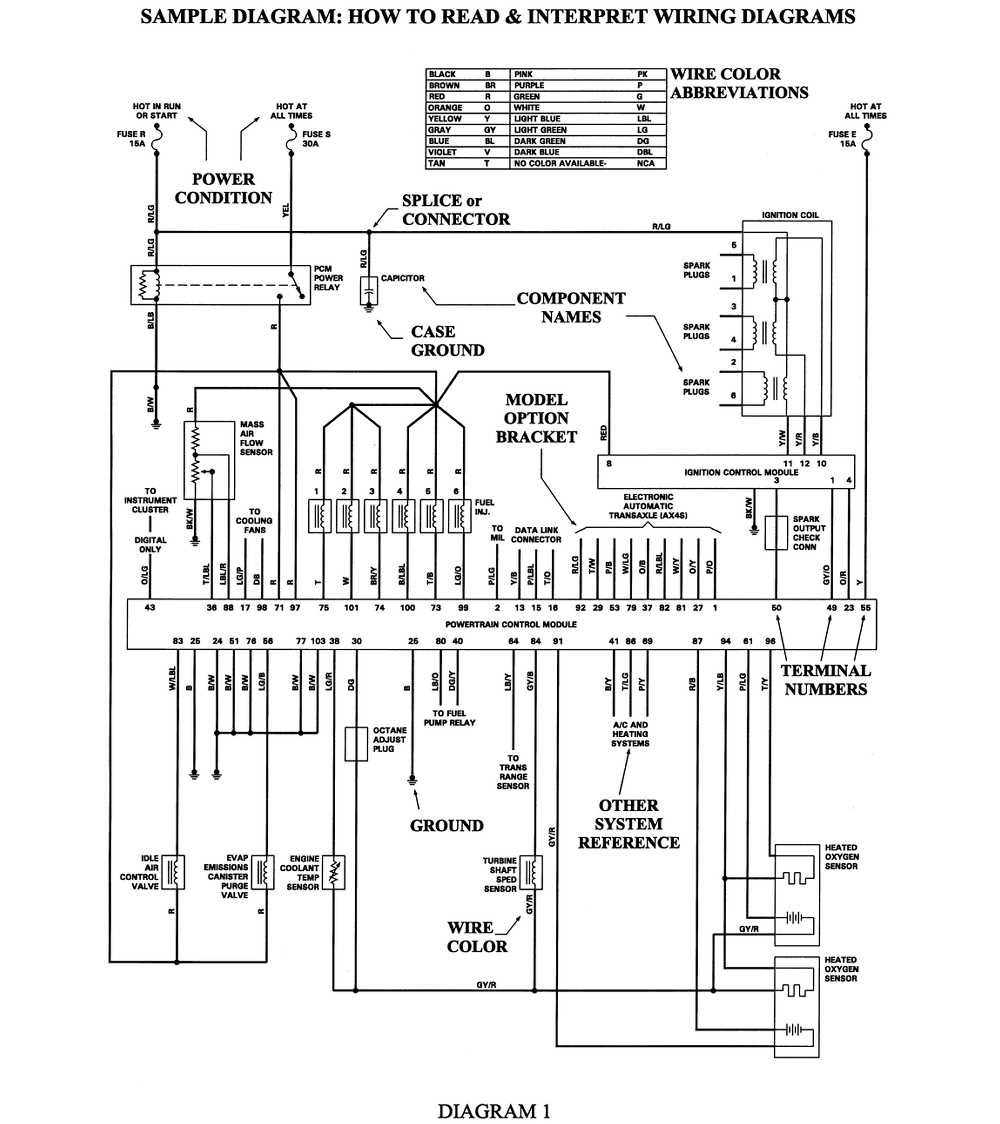

Decoding Wire Color Schematics and Path Layouts
Locate the legend at the diagram’s edge–it maps each hue to a specific circuit function. Solid colors (e.g., black, red, blue) denote primary conductors, while stripes (white-black, yellow-purple) indicate secondary feeds or ground returns. Cross-reference the label’s alphanumeric codes with the vehicle’s harness connectors: “C101” typically ties to the under-dash fuse block, whereas “G202” routes to the engine bay sensor cluster.
- Pink (+): Ignition-switched power (accessory circuits)
- Dark green/white (-): Ground strap to chassis
- Light blue: ECM signal wires (5V reference)
- Brown: Instrument panel illumination (dimmer-controlled)
- Orange: Permanent battery voltage (unfused)
Trace the paths using a highlighter–start at the source (battery/fuse), follow attraverso relay contacts, splice points, and bulkhead grommets. Bulkier wires (10-12 AWG) usually carry high-current loads (starter, alternator), while 18-22 AWG handle sensors or actuators. Verify continuity at junction blocks: a break here often causes phantom electrical gremlins in climate control or ABS modules.
Common Routing Pitfalls
- Misidentifying twisted pairs–MIL (malfunction indicator light) wires run alongside diagnostic lines; accidental shorts trigger false trouble codes.
- Failing to account for inline connectors–disconnects behind the glovebox or under seats may hide corroded pins.
- Skipping harness wraps–damaged insulation near sharp edges (e.g., exhaust manifolds) can create intermittent shorts.
Use a multimeter’s continuity mode to validate each segment before reassembly–resistance above 0.5 ohms indicates corrosion or a broken strand. For critical safety systems (airbags, anti-lock brakes), adhere to the schematic’s torque specs for connector bolts (typically 3-5 Nm) to prevent signal loss.

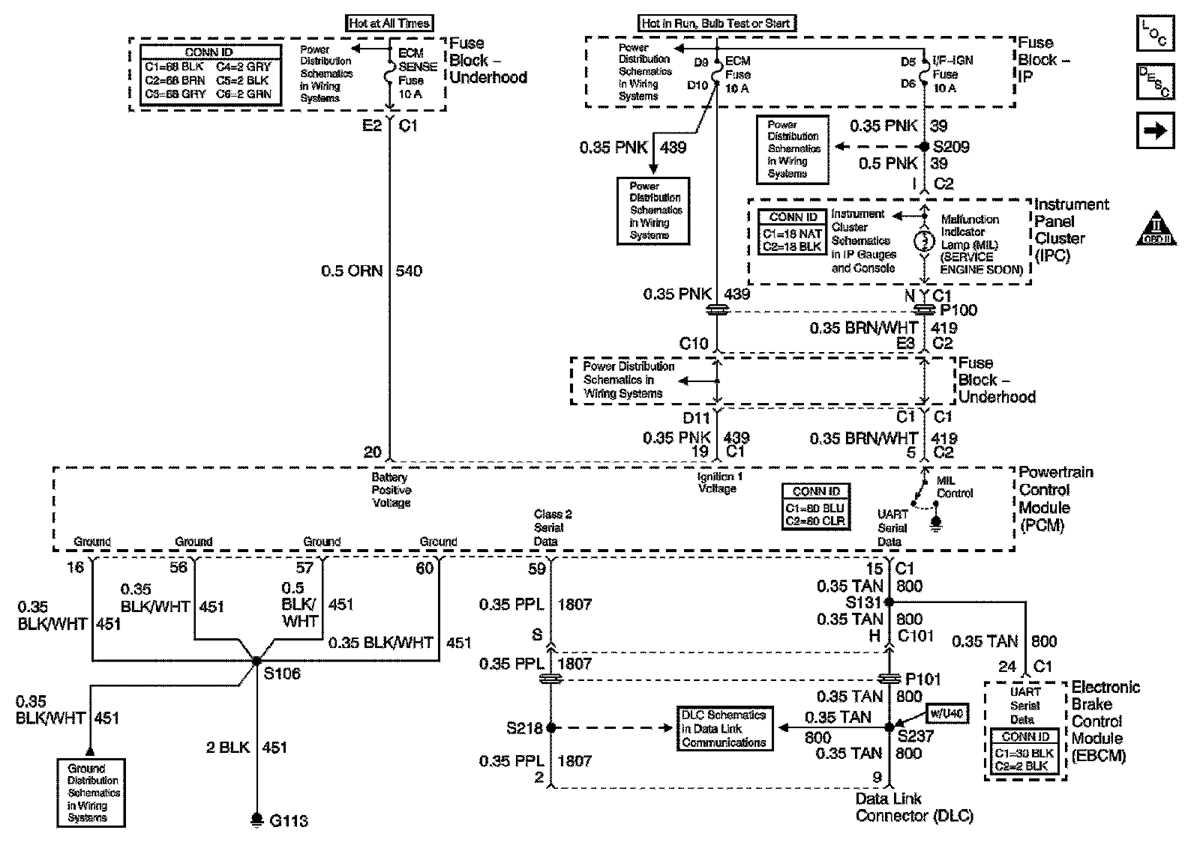

Tracing Power Distribution for the Engine Control Unit
Begin with fuse F12 in the under-hood power center, marked as “ECM 1” on most schematics. This 10-amp fuse directly feeds the ignition-switched relay coil, labeled K54 in service manuals. Verify continuity between fuse output and relay pin 85 using a multimeter; resistance should read below 2 ohms. If readings exceed this threshold, inspect the harness between the fuse block and relay socket for chafing near the strut tower.
Relay K54’s pin 87 supplies controlled voltage to the engine computer via a dedicated orange wire. Trace this conductor back to connector C2 at the control module–specifically terminal 16. At the mating connector, probe for 12-14 volts with the ignition in RUN position. Absence of voltage here typically indicates a failed relay or corroded socket, not an open circuit elsewhere. Replace the relay with an OEM equivalent (ACDelco AR139 or equivalent) before proceeding.
The control module also receives constant battery voltage through fuse F25 (15-amp, labeled “ECM B+”). Follow the red wire from this fuse to connector C1, terminal 18. This connection powers memory functions and should register battery voltage at all times, regardless of ignition state. If voltage drops below 12.6 volts, check the fusible link FL1 near the positive battery terminal–common failure point due to heat cycling.
Ground distribution requires equal attention. The primary ground (G101) bolts to the right-rear engine block, branching to multiple ECU pins via black conductors. Confirm zero resistance between ECU connector C1, terminal 14 and chassis ground. Secondary grounds (G102) connect at the transmission bellhousing–inspect both studs for oil contamination, which elevates resistance and triggers erroneous diagnostic trouble codes.
Data bus connections (serial communications) originate at the instrument cluster and feed the ECU through twisted-pair circuits terminating at C2, terminals 58 and 60. These yellow and dark green wires carry Class 2 messages requiring less than 0.5 volts drop under load. Use a scope to verify square-wave signals between 7.5–10 volts peak-to-peak; distorted waveforms suggest a failing cluster module or shorted bus termination.
For relay testing, remove K54 from its socket and manually jumper pins 30 to 87. The ECU should power immediately–listen for the fuel pump prime cycle. If the pump remains silent, shift focus to the crankshaft position sensor circuit (P1336 code) before rechecking relay functionality. Sensor data lines (5-volt reference) converge at C1, terminals 9 and 10–probe these for stable 4.8–5.2 volts with no sensor connected to isolate regulator faults within the unit itself.
