Locate the fusible link feeding the ignition system–positioned near the under-hood relay center, labeled G4 on most OEM layouts. A faulty link commonly mimics fuel pump failures; test continuity with a multimeter set to 200Ω before assuming injector issues. If resistance exceeds 0.3Ω, splice in a replacement AWG 10 wire using crimp connectors rated for 60A.

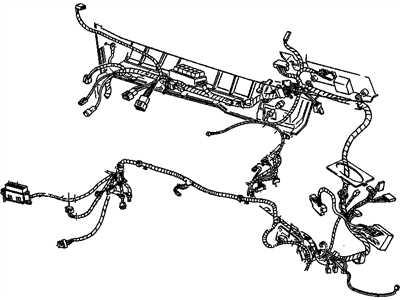

Trace the instrument cluster harness behind the dashboard–specifically, the pink wire labeled B+ (circuit 432). Pinching this wire against the HVAC frame causes intermittent gauge failures. Secure it with nylon loom or replace the 14-gauge section if insulation shows cracks wider than 2mm. Verify sourcing from fuse 28 in the interior fuse block; if absent, suspect corrosion at connector C202.
For the rear defroster circuit, inspect relay R16 in the under-dash module. Replace the relay if activation clicks occur without grid heating–standard resistance across terminals 85 and 86 should measure 75±5Ω. If voltage reads below 10.5V at terminal 30 during ignition-on tests, examine splice S138 located near the left rear quarter panel for oxidation.
Troubleshoot power seat motors using connector C305 beneath the driver’s side seat. Probe pin B (purple/white stripe) with ignition on–the seat should move if receiving 11.5-13.2V. Absence of voltage directs attention to inline fuse F51 (15A) or faulty ground at G201 behind the left kick panel. Clean terminal connections with 400-grit sandpaper if resistance exceeds 0.5Ω.
Resolve blower motor failures by checking resistor assembly P20 behind the glovebox. Resistance between terminals H and L must align with 3.6Ω (Low), 2.2Ω (Medium), and 0.8Ω (High). Deviations require replacing the resistor pack–avoid taping splices, as heat buildup risks fire. For persistent high-speed failures, inspect the pink/black wire at splice S201 near the firewall; frayed strands often cause voltage drops.
Electrical Schematic for Chevrolet’s 2001 Coupe: Expert Analysis

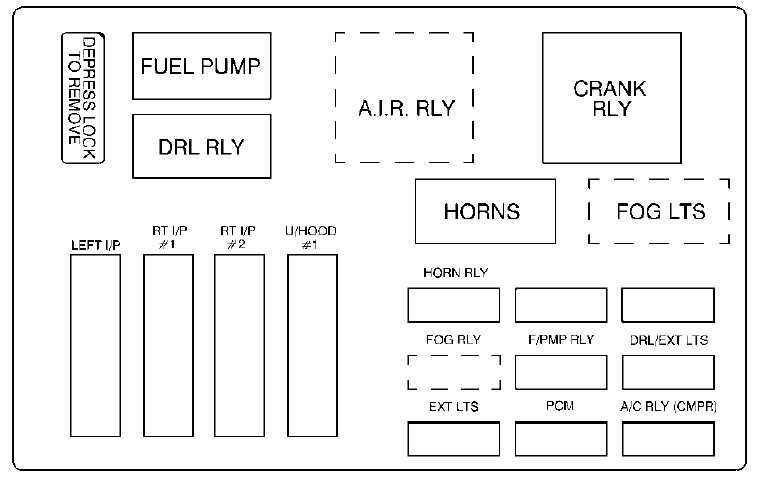

Locate the underhood fuse block first–it houses critical relays controlling the cooling fan, A/C compressor, and fuel pump. Label each terminal with a multimeter before disconnecting any connectors to avoid miswiring later. The black/white striped wire from the ignition switch carries power to the ignition coil via relay #43; verify continuity between pin 87 and the coil’s positive terminal if the engine cranks but fails to start.
For ABS diagnostics, trace the tan/black wire from the EBCM to the wheel speed sensors. Resistance should read 800–1400 ohms across each sensor’s terminals–values outside this range indicate corrosion in the harness near the wheel wells. Replace the entire harness segment if insulation shows cracks, as splicing introduces failure points in high-vibration zones.
The instrument cluster’s illumination circuit relies on the orange wire from the headlight switch. If gauges remain dark with headlights on, check the 2-amp fuse in position #17 of the interior fuse block. Corrosion on the fuse holder’s contacts causes intermittent power loss; clean with electrical contact cleaner before reinstalling.
Passenger door lock actuators share a common purple wire from the body control module (BCM). If locks operate inconsistently, test voltage at the BCM connector C101 pin #5 during activation–lack of 12V suggests a broken ground at G103 under the driver’s seat. Secure the ground strap with star washers to prevent oxidation.
Fuel injectors receive pulsed power from the PCM via pink/black wires. Probe each injector’s harness connector with a noid light during cranking–no flash means the PCM or crankshaft position sensor requires replacement. Avoid back-probing injectors; instead, splice into the harness with T-taps for temporary testing.
HVAC blend door actuators default to recirculation mode if the gray/black wire from the HVAC control module loses signal. Reset by disconnecting the battery for 10 minutes, then reconnecting–this forces the actuator to recalibrate. If recirculation persists, the actuator motor or gearset is internally stripped.
Power windows operate through a master switch using three wires per door: window up (light blue), down (dark blue), and common ground (black). If a single window fails, check the corresponding wire’s continuity through the rubber boot between the door and body–chafing is common at this flex point. Solder and heat-shrink any repairs to withstand vibration.
Trailer wiring on LS models taps into the rear light harness at the driver’s side tail-light connector. Use a dedicated 4-flat adapter harness to avoid overloading the brake light circuit–excessive current draw trips the #29 fuse, disabling all rear lights. Verify trailer brake output voltage at 12V during pedal application using a circuit tester.

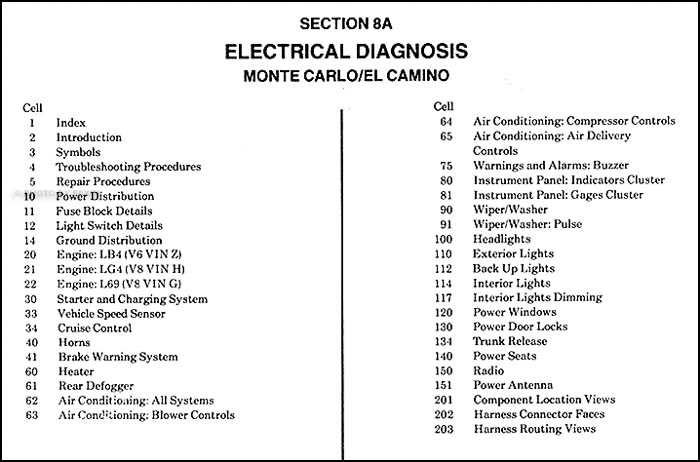

Finding the Factory Electrical Schematic for Your Early 2000s Chevrolet Coupe
Begin by visiting the GM Service Information website at acdelcotds.com–the sole official source for OEM schematics. Requires a subscription, but offers unrestricted access to the exact PDF released by the manufacturer, including color-coded pinouts and grounding locations. Search using the exact vehicle identifier: model code W54, production year ’01, and trim level if known. The schematic splits into sections–engine harness, instrument panel, lighting, and powertrain–so filter results accordingly.
Check dedicated forums like montecarloss.com or ls1tech.com. Long-standing members often upload verified scanned copies or high-resolution camera shots of the original service manual. Posts from trusted users typically include direct links; verify the file name matches “01_W54_EWD.pdf” to ensure accuracy. Be cautious–generic diagram sites frequently host outdated or cropped versions missing critical splice points.

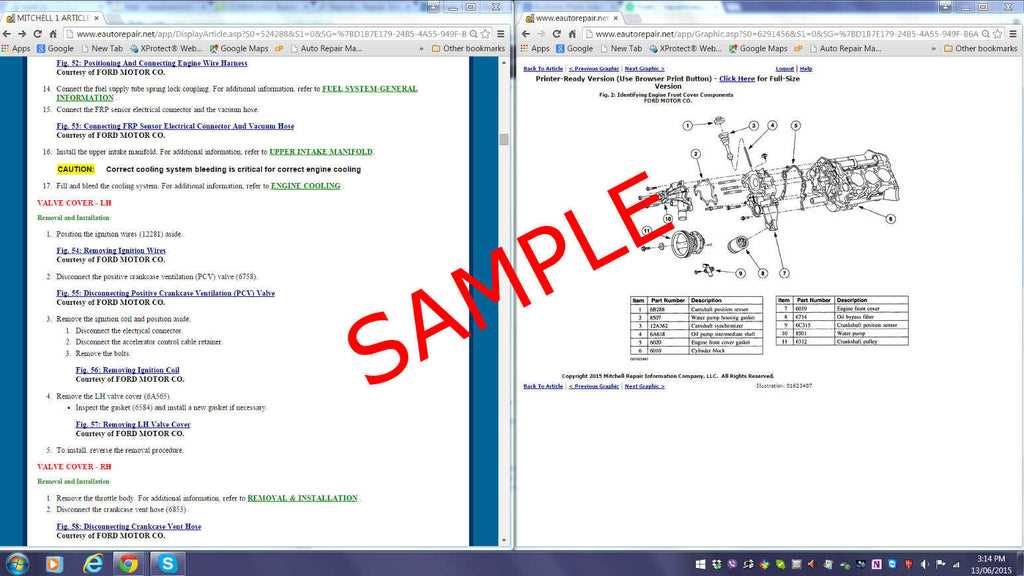

Visit local public libraries; many subscribe to ChiltonDIY or Mitchell1 databases. These platforms provide full wiring schematics under their “Electrical” sections, though they may also require a login. Ask the librarian to guide you to the automotive repair terminal; libraries in larger cities often have terminals preloaded with OEM data. If unavailable, request an interlibrary loan for the “Chevrolet Passenger Car Service Manual” specific to the model year in question.
Auto parts stores–AutoZone, O’Reilly, Advance Auto Parts–offer free in-store access to their repair databases if you provide the vehicle’s VIN. The VIN’s eighth character (1) confirms the correct platform; technicians can then pull the precise electrical schematic from their system. Stores limit printing, so capture screenshots or request digital copies sent to your email.
Reach out directly to Chevrolet dealerships. Some service departments retain archival copies of schematics on microfiche or CD-ROM. Request the “Electrical Wiring Diagram” sheet for the exact model variant; dealers may email a scanned PDF for a nominal fee or free if you explain the repair context. Ensure the document includes connector views (C101–C105) and fuse details, as aftermarket diagrams often omit these.
Search eBay or Amazon for physical copies of the “Chevrolet Passenger Car Factory Service Manual”. Sellers sometimes bundle electrical schematics as standalone PDFs; look for listings with the keyword “EWD” (Electrical Wiring Diagram). Verify file size–authentic PDFs average 8–12 MB–and check buyer reviews for mentions of completeness and clarity.
Step-by-Step Process to Trace Electric Window Circuit Pathways
Locate the fuse block inside the vehicle’s instrument panel. Identify the specific fuse labeled for window operation–typically marked 30A in most schematics. Remove the fuse with needle-nose pliers and verify continuity using a multimeter. If the fuse is intact, proceed to the next step; if blown, replace it before continuing.
Disconnect the battery’s negative terminal to prevent short circuits while probing. Remove the door panel by prying off the plastic trim pieces with a flathead screwdriver–work methodically from the bottom upward. Unclip the moisture barrier to expose the window regulator and motor assembly.
Examine the harness connections leading to the window switch. The primary power feed wire is usually yellow or light blue, while the ground wire is black or dark brown. Use a wiring schematic to confirm color codes for the specific vehicle model, as variations exist even within trim levels.
Reconnect the battery and set the multimeter to DC voltage mode. Probe the power feed wire at the switch connector–expect 12V when the ignition is in the “ON” position. If voltage is absent, trace the wire back to the fuse block, checking for breaks or corrosion at connector junctions.
Test the window switch by activating it while monitoring voltage at the motor terminals. Both terminals should alternate between 12V and 0V as the switch is toggled. If only one terminal receives power, the switch or internal relay may be faulty. Replace the switch if diagnostics confirm failure.
Inspect the window motor’s ground connection by measuring resistance between the motor casing and the vehicle’s chassis. Values above 0.5 ohms indicate a poor ground–clean the mounting surface and retighten the bolt with dielectric grease to prevent future oxidation.
Reassemble the components in reverse order. Test window operation after each step to isolate faults–if issues persist, verify the wiring from the door jamb to the main harness, paying special attention to stress points near the hinge area where chafing commonly occurs.
