Locate the color-coded harness behind the factory radio slot: yellow (constant 12V), red (switched 12V), black (ground), blue/white (antenna trigger), green/black (rear left speaker negative), green (rear left positive), violet/black (rear right negative), violet (rear right positive), white/black (front left negative), white (front left positive), grey/black (front right negative), and grey (front right positive). Verify each wire with a multimeter before connecting aftermarket head-unit; reverse polarity on any channel risks amplifier overload.
Cut the thin illumination wire (orange) only if dimming control is unnecessary. Splice parking brake (light green) and speed sensor (pink) leads only when installing DVD-capable units; failure to ground these inputs triggers video blackout while driving in most jurisdictions.
Use bullet crimp connectors for speaker wires to prevent corrosion; soldering melts factory insulation. Isolate ground loop hum by securing chassis ground to unpainted metal behind instrument cluster–avoid bolt holes shared with airbag modules. Test all connections with ignition off, then on ACC, and finally ON to confirm no short-circuit fuse blows.
For steering-wheel control retention, match resistance values listed: 2.2 kΩ (volume up), 330 Ω (mode), 1.1 kΩ (seek forward). Deviations exceed interface module tolerances. Keep harness clip plugged into original port to preserve clock memory when battery is disconnected.
Audio System Harness Guide for Early 2000s Compact Sedan

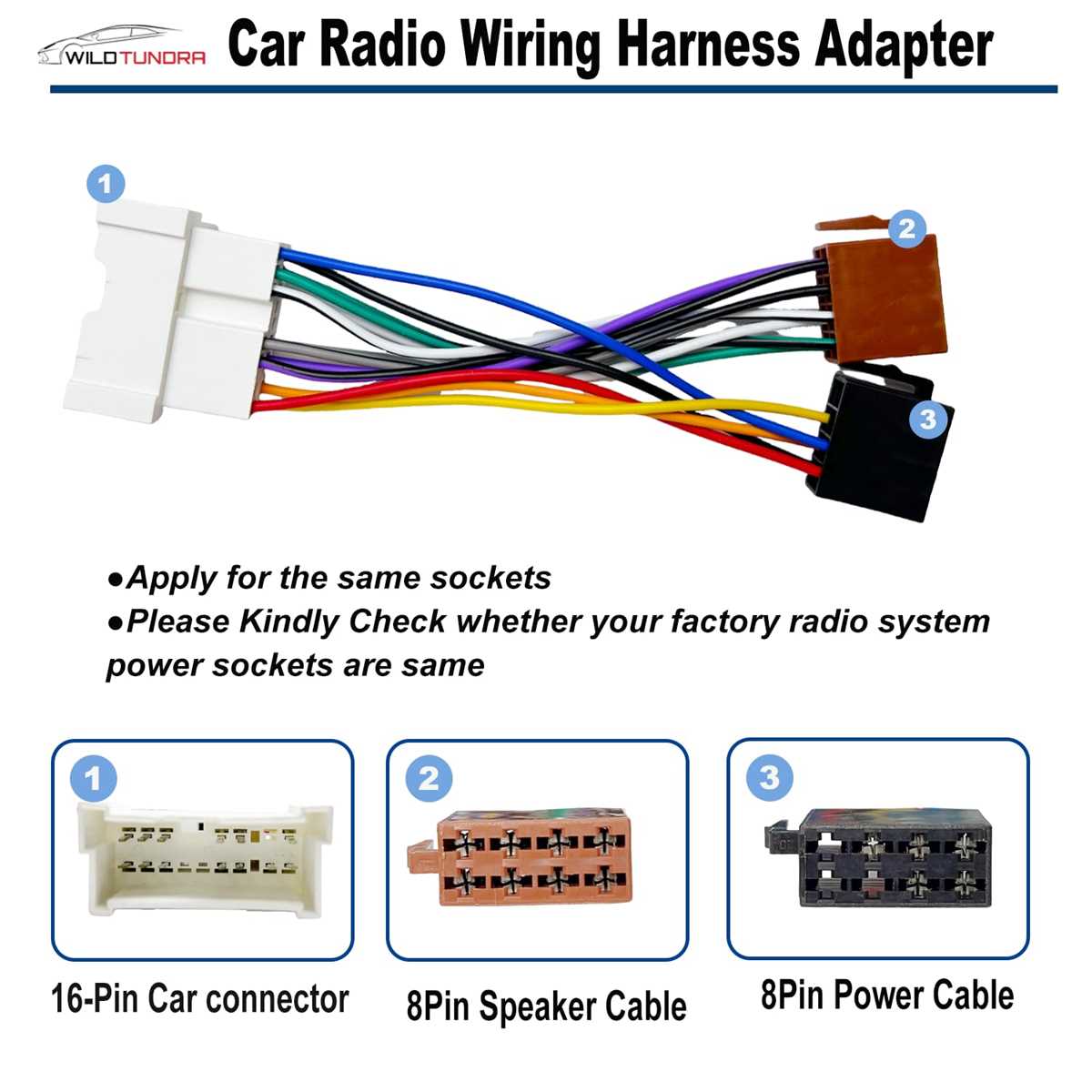

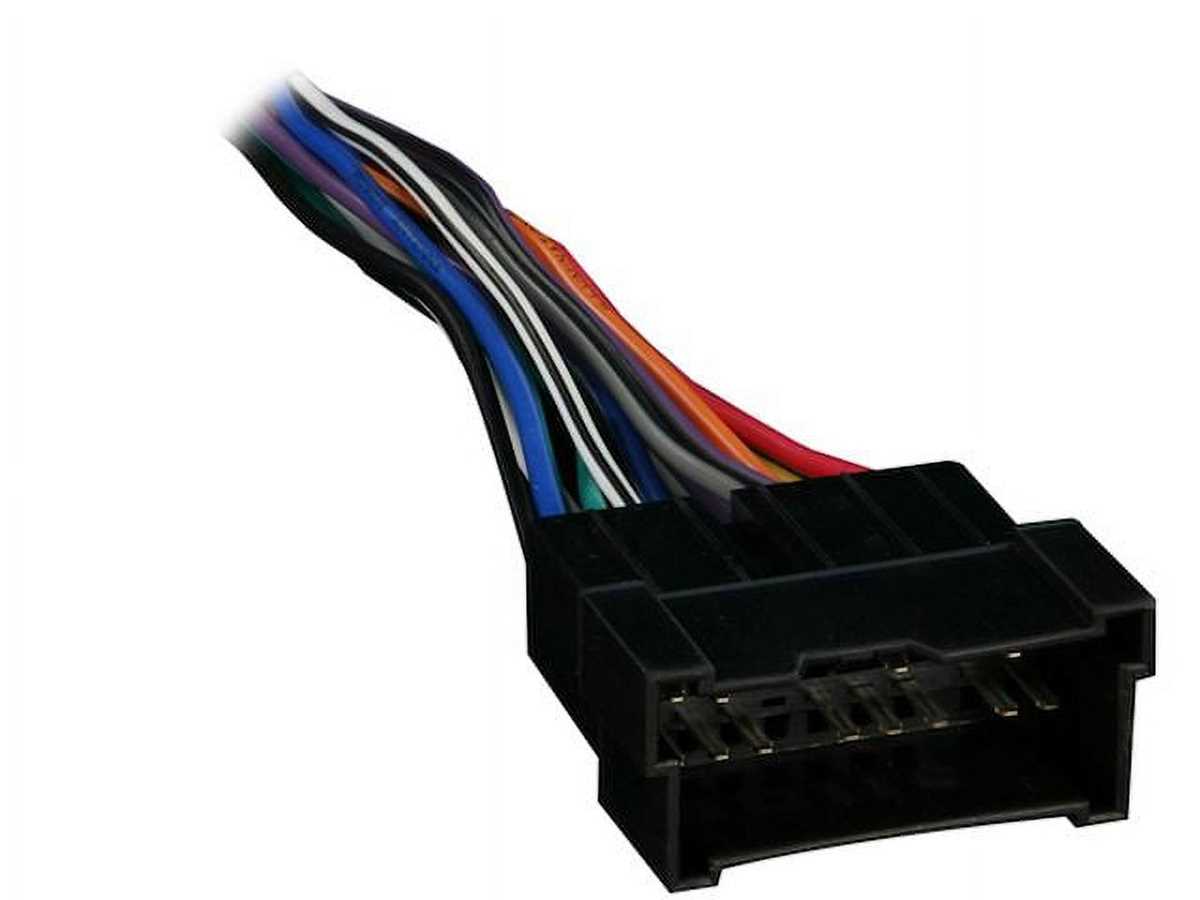

Locate the factory radio connector behind the dashboard trim on the driver’s side–typically bundled with a 16-pin plug labeled Hyundai/Kia standard harness. Pin assignments follow this sequence: #1-4 (left front speaker), #5-6 (right front speaker), #7 (illumination +12V), #8 (ground), #9 (antenna trigger), #10-12 (constant power), #13-14 (switched power), #15-16 (left/right rear speakers). Verify voltages with a multimeter before connecting aftermarket units–constant power should read 12V with ignition off, switched power only active with key in ACC or ON position.
For amplified systems, splice the blue/white antenna lead to a 12V signal wire–this prevents mute functions or distorted reception in vehicles with integrated amps. If replacing the stock head unit with a double-DIN model, use a ISO-to-double-DIN adapter (Part #HY-E201) to avoid cutting original wires. Rear speaker outputs (violet/gray, violet/white) often require impedance matching (4Ω) to prevent amplifier overload; check aftermarket specifications against factory ratings (20W RMS per channel).
Finding the Original Audio System Connector in Your Early 2000s Sedan
Begin by removing the lower dashboard panel beneath the climate controls–this reveals the back of the head unit. Two screws secure the panel; use a 7mm socket for the left screw and a flathead for the right. Once detached, pull the panel forward and unhook it from the clips at the top. The primary harness sits directly behind the factory radio, bundled with four distinct plugs:
- White 12-pin connector (power, illumination, antenna)
- Black 8-pin connector (speaker outputs)
- Gray 6-pin connector (ground and accessory triggers)
- Red 4-pin mini-plug (chime module input)
Trace the thickest wire loom upward from the footwell toward the radio chassis–this houses the main harness. A yellow plastic retaining clip locks the connectors in place; depress it to release. Avoid yanking the wires, as the clips break easily. If reusing the factory harness, label each plug before disconnecting to prevent misalignment during reinstallation.
For sedans equipped with a monochrome dashboard display, an additional blue 2-pin connector lurks behind the left vent grille–remove one Torx T15 screw to access it. On base models without this display, the harness terminates at the back of the radio without extra connections. Verify wire colors against the service manual: pink for constant 12V, light green for switched power, and orange for dimmer control.
Understanding Factory Harness Color Standards for Head Unit Upgrades
Identify the twelve-pin connector behind the original radio–this will be your reference point. The power lead marked in solid yellow is constant 12V and must connect to the aftermarket unit’s red ignition wire. Ignore any yellow/black striped cables; these are antenna triggers and serve no purpose for basic audio integration.
Ground cables are often black but can appear as dark brown in some vehicles–verify continuity with the chassis using a multimeter. A weak ground will cause noise, dim display issues, and erratic behavior. Secure this connection directly to bare metal, avoiding painted surfaces or bolted-on panels.
Key Wire Functions and Their Default Colors
| Function | Primary Color | Alternate Color | Special Notes |
|---|---|---|---|
| Battery (Constant) | Yellow | – | Must sustain memory functions |
| Ignition (Switched) | Red | Light red | Ensures radio powers with key |
| Ground | Black | Dark brown | Clean connection mandatory |
| Left Front (+) | White | White w/ black stripe | Avoid reversing polarity |
| Left Front (-) | Gray | Gray w/ black stripe | Twisted pair reduces interference |
| Right Front (+) | Green | Green w/ black stripe | Do not confuse with rear speaker wires |
| Right Front (-) | Purple | Purple w/ black stripe | Check with test tone before finalizing |
| Illumination | Orange | Orange w/ white stripe | Dims with headlights–connect to aftermarket dash light wire |
Speaker wires labeled with a stripe indicate negative polarity–match these precisely to prevent phase cancellation. Rear channels typically use blue (positive) and blue/white striped (negative), though variations exist. Always confirm with a 1kHz test tone before securing connections.
Factory amplifiers use pink or pink/black leads–these require bypass modules or dedicated line output converters. Failure to address this will result in either zero sound or distorted output. Aftermarket radios usually include built-in crossovers that can compensate, but impedance matching remains critical.
For vehicles with steering wheel controls, locate the light blue and light blue/yellow wires–these carry resistance-based signals. Special adapters or programming via the new deck’s interface will preserve functionality. Skip this step if existing buttons are mechanical, not digital.
Final step: bundle all connections with soldered joints and heat shrink tubing, never electrical tape alone. Route power cables separately from RCA or speaker wires to eliminate engine noise bleed-through. Verify all fuses are intact before reinstalling the dashboard trim.
Preventing Fuse Failure When Linking Audio System Cables
First, measure the current draw of the aftermarket head unit with a multimeter before making any connections. Most factory-installed fuse ratings in compact sedans hover around 10-15 amps–exceeding this by even 2 amps can trigger an immediate blow. Locate the fuse box diagram in the owner’s manual to identify the correct slot for the accessory circuit; splicing into the wrong slot risks damaging the vehicle’s ECU. Use a fused tap adapter rated at least 10% above the head unit’s peak current (typically 5-7 amps) to create a dedicated power source, ensuring it connects directly to the battery via 12-gauge wire to minimize voltage drop.
Ground the unit to a bare metal point within 12 inches of the head unit’s mounting location–avoid painted surfaces or bolts shared with other systems, as resistance above 0.5 ohms can cause erratic behavior. Remove oxidation with a wire brush and secure the ring terminal with a torque of 8-10 ft-lbs to prevent loosening. If the system turns on but produces a buzzing sound, relocate the ground away from engine-mounted components or alternator leads, as induced noise indicates a compromised connection. Test continuity between the ground terminal and chassis with the multimeter before finalizing–readings above 0.1 ohms demand rework.
Connecting an Amplifier to Your Vehicle’s Audio Cables
Locate the factory speaker outputs behind the head unit or in the door panels. For a 4-channel amp, splice into the front and rear positive/negative leads–typically white (LF+), white/black (LF-), gray (RF+), gray/black (RF-), green (RR+), green/black (RR-), violet (LR+), and violet/black (LR-). Use a digital multimeter to confirm polarity before cutting wires; set to DC voltage and tap each lead while playing a test tone. Swap connections if the meter shows negative readings.
Install a line-output converter if the head unit lacks RCA preouts. Connect the converter’s input wires to the speaker outputs (high-level input) and ground the converter chassis to a clean metal surface. Run RCA cables from the converter’s output to the amplifier’s front/rear inputs. Avoid grounding loops by securing all connections with solder and heat-shrink tubing–twist wires tightly, apply rosin flux, and solder with a 60W iron. Wrap each joint in adhesive-lined shrink tube to prevent corrosion.
Route power cables through the firewall via an existing grommet near the brake master cylinder or fuse box. Use 4-gauge oxygen-free copper wire for the main power lead and fuse it within 18 inches of the battery. Mount the amp on a dry, vibration-dampened surface–MDF boards with rubber grommets work well. Ground the amp’s chassis to the vehicle’s frame using a 4-gauge wire, ensuring the spot is bare metal with no paint or rust; clean the surface with sandpaper before attaching.
Adjust the amp’s gain settings after installation. Play pink noise through the system at 75% volume, then slowly increase the amp’s gain until distortion becomes audible (typically around 0.3V–1V for most aftermarket units). Recheck all connections with a test light for stray voltage; a faulty ground can cause alternator whine or component damage. Secure loose cables with zip ties every 12 inches to prevent interference from the vehicle’s electrical system.
