Begin troubleshooting with the underhood fuse box–labelled as Power Distribution Box–where critical circuits converge. Locate relay positions first: R0 (Horn), R1 (A/C Clutch), and R3 (Fuel Pump) are primary failure points. Verify 40A fuses (Maxifuses) F1 (Powertrain Control Module) and F2 (Ignition) before probing deeper. Use a multimeter set to 20V DC to confirm 12.6V at fuse terminals with the key in the ON position–voltage drops below 12.0V indicate parasitic drain or corroded connections at the battery junction.
The central junction block (CJB), mounted behind the instrument panel, routes signals to the dashboard cluster, turn modules, and anti-lock brake controller. Focus on circuit 606 (Pink/Black)–this carries ignition-switched voltage to the CJB. If gauges flicker or warning lights remain lit, splice into this wire near the steering column with a T-tap connector to isolate intermittent breaks. For transmission-related malfunctions, prioritize circuit 314 (Red/Light Blue) connecting the Powertrain Control Module to the transmission range sensor–check for 0.5V resistance at the connector pin (T15) during key cycles.
Avoid guesswork on ground locations: G100 (engine block near starter) and G102 (left kick panel) are the main chassis grounds. Clean contact points with 3M Scotch-Brite and apply dielectric grease to prevent future corrosion. For trailer wiring diagnostics, start by separating the 7-pin connector–test pin 4 (Yellow) (left turn/stop) and pin 5 (Green) (right turn/stop) with a load-equivalent bulb; erratic operation signals a faulty relay (R2 Trailer Tow) or broken feed from the combination flasher module.
Electrical Blueprint for Ford’s 2001 Half-Ton Truck: Hands-On Tips

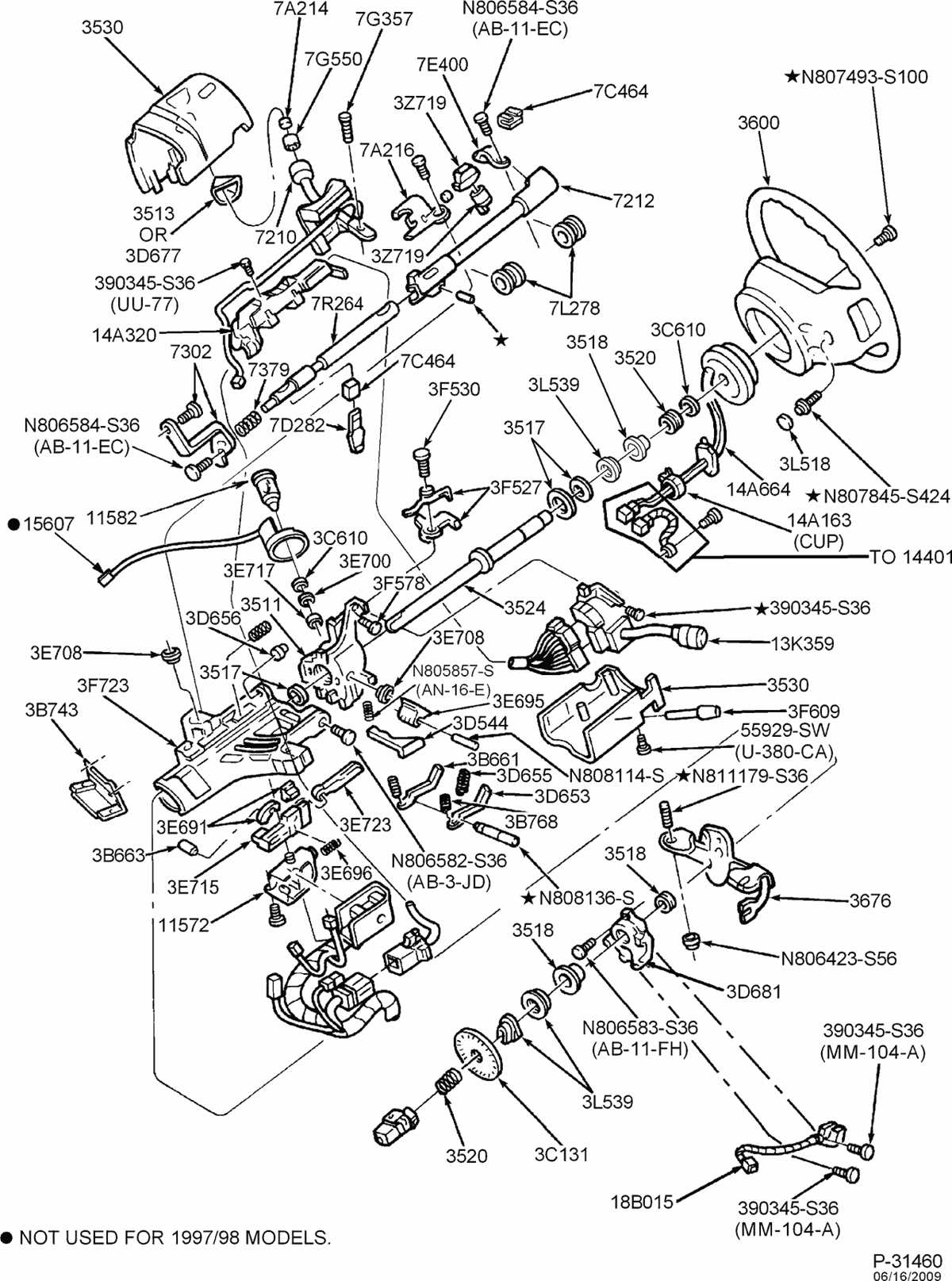

Locate the central junction box beneath the dashboard on the driver’s side–remove the lower trim panel for access. Pin 12 (light blue/white stripe) on connector C240 supplies power to the instrument cluster; verify continuity with a multimeter set to 200Ω. If resistance exceeds 5Ω, inspect the harness run along the steering column for chafing against the shift linkage bracket. Use heat-shrink tubing (3:1 ratio) to re-insulate damaged wires, crimping with 18-22 AWG butt connectors rated for 20A. Label each splice with UV-resistant heat-shrink labels to prevent future tracing errors.
Critical Circuit Tests
For intermittent no-start conditions, probe the starter relay socket (position 87) with a non-contact voltage tester while cranking–absence of signal indicates corrosion at the powertrain control module (PCM) connector T18. Clean terminals with electrical contact cleaner and a fibreglass pen; re-torque to 2.5 Nm. The anti-theft module (PATS) uses pin 3 (white/orange stripe) for signal–a 5V reference should be present at the instrument panel interface. Replace the entire relay block if pin 86 shows less than 11.5V during key-on tests.
Finding Primary Electrical Bundle Links Beneath the Instrument Panel
Begin by removing the lower dashboard trim panel beneath the steering column. Two 7mm bolts secure it in place–one near the brake pedal bracket, the other by the kick panel. Pull the panel away carefully to avoid snapping the plastic clips holding it to the firewall.
The main electrical bundle emerges behind the fuse block, running horizontally across the driver’s side footwell. Trace the thickest grouping of cables–they converge at three primary junctions:
- A 24-pin connector (light green, labeled “C301”) interfaces with the climate control module.
- A 16-pin black plug (“C239”) links to the instrument cluster and turn signal switch.
- A 12-pin white connector (“C101”) feeds power to the body control module and ignition system.
Follow the bundle upward toward the brake pedal support bracket. A smaller harness branches off here, containing two 4-pin connectors for the brake switch and cruise control module. Press the locking tabs inward to release these plugs–force may damage the terminals.
For diagnostic access, disconnect the battery ground cable first. Probe specific circuits using a multimeter set to DC volts–pin 5 on the 16-pin plug should read 12V with the key in the “ON” position, while pin 8 carries signal voltage for the fuel pump relay.
Tools Required for Safe Disassembly
Have these ready before starting:
- 7mm socket with 3-inch extension.
- Flashlight with flexible neck or headlamp–ambient light is inadequate here.
- Needle-nose pliers for extracting stubborn wire ties without cutting cables.
- Non-conductive probe (plastic or wood) to separate bundled conductors.
- Digital camera to document original connector orientations.
Label each connector with masking tape immediately after disconnection. Note wire colors and terminal shapes–this prevents misalignment during reassembly. Re-check all connections before reinstalling the trim panel to avoid intermittent electrical faults.
Decoding Color Codes for Cabin Illumination and Control Modules
Locate the fuse panel beneath the dashboard on the driver’s side–pin 12 typically supplies power to the dome light circuit via a 15-amp fuse. Trace the pink/light blue stripe wire (PK/LB) from the fuse to the headlamp switch connector; this conductor carries the switched 12V output. For dimming functions, splice into the gray/red stripe wire (GY/R) at the switch harness–this carries the variable voltage to the instrument cluster illumination bulbs.
Check the door jamb switches: each uses a purple/orange stripe wire (PP/O) feeding 12V when the door opens, grounding through the black wire (BK) to complete the circuit for the dome light. If retrofitting LED upgrades, bypass the standard load resistor by tapping into the factory white/violet stripe wire (WT/V) at the fuse block–this avoids flickering caused by insufficient current draw. For aftermarket switchbacks (e.g., dual-intensity), reroute the dark green/white stripe wire (DG/W) from the BCM to your new relay, as it carries the illumination command signal.
Verify continuity on the tan/light blue stripe wire (TN/LB) at the A-pillar harness–this carries the passenger door lock cylinder’s illumination circuit. Use a test light clipped to chassis ground to probe the brown/white stripe wire (BN/W) at the overhead console–any voltage here indicates a fault in the ambient lighting module, often resolved by replacing the C280 connector and cleaning corrosion from the terminals.
Identifying Fuel Injector and Sensor Circuits Under the Hood
Locate the main engine harness near the firewall on the driver’s side–it’s bundled in a black corrugated sleeve and branches toward the intake manifold. Follow the thickest bundle (typically 8–12 AWG) downward; the first Y-split reveals injector connectors. Each connector uses a distinct color code: tan with a purple stripe for cylinder 1, tan with a yellow stripe for cylinder 2, and so forth, progressing sequentially. Verify continuity with a multimeter set to 200 ohms; resistance should read 12–17 ohms across each injector’s terminals. If readings exceed 22 ohms, inspect the harness for chafing near the exhaust manifold crossover.
Trace the manifold absolute pressure (MAP) sensor leads next. The sensor sits atop the intake manifold, secured by two bolts, and uses a three-pin connector. Pin A (red/light green) carries 5V reference from the PCM, pin B (black/white) grounds through the chassis, and pin C (gray/red) returns the signal. Probe for voltage at pin A with the ignition on–expect 4.8–5.2V; anything below 4.5V indicates a frayed wire near the alternator bracket or a failing PCM relay. Swap the sensor with a known-good unit if the signal wire fluctuates erratically above 800 mV at idle.
The throttle position sensor (TPS) connects via a separate three-wire harness: pin 1 (orange/green) supplies 5V, pin 2 (black/orange) grounds directly to the engine block, and pin 3 (white/red) sends the variable voltage. Disconnect the connector, back-probe pin 3, and rotate the throttle plate manually–voltage should climb smoothly from 0.5V (closed) to 4.5V (wide open). Voltage drops below 0.3V suggest a broken trace inside the sensor, while jumps exceeding 0.2V between half-throttle positions point to a corroded harness splice near the air intake tube.
| Component | Connector Color (Primary) | Key Wire Colors | Expected Values |
|---|---|---|---|
| Cylinder 1 Injector | Tan body | Purple stripe, brown stripe | 12–17 Ω, 3.5–4.2 ms pulse |
| MAP Sensor | Gray body | Light green/red, black/white, gray/red | 4.8–5.2V (ref), 0.8–1.5V (signal) |
| Oxygen Sensor (Pre-Cat) | Black body | White/light blue, black/red | 0.1–0.9V (oscillating), 0 Ω heater |
For the crankshaft position (CKP) sensor, peel back the harness tape near the starter solenoid–its two wires (dark green/yellow and tan/light blue) run along the transmission bellhousing. The CKP generates a 0.3–0.7V AC signal at 500–800 RPM; absence of voltage indicates a severed wire inside the bellhousing grommet or a faulty reluctor ring. Replace the sensor if signal amplitude drops below 0.2V AC during a 10-second starter engagement test. Always re-secure harness ties every 6 inches to prevent vibration-induced shorting against the exhaust manifold.
Integrating Aftermarket Audio Systems Without Compromising Vehicle Electrical Integrity
Begin by locating the factory radio harness behind the dashboard–match its connector pinout with the aftermarket unit’s adapter. Most adapters (e.g., Metra 70-1761, Scosche SU17B) include color-coded leads for power, ground, speakers, and antenna triggers, eliminating cutting. Verify compatibility with the truck’s speaker impedance (typically 2-4 ohms) to prevent amplifier overload or distortion at high volumes.
Disconnect the negative battery terminal before connecting any terminals to prevent short circuits or airbag system faults. Use a multimeter to confirm constant 12V on the yellow B+ wire and switched 12V on the red ACC wire–confusion here can drain the battery or disable the radio’s memory features. For vehicles with retained accessory power (RAP), splice the orange/white wire from the factory harness into the aftermarket unit’s illumination wire to maintain dimming functionality.
Grounding and Signal Noise Suppression
Attach the ground (black) wire directly to a bare metal chassis point within 18 inches of the radio’s location, avoiding painted or coated surfaces. Poor grounding introduces alternator whine, static, or intermittent shutdowns–sand the contact area if corrosion is present. Route RCA cables away from power wires and ECU modules to minimize electromagnetic interference (EMI); shielded cables with twisted pairs (e.g., Stinger SG711) reduce noise by 60% compared to standard wiring.
- For amplified systems, connect the aftermarket unit’s blue/white remote turn-on lead to the factory amplifier trigger (if equipped) or a switched 12V source. Failure to do so may result in no sound or excessive current draw.
- Verify speaker polarity using a 9V battery–positive voltage should push the woofer outward. Reversed polarity causes phase cancellation, reducing bass response by up to 50%.
- Use dielectric grease on connector pins to prevent oxidation, especially in high-humidity climates or off-road vehicles.
Secure all connections with soldering (60/40 rosin-core solder) and heat-shrink tubing rather than crimp connectors, which corrode over time. T-taps or Scotchlocks are temporary solutions; solder joints last 10+ years without signal degradation. If the vehicle has a factory alarm or immobilizer, ensure the aftermarket unit’s parking brake safety feature (for video playback) is wired correctly to avoid system-wide shorts.
Testing and Final Adjustments
Reconnect the battery and test each function: power, volume, fader/balance, subwoofer control (if applicable), and steering wheel controls (via ASWC-1 adapter or resistor network). If static persists, relocate RCA cables away from the alternator’s B+ wire or add a noise filter (e.g., PAC SNI-1). For OEM backup cameras, retain the factory wiring by splicing into the composite video input of the aftermarket unit–some models require a separate trigger wire for reverse signal detection.
Document all connections with labels or a photo before reassembling the dash. Store spare fuses (10A-20A) for the radio’s accessory circuit, as blown fuses are the most common post-installation issue. If integrating a subwoofer, set the amp’s gain using a sine-wave tone (50Hz test track) at 75% volume to avoid clipping, which damages speakers within weeks.
