For immediate results, match the 7-pin connector colors to the following functions: black (battery hot lead), blue (brake controller output), green (right turn/brake), yellow (left turn/brake), brown (running lights), white (ground), and red (auxiliary power or reverse lights, if equipped). Verify the tow package sticker under the hood–if it shows code AHDA, the factory harness already includes a 40-amp relay for brake output. If missing, splice a Bosch-style relay between the brake switch and the blue wire to prevent voltage drop under heavy loads.
Route all cables through a flexible nylon loom (inside diameter 12 mm) secured every 12 inches with padded clamps to avoid chafing against the frame rails. Tape the ground wire directly to bare metal on the frame–never rely on body bolts–using an M8 stainless steel star washer for maximum conductivity. Test continuity with a Fluke 87V meter at each connection; resistance above 0.3 ohms indicates corrosion or loose terminals.

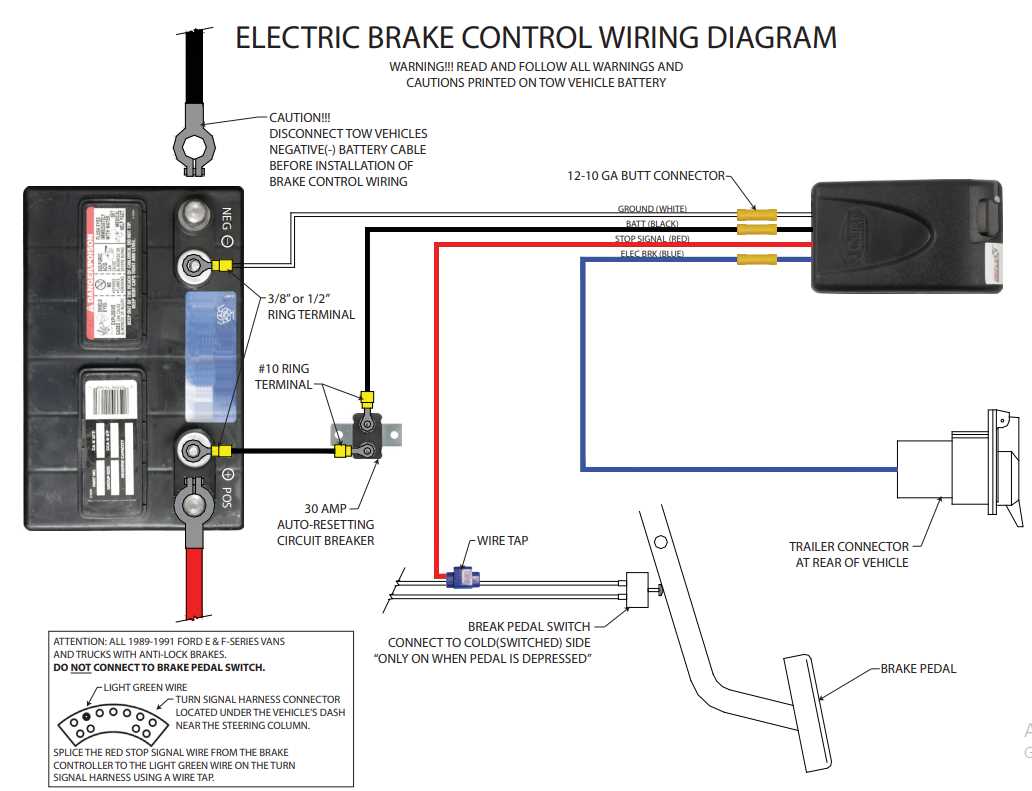

For brake controllers, mount a Tekonsha Prodigy P3 within 18 inches of the driver’s reach, wired to the blue output and black fused lead (minimum 30-amp fuse). Calibrate gain using a test trailer with known weight (target 0.4–0.6 G deceleration). Disable the vehicle’s stability control temporarily during calibration via the OBD-II port to prevent false brake application.
Convert auxiliary circuits to Anderson SB50 connectors for winch or refrigeration loads exceeding 20 amps. Use 10 AWG silica-filled wire for all auxiliary runs, heat-shrink each terminal with dual-wall adhesive-lined tubing (WEE-135), and apply dielectric grease. Seal the main 7-pin connector with a waterproof boot (Part #19116 from Hopkins Manufacturing) and insert a dielectric paste before mating to prevent oxidation.
Electrical Hookup Instructions for Heavy-Duty Pickup Towing Systems
Begin by locating the factory harness beneath the rear bumper–this seven-pin connector is pre-wired for auxiliary lighting, brakes, and charging circuits. Pin assignments follow the SAE J560 standard: terminal 1 delivers 12V auxiliary power, terminal 2 feeds left turn/brake signals, terminal 3 carries ground, terminal 4 handles right turn/brake outputs, terminal 5 activates clearance and marker lamps, terminal 6 powers electric brakes, and terminal 7 supplies continuous 12V from the battery. Use a multimeter set to 20V DC to verify voltage at each pin before connecting any adapter; discrepancies above 0.5V indicate corroded terminals or blown fuses in the under-hood PDC (power distribution center).

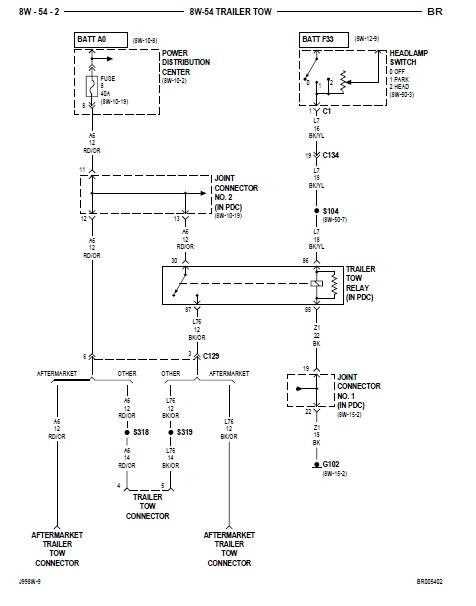

Replace any damaged wires with 12-gauge TXL copper conductors rated for 30A continuous current–avoid aluminum or CCA (copper-clad aluminum) for brake circuits as resistance increases under load. Route new wiring through 1/2″ convoluted loom, securing every 12″ with UV-resistant zip ties to prevent chafing. For brake controllers, install a proportional unit like the Tekonsha P3 inside the cabin, wiring it directly to the brake pin (terminal 6) and a dedicated 15A fuse tapped from the PDC’s trailer tow relay. Test brake engagement at 0.5G deceleration; if response lags, recalibrate the controller’s gain settings or verify ground continuity at the frame-mounted ground stud.
| Component | Wire Gauge | Fuse Rating | Connector Type |
|---|---|---|---|
| Brake Circuit | 12 AWG | 30A | 7-way Blade |
| Auxiliary Power | 10 AWG | 40A | Marine Grade |
| Signal Lights | 14 AWG | 15A | Weatherproof |
For adapters connecting older four-flat systems, splice a Hopkins 47285 converter module into the existing wiring–this converts separate brake and turn signals into a combined output required by most campers. Seal all splices with heat-shrink butt connectors crimped at 60 lbs pressure, then apply dielectric grease to prevent oxidation. If LED markers flicker, insert a load resistor (50W/6Ω) across the positive and negative terminals to simulate filament resistance. Always disconnect the negative battery terminal before servicing; failing to do so risks triggering the vehicle’s THEFT ALARM or damaging the BCM (body control module).
Finding the OEM Electrical Bundle Interface on a Heavy-Duty Pickup from the Early 2000s
Start under the rear bumper, driver’s side. The main power bundle terminates in a rectangular 7-pin socket molded in black plastic; it sits adjacent to the spare-tire crossmember, mounted on a steel tab welded to the frame rail. Use a 10 mm socket to loosen the bracket bolt holding the socket in place–no need to remove it completely–then rotate the bracket upward to expose the back side of the plug. Pin locations there match the following: left cavity carries running lights (blue), next cavity supplies brake signal (yellow), third cavity feeds left turn/stop marker (green), fourth is 12 V auxiliary (red), fifth delivers right turn/stop marker (brown), sixth feeds grounded clearance/license lamp (white), center cavity grounds the system (black).
Verifying Connector Integrity
Inspect the contact blades for corrosion or bent pins before connecting any aftermarket harness. Clean each blade with electrical-contact cleaner and a brass brush; oxidized pins on a truck this age can drop 0.5 V under load, causing intermittent failures at the maximum 20 A draw allowed for trailer signal circuits. If the socket shows signs of water intrusion, replace the weatherproof gasket included in most universal harness kits–install it between the factory bracket and new plug housing to prevent future moisture ingress.

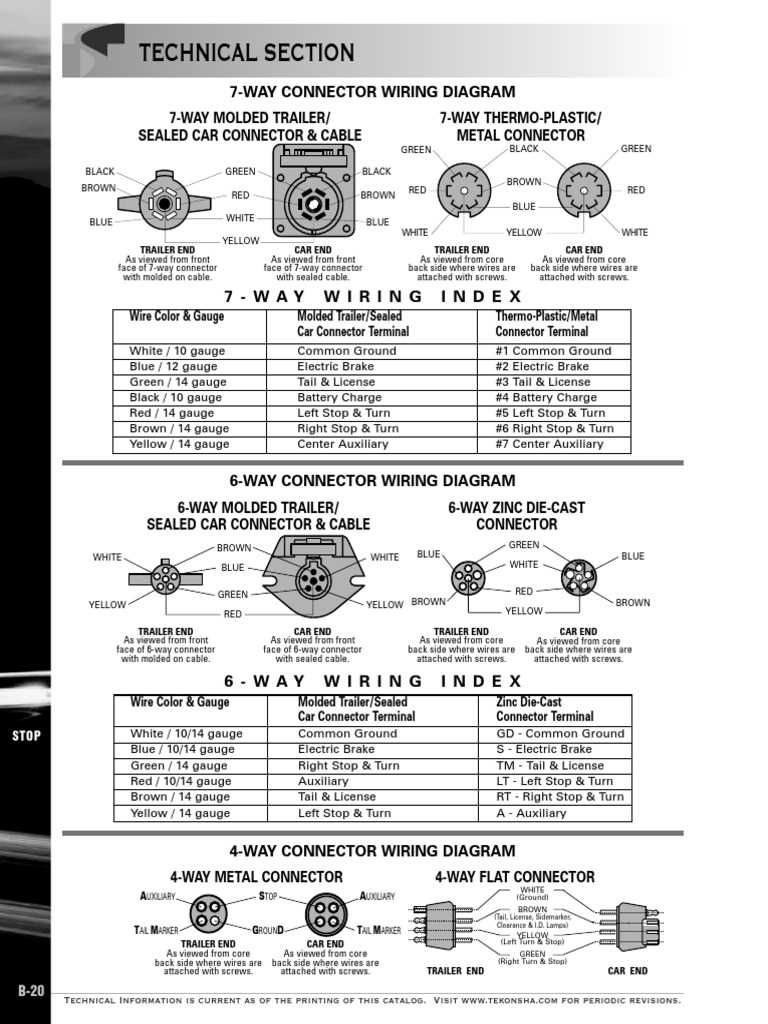

Step-by-Step Color Code Breakdown for 7-Way Towing Connector
Begin by verifying the vehicle’s connector matches the standard SAE J560 configuration. The 7-way round plug uses distinct color-coded leads for each function:
- White: Ground return–solder or crimp directly to the frame or dedicated ground bus.
- Brown: Running lights–connect to taillight filaments or side markers.
- Yellow: Left turn/brake–route to the rear left turn signal circuit.
- Green: Right turn/brake–link to the rear right turn signal.
- Blue: Electric brakes–attach to the brake controller output if auxiliary braking is required.
- Red/Black: 12V auxiliary–provide constant power for charging or accessories.
- Purple/Gray: Reverse lights–optional; verify compatibility with towed unit’s requirements.
Use a multimeter to test continuity between the plug and corresponding circuits before securing connections. For heavy-duty applications, upgrade the ground wire to at least 10-gauge to prevent voltage drop under load. Avoid splicing into parking light circuits–tap into dedicated brake/turn feeds instead for reliability. When routing, bundle wires with split loom tubing and secure them away from exhaust manifolds or sharp edges. Confirm polarity before connecting; reversed leads can damage towed unit electronics.
For aftermarket setups, ensure the harness includes a relay if the towing vehicle lacks sufficient current for electric brakes. Check local regulations–some regions mandate a separate breakaway battery (interrupting the blue wire) for emergency braking. Label each wire at both ends to simplify future diagnostics.
Common Issues and Troubleshooting Poor Ground Connections
Strip the paint or corrosion from the grounding point using a wire brush or sandpaper until bare metal is exposed. Ensure the surface is clean and smooth–even minor oxidation can disrupt conductivity. Apply dielectric grease to the connection after reassembly to prevent future corrosion.
Check the ground path continuity with a multimeter set to ohms. A reading above 0.5 ohms indicates resistance build-up. Trace the ground cable from the vehicle’s chassis to the electrical component; look for frayed strands, loose crimp connections, or partial breaks hidden under insulation.
Common failure points include the frame-to-body grounding strap and the connection between the battery negative terminal and the chassis. Replace any grounding strap that feels brittle or shows signs of heat discoloration–these degrade faster under electrical load.
For heavy-duty circuits, use a minimum 6-gauge cable for grounding. Smaller wires overheat under sustained current, causing intermittent failures. Secure connections with stainless steel bolts and lock washers to prevent loosening from vibration.
Diagnosing Intermittent Ground Issues
Use a test light to verify ground integrity while wiggling the harness near suspected trouble spots. If the light flickers, the ground connection is compromised. Focus on areas near the rear lighting assembly, brake controllers, or auxiliary power feeds–these often share a common ground point.
Inspect the vehicle’s factory ground distribution block, typically located near the battery or under the dashboard. Corrosion here affects multiple systems simultaneously. Clean each terminal post with a dedicated electrical contact cleaner, not general solvents, to avoid leaving residue.
If the issue persists after cleaning, bypass the existing ground with a temporary jumper cable. Connect one end to the component’s ground terminal and the other directly to the battery negative post. If performance improves, the original ground path is defective and requires permanent repair.
For persistent ground-related faults, consider adding a supplemental ground kit. Route a dedicated 4-gauge cable from the chassis to the main electrical panel, ensuring it avoids sharp edges or moving parts. Bond the cable to the frame at multiple points to distribute current flow evenly.
