Begin troubleshooting the cooling system by locating fuse C106 (10A A/C clutch) in the underhood relay center. Verify continuity between the 40-pin PCM connector X1 and the A/C pressure sensor circuit (pin 27, dark green wire). A resistance reading above 0.5 ohms indicates corrosion in the splice pack near the evaporator–trace the orange wire from the compressor clutch to the splice for visible oxidation marks.
Inspect the brown connector (C201) behind the passenger-side dashboard kick panel for brittle insulation on the violet (clutch relay control) and dark blue (high-pressure cutout) wires. Use a multimeter set to 20VDC to test voltage at pin 18 of the HVAC control module; absence of 10-14V signals a faulty ignition feed (pink wire) from S218 near the steering column.
Check the passenger-side firewall bulkhead connector for intermittent contacts–wiggle the gray (low-pressure switch) wire while observing the A/C relay activation. If the relay clicks without compressor engagement, test the dark blue/white stripe wire at the clutch coil for 12V during cycling; no voltage suggests a compromised relay coil or PCM output failure.

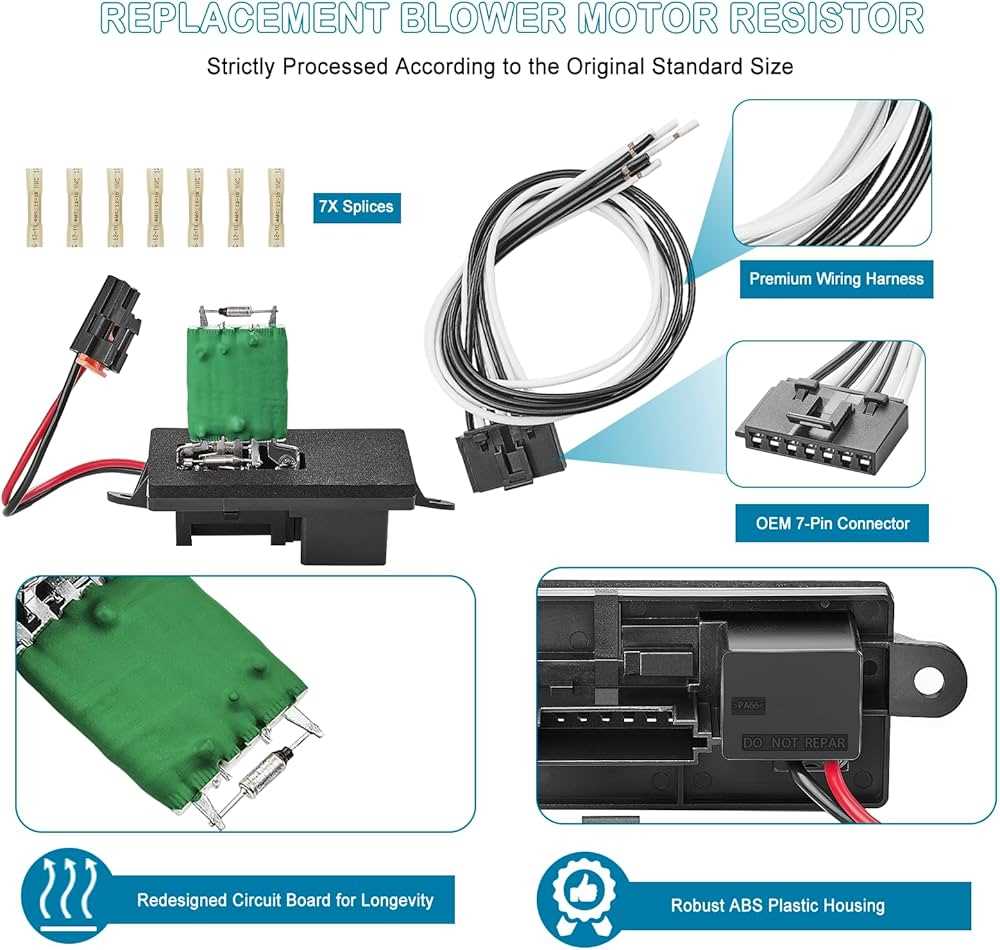

Replace the in-cabin blower resistor assembly if fan speeds operate only on “high”–inspect the connector for melted plastic on the light blue (speed 4) and tan (speed 3) wires. For automatic climate systems, ensure the green/white stripe wire (ambient sensor feed) shows variable resistance between 1k-10kΩ across temperature ranges.
When rewiring damaged circuits, match original wire gauge (18AWG for signal, 14AWG for power) and use butt connectors with heat shrink; avoid electrical tape on engine bay runs. For persistent malfunctions despite correct voltage, measure current draw at the compressor clutch–values exceeding 5A indicate internal coil shorts.

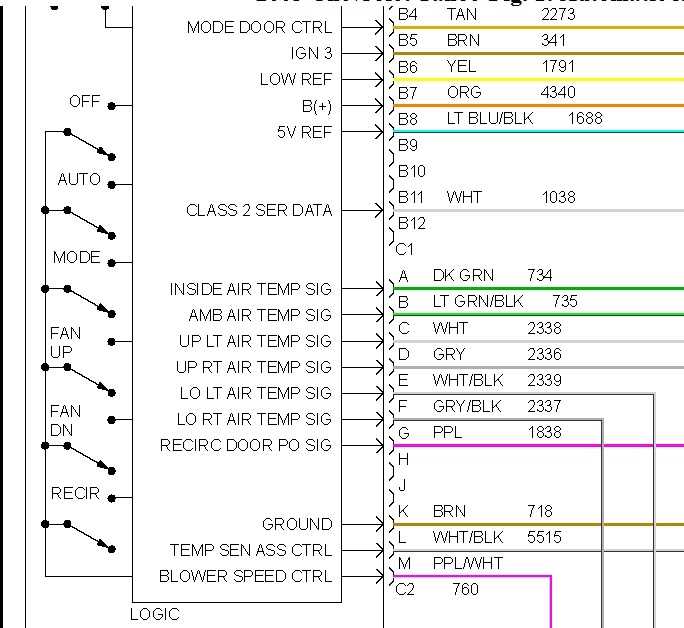

Understanding the Climate Control Circuit Layout for Your GM Pickup
Locate the under-dash fuse block near the driver’s left knee; fuse #15 (30A) powers the A/C relay and clutch. Trace the light-green wire from the fuse to the pressure switch (C109) on the accumulator–this single-wire switch disengages the compressor at pressures below 25 psi or above 450 psi. If the clutch fails to engage, probe both sides of the switch with a multimeter; continuity must exist in normal operating range (50-250 psi).
| Connector | Pin | Wire Color | Component | Expected Voltage |
|---|---|---|---|---|
| C201 (Instrument Panel) | D | Dark Blue | A/C Request Signal | 12V (Key On) |
| C105 (Fuse Block) | 8 | Light Green/Black | Clutch Coil Supply | 12V (Compressor Running) |
| C109 (Accumulator) | Single Terminal | Light Green | Pressure Cutout Switch | Continuity (50-250 psi) |
From the pressure switch, follow the same light-green conductor to the A/C relay coil terminal (86)–confirm 12V present when the climate control switch is set to A/C. Terminal 87 outputs 12V to the clutch coil via a heavy-gauge pink wire; any resistance above 1.5 ohms across the clutch winding indicates internal corrosion and mandates replacement. The body control module grounds terminal 85 through a black wire at G402, so inspect this chassis point for paint or rust before condemning the relay.
For blower motor diagnostics, disconnect the C200 connector behind the glovebox; pin F (orange) carries unfused current from the 30A blower fuse, while pin E (dark green) is the module-controlled ground–blower speeds are pulse-width modulated, so back-probing both pins with an oscilloscope should reveal a square wave between 9-13.5V peak at high speed. If voltage is steady DC, the motor resistor block (mounted on the HVAC housing) is shorted and must be replaced.
Locating the AC Circuit Bundle Junctions Beneath the Instrument Panel
Begin by removing the lower driver-side kick panel–retain all fasteners in a secure container. The climate control harness interfaces are clustered near the blower motor resistor, identifiable by a white eight-pin connector with black locking tabs. Trace the bundle upward from the cabin air filter housing; the refrigeration system’s primary link sits directly behind the glove compartment release latch, shielded by a rigid plastic clip. Probe gently with a 9V circuit tester–active pins should register 12V when the compressor clutch engages.
Secondary Connections Near the Pedal Assembly
For models with dual-zone controls, an additional six-wire harness loops around the brake pedal support bracket, secured by a solitary 10mm bolt. Label each terminal with automotive-grade masking tape before disconnection: the yellow stripe denotes clutch relay feed, while the solid blue wire links to the pressure switch. Verify continuity using a multimeter–resistance should not exceed 0.5 ohms across any intact segment. Replace any corroded connectors with gold-plated replacements to prevent voltage drop under load.
Identifying the Key Components in the Compressor Circuit
Locate the clutch relay immediately–it’s typically mounted in the under-hood fuse box or a nearby relay panel, identifiable by a small rectangular shape with a numbered label matching the vehicle’s electrical schematic. Verify its function by applying 12V directly to the control coil terminals; a distinct click confirms operation. Failure to engage suggests internal corrosion or a broken coil, which requires replacement rather than cleaning.
Trace the pressure switch wiring to its connector near the accumulator or firewall–disconnect it and measure resistance across its pins. At rest, a functional switch reads near infinite ohms; below 290 psi, it should close, dropping resistance to under 1 ohm. Cross-reference readings with the service manual’s pressure-to-resistance table; deviations indicate a faulty switch requiring calibration or replacement. Never bypass this safety device, as incorrect pressure readings risk compressor damage or refrigerant leaks.
Inspect the thermal fuse inline with the compressor clutch wire–typically a small cylindrical component wrapped in heatshrink tubing near the compressor itself. Use a multimeter to test continuity; an open circuit signifies overheating and mandates replacement. Avoid substituting generic fuses; only OEM-spec parts ensure proper amperage matching to protect the clutch coil from thermal overload.
Path of Current Flow: Fuse Block to Climate Control Relay
Locate the under-hood fuse panel on the driver’s side, adjacent to the battery. The power feed for the climate system originates at fuse slot 23, a 30-amp blade fuse labeled “A/C.” Verify continuity with a multimeter before proceeding–voltage should read 12.5-13.2 volts with the ignition turned to RUN.
Trace the red wire (AWG 12) exiting the fuse holder. It routes through a 10-pin connector (C102) near the firewall, typically gray or black. Disconnect the connector and probe terminal 8–this is the critical junction. If voltage is absent, inspect for corrosion or broken strands in the cable bundle between the fuse block and connector.
- Ensure the wire harness is free from chafing against the brake master cylinder; secure with zip ties if necessary.
- Check for melted insulation at this segment–high resistance here causes intermittent relay activation.
- Use a tone generator to confirm the wire path if visual tracing is obstructed by sound-deadening material.
From connector C102, the power lead continues along the engine bay’s inner fender, entering the cabin through a firewall grommet near the pedal assembly. Inside, it merges into a larger harness, eventually reaching the climate control relay socket. The relay is usually mounted behind the instrument cluster or glovebox, identifiable by a rectangular black housing with four spade terminals.
The relay’s 85 terminal receives this power feed, triggering coil activation when the climate control is switched on. If the relay clicks but the compressor doesn’t engage, back-probe terminal 87–it should output 12V. No voltage here indicates a failed relay or an open circuit in the coil ground path, which grounds through terminal 86 via the vehicle’s body control module.
- Swap the climate relay with a known-good horn relay to isolate the issue–both share identical pinouts.
- Test the ground connection at terminal 86 with a test light; a dim or flickering light confirms high resistance.
- If all terminals check out but the compressor fan remains inert, inspect the pressure switch on the accumulator–low refrigerant triggers a safety cutoff.
Testing Continuity in the Pressure Switch and Thermostat Circuits
Set your multimeter to continuity mode (Ω symbol) and disconnect the fuse for the climate control relay to isolate the circuit. Probe the pressure switch terminals (typically two-pin or three-pin connectors) while cycling the system–listen for a beep indicating a closed path at the switch when refrigerant pressure is within operational range (45–270 psi). If no continuity exists, check for corroded pins or a faulty switch, replacing it if resistance exceeds 0.5 ohms.
- Thermostat wires (often yellow/light blue) require similar testing: backprobe the connector at the control module while adjusting temperature settings. No continuity at maximum cooling (0°F) suggests a failed thermistor or severed connection.
- Inspect wire harnesses for chafing near the firewall or compressor–common failure points in compressor clutch circuits.
- Verify ground integrity by testing resistance between the thermostat housing and battery negative (should read <0.1 ohms).
