Begin by sourcing the official factory service manual, which includes verified circuit layouts for all trim levels and engine configurations. Third-party repair guides like Chilton or Haynes often contain errors–cross-reference with the manufacturer’s documentation to avoid mismatches in connector pinouts or wire color codes.
For the V6-powered variant, focus on sections covering the engine control module (ECM), transmission control unit (TCU), and anti-lock braking system (ABS) as these systems share multiple sensor feeds and ground points. A single corroded connection at the engine compartment junction box–located near the firewall–can trigger false trouble codes across unrelated modules.
Trace ground paths first. Critical grounding points for the 5V reference circuits (TPS, MAP sensor) are typically mounted on the intake manifold or chassis rail, depending on the model year split. Verify resistance between each ground and the negative battery terminal–readings above 0.2 ohms indicate corrosion or loose fasteners that require immediate attention.
When diagnosing rear lighting or trailer harness circuits, isolate the tail lamp relay before probing wires. A common failure point is the license plate light connector, where wet road debris accelerates terminal oxidation, causing intermittent park lamp or brake light dropouts. Use a multimeter in continuity mode to confirm the integrity of the white-and-black striped wire running from the relay to the rear lamp assemblies.
For aftermarket accessories–such as fog lights or auxiliary audio systems–consult the original harness layout before splicing. Unauthorized modifications often bypass fuse links, creating fire hazards. Locate the cigar lighter circuit (fused at 15A) as a regulated power source for low-draw devices, but avoid tapping into high-current feeds like the ignition coil or fuel pump.
Electrical Schematic Mastery for Your 1999 Off-Road SUV
Locate the under-dash fuse panel first–this is ground zero for most circuits. The gray 14-pin connector (marked CIG) carries the ignition-switched power lead (PINK/BLK) with a 10A fuse (F14). Follow this trace upward to the instrument cluster harness; a break here kills the tachometer, fuel gauge, and CEL simultaneously. Use a 1kΩ resistor in series when probing to prevent blowing the gauge driver IC.
Trace the rear defogger relay socket labeled “DFOG” on the engine bay fuse block. Pin 87 receives B+ from the 40A main fusible link, while pin 85 delivers switched ground through the BCM upon activation. Swap the relay with a known-good 30A unit if resistance exceeds 80Ω across coil terminals–common after water intrusion through the wiper cowl drain.
The transfer case motor harness (T-case, gray/white wires) hides beneath the transmission tunnel. Pin 1 (YEL/BLK) supplies 12V when the 4WD switch engages; pin 2 (RED) activates the encoder if 4LO is selected. Inspect the encoder linkage for bent fingers–they shear easily during trail abuse. Re-measure continuity before soldering; the encoder PCB tolerates only 24-gauge heat-shrink splices.

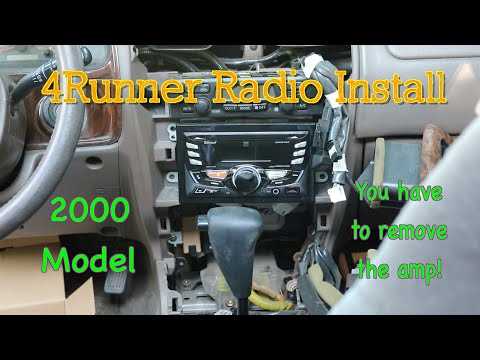

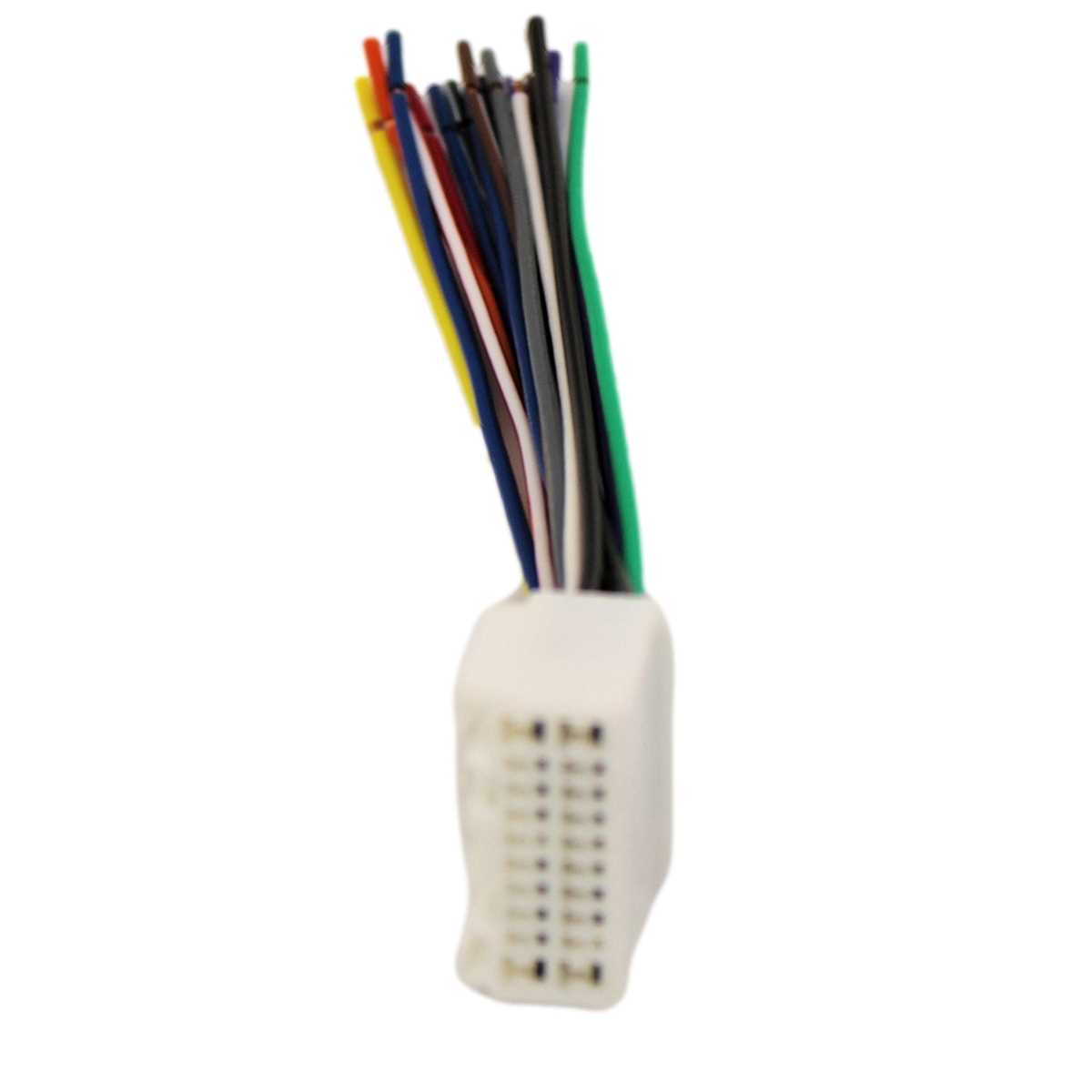

Start at the OEM radio connector (16-pin rectangular): pins 1-4 carry left front speaker wires (YEL for +, BRN for –). If replacing the head unit, retain the AVC-LAN bus (pins 15-16, PUR/VIO) or the memory function dies with the battery disconnect. The pre-wired amp behind the rear seat taps into these leads–expect 5Ω impedance; any lower indicates a fried amplifier.
Check the ABS pump ground strap bolted to the frame rail near the driver’s side brake line. Corrosion here mimics wheel speed sensor failure–clean with a stainless brush and star washer. The VSC OFF switch shares this ground; intermittent ABS codes often clear after resecuring. For traction control diagnostics, back-probe the green/yellow wire at the DLC while spinning a rear wheel on jack stands–4.4V AC at 120 RPM confirms sensor integrity.
Finding the Electrical Schematic in Your Vehicle’s Official Service Guide
Start by locating Section EWD (Electrical Wiring Diagram) in the last third of the paper repair manual. This section is printed on distinctively colored paper–typically light blue or salmon–to distinguish it from mechanical schematics.
The index page for EWD appears immediately after the ignition system troubleshooting charts. Look for a small table labeled “System Circuits”–this lists every major harness subgroup by numerical code and brief description.
Each subgroup begins with a two-page spread: left side shows fuse/relay mapping and right side displays a miniature overview of connector pin assignments. Pinpoint the subgroup matching your suspected circuit (e.g., subgroup 50 for rear lighting, subgroup 60 for instrument cluster).
Turn to the page number indicated in the “System Circuits” table. Full-size schematics appear here, featuring wire colors coded to Toyota’s 14-color palette: black (B), white (W), blue (L), red (R), etc., with suffixes indicating tracer stripes (e.g., W-B denotes white wire with black stripe).
Trace the conductor path directly on the page: solid lines mark protected routes within the vehicle body, dashed lines indicate ground locations, and small circles with numbers correspond to connector plugs listed in the appendix. Use a transparent ruler to keep alignment straight.
The appendix begins approximately 40 pages after the last schematic. It contains detailed connector face views, relay pinouts, fuse ratings, and ground bolt coordinates–measurements in millimeters from datum points under seats, behind dash panels, or near the firewall.
Photocopy the pages covering your circuit. Circle the relevant conductors, connectors, and ground points on the copy. Fold the sheet lengthwise to shield it from moisture and grease while working in the engine bay or undercarriage.
Carry the folded copy alongside a multimeter–set to continuity beep for rapid tracing–and a non-metallic trim removal tool. Probe each connection sequentially, verifying continuity against the colored lines on the copied schematic before assuming any repair.
Tracing Power and Ground Circuits for Common Electrical Issues
Check the fuse block first–remove and visually inspect each fuse for a broken filament or blackened interior. If uncertainty remains, use a multimeter in continuity mode to confirm integrity. Most vehicles of this era use blade-style fuses rated between 10 and 30 amps; a blown 15-amp fuse often indicates an overloaded accessory circuit or short to chassis. Replace only with the specified amp rating–never substitute a higher-rated fuse as a temporary fix, as this risks circuit board damage or fire.
Ground points corrode or loosen over time, creating high-resistance connections. Locate the ground distribution points–typically near the battery, under the dashboard, or along the firewall. Clean each terminal with a wire brush, then secure tightly using a wrench. Apply dielectric grease to inhibit future oxidation. A weak ground can cause intermittent faults or voltage drops that mimic failed components, so verify each connection with a voltmeter under load: expect less than 0.2V drop across a clean ground.
| Symptom | Likely Power Fault | Likely Ground Fault |
|---|---|---|
| Dashboard lights flicker | Loose alternator B+ terminal | Battery negative terminal corrosion |
| Accessories cut out at idle | Voltage drop across ignition switch | Chassis ground strap deteriorated |
| Radio cuts out when braking | Faulty brake pedal switch splice | Ground wire pinched under dash |
For persistent faults, isolate circuits by disconnecting loads methodically. Disconnect the battery negative cable, then unplug each connector starting from the load back toward the power source. Reconnect one device at a time while monitoring voltage at the connector terminals. Voltage below 11.8V at any terminal indicates either inadequate supply voltage or excessive resistance–replace damaged wiring or connectors rather than splicing in repair sections, as twisted repairs degrade signal integrity over time.
Mapping ECM Connector Pinouts by Color Codes
Locate the 32-pin A and 30-pin B connectors on the powertrain control unit–pin A-24 carries the ignition-switched power (IG+) on a white/red stripe lead with 12V, while A-7 grounds the sensor return (E2) via solid black. Bench-test continuity from A-16 (MREL) yellow/blue to the main relay first: resistance must read below 0.5 Ω or the relay contact erosion risks incorrect fuel pump priming. Connectors B-8 and B-27 supply the crankshaft position signals (NE+ and NE-) on green/black and gray/black; use an oscilloscope set at 2ms/division to verify 5±0.2V square waves when cranking–any glitch exceeding ±0.3V amplitude indicates worn reluctor ring teeth or a stretched timing chain requiring immediate replacement.
Critical Voltage Checks and Pin Fault Isolation
After identifying the primary colors and pin assignments, measure voltage drop across the throttle position circuit at B-17 (VC) gray/red supplying the 5V reference: voltmeter probes on B-17 and B-13 (VTA brown/red) should stabilize at 0.5–4V while sweeping the pedal–any reading outside these thresholds confirms either a short in the pedal assembly potentiometer or corroded connector terminals at the control module’s rear harness clips. Ground-side diagnostics demand a scan tool capable of serial communication on C-49 black/white (TC) and C-50 white/red (CG), dumping static codes B1244–B1247 if resistance drifts above 10 Ω; bypass generic solenoids by bridging CG to chassis ground directly, observing diagnostic blink patterns via the MIL LED for code 55 before condemning the injector bank.
