Locate the gray 10-pin connector above the rear axle differential on the driver’s side frame rail. Cut power to the circuit by disconnecting the negative terminal of the battery before proceeding. Probe terminals 8 (black/orange stripe) and 9 (dark green) with a multimeter set to 12V DC; readings below 11.8V indicate a faulty inertia switch or corroded ground contact at G101.
Trace the violet wire from pin 7 of the under-hood relay module to the sending unit housing. Confirm continuity with a test light–absence of illumination signals a short between the firewall bulkhead and the tank’s dual-seal grommet. Replace the OEM harness if chafing is visible near the rear prop shaft tunnel; aftermarket kits include braided shielding for vibration resistance.
Verify the in-line fuse rated 20A positioned 18 inches downstream of the relay center. Remove the lower dash panel to access the fuse box; corrosion at the blade connectors often mimics relay failure. Substitute the original relay with a Bosch 0 332 209 150 unit if stalling persists under load–factory relays degrade after 80K miles under 14.5V steady draw.
Check the hermetic seal on the tank’s top plate; moisture ingress causes the sending unit to read erratic resistance values. Inject dielectric grease into the connectors after cleaning with CRC 05103 spray–silicon-based compounds prevent oxidation better than petroleum jelly. Replace the entire assembly if voltage fluctuations exceed 0.4V when cycling the ignition switch five times consecutively.
Ground the circuit directly to the transmission mount when retrofitting aftermarket modules–factory grounds (G303) shared with the EVAP canister emit false lean codes under WOT conditions. Measure voltage drop across the positive feed at the pump terminals; acceptable range is 0.1V–0.2V under 10A load. Anything above indicates internal pump brush wear–OEM Delphi P/N 12568766 supersedes earlier units with reinforced commutator segments.
Chevy 1500 Series Electrical Layout for Fuel Delivery System
Locate the inertia switch behind the driver-side kick panel–press its reset button if the engine cranks but won’t fire. This safety cut-off often trips after minor impacts or rough roads, interrupting the 12V feed from the under-hood relay box (fuse position #22, 20A). Verify the relay’s 87 terminal with a multimeter: it should show battery voltage when the ignition is in RUN mode. If voltage is absent, inspect the ECM connector C1 (gray, 24-pin) for a chafed pink/black wire (pin A4), which triggers the relay coil.
Color-coded harness segments demand precise tracing. The in-tank sender receives a constant 12V via a 14-gauge orange wire spliced to the main harness under the rear seat floor. A black/white 18-gauge ground strap connects the sender flange to chassis ground–corrosion here mimics pump failure. For low-pressure tests (expected: 55-62 psi), insert a T-fitting at the Schrader valve on the engine-side fuel rail; a reading below 45 psi indicates either a clogged pre-filter or a weak module inside the saddle tank.
Relay Bypass and Voltage Diagnosis
Jump the relay socket terminals 30 and 87 with a fused 10A lead; if the assembly whines, the built-in unit is sound. Absence of noise points to a faulty module–replace the OE Delphi unit (ACDelco part #EP381) rather than aftermarket universal kits, which lack the proper impedance for the Vortec 5.3L’s returnless system. Check the 10-pin chassis harness plug for loose terminals; oxidation on the gray/white ECM feedback wire (pin F8) can falsely trigger a P0230 DTC.
On models with a single-tank setup, the rear harness incorporates a 3-wire splice near the spare tire well–tape damage here disables the sender voltage feed. For dual-tank variants, swap the transfer valve solenoid at the frame rail if fuel sloshing between tanks persists; the solenoid’s red/yellow actuator wire must maintain continuity to ground during key-ON cycles. Always disconnect the negative battery terminal before probing live circuits to prevent module damage from inductive spikes.
Finding the Electrical Connector for the GMC C/K Series Fuel Delivery System
Begin your search beneath the rear passenger-side frame rail, just ahead of the leaf spring mounting point. The harness is secured with a single 10 mm bolt and a plastic clip; remove both to free the bundle. Trace the loom forward–it transitions from a corrugated gray conduit to a black plastic sleeve near the tank’s sending unit. Look for a T-shaped rubber grommet sealing the entry point into the assembly; this is where the six-wire connector exits.
Disconnect the vehicle’s negative terminal before handling any exposed wires. Probe each contact in the connector with a multimeter set to 20 VDC; pin assignments follow this sequence when facing the terminal side:
| Pin | Circuit | Expected Voltage |
|---|---|---|
| 1 (Red/White) | Battery positive | 12.6–14.4 V |
| 2 (Orange) | Fuel gage sender | Resistance varies 0–90 Ω |
| 3 (Black/White) | Ground | 0 V |
| 4 (Dark Green/White) | Control module trigger | Pulsed 5–10 V |
| 5 (Gray) | Reference voltage | 5 V |
| 6 (Pink/Black) | Ignition-switched power | 12.6–14.4 V key-on |
If resistance readings deviate more than 10 % from factory specs, inspect the in-tank strainer and float mechanism for debris or corrosion. Label each wire with masking tape before unplugging; misalignment during reassembly will trigger incorrect gauge readings.
Accessing the Sending Unit Harness
Drop the spare tire and pull back the cargo mat to reveal an oval access panel retained by six Torx T25 fasteners. Lift the cover slowly–fuel vapors may linger. The harness exits the tank through a corrugated conduit bonded to the upper flange; tugging will damage the conduit, so lift the flange straight upward. A silicone seal ensures a vapor-tight connection; replace it if cracked or compressed beyond 1 mm. Match the arrow stamped on the flange with the molded alignment tab on the tank for correct realignment during reinstallation.

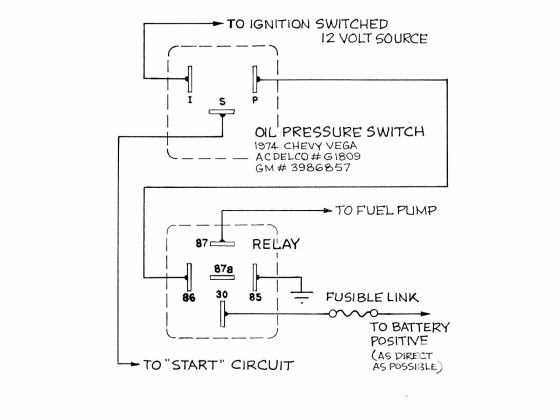

Step-by-Step Relay Circuit Hookup Guide for GM Trucks
Locate the OEM electrical relay box near the driver-side fender or under the hood. Identify the correct slot for the power relay–usually marked “FPE” or similar on the cover–before proceeding. Confirm battery voltage at the relay’s 30-terminal using a multimeter (should read 12V+ with key off). If voltage is absent, inspect the main fuse link feeding the fuse panel.
Connect the relay’s 87-terminal to the sending unit’s positive lead using 10-gauge red wire, routing it through the frame rail grommet to avoid chafing. Secure the joint with solder and heat-shrink tubing, then wrap the entire splice in liquid electrical tape for moisture resistance. Avoid twisting wires together–crimp with a proper butt connector instead.
Ground Path Verification
Trace the relay’s 85-terminal to the chassis ground lug, typically bolted near the truck’s bed or cab mount. Scrape paint off the contact surface until bare metal is exposed, then tighten the grounding bolt with a star washer to prevent corrosion. Test continuity between the relay’s 85-terminal and the battery’s negative post–a zero-ohm reading confirms a solid return path.
For the control circuit, splice the relay’s 86-terminal into the ignition-switched 12V source, often found at the instrument cluster connector or fuse block. Use a T-tap connector or solder splice, but ensure the wire gauge matches the original (usually 16-18 AWG). Failing to maintain gauge consistency risks voltage drop under load, causing intermittent relay operation.
Final Checks Before Energizing
Reinstall the relay and temporarily jumper the 30-terminal to the 87-terminal to test the sending unit without key cycle. Listen for a quiet hum near the tank–indicating proper function–or lack of noise, which suggests a blocked filter or faulty assembly. If no sound is detected, measure current draw at the relay’s 30-terminal; readings above 10A indicate a short, while below 2A suggests an open circuit or exhausted assembly.
Once confirmed operational, secure all wiring with zip ties every 12 inches, avoiding sharp edges or moving components. Apply dielectric grease to all relay contacts to prevent oxidation, then reinstall the fuse box cover. Start the engine and verify pressure at the test port near the rail–specs vary by model, but 55-65 psi is typical for stock systems.
Pinpointing Voltage Readings at the Electrical Connection for Injection Support
Locate the harness plug near the module: the gray two-cavity socket sits directly beneath the driver-side bed panel, roughly 12 inches behind the rear axle. Probe the cavity labeled “A” (white wire) with a digital multimeter set to DC volts; key-on, engine-off should yield 10.5–12.5 V. Anything below 9.5 V indicates a corroded relay or frayed 14-gauge red feed from the under-hood relay block. Verify ground integrity at cavity “B” (black wire): connect the meter’s negative lead to chassis steel and touch the positive probe to the pin; voltage drop above 0.1 V mandates cleaning the frame-side eyelet or replacing the braided strap.
Critical Tests When Current Falls Short
- Switch the ignition on, insert a jumper wire into cavity “A,” and momentarily bridge it to the battery positive terminal; if the module activates, trace the fused red circuit backward through the center console harness, paying special attention to the splice 0.7 meters forward of the transfer-case crossmember.
- For intermittent drops, back-probe cavity “A” with a graphing voltmeter while tapping the harness bundle every 5 cm; abrupt spikes above 0.3 V suggest a fractured conductor shielded by the corrugated conduit.
- When the ECM logs DTC P0230, swap the under-hood relay with one from the horn circuit; if voltage stabilizes, replace the faulty Bosch unit (part #1920653).
After confirming steady supply, turn attention to the control line: gray cavity “C” (pink/black stripe) carries a 5 Hz square-wave during ignition-on. A scope set to 2 V/division ought to display crisp 9–10 V peaks; jagged edges or amplitude below 7 V point to decaying ECM drivers or a compromised 16-pin chassis connector at C101. Secure a known-good harness segment, splice it 20 mm upstream of the connector, and retest–persistent irregularities necessitate ECM reflash with Tech2win.
