For a seamless head unit upgrade in your late-model off-road vehicle, start by locating the factory harness adapter. The Metra 70-1761 or American International AIS-NS-01 will match the OEM plug configuration. Connect the yellow wire (12V constant) to your aftermarket harness’s permanent power lead, ensuring it bypasses the ignition-controlled circuit. The red wire (accessory) must link to the switched 12V source–verify with a multimeter to prevent parasitic drain.
Ground the black wire directly to the chassis near the mounting location, avoiding paint or corrosion. The blue/white (remote turn-on) activates the amplifier–pair it with your new unit’s remote wire. For speaker outputs, match the door-mounted woofers (typically 6.5-inch) to the gray (front left +), gray/black (-), white (front right +), and white/black (-) wires. Rear outputs use green (+) and green/black (-) for the full-range speakers.
If retaining the factory amplifier, splice the pink (left rear +) and purple (right rear +) wires to the aftermarket harness’s corresponding outputs. For vehicles with a subwoofer, the brown and brown/white wires feed the low-frequency signals–ensure they’re routed to an external amp if upgrading bass performance. Use 18-gauge wire for connections and heat-shrink tubing to seal splices. Test each channel with a 1 kHz tone before finalizing the installation.
Automotive Audio System Color-Coded Connector Guide for Early Model SUVs

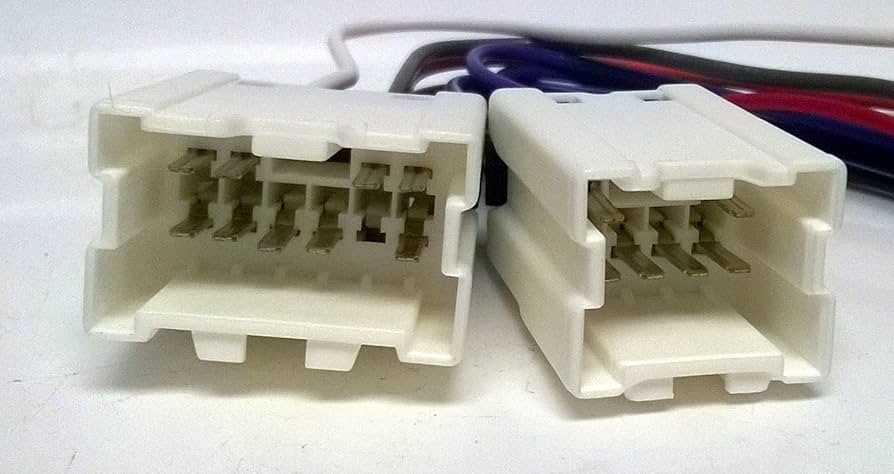

Locate the 16-pin harness behind the factory radio slot. Pin assignments follow this sequence (left to right, top row first):
- 1 – Yellow (constant +12V)
- 2 – Black (ground)
- 3 – Blue/White (power antenna or amplifier turn-on)
- 4 – Green (left rear speaker +)
- 5 – Gray (right front speaker +)
- 6 – Red (accessory +12V)
- 7 – Orange (illumination)
- 8 – Brown (left front speaker +)
Bottom row continues:
- 9 – Purple (right rear speaker +)
- 10 – Pink (right rear speaker –)
- 11 – Blue (left rear speaker –)
- 12 – Dark Green (left front speaker –)
- 13 – White (right front speaker –)
- 14 – Empty
- 15 – Empty
- 16 – Empty
Secure crimp connectors with 18-20 AWG heat-shrink tubing. Avoid twisting wires; use solder for factory harness extensions longer than 18 inches to prevent voltage drop. Verify circuit continuity with a multimeter before powering aftermarket units–yellow wire should maintain 12.0-12.6V with ignition off.
Factory amplifier resides under the driver’s seat. Bypass requires connecting blue/white wire directly to aftermarket head unit’s remote turn-on lead. Terminals 17 (gray/red) and 18 (gray/black) on the 20-pin seat harness correspond to front door tweeters; omit these when retaining OEM door speakers to prevent phase cancellation.
Finding the Original Audio System Connector Points
Remove the trim panel surrounding the central dashboard unit by gently prying along the edges with a flat plastic tool–starting from the bottom left corner near the hazard button. Hidden clips secure the panel; releasing them requires minimal force to avoid cracking the plastic. Behind this panel, the main harness outlets sit directly behind the climate control module, identifiable by their rectangular 12-pin and 8-pin connectors in white or black plastic.
The primary connectors are color-coded for easy identification: the larger 12-pin plug typically carries power feeds, ground, and speaker outputs, while the smaller 8-pin handles signal inputs and illumination controls. Use a multimeter set to DC voltage to confirm wire functions–probe the pins with the ignition on (but engine off) to detect 12V constant, switched 12V, and ground lines. The table below outlines standard pin assignments based on factory layouts:
| Connector | Pin | Function | Wire Color |
|---|---|---|---|
| 12-pin | 1 | Battery (+12V constant) | Yellow |
| 4 | Ground | Black | |
| 8-pin | 2 | Switched (+12V ignition) | Red |
| 5 | Front right speaker (+) | White/Black stripe | |
| 7 | Dimmer/Illumination | Orange |
For rear speaker connections, trace the wire loom extending from the dashboard toward the cargo area–it passes under the driver’s side kick panel and along the door sill. The loom splits near the rear quarter panel, where an additional 6-pin harness attaches to the factory amp (if equipped). Disconnecting this harness requires removing the rear speaker mounting screws to access the plug. Avoid cutting wires here; instead, use a male/female adapter to preserve original connectors.
If the vehicle has an optional subwoofer, its wiring branches off near the rear hatch, bundled separately from the main loom. The subwoofer’s harness uses a 4-pin connector (two power, two signal) colored dark green and gray. Before upgrading components, verify all connections with a continuity tester–faulty grounding in the factory setup often causes static or dim display issues in aftermarket units.
Label each connector with masking tape before unplugging to prevent mismatches during reinstallation. Store removed panels in a clean, organized space to avoid losing small screws or clips–common dashboard fasteners include Phillips-head screws (4–6mm) and hidden Torx T15 bolts behind the climate control buttons.
Matching Harness Wire Colors to Audio Channel Assignments
Locate the 16-pin connector at the rear of the factory head unit or amplifier harness. Pinpoint these color-coded leads to ensure correct speaker termination:
- Front Left (+): Solid light green wire
- Front Left (–): Light green with black stripe
- Front Right (+): White with red stripe
- Front Right (–): Solid red
- Rear Left (+): Gray with blue stripe
- Rear Left (–): Solid gray
- Rear Right (+): Purple with white stripe
- Rear Right (–): Solid purple
Verify polarity by connecting a 9V battery briefly to each pair–positive voltage should produce an audible pop from the corresponding driver. Swap leads if sound emits from the opposite side.
If integrating an aftermarket receiver, use a harness adapter that maps these exact colors to the new unit’s RCA outputs or speaker wires. Avoid tapping directly–splice connections can degrade signal integrity and introduce noise. For systems retaining the OEM amp, maintain continuity of the dark blue (remote turn-on) and orange (illumination dimmer) leads to preserve factory functionality.
Step-by-Step Guide to Removing the Factory Audio System
Disconnect the vehicle’s battery terminals before touching any internal components. Use a 10mm wrench to loosen the negative terminal first, then the positive, and set the cables aside. This prevents short circuits or accidental airbag deployment during removal.
Pry off the trim panel surrounding the dash unit using a plastic trim removal tool. Start from the bottom corners near the climate controls and work upward, applying gradual pressure to avoid cracking the clips. If resistance is felt, reposition the tool–most retaining clips break easily under uneven force.
Remove the four screws securing the head unit in place: two near the top, one on each side near the vents. A #2 Phillips screwdriver fits these 6mm screws. Store them in a magnetic tray or small container immediately to prevent loss, as they’re non-standard and replacements are difficult to source.
Slide the unit outward carefully once screws are removed. The rear will still be connected by wiring harnesses and antenna plugs. Rotate the unit 90 degrees counterclockwise to access the connectors–never pull wires directly. A small flathead screwdriver can release the retaining tabs on the plastic clips if needed, but avoid excessive force.
Identify the harnesses: the larger 18-pin connector controls power, speakers, and illumination, while the smaller two-pin plug is for the antenna. Press the release tab on each connector with your thumb while gently wiggling the plug free. Label the harnesses with masking tape if reinstalling later–mismatched connections can cause electrical faults.
Inspect the mounting cage left in the dash for debris or bent metal tabs. These tabs often interfere with aftermarket units. Straighten them with needlenose pliers if necessary. If the cage shows signs of rust, clean it with a wire brush and apply dielectric grease to prevent future corrosion.
Reconnect the battery only after confirming no bare wires are exposed or touching metal surfaces. Test the new unit’s fit by securing it temporarily with screws–ensure no dashboard rattles occur before fully tightening. If the unit doesn’t power on, recheck the battery connection and fuse integrity before troubleshooting further.
Integrating Third-Party Audio Cables with Factory Connector Plugs
Match the aftermarket head unit’s color-coded leads to the original equipment manufacturer’s harness by referencing the vehicle’s service manual pinout. Locate the constant 12V (yellow), ignition-switched 12V (red), ground (black), and illumination (orange) wires first, as these are critical for basic operation and dimming functionality.
Use a multimeter to verify voltage on the factory harness before splicing. Set the meter to DC 20V range and probe the wires while the key is off, then in the ACC and ON positions. A consistent 12V on the yellow wire regardless of key position confirms the constant power lead; a fluctuating reading on red indicates the ignition-controlled supply. Ground should show near 0V when tested against the chassis.
Strip only 5mm of insulation from each wire to minimize exposed copper. Crimp connectors must be matched to wire gauge–typically 18-20 AWG for OEM harnesses. Avoid soldering directly to factory wires unless you’re bypassing degraded insulation; heat can weaken adjacent connections. Instead, use butt splices with heat-shrink tubing for strain relief and corrosion prevention.
Identify the speaker outputs by checking resistance between each wire pair and ground. Factory harnesses often use a single-color pair for each channel (e.g., gray/gray-white for front right). Reversing polarity during connection may cause phase cancellation, leading to weak bass response. Label wires with masking tape immediately after cutting to prevent mix-ups.
Connect the aftermarket unit’s remote turn-on (blue/white) to the factory antenna motor trigger wire or a vehicle-specific accessory lead. This ensures the amplifier powers on only when the head unit is active. If the factory harness lacks a dedicated turn-on wire, use a relay triggered by the ignition-switched 12V to avoid parasitic battery drain.
Test the system before finalizing connections. Play pink noise through each channel and verify equal volume levels. Check for pops, distortion, or intermittent sound, which may indicate a loose or shorted connection. Re-seal all splices with adhesive-lined heat-shrink tubing, ensuring no bare copper remains exposed.
Secure the harness away from moving parts and heat sources. Route wires parallel to existing bundles and use cable ties every 8–10 cm to prevent vibration-related fatigue. Double-check all connections against the pinout diagram one last time before reassembling the dashboard trim–retracing steps later is far more difficult than confirming now.
