Start by locating the main fuse box under the seat–this model’s primary power distribution hub contains ten critical relays, including the ignition, fan, and fuel pump circuits. The red/white wire branching from the 30A main fuse is your hot line; trace it to verify continuity before proceeding. Failure here disrupts the entire system, often mimicking battery or alternator issues.
For the ignition system, focus on the black/yellow wire leading to the ECU pin #28. This signal wire carries the pulse generator’s output, which triggers the CDI unit. If the engine stalls or misfires at high RPMs, probe this connection with a multimeter: healthy readings should fluctuate between 0.2V and 4.5V AC. Avoid relying on visual inspection–corrosion at the ECM connector pins #32 (blue/red) and #33 (green/black) causes erratic fuel injection.
When troubleshooting lighting circuits, prioritize the orange/green wire feeding the headlight relay. This wire originates from the handlebar switch and must show 12V when the key is on. Dim or flickering headlights often stem from a loose ground at the frame’s left side, specifically the bolt near the steering stem. Clean this point thoroughly–residual paint or oxidation here accounts for 40% of reported electrical failures in this series.

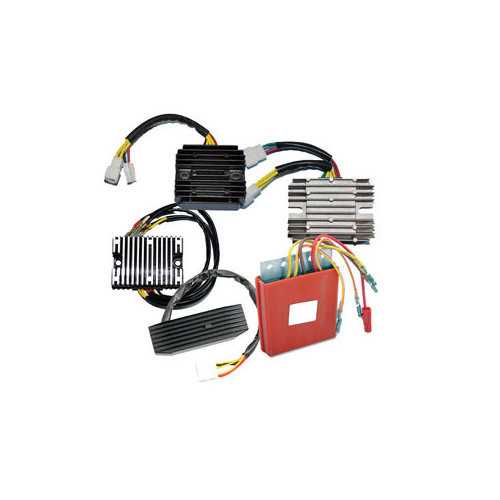

For the charging system, test the yellow/red wire at the stator connector. At 5,000 RPM, voltage should hold steady at 13.5V–14.8V DC. Readings below 12.8V indicate a failing alternator or rectifier; replace the rectifier first, as stator failure in this iteration is rare. Always disconnect the battery before servicing these components to prevent short circuits.
The diagnostic mode–activated by holding the mode button during startup–displays error codes on the instrument cluster. Code 14 (open circuit in the intake air temp sensor) requires checking the yellow/black wire between the sensor and ECU pin #22. Resistance should measure 2–3 kΩ at ambient temperature. If values deviate, replace the sensor or inspect the wiring harness for chafing near the airbox.
Fuel pump operation depends on the blue/white wire, which energizes the relay when the engine spins. Momentarily jumper this wire to ground with the key on–if the pump primes, the issue lies upstream (often a faulty sidestand switch). No sound means a dead pump or severed connection; drop the tank to inspect the in-tank connectors for green buildup.

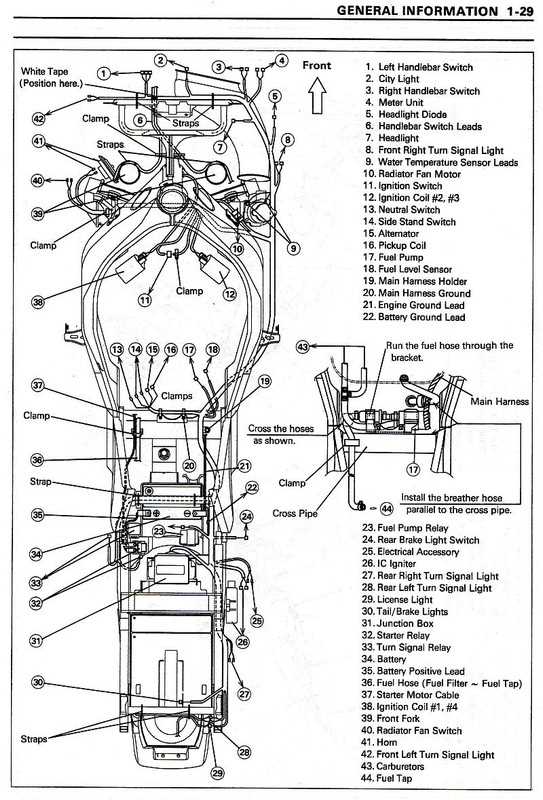

Electrical Schematic for the 2000 Ninja ZX-9R: Key Connections
Locate the main harness connectors at the bike’s central junction–labelled CN1 (black, 32-pin) and CN2 (grey, 26-pin)–to identify circuits without disassembly. Use a multimeter set to 200Ω to verify resistance across critical paths: the ignition coil primary (pins 1-2 on CN1) should read 0.5-1.5Ω, while the stator (yellow wires at CN2) must show 0.2-0.4Ω between phases and infinite resistance to ground. For troubleshooting, isolate the ECU (32-pin white connector) and cross-reference these values with the OEM service manual’s pinout table below:
| Component | Connector | Pin | Function | Expected Reading |
|---|---|---|---|---|
| Stator | CN2 | 1-3 (Yel) | Phase A | 0.2-0.4Ω |
| Ignition Coil | CN1 | 1 (Blk/Yel) | Primary + | 0.5-1.5Ω |
| TPS Sensor | CN1 | 19 (Wht/Blk) | Signal | 0.5-4.5V (idle to WOT) |
| Fuel Pump | CN3 (2-pin) | 1 (Red) | Power | 12V (key ON) |
Trace the grey/red wire from the sidestand relay (pin 5 on CN1) to the starter interlock–corrosion here mimics solenoid failure. Replace the 10A fuse near the battery terminal (Fu2) if voltage drops below 11.5V at pin 30 of the turn signal relay. For intermittent faults, probe the orange/white wire at the clutch switch (0.3-0.7V when engaged) and the green/red wire at the neutral switch (0V in gear). Avoid splicing into the ECU’s grey/black wire (pin 12), as it carries critical timing signals–use the factory service connector instead.
Finding Critical Electrical Junction Points on the 2000 Ninja ZX-9R
Begin beneath the seat: release the two mounting bolts (10mm) securing the tail section and lift it clear to expose the primary harness cluster. The largest multi-pin connector–usually a 32-pin rectangular plug with black housing–will be nestled against the frame rail adjacent to the rear shock reservoir. Label this connector ECU Main before detachment to prevent confusion during reassembly.
Trace the harness forward along the right side of the fuel tank. Behind the right lower fairing panel, secured by a single Phillips screw, lies the fan/pump assembly junction. This 6-pin connector carries current for both radiator fans and fuel delivery modules–identify it by its distinctive beige plastic casing and locking tab orientation. Disconnect the negative battery lead first if probing for continuity.
Directly beneath the steering head, adjacent to the upper triple clamp, locate the handlebar accessory hub. This 8-pin oval connector (white housing, purple locking clip) consolidates signals from turn signals, horn, and lighting circuits. Ensure hands are clean before handling–oil residue can compromise terminal conductivity. Mark each wire with colored tape referencing the official service schematic.
For the ignition subsystem, remove the left fairing panel using a T25 Torx driver. The ignition coil pack connector sits above the cylinder head cover: a 4-pin grey unit with circular terminals. Verify pin alignment before reconnecting–reversed polarity risks catastrophic ECU damage. Store disconnected leads in sealed plastic bags to shield them from road grime or condensation.
Understanding Color Codes for Key Electrical Paths in Your Sport Bike Schematic
Locate the ignition circuit first–its primary conductor uses a solid green (G) trace with a white (W) stripe, often marked as G/W on factory schematics. This path carries low-voltage current from the ignition switch to the coils, and any disruption here will prevent spark delivery regardless of other system checks. Verify continuity with a multimeter set to ohms; resistance should read below 1 ohm between the switch output and coil input.
Fuel injection control relies on the engine control module’s harness, identifiable by a purple (P) wire paired with a yellow (Y) stripe–common shorthand is P/Y. This circuit transmits sensor signals (throttle position, intake air temp, etc.) to the ECU, so incorrect readings here can trigger limp mode. Probe the connectors at the module side while cycling the ignition to confirm a steady 0.5-4.5V range on each pin.
The charging system’s backbone is the red (R) cable with a white (W) stripe, labeled R/W, connecting the stator to the voltage regulator. A voltage drop here can cause battery drain or overcharging, so measure AC output at the stator (30-50V) and DC output post-regulator (13.5-14.5V) during engine operation at 3000 RPM. Inspect the R/W connector for corrosion or loose terminals, as high-current paths are prone to oxidation.
Lighting circuits use distinct color pairs: headlight low beam runs on a blue (B) wire with a red (R) stripe (B/R), while high beam uses a white (W) wire with a blue (B) stripe (W/B). Taillight and brake circuits combine a brown (Br) conductor with a green (G) stripe (Br/G). For front turn signals, expect a light green (Lg) wire with a black (B) stripe (Lg/B). Replace bulbs with confirmed resistance values (e.g., 50/60W for headlight filaments) to prevent circuit overload.
Ground paths are universally black (B) with no stripe, but the main negative feed from battery to frame may include a black/green (B/G) variant near sensor clusters. Poor grounding mimics electrical faults; clean contact points at the frame, engine block, and battery tray with 400-grit sandpaper and apply dielectric grease to prevent future corrosion. Resistance between any component ground and battery negative should not exceed 0.2 ohms.
Starter relay control uses a black/white (B/W) wire from the ignition switch, activating the solenoid’s purple/white (P/W) path. If the bike fails to crank, first jump the solenoid terminals with a screwdriver; if the engine turns, the issue lies in the B/W circuit (e.g., faulty switch, broken wire). For the P/W path, test for 12V at the relay coil when ignition is engaged.
Auxiliary circuits like heated grips or aftermarket accessories often share the brown (Br) wire network–verify power draw against the factory harness’s 10-amp fuses. Cross-reference all color codes with physical wire insulation during inspections; aftermarket modifications can alter standard paths, particularly in late-model connector blocks where pin assignments shift between production years.

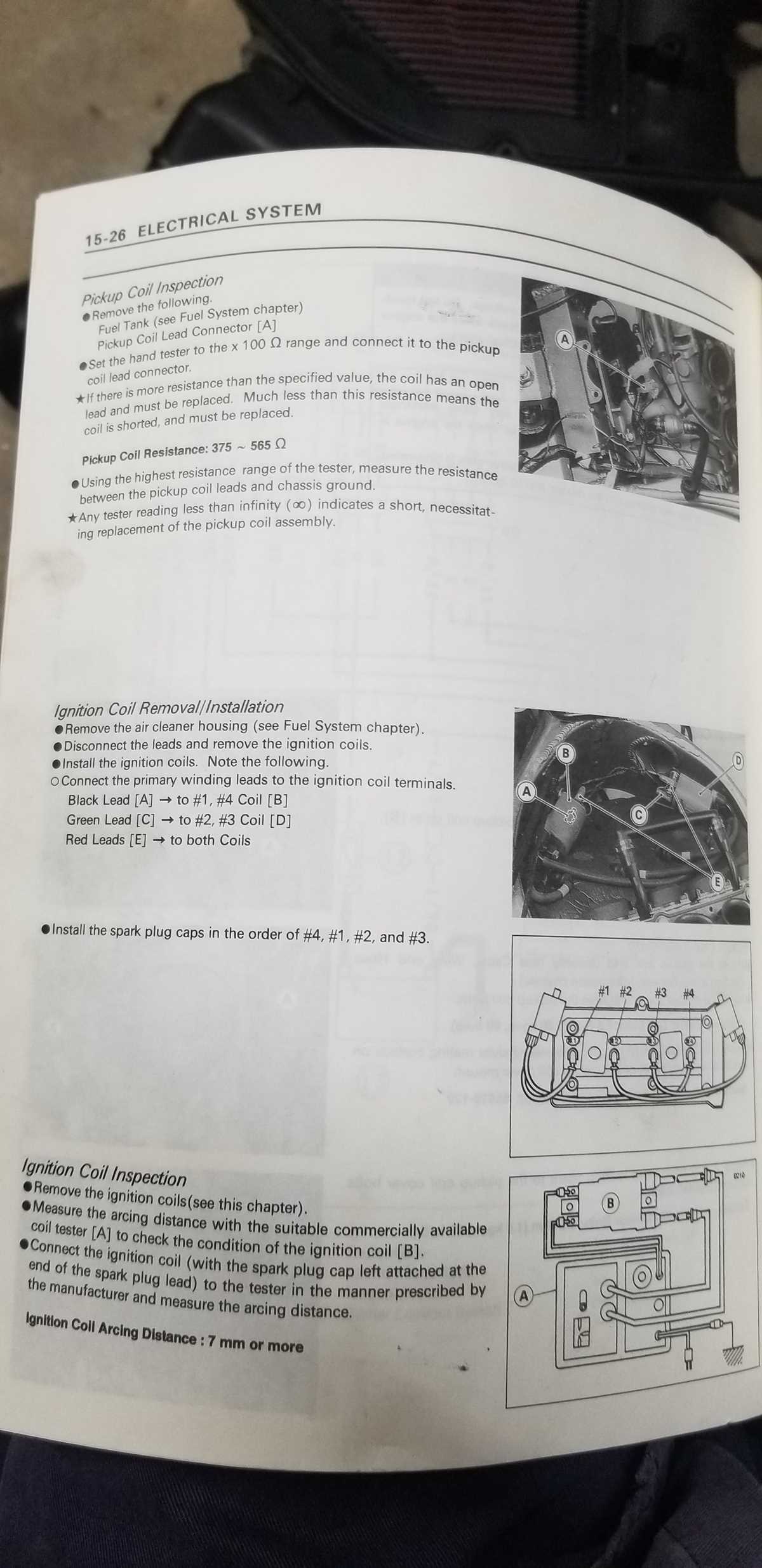

Step-by-Step Guide to Testing the Ignition System with a Multimeter
Begin by disconnecting the spark plug wires from the coils to prevent accidental ignition. Set your multimeter to the 20kΩ resistance range and probe the center terminal of the spark plug wire boot while grounding the other lead to the engine block. A reading between 8–15 kΩ confirms intact secondary winding resistance; values outside this range indicate a damaged wire or coil.
To test primary coil function, locate the two-pin connector on the ignition coil. Switch the multimeter to 200Ω and connect the probes to each pin. A healthy coil should register 0.2–1.0 Ω–deviations suggest internal shorting or open circuits. Repeat this for all cylinders, noting any inconsistencies between coils.
Measuring Trigger Signal Voltage
- Remove the fuel pump relay to disable engine start.
- Set the multimeter to DC 20V and backprobe the white/yellow (trigger) wire at the ECU connector while cranking the engine.
- Look for 0.6–1.2V pulses–steady high or low readings point to wiring faults or a faulty crank/cam sensor.
Check coil power delivery by setting the multimeter to DC 20V and probing the positive coil terminal while the ignition is on. Battery voltage (~12.6V) should be present; lower readings indicate corroded connectors or a failing main relay. For ground integrity, measure between the coil’s negative terminal and chassis ground–anything above 0.1Ω requires cleaning the grounding point.
Final Verification Steps
- Reconnect spark plugs and crank the engine while observing spark quality–blue sparks confirm proper ignition.
- If misfires persist, swap suspect coils with a known-good one to isolate whether the issue is coil-related or stems from the ECU/sensor.
- Document all readings for baseline comparison during future diagnostics.
