Begin by locating pin 5 on the replacement module–this connects directly to the 15-amp fuse labeled IG1. Trace the red wire with yellow stripe (code RY) from the fuse box back to the column-mounted actuator, ensuring no breaks exist. If resistance exceeds 0.3 ohms, replace the 18-gauge lead between the solenoid and ignition harness.
Next, verify continuity at terminal 8 (black wire with white stripe, BW) to the chassis ground. A faulty earth link can mimic a relay failure, causing intermittent cranking issues. Secure the connection with a 14-gauge ring terminal and dielectric grease to prevent corrosion–standard automotive connectors degrade after 15,000 cycles under heat and vibration.
For models with automatic transmissions, the neutral safety interlock relies on the brown wire (code BN) at terminal 3. Jumper this to terminal 7 (yellow with black stripe, YB) temporarily to test; if the engine starts, the inhibitor switch requires recalibration or replacement. Manual variants omit this path entirely, routing power through the clutch pedal microswitch instead.
The anti-theft system often complicates diagnosis. The immobilizer unit communicates via a two-wire LIN bus (purple wire at pin 12, pink stripe at pin 4). If communication errors occur, replace the transponder in the key fob and reprogram using the 4-digit PIN stored in the ECM. Aftermarket starters may lack this protocol, requiring a bypass module wired to terminal 1.
Always use a 10-amp circuit tester when probing live circuits–incorrect connections can destroy the ECM or fuse the solenoid contacts. Keep a multimeter set to 20VDC for voltage drop tests across each contact, particularly at the starter relay underhood. If readings fluctuate beyond ±0.5V during cranking, inspect the alternator’s diode trio for leakage.
Electrical Connector Guide for the 2001 Sedan Starter Circuit
Locate the white/black wire (terminal 5) on the back of the key cylinder assembly–this is the primary power feed for accessories. Verify continuity between this terminal and the brown wire at the under-dash fuse box (position 6) using a multimeter set to 200Ω. A reading above 5Ω indicates corrosion in the harness; replace the affected segment with 18-gauge wire rated for 30A.
Critical paths:
- Black/yellow (igniter control) → must show 12V when the key is turned to START, not ON.
- Red/black (constant +12V) → always live, confirm no voltage drop under load.
- Blue/white (starter solenoid) → resistance should not exceed 0.3Ω.
Disconnect battery ground before probing; probe directly on terminals to avoid false readings from spliced connections.
Common Failure Points and Solutions
Check the ignition relay socket (right kick panel) for melted plastic–sign of overheating due to a short in the 10A GAUGE fuse circuit. Replace the relay with OEM part 39794-SDA-A01; aftermarket units often lack the correct thermal cutoff. If the engine cranks but stalls, inspect the black/white wire at the ECM (connector B, pin 12) for fraying where it passes through the firewall grommet–90% of intermittent no-starts trace here.
Finding the Starter Relay Connector in Your Vehicle Model

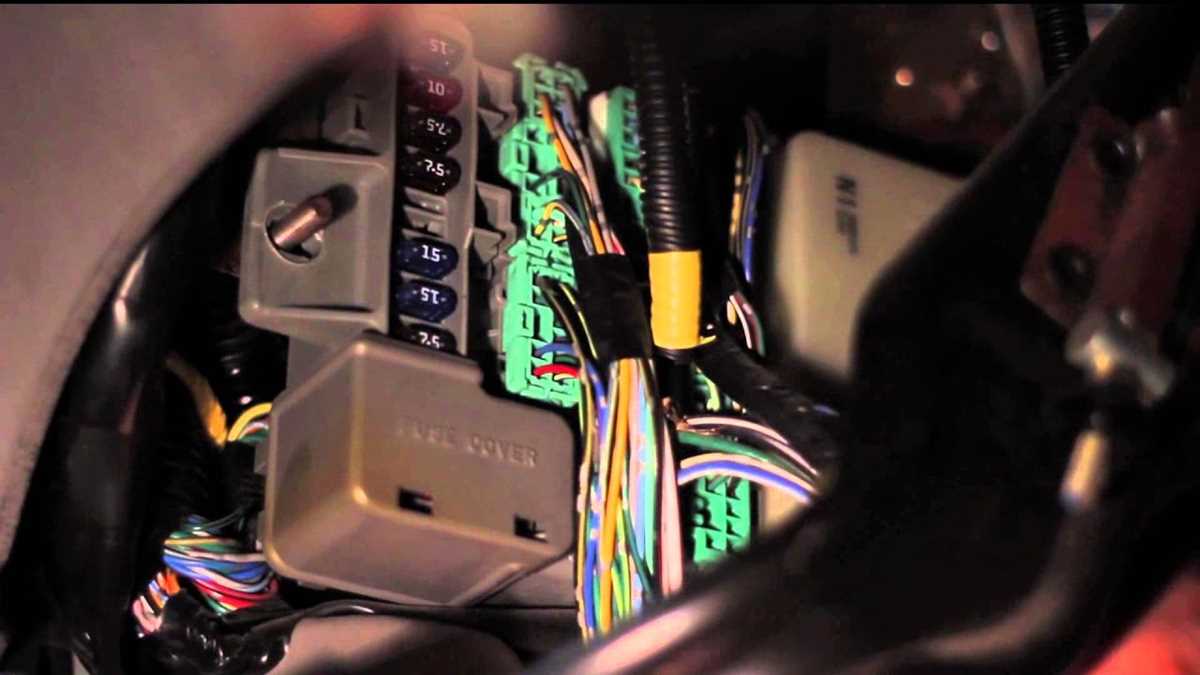

Begin by removing the lower dashboard panel beneath the steering column. This panel is secured with two 10mm bolts and three plastic clips. The bolts are located near the panel’s edges–a shorter one on the left, a longer on the right. Pry the clips gently with a trim removal tool to avoid breaking them; they snap inward at a 45-degree angle. Once detached, the panel will reveal a cluster of harness connectors, including the one you need: a white rectangular plug with four terminal pins, positioned directly behind the column’s tilt lever assembly.
| Connector Color | Pin Count | Location Relative to Column | Identifying Feature |
|---|---|---|---|
| White | 4 | Behind tilt lever, upper row | Flat rectangular shape, locking tab |
| Black | 6 | Below white connector | Curved edges, larger housing |
| Gray | 2 | Adjacent to steering shaft | Smaller, rounder profile |
Trace the wiring loom upward from the white connector to confirm it leads to the mechanical actuator assembly. The harness should be wrapped in a corrugated sleeve–split open the sleeve 5cm from the plug to expose the wires. Each wire’s gauge and insulation color correspond to specific circuits: red (10 AWG) for power-in, yellow (12 AWG) for accessory, black/yellow (14 AWG) for starter solenoid, and black/white (16 AWG) for ground. Verify continuity with a multimeter; resistance should not exceed 0.5 ohms per wire.
If the connector is obscured by the immobilizer module (a silver box mounted to the left of the actuator), detach the module’s single 8mm bolt first. The module pulls straight out–do not force it. The white plug will now be fully accessible for testing or replacement. Label each wire before disconnecting to avoid circuit misalignment during reassembly.
Matching Connector Pinouts to Circuit Functions by Wire Shade
Start by isolating the harness connector at the rear of the tumbler assembly–use a T20 Torx bit to remove the lower dash panel if obstructed. The 10-pin black plug carries all starting and accessory circuits; each cavity is labeled A through J on the factory loom sheath. Pin A (white/green stripe) supplies constant battery voltage regardless of key position–verify with a multimeter set to 20V DC before proceeding. Trace this conductor first, as it feeds the memory keep-alive and anti-theft modules.
Accessory power flows through pin C (black/yellow stripe) when the key rotates to ACC. This leg supports radio presets, interior lighting, and power outlets; a loose connection here causes intermittent power loss to these devices. Measure voltage drop across the fuse link–values exceeding 0.2V indicate corroded terminals requiring cleaning with electrical contact cleaner and a fiberglass pen.
Critical Safety and Starter Activation Paths
Pin B (black/white stripe) energizes the starter solenoid coil during crank–no voltage here means the motor won’t engage. Probe the circuit at the firewall bulkhead to rule out broken strands; splice repairs must use crimp connectors rated for 20 amps, not solder, to prevent brittle failure under vibration. Pin J (blue/black stripe) forms the ground return for the ignition feed circuit; corrosion at the chassis stud can mimic a malfunctioning tumbler–always check continuity to body earth before condemning the unit.
Pin D (red) carries switched ignition voltage to ECM and instrumentation clusters. A partial voltage drop here triggers false warning lights; verify integrity by back-probing at the fuse box with the key in ON position. If readings fluctuate, inspect the intermediate connector near the A-pillar–greenish deposits signal moisture ingress that can be neutralized with dielectric grease after drying.
Pins E (yellow/black stripe) and F (brown) handle antitheft signals–disrupting these leads to no-start conditions exceeding 5 seconds. Symmetrical harness routing prevents chafing; reroute any conductors lying against sharp metal edges with split loom tubing. Encoded transponder data travels on pin G (blue/yellow stripe); substitute keys must be programmed to prevent immobilizer faults.
Diagnosing Intermittent Failures Using Color Cross-References
Orange serves two functions: pin H carries SRS deployment commands–never probe this leg while the system is armed. Pin I (orange/black stripe) activates HVAC controls and rear defogger; if these functions drop out, check for melted fuse terminals under the glovebox. Purple/white at pin K supplies dashboard illumination; dimming issues often stem from worn rheostat contacts on early assemblies rather than wiring faults.
Document each conductor’s path before disconnecting–use colored electrical tape to mark splices temporarily. Reassembly sequence matters: reinstall the black plug before fastening the tumbler assembly to avoid bending connector pins. Replace the entire harness if insulation cracking is visible; aftermarket looms often omit EMI shielding, risking false trouble codes in OBD-II monitors.
Testing Starter Circuit Contacts with a Multimeter
Set the multimeter to 20V DC and connect the red probe to the BATT (battery) terminal on the electrical connector while grounding the black probe to the vehicle’s chassis. Key in the ON position should read ~12.6V; any drop below 10V indicates a faulty relay or corroded contact. Repeat the test on the ST (start) terminal during cranking–voltage should spike to 8-10V then stabilize. Readings below 6V suggest internal wear or a broken conductor.
For continuity checks, shift the meter to the ohm (Ω) setting. Disconnect the harness and probe ACC and IGN terminals–resistance should register 0.5Ω or less when the key is cycled to their respective positions. Values above 2Ω confirm intermittent opens. Verify ground integrity by measuring between the GND pin and chassis; readings exceeding 1Ω require terminal cleaning or wire replacement.
Pinpointing Parasitic Loads
Move the dial to milliamps (mA) mode. Connect the probes in series with the BATT lead after detaching the fuse. With all accessories off and the key removed, current draw should not exceed 50mA. Excessive drain (above 100mA) isolates to a stuck relay or shorted circuit inside the assembly.
Use a non-contact voltage tester to scan for live wires before probing. If the M (accessory) terminal shows voltage with the key in LOCK, the tumbler contacts are welded shut. Replace the entire unit–temporary fixes (like bending contacts) risk fire.
Diagnosing Intermittent Failures
Wiggle each wire while monitoring the multimeter. A fluctuating reading pinpoints frayed strands beneath insulation–strip back the sheath, twist strands tightly, and solder. Apply dielectric grease to prevent future corrosion. If voltage cuts out only during vibration, the issue is likely a cracked solder joint on the printed circuit board. Desolder, clean pads with isopropyl alcohol, and reflow with fresh solder (60/40 rosin-core).
