For a seamless installation, start by locating the factory harness behind the dashboard’s lower left panel. The 12-pin connector (gray, labeled C1) carries all speaker outputs–front left (pin 4, white/black), front right (pin 11, gray/black), rear left (pin 5, dark green/black), and rear right (pin 10, purple/black). Ground (pin 8, black) and constant 12V power (pin 12, orange) complete the critical connections. Skip intermediate adapters–direct soldering ensures zero signal loss.

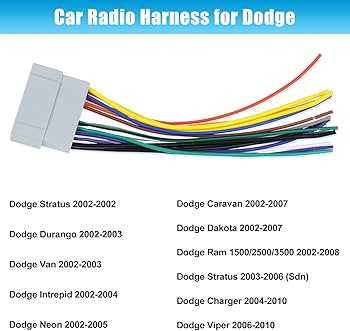

Aftermarket units often require a harness adapter (Metra 70-1817 or equivalent). Verify the harness color codes against the vehicle’s service manual–mismatches cause phantom noise or reversed polarity. If the head unit lacks a dimmer circuit, splice the illumination wire (pin 7, light green/black) into the fuse box’s instrument cluster feed to sync dashboard lighting.
For amplified systems, the factory wiring supports up to 20W per channel. Exceeding this risks overheating the stock speaker coils. Upgrade the 18-gauge speaker wire to 16-gauge oxygen-free copper for frequencies above 8kHz. The remote turn-on lead (pin 6, dark blue/white) triggers external amplifiers–connect it directly to the new head unit’s blue wire to avoid phantom power drain.
Test all connections before reassembling the dashboard. Use a multimeter to confirm 4-8 ohms impedance at each speaker terminal. If static persists, check for unshielded wires near the alternator’s voltage regulator–reroute or add ferrite cores. For subwoofer integration, tap the rear speaker outputs with a line-level converter to avoid clipping the factory amplifier.
Color-Coded Harness Guide for Mid-Size Sedan Audio System Upgrades
Locate the factory harness behind the dashboard’s lower trim panel near the driver’s footwell–it connects directly to the OEM receiver. Disconnect the battery’s negative terminal first to prevent short circuits during installation. The power wire (typically yellow or orange) requires a 10A fuse within 18 inches of the battery to prevent fire hazards. Route this wire through the firewall using an existing grommet near the brake pedal to avoid drilling.
Use this table to match harness wires to aftermarket head unit connections:
| Factory Wire Color | Aftermarket Function | Notes |
|---|---|---|
| Dark Green/Orange Stripe | Constant 12V+ | Memory retention for presets |
| Dark Blue/White Stripe | Power Antenna/AMP Turn-On | 12V trigger for external amplifiers |
| Light Green | Left Front Speaker (+) | 2-4 ohm impedance required |
| Gray | Right Front Speaker (+) | Observe polarity |
| Black | Ground | Solder to bare metal chassis |
| Light Blue/Orange Stripe | Dimmer/Illumination | Adjustable dash light sync |
Interference from the alternator can cause static–ground the RCA shield wires to the chassis ground point where the original radio’s harness connected. For vehicles with premium sound systems, the factory amplifier is mounted under the passenger seat; bypass it only if upgrading to a high-power head unit (above 20W RMS per channel). Dual-zone climate controls may share the same harness–verify wire functions with a multimeter before cutting.
Subwoofer installations require a separate amplifier with 12V trigger connected to the dark blue/white stripe wire. Use 16-gauge wire for speaker runs exceeding 12 feet to reduce signal loss. The steering wheel controls (if retained) need an adapter module–resistance values vary: 0Ω (volume up), 470Ω (volume down), 1.3kΩ (next track).
T-taps are unreliable for long-term connections–solder and heat-shrink all joints, especially for ground wires. The dimmer circuit (light blue/orange stripe) may pull 50mA–ensure the aftermarket head unit supports this load. Some models integrate a parking brake safety switch–connect a bypass resistor (4.7kΩ) if the video display stays locked.
Test all connections before reassembling the dash. Playback pink noise through each channel to verify phase alignment. High-pass filters (80Hz) should be enabled for door speakers to protect tweeters. If upgrading to a double-DIN unit, fabricate a mounting bracket from 0.063″ aluminum sheet to prevent dash rattles.
For satellite radio integration, the dark green/orange stripe wire also serves as the power feed–connect it to the satellite tuner’s constant 12V input. Navigation systems require a separate GPS antenna, typically mounted atop the dashboard or rear deck. Hardwire the reverse signal (pink/black stripe) to enable rear-view camera inputs. Avoid cheap fuse adapters–they can melt under surge currents.
Finding the OEM Head Unit Harness Plug
Begin by releasing the climate control panel trim. Insert a thin plastic pry tool behind the lower edge of the bezel, directly below the hazard button, and lift outward without applying excessive force. The cover should snap free, exposing two 7-mm retaining screws securing the head unit in the dash cavity.
The harness plug sits behind the radio chassis, aligned with the left mounting bracket. Pull the assembly forward until the rear connectors become accessible, then rotate the unit 45 degrees clockwise to reveal the white 16-pin Molex connector–this is the factory interface for power, speaker, and antenna feeds.
- Verify plug color: factory harnesses use opaque white housing.
- Count pins: ensure exactly 16 terminals–no missing or bent pins.
- Check latch: a small plastic tab secures the plug; press it inward to release.
If the harness is missing or damaged, measure voltage at the connector cavity. Probe pin 10 (constant 12V) and pin 9 (switched ignition) with a multimeter; readings below 11V indicate fuse corruption or wiring shorts in the vehicle’s rear harness bundle.
Locate the second 8-pin mini connector hidden under the HVAC ductwork on the right side. This smaller plug handles illumination and ground circuits. Trace its path upward–wires run parallel to the main harness, bundled in black corrugated tubing secured by zip ties near the steering column base.
For vehicles equipped with factory amplified systems, an additional 2-pin connector (red and blue wires) attaches behind the glovebox release. Remove the kick panel trim below the driver’s door sill to access this secondary harness link.
Tools to Streamline the Process
- Torx T20 driver–essential for removing dashboard screws.
- Non-conductive pry bars (2mm tip)–prevents trim clip damage.
- LED flashlight–illuminates hidden connector cavities.
- Circuit tester–verifies voltage at each terminal before installation.
Identifying Common Issues
Corroded terminals at pins 3 (right rear+) and 15 (antenna) often cause intermittent audio dropouts. Inspect for green oxidation; clean terminals with electrical contact spray before reconnecting. If speaker wires appear frayed, strip back 5mm of insulation, twist strands tightly, and apply heat-shrink tubing to seal.
Decoding Vehicle Audio Harness Wire Colors and Roles
Begin by locating the 12-pin connector behind the infotainment unit–most vehicles group power, ground, speakers, and accessory lines here. The solid yellow cable typically delivers constant 12V from the battery, ensuring memory retention for presets and clock functions. Verify this with a multimeter before connecting; a voltage drop below 11.8V indicates a weak battery or corroded terminal.
The red wire usually carries switched power, active only when the ignition is in the “ACC” or “ON” position. This prevents parasitic drain when the vehicle is off. If your aftermarket head unit lacks a yellow wire but has red, fuse both together–just add a 10A fuse inline to protect the circuit. Never splice these directly to the battery without fusing.
Ground connections rely on black or brown wires, often with a bare copper or ring terminal at the end. Secure these to unpainted metal, preferably a chassis bolt near the factory grounding point. A poor ground causes noise, weak bass, or intermittent power–scrape away rust or paint before tightening. If the head unit hums, move the ground away from power cables; parallel runs induce interference.
Speaker wires follow this pattern: front left positive (gray), front right positive (white), rear left positive (green), rear right positive (purple). Their stripe variants–gray/black, white/black, green/black, purple/black–are the corresponding negatives. Polarity matters; reversing it flips the phase, canceling bass frequencies. Test with a 9V battery–if the woofer pushes out, the polarity is correct.
Amplifier remote turn-on lines (blue or blue/white) activate external amps when the head unit powers on. Wire this to the amp’s remote input or a relay if the amp lacks one. Some vehicles use a separate fusible link for this–check the owner’s manual for amperage ratings before splicing. If the blue wire triggers a factory amp, repurpose it carefully; cutting it may disable the entire audio system.
- Orange or orange/white: Illumination control. Dimmer-compatible units adjust display brightness with the vehicle’s dash lights. Connect this to the dimmer wire (often gray) behind the instrument cluster.
- Pink or pink/black: Speed sensor input. Used for automatic volume adjustment or GPS interference in some navigation systems.
- Dark green or dark blue: Mute control. Shorts to ground to silence audio during phone calls or reverse gear.
Factory harnesses may include resistor networks or data buses–these appear as tan, light blue, or violet wires. Do not cut or bridge these; they often communicate with the vehicle’s computer. Instead, use a bypass module or T-harness adapter to isolate aftermarket connections without disrupting CAN bus signals.
For aftermarket installations, match wire gauges: power and ground cables should be 16–14 AWG, speaker wires 18–16 AWG. Use crimp connectors with heat-shrink tubing or solder joints–twisting and taping degrades over time. Label every connection with numbered tags or a wiring diagram taped inside the dash; future troubleshooting depends on it.
