Begin by disconnecting the negative battery terminal before handling any electrical components. This prevents short circuits and protects both the vehicle’s system and your safety. Locate the factory harness behind the stock head unit–it’s typically bundled with a 14-pin connector, where pins 1, 3, 5, and 7 carry the front and rear left/right signals. Use a digital multimeter to verify voltage: each speaker wire should read between 2 to 4 ohms when probed with the audio system powered on.
For aftermarket installations, match the following color codes to the standard ISO wiring convention:
- Front Left (+): Gray/Pink stripe
- Front Left (-): Gray
- Front Right (+): Violet/Light blue stripe
- Front Right (-): Violet
- Rear Left (+): Tan/Orange stripe
- Rear Left (-): Tan
- Rear Right (+): Dark green/Purple stripe
- Rear Right (-): Dark green
Strip 5mm of insulation from each wire and use butt connectors for secure joins–crimp, then solder for durability. Avoid twisting wires without connectors; vibrations from rough terrain will loosen them over time. Route new cables away from engine components and sharp edges, securing them with zip ties every 6 inches. Test each channel individually before reassembling the dashboard to isolate faults early.
For amplified systems, tap into the fused constant power wire (10-gauge red) behind the fuse box, not the ignition-switched circuit. The factory amplifier, if equipped, requires a remote turn-on lead (blue/white stripe) from the head unit; failure to connect this will result in no sound output. Measure current draw–exceeding 10 amps may require relay upgrades to prevent overheating.
Note: Ground all connections to the vehicle’s chassis using 12-gauge wire or thicker. Paint or corrosion on attachment points will create resistance; clean surfaces with 120-grit sandpaper and apply dielectric grease after securing the ground bolt. Confirm signal integrity by playing a sine wave test tone (1kHz) through each channel–the waveform should appear clean on an oscilloscope, with no clipping or distortion.
Vehicle Audio System Connection Guide for a 2000-Model Pickup
Begin by locating the factory harness behind the driver’s side kick panel. Match the aftermarket radio’s harness wires to the following color codes:
- Front left (+): Gray with black stripe
- Front left (-): Gray
- Front right (+): Dark green with black stripe
- Front right (-): Dark green
- Rear left (+): Brown with yellow stripe
- Rear left (-): Brown
- Rear right (+): Tan with red stripe
- Rear right (-): Tan
Strip 1/4 inch of insulation from each wire and crimp with female spade connectors. Secure connections with heat-shrink tubing to prevent corrosion.
For amplified systems, trace the orange-with-light-blue-stripe wire from the factory harness to the amplifier under the passenger seat. This wire carries a 12V remote turn-on signal that activates the external amp–splice it to the aftermarket head unit’s blue/white remote wire.
Troubleshooting Common Issues
If audio cuts out intermittently, inspect the fuse block behind the glove box. Replace the 15A audio fuse labeled “RADIO” if melted or discolored. Ground loops often cause static–ensure all ground wires terminate at the same chassis point near the driver’s seat rail.
- Verify wire gauge matches the stock 18-20 AWG; thinner wires overheat.
- Check for pinched wires where the door sill plate meets the dashboard.
- Test continuity with a multimeter at each connection point before finalizing crimps.
Factory tweeters are wired in parallel with the front door woofers. If replacing door speakers, disconnect the white-with-pink-stripe wire from the tweeter harness to avoid phase cancellation. Aftermarket crossovers should be set to 4,000 Hz for optimal high-frequency response.
Subwoofer installations require tapping into the rear speaker wires. Use a line-out converter if adding an external amplifier–connect the converter’s RCA jacks to the rear left and right wires, then run new speaker cables to the subwoofer enclosure. Avoid splicing into the tan-with-red-stripe or brown wires directly, as this can distort bass output.
For vehicles equipped with premium audio, the amplifier module contains separate “TWEETER” and “WOOFER” outputs. Bypass this module entirely by connecting aftermarket components directly to the wires listed in the first section–retain the factory amplifier only if using stock speakers with new head units.
Final Checks
Reassemble the dashboard in reverse order, ensuring no wires interfere with airbag sensors along the dashboard’s lower edge. Start the vehicle and test all audio channels at half volume before securing panels. If no sound emits, recheck the orange-with-light-blue-stripe remote wire connection–this is the most frequent failure point.
Decoding Factory Audio Cable Colors and Positions in the Third-Gen Pickup
Locate the front door audio lines behind the driver-side kick panel. The positive lead (+) for the tweeter uses a thin violet cable, while the woofer’s positive pairs with a thicker gray wire. Ground feeds appear as black or dark brown strands, often wrapped together near the hinge area–probing with a multimeter confirms polarity before splicing.
Rear door harnesses follow a similar scheme: tweeter positives switch to light blue, woofers adopt tan wires, and grounds remain black. Door jamb connections route through a six-pin plug–pins 3 (light blue) and 5 (tan) power the rear units, while pin 1 delivers a shared negative return. Label each wire before disconnecting; brittle insulation cracks easily during removal.
Cabin Midrange and Subwoofer Connections
Behind the glove box, a four-wire harness powers dash-mounted midrange drivers. Orange stripes indicate left channel positive, solid brown handles right channel, and black/black-white traces serve as dual grounds. For extended-cab models, a secondary harness under the rear seat amplifies subwoofer signals–match red (positive) and gray (negative) wires to aftermarket amplifiers using RCA converters rated for 4-ohm impedance.
Roof-mounted tweeters (if equipped) tap off the front harness via yellow and dark green jumpers. These miniature leads terminate inside the headliner near the dome light–strip 5mm of insulation carefully to avoid shorting to the metal frame. Test continuity with a 9V battery; a faint click confirms proper circuit flow.
Troubleshooting Hidden Wire Runs
Door hinge grommets often conceal corroded cables–replace brittle sections with 18-gauge oxygen-free copper at minimum. Under the dashboard, a fusible link (white/orange) powers the radio and antenna motor; bypassing this feeds aftermarket head units directly but risks draining the vehicle’s battery if left active.
Factory harnesses bundle signal and power lines together–separate them using T-taps or solder sleeves to reduce interference. Cap unused ends with heat-shrink tubing; exposed wires near the transmission tunnel invite shorts from road debris. Verify all modifications with a 12V test light before reassembling trim panels.
Step-by-Step Guide to Accessing the Door Audio System Cabling
Disconnect the vehicle’s battery by removing the negative terminal clamp first–wait at least 10 minutes to ensure all residual power dissipates before proceeding. Use a trim removal tool to pry off the door panel, starting at the bottom near the latch. Work upwards, applying steady pressure to release the plastic clips without snapping them; locate the screws behind the door handle and armrest (typically secured with 8mm or 10mm fasteners) and remove them. Lift the panel carefully, detaching any electrical connectors for power windows or mirror controls by pressing the release tab before pulling them apart.
| Component | Tool Required | Torque/Note |
|---|---|---|
| Door panel clips | Plastic pry tool | 6-8 clips per door |
| Handle/armrest screws | 8mm or 10mm socket | Tighten to 12-15 ft-lbs |
| Electrical connectors | Small flathead screwdriver | Press release tab before separating |
| Sound unit harness | Wire strippers/crimpers | 16-18 AWG for speaker leads |
Identify the audio harness behind the panel–it’s a single multi-pin connector with color-coded wires (e.g., solid/dashed pairs for left/right channels). Trace the wires to their termination points at the factory transducer, noting the routing to avoid pinching when reassembling. If extending or replacing cables, use heat-shrink tubing to insulate splices and secure them away from moving components like window regulators.

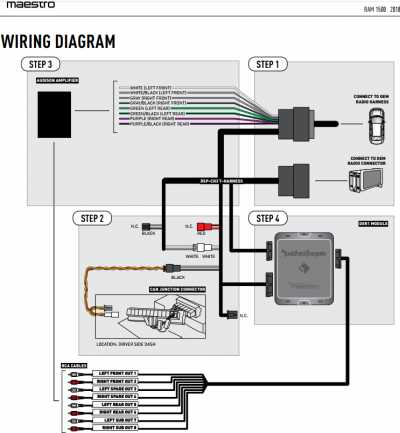

Using Factory Harness Adapters for Clean Audio Upgrades
Locate the OEM connector behind the door panels or dashboard–typically a 6- to 12-pin plug with color-coded leads. Match these to an aftermarket Metra or Scosche harness adapter designed for your truck’s trim level. Adapter kits eliminate splicing; push connector tabs, align pins, and snap into place.
For dual-cone units, verify impedance compatibility–factory circuits often handle 2-4 ohms, while premium drivers may require 6-8 ohms. Check the adapter’s wiring schematic: orange/white usually carries battery-switched power, brown/white grounds the tweeter network, and gray/black feeds rear fill channels.
Test connections with a multimeter before securing the adapter. Probe the pin terminals; voltage should read 10-14V on power leads, 0V on grounds, and ~5V on signal wires when the stereo is active. If readings fluctuate, recheck adapter pin alignment–misalignment causes intermittent sound or amplifier protection faults.
Use dielectric grease on connector surfaces to prevent corrosion, especially in door assemblies exposed to moisture. Apply a thin coat to male and female terminals before mating; excess grease can impede conductivity. Secure the adapter with zip ties to factory loom anchors–loose connections vibrate, degrading signal clarity over time.
Solder-Free Terminal Blocks for Temporary Verification
If adapter compatibility is uncertain, use insulated terminal blocks to join factory leads to aftermarket cables. Strip 5-7mm of insulation, twist strands, insert into the block, and tighten screws firmly. Terminal blocks allow quick disassembly if troubleshooting reveals impedance mismatches or polarity reversals.
Avoid alligator clips; they introduce signal noise and risk shorting adjacent wires. For coaxial setups, split the positive lead into two paths–run one to the woofer’s voice coil, the other to the tweeter via a built-in crossover or external capacitor (typically 2.2-4.7µF). Most factory tweeters lack serial resistors; supplement with a 0.47-1Ω resistor inline if highs distort.
Preserving Factory Amplifier Integration
Identify the OEM amplifier’s trigger wire–often blue or blue/white–if replacing full-range front components. This wire enables the amp’s remote turn-on; spliceless adapters include this lead pre-terminated. Without it, the amp remains dormant, muting the system entirely.
For stealth installs, tuck the adapter behind plastic trim clips using 3M VHB tape or wire loom. Avoid routing near window regulators or HVAC ducts; sharp edges degrade insulation over time. If bass response lacks punch, confirm the adapter carries the subwoofer channel–some base models omit this lead, requiring manual wiring to the head unit’s RCA outputs via a line-out converter.
