For precise speaker and power connections on your minivan’s sound system, refer to the color-coded harness pins directly behind the factory head unit. The left front speaker uses gray and gray/black wires (positive/negative), while the right front matches with white and white/black. Rear speakers follow the same logic: green pair for the left side, purple for the right. Ground the amplifier trigger via the violet/orange wire if upgrading to aftermarket components.
Identify constant 12V power on the yellow wire–this maintains settings during ignition-off states. The red wire delivers switched power, activating the unit only when the vehicle is running. Avoid splicing directly into these; instead, use a multi-pin connector adapter matching the OEM plug (Metra 70-1817 or equivalent) to prevent electrical shorts or fuse overloads. For vehicles with factory amplifiers, locate the separate 8-pin harness beneath the driver’s seat–this bypasses the dash connectors entirely.
When installing a new receiver, disable the Vehicle Theft Deterrent System (VTDS) by disconnecting the black/blue wire from the OEM harness. Failure to do so may trigger a “no communication” error code, disabling audio output. For steering wheel control integration, retain the orange/black data link wire; manufacturers like PAC and iDatalink provide modules that translate these signals to aftermarket interfaces without losing functionality.
Test all connections with a multimeter before finalizing installation. Voltage readings should show 12V on the yellow wire regardless of ignition state, while the red wire should drop to 0V when the key is removed. Speaker wires should register between 2-4 ohms resistance–any deviation suggests a short or improperly seated connection. Always secure loose wires with zip ties along the factory loom to prevent interference with HVAC controls or pedal assemblies.
Color-Coded Harness Guide for Minivan Audio System Installation

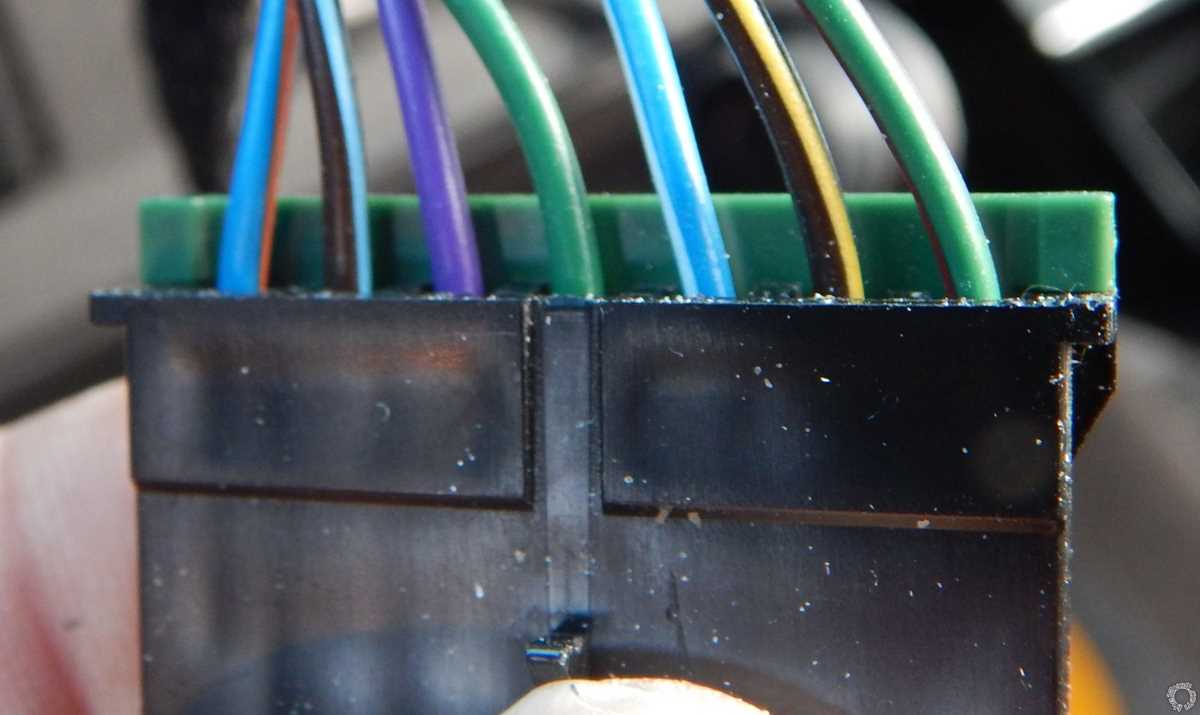

Locate the 12-pin connector behind the factory head unit–purple, gray, and tan wires form the backbone of the speaker circuit.
- Front left (+): Light blue stripe (#14AWG), terminates at 4-ohm door tweeter.
- Front right (+): Dark green stripe (pin 8), mates with dash-mounted midrange.
- Rear left (+): Violet stripe (#16AWG), feeds cargo area coaxial.
- Rear right (+): Light green stripe (pin 6), interfaces with parcel shelf woofer.
- Negative leads: Solid white, gray, brown, and yellow (chassis ground), crimped to harness.
Permanent 12V supply (yellow with red tracer) powers memory functions–fuse pulls 10A under hood box (labeled “RADIO”). Switched ignition feed (violet/orange) activates at accessory mode via solenoid relay (pin 4).
Common Pitfalls During Aftermarket Upgrades
- Static interference from unshielded RCA cables–route along passenger-side firewall, away from ECU harness.
- Blown 15A fuse when bridging amplifier–verify ground loop impedance (≤0.5 ohms).
- Dimmer circuit overload (gray/black)–use 12V LED-compatible resistors for retrofit kits.
- Steering wheel controls require 680-ohm resistor network between orange/white wire and new module.
Factory antenna (blue stripe) operates at 50Ω–aftermarket units may need inline balun adapter (Part #82-907). USB retrofit (OE port deleted) demands micro-relay bypass (pin 11, pink/yellow) for stable 5V output. Verify CAN bus compatibility before splicing GPS module–OBD-II port taps utilize green/white and white/black pair.
Deck removal sequence: disconnect battery negative pole (30 min threshold), pry climate bezel with trim tool (avoid scuffing HVAC vents), then unscrew T20 Torx bolts securing cage. Reassembly torque: 8 Nm on captive studs.
Wiring Adapter Matrix for Third-Party Head Units
| Aftermarket Pin | Factory Wire | Function |
|---|---|---|
| B+ | Yellow/Red | Constant 12V |
| ACC | Violet/Orange | Ignition Trigger |
| Antenna | Blue Stripe | Coax Signal |
| Illum | Gray/Black | Dash Dimmer |
| Ground | Black | Chassis Reference |
For fiberglass enclosures, solder twisted pair (cat5 recommended) to pink/light green wires–sound damping pad (Dynamat 10455) reduces door panel resonance.
Finding the Original Audio System Plug-in Interface
Start by pulling the trim panel surrounding the center console. Use a plastic trim removal tool–never a screwdriver–to avoid scratching surfaces. The connector lies behind the lower dash bezel, typically secured by two release tabs on either side. Press both tabs simultaneously while gently wiggling the harness outward until it disengages.
Pinpointing the Exact Position
In most configurations, the factory plug rests approximately 12 centimeters below the climate control vents. A 10-millimeter socket may be required to remove a single bolt holding a support bracket if present. Once cleared, the wiring bundle emerges from the firewall grommet on the driver’s side, bundled in a black corrugated sleeve.
Follow the bundle downward–it should lead directly to the back of the head unit’s mounting cage. Trace each wire: constant power (yellow), accessory (red), ground (black), front left speaker (gray), front right (white), rear left (green), rear right (purple), and illumination (orange). Match colors to your aftermarket adaptor’s pinout before making any connections.
If the plug remains elusive, check above the fuse box. Some models route the harness behind a small access panel; removing three 7-millimeter screws reveals the area. Disconnect the battery’s negative terminal before probing any exposed contacts to prevent short circuits.
Decoding Connection Hues and Their Roles in Audio Integration
Locate the 12V constant power lead–typically yellow–first, as it supplies uninterrupted energy to retain memory settings like presets and clock time. Verify this wire with a multimeter (12V DC) before splicing; incorrect identification risks draining the vehicle’s battery. The red ignition-switched wire activates the system only when the key turns, preventing power loss during off cycles. Ground connections (black or brown) must bond directly to the chassis–avoid daisy-chaining–to prevent interference hum.
| Hue | Purpose | Critical Note |
|---|---|---|
| Blue/White | Amplifier remote trigger | Connect only to aftermarket amp; never to speakers |
| Dark Green/White | Left rear speaker (+) | Polarity matters–reverse causes phase cancellation |
| Violet/White | Right rear speaker (+) | Strip 3mm of insulation; insufficient contact creates distortion |
| Gray/Black | Right front speaker (-) | Use crimp connectors or solder; twist-and-tape fails under vibration |
| Purple | Parking brake safety interlock | Bypass only for testing; permanent disable voids warranties |
Match each color to its partner–solid hues carry positive signals, while striped companions denote negative polarity. Test every joint with a 1kHz tone before finalizing; loose connections manifest as crackling during bass hits.
Step-by-Step Guide to Removing the Factory Audio Head Unit
Disconnect the negative terminal of the vehicle’s battery first to prevent electrical shorts or accidental airbag deployment. Use a 10mm wrench to loosen the terminal clamp, then lift the cable away from the post. This step is non-negotiable–skipping it risks damaging the harness or triggering diagnostic faults.
Locate the dashboard trim surrounding the radio. Gently pry off the upper bezel using a plastic trim removal tool, starting at the bottom corners. Apply pressure outward to release the clips without snapping them. The lower dash panel, if present, will require removal next–unsnap it by hand or use the tool to free the edges near the steering column.
Remove the screws securing the original head unit. Typically, four Phillips screws hold it in place: two at the top and two at the bottom. Use a magnetic screwdriver to prevent losing any fasteners behind the dash. Set the screws aside in a labeled container to avoid mixing them with other components.
Slide the unit out slowly once the screws are removed. The harness and antenna plug will still be connected–press the tabs on the back to release them. For models with climate control buttons integrated into the faceplate, detach the ribbon cable by lifting the small plastic latch on the connector before pulling it straight out. Avoid twisting or bending the ribbon.
Handling Stubborn Connections
If the antenna plug resists, rock it side to side while pulling gently–do not yank. For harness connectors with locking mechanisms, squeeze the release tabs firmly while wiggling the plug free. Never force a stuck connection; inspect for hidden clips or debris obstructing the release.
After detaching all cables, inspect the mounting cage. If installing a new system, verify the cage’s compatibility–some aftermarket units require an adapter kit. Remove any stray screws or brackets left behind, as these can interfere with the new installation. Clean the mounting area with a microfiber cloth to remove dust before proceeding.
Reconnect the battery terminal once the removal is complete. Turn the ignition to the “on” position (without starting the engine) to reset the vehicle’s computer. Test basic functions like turn signals and climate controls to ensure no diagnostic errors were triggered during the process. If warnings appear on the instrument cluster, consult the owner’s manual for reset procedures.
Integrating Aftermarket Audio Systems in the 2001 Chrysler Minivan
Locate the factory radio harness behind the dashboard panel–disconnect the battery first to avoid electrical shorts. The 12-pin connector (often labeled “A” or “C”) carries power, speakers, and antenna signals. Use a multimeter to verify wire functions before splicing: the solid yellow wire delivers constant 12V, red provides switched power, and black serves as ground.

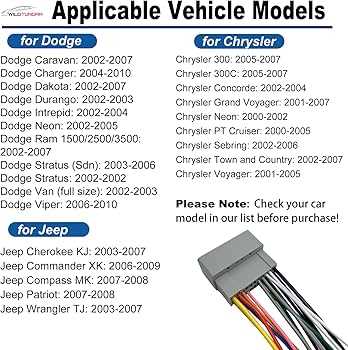

Aftermarket adapters like Metra 70-1002 simplify installation by matching the minivan’s harness to standard ISO connectors. If cutting factory wires, strip 5mm of insulation, twist exposed copper strands, and solder connections before sealing with heat-shrink tubing. Crimp connectors risk corrosion over time; soldering ensures longevity.
- Front left speaker: gray (positive), gray/black striped (negative)
- Front right speaker: white (positive), white/black striped (negative)
- Rear left speaker: violet (positive), violet/black striped (negative)
- Rear right speaker: green (positive), green/black striped (negative)
Check the vehicle’s amplifier (if equipped) near the rear quarter panel. Bypass it for standard setups or retain it for premium systems by connecting the aftermarket unit’s blue/white remote turn-on wire to the factory amp trigger (usually a thin blue wire). Failure to do this may result in distorted audio or no sound at high volumes.
Troubleshooting Common Issues
If no power reaches the unit, verify the fuse in the dash harness–replace blown fuses with identical amperage (typically 10A for memory, 15A for switched circuits). Static or weak bass often stems from reversed speaker polarity; test each wire pair with a 1.5V AA battery to confirm cone direction. If the display dims with headlights, connect the orange illumination wire (dimmer) to the vehicle’s dimmer circuit.
Parking brake wiring (brown/white) must be grounded for video playback in some regions–consult local regulations. For USB retentions, splice into the factory data bus only if the aftermarket unit supports Chrysler’s Uconnect protocol; otherwise, run a separate USB cable to the glove box or center console.
- Test all connections with the vehicle off before reassembling panels.
- Secure loose wires with zip ties to prevent rattles or short circuits.
- Reconnect the battery last, then adjust equalizer settings for balanced output.
Factory steering wheel controls require a separate adapter (e.g., PAC RP4-CH11 or Axxess ASWC-1). Program it via the aftermarket unit’s settings menu–failure to do so may result in non-functional buttons or erratic volume changes. Retain the vehicle’s antenna adapter unless upgrading to a powered mast mount.
