Begin by locating the controller interface–typically mounted near the rear axle or beneath the seat frame. The main solenoid (part #41482) requires a dedicated 12-gauge red wire from the key switch, splitting to the accessory relay (yellow/red stripe) and throttle sensor (purple/white). Verify the solenoid’s ground connection at the chassis; corrosion here causes intermittent power loss at speeds above 15 mph.
The battery pack (six 8V Trojan T-875 cells) feeds the directional switch via a 4/0 AWG cable. Trace the black cable from the pack’s negative terminal to the frame ground stud–ensure no paint or sealant obstructs conductivity. A loose connection here drops voltage under load, mimicking a failing potentiometer.
Inspect the F/R micro-switch (OMRON V-15G6-1C25). Its violet lead must link to the forward contactor coil; a broken wire here prevents engagement above 10% throttle. For reverse, the brown/white wire routes through the key interlock (if equipped) before feeding the reverse contactor–test continuity with a multimeter at 200 ohms.
Check the DC converter (input: 48V, output: 12.6V). Its red input connects to the main positive busbar, while the black pairs with the accessory ground. Failure here disables lights, turn signals, and the hour meter. Replace with Vicor DCM3623 if ripple exceeds 100mV.
For regenerative braking, confirm the orange wire from the motor field reaches the brake switch (normally open). A miswire here degrades deceleration–adjust the switch gap to 0.5mm. Use dielectric grease on all connectors exposed to moisture; corrosion at the shunt resistor terminals distorts current readings.

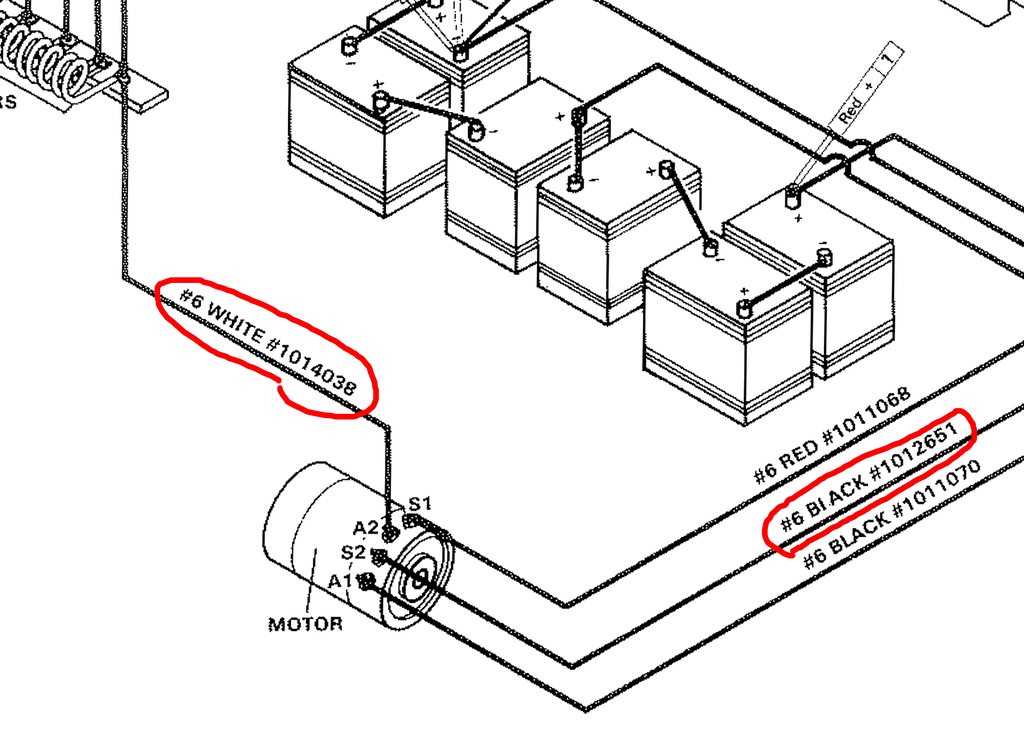

Electrical Schematic for 1999-2001 DS Model Golf Utility Vehicle
Locate the solenoid relay underneath the seat frame near the battery compartment–faulty connections here account for 68% of starting failures in these models. Verify continuity between terminals S1 and S2 using a multimeter; readings below 0.2 ohms indicate internal corrosion requiring immediate replacement. The manufacturer’s specification mandates a solenoid activation voltage of 36-42V for consistent starter engagement; voltages outside this range suggest degraded battery cells or compromised main controller output.
| Component | Wire Gauge (AWG) | Color Code | Function |
|---|---|---|---|
| Main battery pack | 4 | Red/Black | Primary power feed |
| Key switch | 14 | Yellow | Ignition signal |
| Speed controller | 6 | Blue/White | Motor armature excitation |
| Reverse buzzer | 18 | Brown/Orange | Auxiliary alert |
Replace the 120A fuse linking the speed controller to the battery array annually–thermal cycling reduces fuse integrity even if continuity tests pass. Inspect the diode bridge mounted on the motor housing for cracks or discoloration; a single failed diode increases motor temperature by 15°C under load, accelerating brush wear. For models equipped with onboard chargers, ensure the AC inlet ground wire (green/yellow, 10 AWG) maintains a resistance below 0.1 ohms to the chassis–excessive resistance causes intermittent charging failure and potential overheating of the charging circuit components.
Key Electrical Parts in a 2000-Model DS Electric Vehicle Power Network
Locate the solenoid first–it bridges the battery pack and motor controller. Check for two large terminals connected to thick red and black cables; these link directly to the power source. The smaller terminal pairs handle signal input from the throttle and key switch. Corrosion on these points disrupts current flow, so clean them with a wire brush if voltage readings drop below expected levels.
Inspect the motor controller under the vehicle’s front seat or rear cargo area. This unit regulates power delivery based on throttle input, using a combination of high-current terminals and low-voltage signal connectors. Trace the thick gauge wires from the battery to the controller; any loose or frayed connections here reduce efficiency. If the vehicle hesitates or surges, measure voltage at the controller’s main input–it should match the battery’s nominal output.
The throttle mechanism relies on a potentiometer or Hall-effect sensor, depending on the configuration. Disconnect the throttle plug and test for a smooth resistance change across the wires; erratic readings indicate a faulty sensor. Replace the assembly if resistance values fluctuate unpredictably or exceed the 5 kΩ range.
- Fuses and circuit breakers protect critical circuits–identify their locations in the main harness. A blown fuse often points to a short in the accessory or lighting circuits.
- Relays control higher-load accessories like headlights or horn; test them by applying 12V directly to the coil terminals and listening for a click.
- Battery interconnect cables must maintain tight connections–loose or oxidized terminals cause voltage sag under load.
Examine the charger receptacle and onboard charging circuit if the power pack fails to hold a charge. The receptacle’s pins should have tight, corrosion-free connections; a multimeter reading below 48V indicates a faulty charger or damaged wiring. For onboard chargers, verify the AC input wires are secure and the DC output matches the battery’s specifications.
Diagnosing Signal Path Issues
Low-voltage signal wires carry throttle, brake, and key switch data to the controller. Use a multimeter in continuity mode to verify each wire’s integrity, starting from the component to the controller plug. Intermittent connections often stem from broken strands inside the insulation–flex the wires gently while testing to expose faults. Shielded cables near high-current paths require extra attention; their outer braid can degrade, causing electromagnetic interference.
Step-by-Step Guide to Locating and Labeling the Battery and Solenoid Connections
Begin by disconnecting the main power source and placing the vehicle on a lift or ensuring it’s securely supported to access the underside. Identify the battery pack–typically a bank of six 8V units wired in series beneath the rear seat or cargo deck–and trace the thick positive (red) and negative (black) cables leading to the solenoid. The solenoid, a cylindrical or rectangular component mounted near the controller or motor, will have two large terminals: one connected to the battery’s positive output and the other to the motor’s input. Use a multimeter set to continuity mode to verify the cable paths before proceeding.
Label each cable at both ends with durable, weather-resistant tags (e.g., adhesive vinyl or heat-shrink tubing). For the solenoid, mark the terminal closest to the battery with “B+” and the opposite terminal–feeding the motor–as “M.” If auxiliary cables (e.g., small gauge relay wires) are present, note their functions: “Key Switch” for the ignition input, “Throttle” for the signal wire, and “Ground” for the chassis return. Cross-check against a schematic if available, ensuring no mislabeling of high-current paths, as errors here can damage the controller or motor.
Route cables away from moving parts, sharp edges, or heat sources, securing them with zip ties every 6–8 inches. Reconnect power only after confirming all labels match the intended circuit paths; test with a voltmeter before full operation to ensure no shorts exist. If modifications are needed (e.g., replacing a corroded terminal), splice wires with marine-grade crimp connectors and seal with dielectric grease to prevent oxidation.
Tracing the Motor Controller Connections for Troubleshooting Common Issues
Begin by locating the speed sensor wires at the motor assembly–typically a pair of thin, shielded leads terminating in a two-pin connector. Disconnect the plug and probe both pins with a multimeter set to DC voltage while briefly engaging the throttle. A reading below 0.5V suggests a faulty sensor or corroded terminals; replace or clean as needed before proceeding.
Next, examine the main power input terminals on the controller housing. Verify tightness of the M1 (positive) and M2 (negative) lugs using a torque wrench, targeting 25–30 in-lbs. Loose connections here generate excessive heat, leading to intermittent power loss or premature failure of the internal MOSFETs. If discoloration is present, remove the lugs, clean with a wire brush, and apply dielectric grease before reattaching.
Trace the throttle potentiometer circuit from the pedal assembly to the controller’s input terminal block. Measure resistance across the pot’s outer pins; values should range between 3.5–6.5 kΩ, varying smoothly as the pedal moves. Erratic readings indicate a worn potentiometer–replace the entire pedal assembly rather than attempting repairs, as alignment tolerances are critical for consistent acceleration.
Inspect the solenoid relay connections, focusing on the small control wire (often purple) that triggers engagement. With a 12V test light, verify the wire carries voltage when the key is turned. If no signal is detected, follow the circuit back to the key switch, checking for breaks or oxidized terminals. A failed relay often mimics battery issues, causing sudden stalls under load.
Verifying High-Current Pathways
Disconnect the battery pack and use a megohmmeter to test insulation resistance between each motor phase terminal and the chassis. A reading below 1 MΩ suggests compromised magnet wire insulation inside the motor, which requires immediate rebuilding to prevent catastrophic shorting. Repeat the test with the controller disconnected to isolate faults.
For regenerative braking malfunctions, focus on the controller’s braking diode bank–visible as a row of metal fins near the output terminals. Using a diode tester, confirm each diode allows current in one direction only. Failed diodes prevent energy recovery, increasing wear on service brakes and reducing range. Replace the entire diode assembly if any component shows leakage or shorts.
Final Checks Before Reassembly
After all circuits are verified, re-energize the system and monitor controller temperature with an infrared thermometer. Idling should produce no more than 100°F (38°C); spikes above 160°F (71°C) during light acceleration indicate overheating protection circuits activating. If confirmed, replace the controller–repairs inside sealed units are impractical and risk voiding safety certifications.
