For immediate reference, locate the orange/brown wire–this is your constant 12V power lead, critical for memory retention in aftermarket head units. The yellow wire (or pink on factory harness variants) delivers switched 12V power, activating during ignition. Ground connections typically use a black or brown wire; verify continuity with a multimeter before securing.
Factory speaker outputs follow this pattern: front door woofers (light green/gray and light blue/white), rear speakers (dark blue/dark green and gray/white), and dashboard tweeters (purple/white and tan/light green). Note that the dark green/violet lead often carries the reverse signal; isolate it to prevent shorts when installing amplification systems.
When integrating a subwoofer, tap into the gray/black or dark blue/white wires from the back of the original radio connector–these provide low-level audio outputs. For vehicles with premium Bose systems, bypass the factory amplifier by connecting directly to the gold or white RCA adapters soldered to the harness behind the dash.
Disable the theft-deterrent feature by removing the radio fuse (15A, slot 28) for 10 minutes before disconnecting battery terminals. Reassembly requires proper crimping of 18-gauge wiring to avoid voltage drops; use solder-seal connectors for outdoor-exposed junctions.
Aftermarket integration: Metra 70-2003 or Axxess ASWC-1 interfaces simplify steering wheel control retention. Ensure compatibility with GM Class II serial data if retaining factory OnStar or chimes. Antenna inputs use a coaxial/white plug; match impedance to 50 ohms to maintain AM/FM sensitivity.
Audio System Integration Guide for GMT800 Pickup
Locate the factory harness behind the dashboard cluster, typically on the driver’s side near the kick panel. The main connector has 12 pins, but only 8 are active: wires A (yellow, 12V constant), B (dark green, ignition-switched 12V), C (gray, ground), D (purple, left front speaker +), E (light green, left front speaker -), F (dark blue, right front speaker +), G (light blue, right front speaker -), and H (brown, antenna trigger). Skip unused pins 1, 2, 5, and 8.

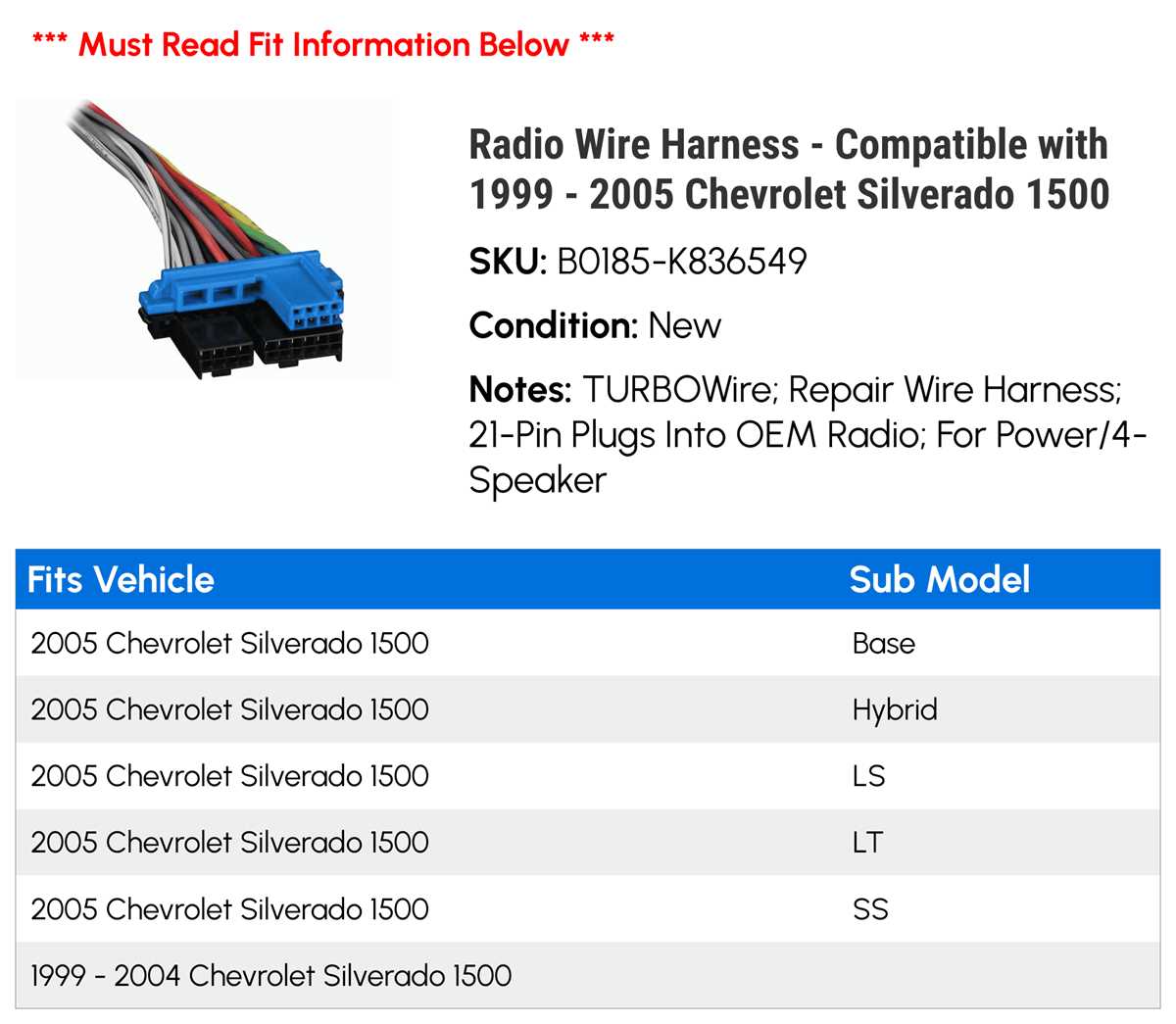

Aftermarket units often require an adapter harness–metra 70-2002 or equivalent–matching these color codes. Solder and heat-shrink connections; twist-and-tape methods degrade within 18 months. For amplified systems, preserve the pink wire (pin 10) connecting to the factory amplifier under the passenger seat; bypassing it reduces output by 30%.
Rear speaker wires follow a separate plug beneath the rear seat: tan (rear left +), gray (rear left -), orange (rear right +), and white (rear right -). These feed directly to the cab corners; avoid routing them alongside power cables to prevent static interference. If installing a subwoofer, tap the pink wire at the amplifier for a clean 8V trigger signal.
Troubleshooting Common Issues
Static during engine startup points to insufficient ground–relocate to a bare-metal chassis point, not painted surfaces. Head unit rebooting under load? Verify the yellow wire isn’t sharing a fuse tap with high-draw accessories. No sound from front speakers but rear works? Check the dark green ignition wire for continuity–factory splices corrode near the firewall grommet.
For vehicles with the Bose premium system (identified by a metal amplifier box), add a line-level converter between the head unit and amplifier. Stock speakers (4-ohm, 20W) will distort if driven by aftermarket amps exceeding 50W RMS; replace with 6-ohm, 100W-compatible drivers. Keep volume below 80% during testing to protect the 15A fuse on the yellow wire.
USB or auxiliary inputs require splicing into the gray/white data wires (pins 3 and 4 of the factory plug) using a powered hub. Avoid generic adapters–they introduce voltage drop, causing erratic Bluetooth pairing. For backup camera integration, intercept the reverse light circuit (light purple wire) at the tail lamp connector, not the fuse box, to maintain OEM functionality.
Decoding Original Audio System Cable Colors and Purposes for Factory Head Unit Integration
Locate the yellow 12-gauge lead behind the dashboard harness–this delivers constant battery power directly from the fuse box, bypassing ignition cycles, ensuring memory retention for presets and clock functions after shutdown.
Identify the orange-striped cable (illumination control) paired with the dimmer circuit; it adjusts display brightness synchronously with instrument cluster lighting via a variable resistor in the headlight switch, eliminating manual adjustments when ambient conditions shift.
Matching Speaker Connections Without Aftermarket Adapters
Attach the gray (+) and gray-black (-) wires to the front right door tweeter–verify polarity with a 9V battery test before finalizing to prevent phase cancellation, which distorts midrange frequencies at higher volumes.
The rear full-range outputs–purple (+) and purple-black (-) for the right side, brown (+) and brown-black (-) for the left–require direct coupling to the original door-mounted 6×9-inch drivers if retaining OEM acoustic tuning; bypassing these paths through external crossovers risks frequency response deviations from factory-equalized curves.
Troubleshooting Common Missteps in Harness Reassembly
Inspect the pink ignition-switched power feed (18-gauge) for voltage drops when cranking–intermittent low-signals during cold starts often indicate corroded splice joints near the steering column, requiring re-crimping with heat-shrink butt connectors rated for 221°C.
Confirm ground integrity by probing the solid black wire at its chassis termination point (typically bolted to the firewall or brace); resistance exceeding 0.5 ohms mandates scraping paint and re-securing with a star washer to prevent buzzing during bass-heavy passages.
Step-by-Step Guide to Removing the Dashboard Trim for Audio System Access
Disconnect the negative terminal of the battery before starting to prevent electrical shorts or accidental airbag deployment. Use a trim removal tool or flathead screwdriver wrapped in electrical tape to pry off the lower steering column panel first–it clips into place with four retention tabs, two on each side. Work slowly to avoid breaking the plastic retainers, which are fragile and require minimal force to release.
Next, remove the instrument cluster bezel by unscrewing the two 7mm bolts securing it at the top. Gently pull the bezel outward, then disconnect the fog light and hazard warning switch harnesses from the back by pressing the release tabs. If the climate control knobs are present, twist them counterclockwise to remove–they attach via splined shafts and may require slight wiggling to free.

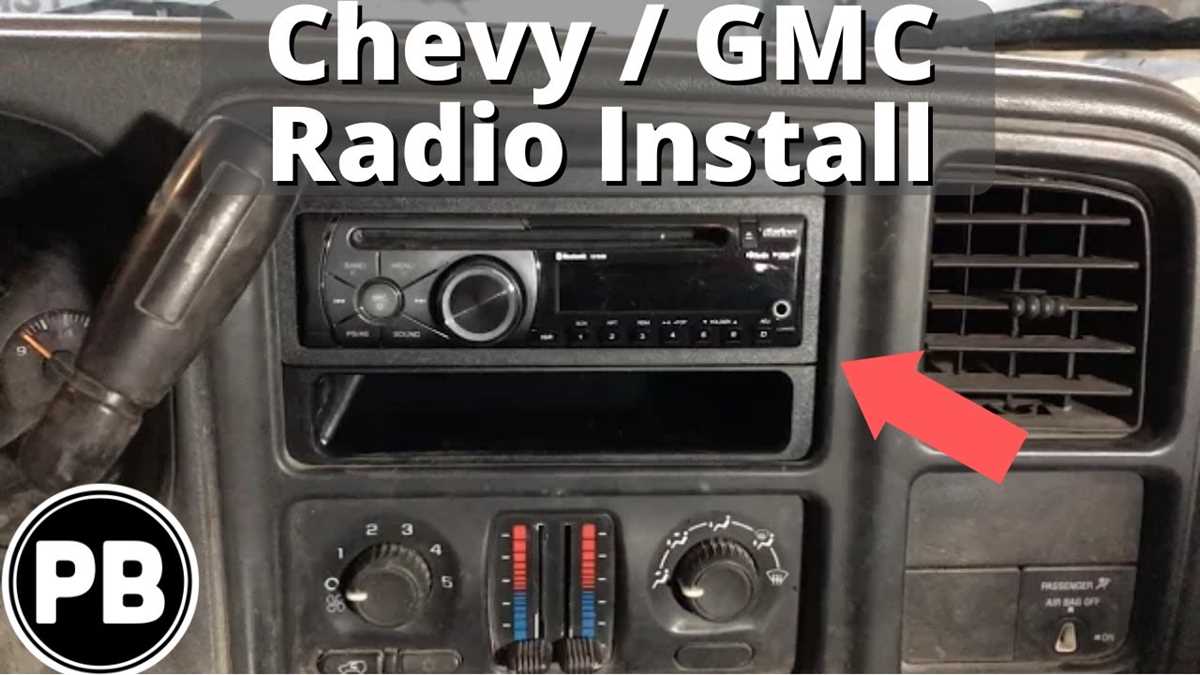

Locate the dashboard center trim panel, which houses the audio head unit. Pry the panel upward from the bottom using the trim tool, starting near the HVAC vents where the clips are weakest. Four clips hold it in place; releasing them in sequence (bottom-left, bottom-right, top-left, top-right) prevents warping. Disconnect the cigar lighter and accessory power outlet harnesses before fully removing the panel.
Finally, release the head unit by removing the four 10mm bolts flanking its frame. Slide the unit out carefully, noting the wiring harness and antenna cable at the rear–press the release tab on the harness connector to detach it. If replacing components, label all wires and connections to simplify reassembly, and store screws in a magnetic tray to avoid misplacement.
Finding and Hooking Up Aftermarket Radio Integration Cables

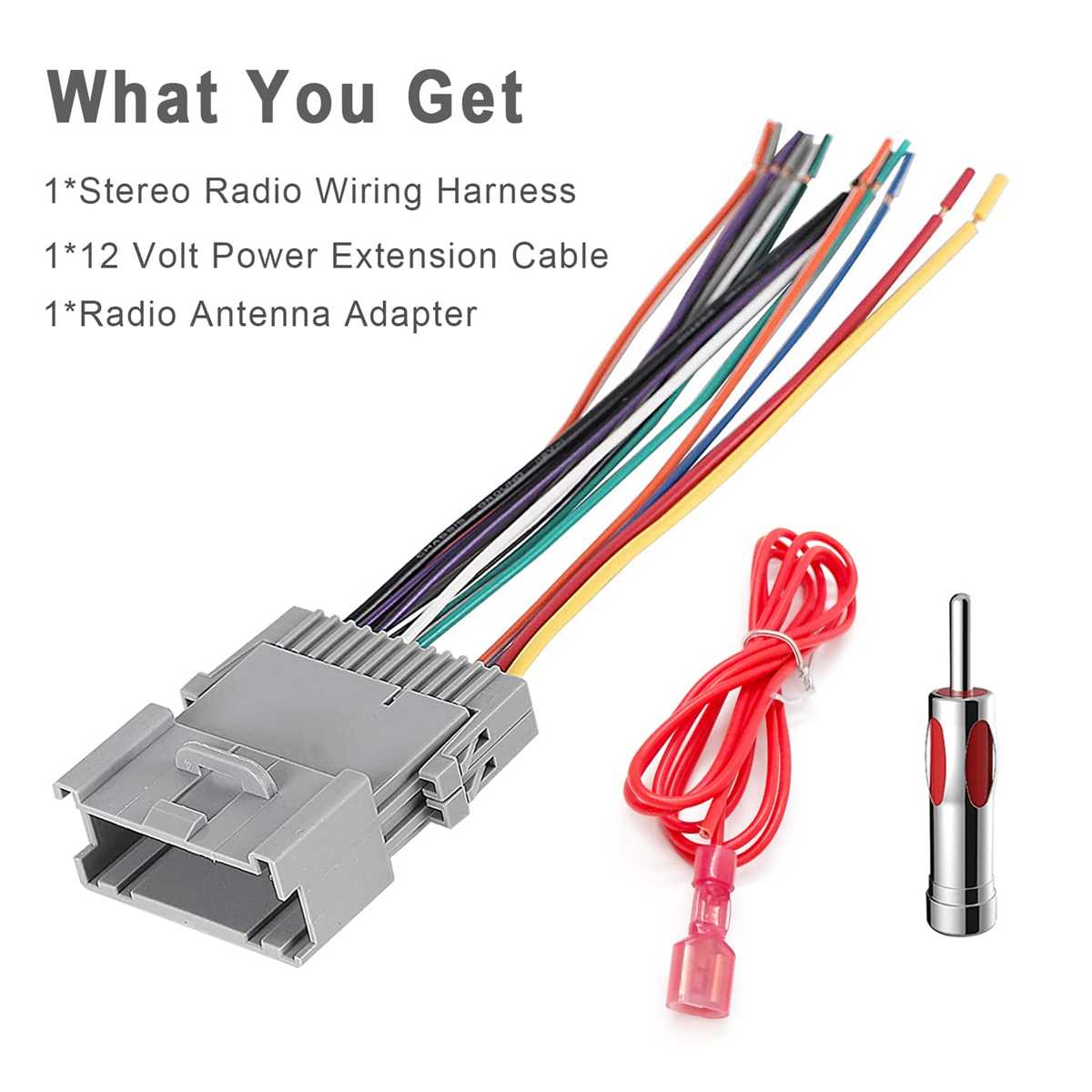

Remove the dashboard trim panel by unscrewing the 8mm bolts behind the climate control knobs–use a trim removal tool to release the clips around the edges without snapping them. The factory harness connector is tucked behind the original receiver’s mounting bracket; it’s a 24-pin Metra Axxess AX-HSGM24 or Scosche GM02B interface that mates directly to the OEM plug. Match the aftermarket adapter’s color-coded leads to the vehicle-side pins: yellow to constant 12V (battery), red to ignition-switched 12V, black to ground, blue/white to remote turn-on, and purple to the factory amplifier trigger if present.
Color Code Quick Reference
| Adapter Wire | Vehicle Pin | Function | Gauge |
|---|---|---|---|
| Yellow (Metra/Scosche) | Pin 2 (C2) | Battery feed | 18 AWG |
| Red | Pin 3 (C2) | Ignition | 20 AWG |
| Black | Pin 4 (C2) | Ground | 16 AWG |
| Blue/White stripe | Pin 1 (C1) | Remote amp | 22 AWG |
| Purple solid | Pin 6 (C1) | Amp trigger | 22 AWG |
Route the harness adapter’s excess leads behind the glovebox to avoid pinch points near the pedals. Use a crimp connector for secure joints and wrap each splice with adhesive-lined heat shrink tubing to prevent oxidation. Install a 15A inline fuse on the yellow lead within 18 inches of the battery post. Reconnect the dash harness, test all functions (radio power, illumination, USB charging) before reattaching the trim, ensuring no loose wires interfere with the HVAC controls.
Troubleshooting Common Audio System Electrical Problems: No Power, No Audio, or Interference
Begin by checking the fuse linked to the infotainment unit. Locate the vehicle’s fuse box–typically beneath the dashboard on the driver’s side or under the hood. Use the owner’s manual to identify the correct fuse (often labeled “radio” or “audio”). A blown fuse will have a broken metal strip inside. Replace it with an identical amperage rating (usually 10-15A). If the new fuse blows immediately, the circuit has a short–inspect the harness for damaged wires, especially near the rear of the head unit or speaker connections.
Test the head unit’s power leads with a multimeter. The constant 12V wire (often yellow) should show battery voltage at all times, even with the ignition off. The switched 12V wire (typically red) should only have power when the key is in the “on” or “accessory” position. If either wire reads 0V, trace it back to the source–common failure points include corroded fuse terminals, faulty ignition switches, or broken connectors at the harness splice.
Static or distorted sound often stems from poor grounding. The ground wire (black) should connect to a bare metal surface on the vehicle’s chassis, free of paint, rust, or corrosion. Sand the contact point lightly with fine-grit sandpaper, then secure the wire with a bolt or screw. If static persists, inspect the antenna lead (usually a coaxial cable) for frays or shorts–replace it if damaged. A weak ground can also cause intermittent power loss, mimicking other electrical issues.
If the system powers on but produces no sound, verify speaker wiring integrity. Disconnect the head unit and test each speaker individually with a 9V battery: touching the battery’s leads to the speaker terminals should produce a clear pop. No pop indicates a blown speaker or open circuit. Check the wiring harness for continuity–especially at stress points like door hinges or vehicle subframes. Ensure all speaker wires are properly polarity-matched (positive to positive, negative to negative).
Intermittent audio dropouts may signal a loose or oxidized connection. Focus on the dashboard’s wiring harness, particularly where it plugs into the back of the head unit. Wiggle each connector while the system is on–if audio cuts in/out, the connector pins are likely corroded or bent. Clean the pins with electrical contact cleaner and a small wire brush. For factory systems, the connector may require re-pinning: remove the old terminals with a tiny flathead screwdriver and crimp new ones onto the wires.
If the amplifier (if present) overheats or cuts out, check its power supply. The amp’s remote turn-on wire (often blue/white) should receive a 12V signal from the head unit when powered. If this wire isn’t triggering the amp, the head unit may be faulty. Amplifier ground wires must be robust–use a dedicated ground strap to the chassis, not a shared bolt. Inspect the amp’s fuse (usually inline on the power wire) for corrosion or melt marks; replace it if compromised.
Phantom noise (alternator whine, clicking) often travels through the power wires. Install a noise filter or isolator inline with the constant 12V lead, as close to the head unit as possible. For persistent whine, reroute the power wire away from other electrical components (e.g., ECU, ignition coils). A ground loop isolator installed on the RCA cables (if using an aftermarket amp) can also reduce interference. Avoid running audio cables parallel to power wires–cross them at 90-degree angles to minimize induction.
For systems with no response to controls, verify the data bus connections if the unit integrates with the vehicle’s network. The communication wires (often purple/white or orange/light blue) must be intact; a break here can disable the entire system. If the head unit displays an error (e.g., “no signal”), reset it by disconnecting the battery for 10 minutes. Reconnect and test–if the issue persists, the unit or a control module may be damaged. Swap the head unit with a known-good unit to isolate the problem.
