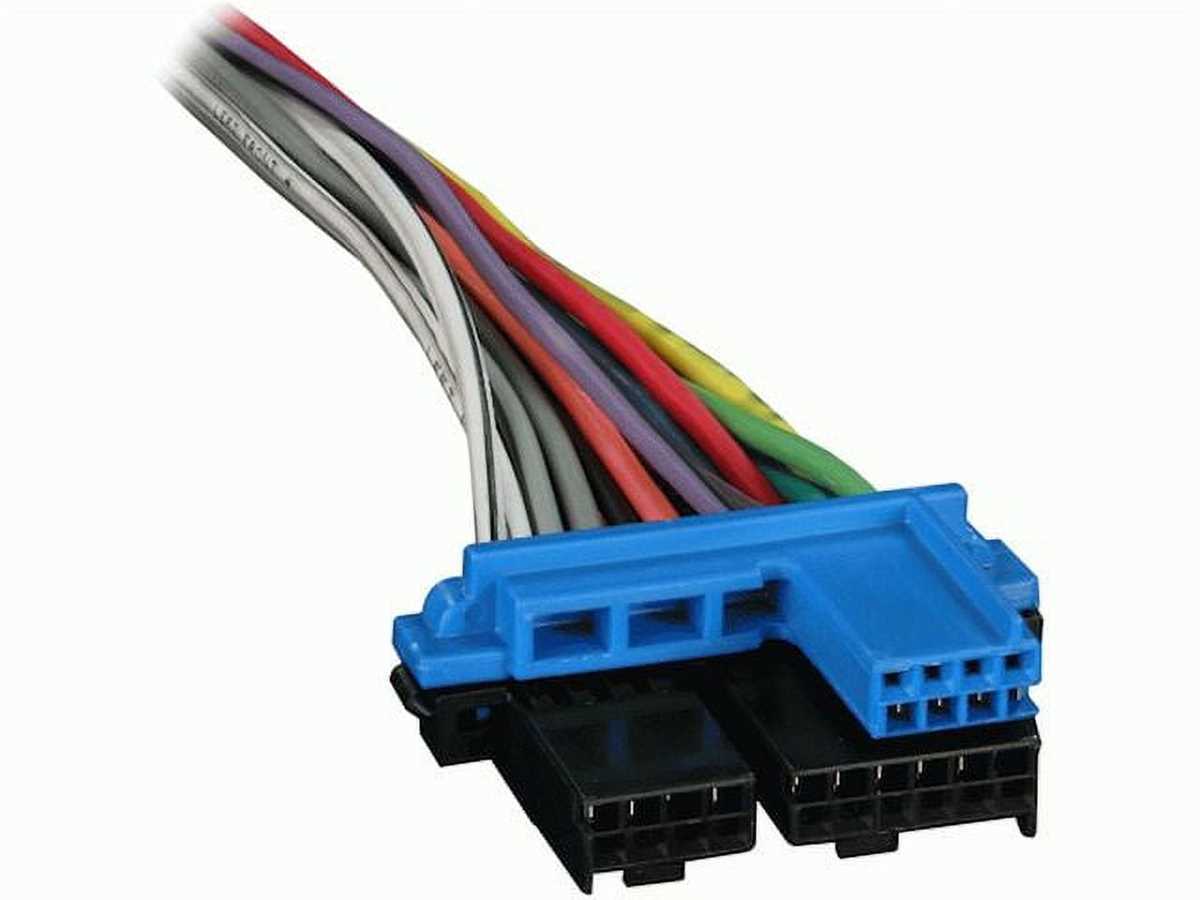

To successfully integrate a new stereo into a late 90s General Motors small truck, begin by locating the factory harness behind the dash cluster. Cutting into OEM wires risks signal interference–use a metra 70-1817 adapter for direct plug-and-play compatibility. This harness maps 12V constant, ignition, ground, and amplifier triggers to the aftermarket unit without splicing.
The color-coded wires follow GM’s standard labeling: yellow (battery), red (accessory), black (ground), orange (illumination), gray (right front speaker +), violet (left front speaker +). Verify each connection with a multimeter–voltage should read 12.6V on yellow and 0.5-4V on speaker outputs when the engine is off. Speaker wires use polyethylene insulation; improper pairing distorts sound or damages the unit.
For premium sound systems, the factory amplifier–mounted behind the glove box–requires a separate aiharness bypass module. Without it, bass response drops 30%. Remember: ground the new unit’s chassis mount screw to the truck’s frame, not the dash metal–corrosion in 20+ year-old bolts causes intermittent power loss.
If retaining steering wheel controls, splice the aswc-1 interface into the clockspring harness–pinout is white/blue (data +), white/green (data –). Test each button’s function before reassembling the dash; misconfiguration defaults to track skip only. For Bluetooth microphone, route the wire along the A-pillar conduit, avoiding engine heat and moving pedals.
Guide to Electrical Connections for the 2001 GMC Sonoma Audio System
Begin by locating the factory harness behind the dashboard’s lower panel, typically secured with two 10mm bolts. Disconnect the negative battery terminal to prevent short circuits during handling.
The color-coded wires require precise identification. Use this reference:
- Dark Blue/White stripe: Power antenna or amplifier trigger
- Gray: Right front speaker positive
- Light Green: Left front speaker positive
- Dark Green: Right rear speaker positive
- Purple: Left rear speaker positive
- Brown/White stripe: Memory keep-alive (12V constant)
- Orange: Illumination dimmer (activates with headlights)
- Yellow: 12V battery (always hot)
- Pink: Ignition-switched 12V
Strip ¼ inch of insulation from each wire using a precision cutter. Crimp connectors tightly–soldering reduces corrosion risk but isn’t mandatory if crimping is secure.
The ground wire (black) must attach to a bare metal chassis point. Sand the contact area to remove paint or rust before fastening with a ring terminal. Poor grounding causes static or intermittent audio dropout.
Test connections before finalizing. Reconnect the battery, turn the key to accessory mode, and verify:
- All speakers produce clear sound
- Display illuminates
- Volume adjusts smoothly without distortion
- Radio retains presets after key-off
For aftermarket units, bypass the theft-deterrent module by connecting the yellow and pink wires directly. Failure to do so may trigger the antitheft system, disabling the stereo.
Use a digital multimeter to confirm voltage levels:
- Yellow wire: 12V constant
- Pink wire: 12V with key on
- Orange wire: 12V when headlights on, variable with dimmer
Readings outside ±0.5V indicate wiring faults or fuse issues.
Secure all splices with electrical tape or heat-shrink tubing, routing wires away from sharp edges or moving components. Reassemble the dash, ensuring no wires are pinched behind panels.
Finding the Electrical Connector Behind the Stock Audio Unit
Remove the climate control knobs by pulling them straight outward–no tools required–before lifting the lower trim panel. Slide a plastic pry tool along the inner edge of the dash bezel to release seven hidden clips; start at the top center and work down both sides to avoid cracking the fascia. Once detached, disconnect the cigarette lighter plug to fully clear the bezel away.
Identifying the Main Plug Cluster
The stock audio unit sits on a metal bracket secured by four 7mm bolts; two at the top corners and two recessed near the heater vents. Unfasten these with a magnetic socket to prevent drops behind dashboard components. Behind the bracket, look for a single rectangular plug with 24 pins arranged in two staggered rows–this is the primary feed for power, speaker leads, and illumination.
Trace the harness upward to locate an additional 12-pin connector; this smaller plug handles antenna signal and steering wheel controls if equipped. Both connectors snap into place with audible clicks–no latches or screws secure them–so pull firmly but evenly to avoid damaging the locking tabs.
Verifying Wire Locations Before Modification
Use a multimeter set to 12V DC to confirm pin assignments: the constant power will register at pin 2 (pink), switched power at pin 3 (purple), and ground at pin 4 (black). Speaker outputs follow a repeating pattern–each pair shares a common color stripe: front left (light green), front right (gray), rear left (dark green), and rear right (white). Shorted leads during testing will trip the vehicle’s fuse 12 in the under-hood box, so disconnect the battery negative terminal as a precaution.
Label each wire with masking tape before unplugging the harness; manufacturer wiring diagrams label the constant power as “B+” but spliced replacements often misnumber the pins. Keep the original harness attached to the new receiver during initial testing to avoid miswiring dashboard lights or the vehicle’s security module, which sits adjacent to the audio unit bracket.
Decoding Harness Wire Colors for Audio System Integration
Begin by locating the orange wire–this serves as the constant 12V power supply, ensuring memory retention for presets and clock settings. Pair it with a fuse rated at 10A or lower; failing to do so risks voltage spikes that can corrupt the head unit’s firmware. The red wire, often mistaken for identical functionality, delivers switched power, activating only when the ignition is turned to “ACC” or “ON”. Verify continuity between these leads and the battery terminal using a multimeter–readings should show 12V with the engine off (orange) and fluctuate with ignition cycles (red).
Ground paths demand meticulous attention: the black wire must terminate at a bare metal chassis point with zero paint, rust, or oxidation. Scrape the attachment surface until shiny metal is exposed, then secure with a star washer to prevent resistance buildup, which manifests as static or amplifier clipping. For aftermarket amplifiers, splice an additional 12-gauge ground directly to the battery’s negative terminal to eliminate ground loop interference–this bypasses the factory harness’s limitations when handling higher current draws.
Speaker Wire Assignments
| Color | Function | Impedance Check (Ω) | Fault Symptoms |
|---|---|---|---|
| Gray (+) / Gray-Black (-) | Front right speaker | 4 (±0.5) | Muffled output, phase cancellation |
| White (+) / White-Black (-) | Front left speaker | 4 (±0.5) | Distortion at midrange |
| Purple (+) / Purple-Black (-) | Rear right speaker | 4 (±0.5) | No bass, intermittent dropouts |
| Green (+) / Green-Black (-) | Rear left speaker | 4 (±0.5) | High-frequency roll-off |
Use a tone generator set to 1kHz when testing speaker wires–connect the positive probe to the solid-color wire and the negative to its striped counterpart. A balanced hum confirms correct polarity; reversed leads produce weak or no sound. For component systems, ensure tweeter wires (solid-blue or violet, depending on trim) are not swapped with midrange leads–impedance mismatch here causes premature tweeter failure within 50–100 hours of operation.
Troubleshooting Common Misconnections
Yellow wires, if present, often carry illumination control voltage (5V–8V) to dim display lights in sync with dashboard clusters. Cross-wiring these to power leads blows the fuse instantly or fries the dimmer circuit. Dark-blue wires, reserved for antenna triggers, should never be spliced into audio feeds; doing so introduces 12V spikes that damage preamp outputs. For vehicles with Bose systems, pink wires denote a data bus line–tapping into it corrupts onboard diagnostics, so isolate with a 1kΩ resistor if modifications are unavoidable.
Safe Removal of the Factory Audio System: A Detailed Guide
Disconnect the negative battery terminal first. Use a 10mm wrench to loosen the clamp nut on the black cable connected to the battery post. This prevents short circuits and airbag deployment risks. Wait at least 10 minutes after disconnecting to allow capacitors in the electrical system to discharge fully. Failure to do so may result in stored fault codes or accidental system resets.
Remove the trim panel surrounding the head unit. Insert a thin plastic pry tool between the dashboard framework and the upper trim piece. Start at the bottom-left corner and work clockwise, releasing each clip with gentle pressure. For the 2.5-inch bezel, six clips hold it in place–two at the top, two centered, and two at the base. If resistance is felt, check for hidden screws beneath the climate controls or hazard light indicator.
Unplug the antenna lead and wiring harness. The antenna connection is located at the rear-right of the unit, secured by a twist-lock mechanism. Rotate counterclockwise until it detaches. For the wiring harness, press the small tab on the plastic connector and pull straight out–do not yank wires individually. Label each connector if retaining the original harness for reinstallation. A digital multimeter set to 20V DC can verify power pin locations if modifications are planned.
Support the unit from below while releasing the mounting brackets. Slide the release keys (provided with aftermarket installation kits) into the narrow slots on either side of the unit. Push inward until a click is heard, then pull the unit forward by 1.5 inches to disengage the rear support hooks. If the keys are unavailable, a bent paperclip can substitute–insert it 0.75 inches deep at a 45-degree angle. Store the removed unit upright to prevent dust ingress into the CD mechanism or cooling vents.
