For immediate troubleshooting, trace the red wire with a black stripe from the stop lamp switch to the multifunction switch–this carries the primary power signal. Verify continuity at the junction block under the driver’s side dash (labeled C200), where the circuit merges with the body harness. A common failure point lies where the wire transitions through the rear body panel grommet; corrosion here mimics bulb failure.
Replace any oxidized connectors with tin-plated terminals (part #15033578) to prevent future voltage drop. Test the switch’s stop lamp feed using a multimeter: with the pedal depressed, you should read 12V DC at the switch’s output pin (gray connector, position 4). If voltage is absent, the switch requires replacement–do not bypass, as this disables cruise control feedback.
The left tail lamp socket receives power via a light green wire, while the right uses yellow with a dark blue stripe. Inspect for melted insulation near the bulb sockets–this indicates excessive resistance and necessitates socket replacement (OE part #15722808). For LED upgrades, insert a 50W load resistor (3Ω) in-line to prevent hyperflash; fake ground signals trigger ABS module errors on later models.
Access the fuse block (position 18, 15A) for brake signal protection–blown fuses often point to shorted circuits in the liftgate harness for extended-cab variants. Probe the tail lamp wires with a non-polarized test light while cycling the turn signal; erratic illumination suggests a faulty flasher relay (located behind the instrument cluster). For extended-cab trucks, the third brake lamp’s tan wire is fused separately (10A, fuse 10)–corrosion at the roof connector (C107) is a documented weak spot.
Troubleshooting the Stop Signal Circuit on a 1999 GMC Sonoma Pickup
Identify the tail lamp assembly’s red wire–this carries the signal from the pedal switch to the rear fixtures. Trace it backward along the harness to the four-way flasher module under the dash; splice a 12-gauge jumper with crimp connectors if the factory wire shows cracking or corrosion. Ensure the switch at the pedal bracket has continuity when depressed; replacement switches ship with a pre-attached pigtail, eliminating solder work. Test each bulb socket with a multimeter set to DC volts–both filaments should register 12.4V during pedal activation; voltage below 11.8V indicates a corroded ground at the frame rail near the rear bumper.
Strip ¼ inch from the gray/yellow feed wire at the left rear lamp housing, insert a fused jumper direct to the battery positive for a quick voltage check–this confirms whether the issue lies upstream in the chassis wiring or downstream in the bulb holder itself. Use dielectric grease when reconnecting connectors to prevent future oxidation; swapping the original filament bulbs for LED units requires a load resistor inline to prevent hyperflash, sized at 6 ohms, 50 watts per lamp.
Finding the Stop Signal Connector Pathways Beneath the Instrument Panel
Begin by removing the lower knee bolster panel secured by two 7mm screws near the pedal assembly. Once detached, the primary harness bundle will be visible running along the firewall’s right side, where three color-coded leads terminate in a 6-way rectangular connector. The red/pink stripe wire carries the switched circuit signal, the brown lead grounds the circuit, and the white wire with a black stripe acts as the brake pedal activation switch output. Disconnect the battery negative terminal before probing any connections to avoid short circuits.
- Trace the harness bundle upward toward the pedal linkage to locate the switch-mounted junction–this is typically fastened to the pedal arm with a single 10mm bolt.
- Inspect the connector housing for corrosion or melted plastic; replace if damage is found.
- Use a multimeter to verify continuity between the switch terminals when the pedal is depressed (closed circuit) and released (open circuit).
Behind the glovebox, a secondary harness branch splits toward the rear lamp assemblies. Access this area by squeezing the glovebox sides inward to release the retaining clips. The red wire with a blue stripe is the critical link to the high-mount stop indicator–ensure it’s securely crimped into the 2-way connector near the A-pillar. If the signal fails at the rear lamps but the switch tests correctly, this connection is the likely fault point.
- Reinstall panels in reverse order, ensuring no wires are pinched between plastic trim and metal frame edges.
- Apply dielectric grease to connector terminals to prevent future oxidation.
- Test operation by activating the pedal–both rear and high-mount indicators should illuminate simultaneously within 0.5 seconds.
Pinpointing Color Codes for Electrical Paths in the Pickup’s Stop Circuit
Locate the primary power feed for the stop signal circuit by tracing the dark green (DK GRN) wire–this conductor carries the fused 12V supply from the under-dash fusebox to the pedal switch. Verify continuity with a multimeter at the switch connector pin labeled “B” before proceeding; a reading below 0.5 ohms confirms the path is intact. If corrosion is present, clean terminals with a wire brush and dielectric grease to prevent voltage drop.
- Ground return: The black (BLK) wire typically terminates at the chassis near the pedal assembly or at the G400 ground stud on the driver-side firewall. Scrape paint from the attachment point to ensure a solid connection.
- Signal output: The light blue (LT BLU) wire exits the switch, delivering the stop command to the rear lamps. Probe this wire at the lamp socket while depressing the pedal–voltage should spike from 0V to 12V.
- Connector pinout:
- Pedal switch: A (LT BLU), B (DK GRN), C (BLK)
- Trailer harness (if equipped): Purple (PNK) for auxiliary stop feed
Cross-reference wire colors against factory schematics, as aftermarket harnesses or trailer adapters may splice in brown (BRN) or yellow (YEL) wires for auxiliary functions. Tag each wire with masking tape before disconnecting any connectors to prevent misrouting during reassembly.
Step-by-Step Guide to Diagnosing Stop Signal Activation with a Multimeter
Disconnect the electrical connector from the activation mechanism–locate it behind the pedal assembly near the firewall. Use a small flathead screwdriver to gently release the locking tab without bending the contacts.
Set your multimeter to the 20V DC range. Probe the two terminals in the harness side of the connector while someone depresses the pedal fully. A working switch will show battery voltage (~12.5V) when engaged and zero when released. If readings deviate, proceed to pinpoint the exact failure mode.
Inspect the switch’s plunger for debris or misalignment. Gently clean the contact surface with a lint-free cloth and electrical contact cleaner. Verify plunger travel sticks to the manufacturer’s specified 0.25–0.35 inch movement–any deviation suggests internal wear or physical obstruction.
Measure resistance across the switch terminals with the multimeter in continuity mode. Depress the pedal: a functional unit should transition from infinite resistance to near zero ohms instantly. A slow or partial shift indicates degraded contacts or a failing return spring.
Reconnect the harness and backprobe the circuit while observing voltage drop under load. A healthy signal line should maintain >11V at peak demand. Voltage sag below 9.5V hints at corroded harness pins, undersized wiring, or a weak power feed from the fuse panel.
Trace the signal feed to the fuse box–check fuse #15 (10A) for continuity. If intact, remove the fuse and measure voltage on both sides: battery voltage on the supply side confirms power, while missing voltage on the output side suggests an open circuit.
Locate the BCM connector (gray 12-way plug) and probe terminal #3 during pedal actuation. The BCM expects a clean square-wave signal toggling between 0V and 12V. Signal noise or inconsistent toggling indicates a short-to-gnd or internal BCM fault requiring reflashing.
Replace the switch if diagnostics reveal inconsistent readings, physical damage, or excessive wear. Use OEM part #19145266 for precision fitment. Torque mounting bolts to 18 in-lbs to prevent switch movement under pedal load.
Tracing the Stop Signal Circuit from the Switch to the Tail Fixture Sockets
Locate the signal activation lever behind the pedal assembly–typically mounted on the driver’s side firewall bracket. Disconnect the harness connector and probe terminals 1 (power input) and 2 (output lead) with a multimeter set to DC voltage. A reading of 12-14V with the pedal depressed confirms switch functionality. Replace the unit if voltage drops below 10V or remains absent.
Trace the output lead from the switch along the driver-side interior kick panel, following the harness bundle under the carpet toward the rear axle. At the frame rail junction, inspect the grommet sealing the harness transition into the vehicle cabin; corrosion here often disrupts continuity. Measure resistance across splices using an ohmmeter–values above 0.5 ohms indicate a high-resistance fault requiring splice replacement.

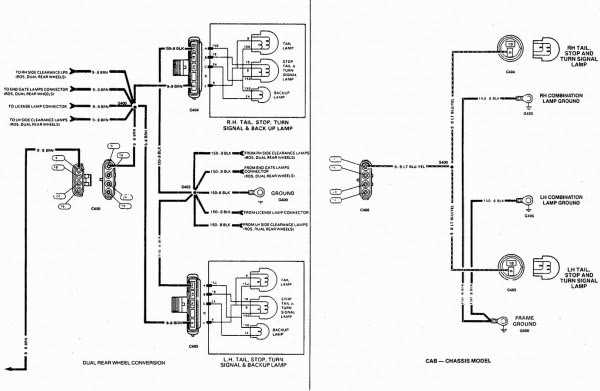

At the rear lamp clusters, remove the lens covers to access the bulb sockets. The outer socket (left lamp) and inner socket (right lamp) typically host the red filament–PW1157 or equivalent. Verify socket polarity: the bayonet base should register chassis ground, while the single terminal connects to the driven lead. Use the table below to cross-reference expected wire colors and circuit paths:
| Component | Wire Color (Factory Code) | Circuit Path |
|---|---|---|
| Stop signal switch output | Pink (PK) | Driver-side harness → Rear fuse block splice |
| Fuse block distribution | Pink/Black stripe (PK/BK) | Frame rail grommet → Tail fixture junction |
| Left lamp socket feed | Light Green (LT GN) | Junction → Outer socket base terminal |
| Right lamp socket feed | Dark Green (DK GN) | Junction → Inner socket base terminal |
Test each tail socket by applying 12V directly to the base terminal while grounding the bayonet–bulbs should illuminate at full brilliance. If one side fails, back-probe the junction connector 6 inches from the lamp housing; absence of voltage here points to a broken or shorted harness segment. Repair the damaged section with soldered butt connectors rated for 20A minimum current.
