For immediate clarity on connecting aftermarket sound units in your GM compact sedan, reference the OEM color-coded harness directly beneath the dashboard. Pinouts follow: yellow (constant 12V), red (switched 12V), black (ground), orange/white (illumination), gray (front right speaker +), gray/black (front right speaker –), white (front left speaker +), white/black (front left speaker –), purple (rear right speaker +), purple/black (rear right speaker –), green (rear left speaker +), green/black (rear left speaker –). Any deviation risks short circuits or blown fuses.
Verify factory harness integrity before splicing. Factory harnesses often include an antenna trigger lead (pink) and amplifier control (dark blue/white)–both must remain intact if upgrading to premium amplifiers. Use crimp connectors rated for 20+ amps; solder avoids corrosion better than twist-and-tape methods. Skip relays only if the replacement head unit draws ≤ 10 amps total.
Disconnect battery terminals first to prevent airbag or ECM faults. Label each wire at both ends with masking tape to avoid cross-wiring. If dash illumination dimming malfunctions post-install, swap the orange/white with a gray/dark gray pair–GM’s dimmer circuit varies across model trims.
Test each channel with a 1 kHz sine wave at 1 volt peak-to-peak before finalizing the dashboard reinstall. Keep multimeter probes on lead ends during power-up to confirm
Chevrolet Audio System Color Codes and Connector Pinout
Start by locating the factory harness behind the radio unit–it uses a 12-pin white connector and a 4-pin gray connector. These are the standard plugs for base and premium sound systems in the 2001 MY sedan. Match each wire by color and function:
- Constant power (battery feed): Orange, connects directly to the 12 V positive terminal without fuse interruption.
- Switched ignition: Yellow, energized only when the key turns to ACC or RUN; crucial for memory retention.
- Ground: Black, terminates to chassis stud near the steering column bracket.
- Left front speaker: Light green (+) and dark green (-); polarity critical.
- Right front speaker: Gray (+) and gray/black (-).
- Left rear speaker: Tan (+) and tan/black (-).
- Right rear speaker: Light blue (+) and dark blue (-).
- Illumination (dimmer): Brown, adjusts radio display brightness in sync with dash lights; max 1 A.
- Power antenna trigger: Pink, activates motorized mast when radio turns on (factory mast impedance 1.5 Ω).
- Chime signal: White/black stripe, carries door ajar and fasten-seatbelt warnings at 200 Hz square wave.
Verify continuity using a digital multimeter–set to 20 VDC scale–probing each wire against chassis ground. Orange should read steady 12.6 V; yellow spikes only during key transitions. Any deviation indicates blown fusible link in the under-hood fuse box (positions 6 and 24). For amplifier-equipped LS trim, an extra 4-pin orange connector supplies remote turn-on (violet) and speaker-level inputs (two pairs of gray wires); splice these to aftermarket amp input with 18 AWG twisted pair for noise rejection.
When replacing the head unit, retain the factory integration harness–it contains all interface circuits including the data bus (light green/white stripe) that communicates with the Body Control Module. Cutting this wire disables theft-deterrent features and may cause random lock-outs. Connect aftermarket units using Metra 70-1761 or Axxess ASWC-1 for steering-wheel control retention; both adapters map GM class-II serial protocol to resistive ladder inputs compatible with Pioneer, Kenwood, and Alpine decks.
Matching Factory Harness Colors to Aftermarket Audio Systems
Locate the 12-pin connector behind the original head unit–the primary interface for all signal and power feeds. The standard color scheme for this model’s harness follows:
- Yellow: Constant 12V (battery line, fused at 10A), always live.
- Red: Switched 12V (ignition-controlled), powers radio memory and accessories.
- Black: Ground (chassis connection, bolt to bare metal for zero resistance).
- Orange/White stripe: Illumination dimmer wire (taps into dash lights, reduces brightness).
- Gray: Front left positive (speaker output, 4-8Ω impedance).
- Light blue: Front right positive.
- Dark green: Rear left positive.
- Violet: Rear right positive.
- Each speaker’s negative lead terminates in black with colored stripe (e.g., black/gray for left front negative).
- Brown: Power antenna or amp remote turn-on (12V trigger for active amplifiers).

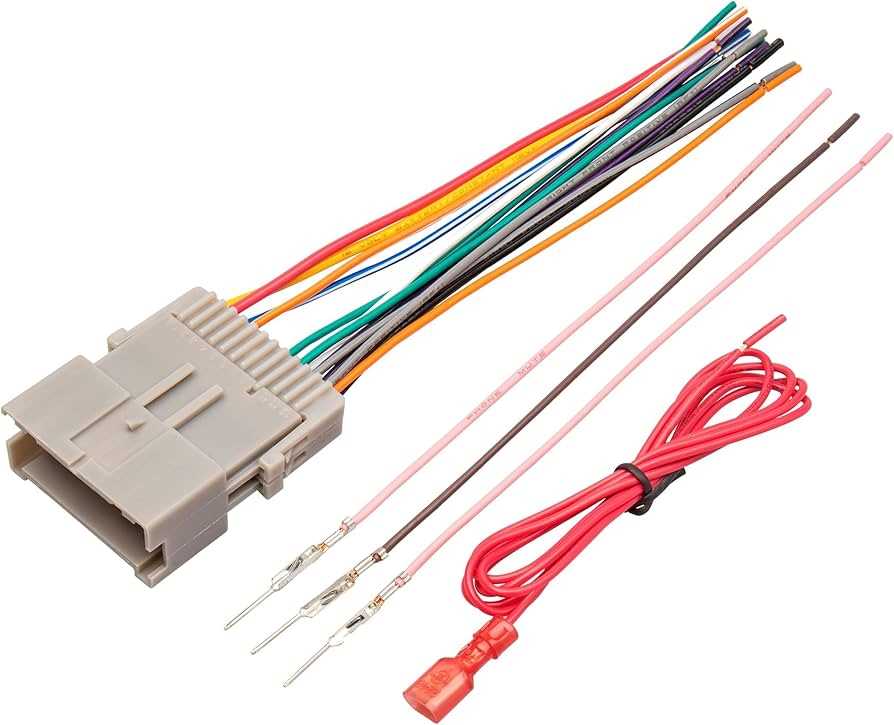

Cross-reference these leads with your aftermarket harness adapter–most GM-compatible kits (Metra 70-2003, Scosche GM02B) mirror this scheme but verify pinout with a multimeter before soldering. If inconsistencies arise (e.g., swapped gray/light blue), trace the wires back to the factory plug using an illuminated test probe; confirm polarity by pulsing 1.5V from a AAA battery to each speaker terminal–correct polarity emits a crisp click, reversed causes distortion.
Troubleshooting Deviations in Older Harnesses
Vehicles with mid-year production changes may substitute:
- Yellow/black stripe for constant power (rare, verify with fuse box diagram).
- Pink replacing red for switched ignition (check for ~12V with key in ACC position).
- Tan for front right negative (instead of black/light blue).
- Dark blue amplifying the antenna signal (not speaker output).
Strip 1/4″ of insulation from suspect wires, probe with a multimeter set to 20V DC–constant and switched feeds should read 11.5–14.2V, grounds 0V, and speaker wires 4–8V with audio signal present. If readings deviate, inspect fusible links near the battery (labelled “RADIO” or “AUDIO”) or corroded splice points along the door jamb harness; bypass damaged sections with 16-gauge primary wire routed through grommeted firewall holes.
Step-by-Step Installation of an Aftermarket Receiver in a Chevy Compact Sedan
Disconnect the negative terminal of the vehicle’s battery first to prevent short circuits or damage to electrical components during installation. Locate the terminal under the hood–it’s marked with a minus (-) symbol. Use a 10mm wrench to loosen the clamp and remove the cable entirely. Set it aside where it won’t accidentally reconnect.
Remove the factory dashboard trim panel using a plastic trim removal tool. Start at the bottom of the unit and work upward to avoid snapping clips. Store screws and fasteners in a magnetic tray or small container to prevent loss. The panel typically holds climate controls and hazard lights–carefully unplug these connectors before fully detaching the trim.
Wiring Harness Adaptation
Identify the OEM connector behind the factory receiver. In this model, it’s a 16-pin harness with color-coded wires. Match these to the aftermarket wiring harness using the following reference:
| Factory Wire Color | Function | Aftermarket Wire Color |
|---|---|---|
| Yellow | Constant 12V | Yellow |
| Red | Switched 12V | Red |
| Black | Ground | Black |
| Gray | Front Left Positive | Gray |
| Gray/Black | Front Left Negative | Gray/Black |
| Green | Front Right Positive | Green |
| Green/Black | Front Right Negative | Green/Black |
Solder or crimp connections for reliability. Wrap each joint with electrical tape or heat-shrink tubing to prevent corrosion. If the aftermarket unit includes a wiring harness adapter, align the pins precisely–misalignment can damage the receiver’s internals.
Mount the new receiver into the dash kit. Slide it into the opening until it clicks or aligns with the screw holes. Secure it with the screws provided in the installation kit–do not overtighten. Reattach any auxiliary components (USB ports, auxiliary inputs) to the dash kit before proceeding.
Testing and Reassembly
Reconnect the battery’s negative terminal. Turn the ignition to the accessory position and verify the unit powers on. Test all speakers individually by adjusting the balance and fader settings. If audio is faint or distorted, recheck ground connections and speaker wires. Once confirmed functional, reattach the dashboard trim panel, pressing firmly until all clips engage.
Program preset stations, adjust equalizer settings, and pair any Bluetooth devices. If the unit includes a security code, enter it now to prevent theft-lock activation. Store the code in a secure location–it’s required if the unit loses power. Reinstall any remaining trim pieces, ensuring no wires are pinched or exposed.
Key Mistakes to Dodge When Installing Your Chevy Audio System
First, verify power connections match factory specs before splicing. The 2001 base model uses a 10-gauge red wire for constant 12V, while aftermarket harnesses often default to 16-gauge–this mismatch causes voltage drops under bass loads. Test with a multimeter: ignition-switched yellow should read 11.5V, not fluctuating. If readings dip below 10.8V, replace the inline fuse with a 20A ATO type, not the stock 15A, to handle peak currents during subwoofer transients.
Grounding errors create persistent noise. Scrape paint off chassis mounting points until bare metal shows, then secure the black (-) lead with a star washer between the bolt and ring terminal. Avoid coiling excess cable near amplifier inputs; route it directly to the nearest factory grounding spot behind the rear seat bracket, not the trunk hinge. If whining persists at idle, relocate the ground to the transmission tunnel rather than the quarter panel, as steel thickness varies and can introduce resistance.
Aftermarket Adapter Snags
Metra harnesses labeled “ISO” may omit the dimmer wire (light blue with a white stripe) on sedans with automatic climate control. This wire interfaces with the dash illumination circuit–leaving it disconnected keeps the head unit display at maximum brightness at night. Solder a 1K ohm resistor between the dimmer input and a switched 12V source to simulate factory behavior if no compatible wire exists in the harness.
Speaker wires often get misrouted through door hinges, leading to fatigue failures within 18 months. Instead, drill a 12mm hole in the door jamb, feed wires through a plastic grommet, and seal with silicone to prevent moisture ingress. For component sets, maintain polarity consistency: if tweeters measure reverse resistance during bench testing, swap inverter caps on the crossover board rather than reversing speaker leads, which alters phase response and midrange clarity.
