Locate the harness adapter behind the dashboard cluster–typically secured near the central console. Strip insulation from wires no more than 0.25 inches to prevent signal interference or short-circuiting. Connect the yellow 12-gauge lead to a fused power source rated at 20 amps; avoid splicing into low-amperage circuits like cabin lighting.
Identify the gray and orange striped cables as speaker outputs–match polarity (+/-) precisely to prevent phase cancellation. For aftermarket upgrades, use a resistance meter (set to 200 ohms) to verify continuity before securing connections with crimp connectors or solder. Twist exposed wires tightly and wrap with electrical tape to resist vibration in high-torque driving conditions.
Bypass factory amplifiers only if replacing them with units exceeding 50 watts RMS per channel–otherwise, retain the stock module to maintain signal integrity. Test the illumination wire (usually brown or white) by toggling the headlights; dimming behavior confirms proper integration with the vehicle’s lighting system.
Ground the system to a bare metal chassis point within 18 inches of the unit’s mounting location–paint or corrosion will disrupt performance. If static persists, shield ground connections with dielectric grease and verify the battery’s negative terminal is free of oxidation.
How to Locate Audio System Connections for a 1999–2001 GM Sedan
Start by disconnecting the negative battery terminal to prevent short circuits during installation. The factory harness connects behind the dashboard cluster–look for a 12-pin white connector labeled “C101” and a 10-pin gray plug marked “C201.” These carry power, speaker outputs, and illumination wires. Use a multimeter to verify voltage on the orange (+12V constant) and yellow (switched +12V) leads before splicing.
- Pink: ignition-switched power
- Dark green/white stripe: left front speaker (+)
- Dark green: left front speaker (−)
- Gray/black stripe: right front speaker (+)
- Gray: right front speaker (−)
- Brown/white stripe: left rear speaker (+)
- Brown: left rear speaker (−)
- Light blue/white stripe: right rear speaker (+)
- Light blue: right rear speaker (−)
- Black: chassis ground
Aftermarket units often require an adapter harness–GM part #GM-12B matches the standard configuration. If retaining the stock amplifier (located under the driver’s seat), ensure the light blue “amp turn-on” wire (pin C201-8) receives +12V during operation. Without this signal, rear-channel audio may cut out entirely.
For wiring directly to speakers, use 18-gauge oxygen-free copper wire and solder joints sealed with heat-shrink tubing. Avoid twisting wires for ground connections–bolt them securely to a bare metal surface near the original grounding point. Test each channel with a 1 kHz sine wave at 1 watt RMS before finalizing trim panels.
Finding the Original Audio System Plug Interface
Start by removing the center dash panel. The factory sound system connector is typically hidden behind the climate control module or the ashtray assembly. Use a trim removal tool to gently pry off the plastic clips securing the panel–apply pressure near the edges to avoid breaking tabs. Once the panel is off, disconnect the lighter socket and HVAC knobs if present; the harness plug should be visible at the back of the unit, attached to a white or gray rectangular socket.

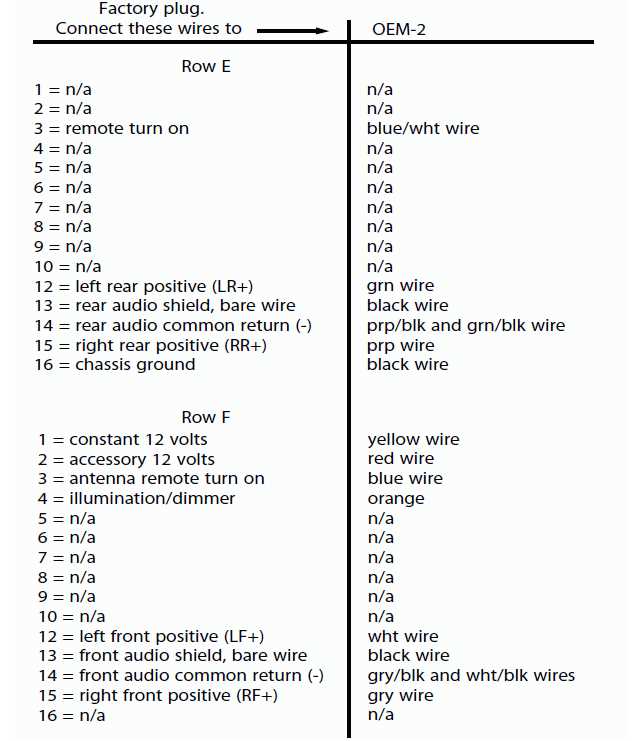

The connector often splits into two sections: power/speaker leads and illumination/antenna connections. Identify the main plug by tracing the bundle of colored wires (12–16 gauge) leading downward–common colors include yellow (constant 12V), red (switched 12V), black (ground), orange (illumination), and striped wires for speaker outputs (front/rear pairs). The table below details typical pin assignments:
| Pin Color | Function | Wire Gauge |
|---|---|---|
| Yellow | Battery Constant | 12 |
| Red | Ignition Switched | 14 |
| Black | Chassis Ground | 12 |
| Orange | Dimmer Circuit | 16 |
| Gray / Violet | Right Front Speaker (+/-) | 16 |
| White / Green | Left Front Speaker (+/-) | 16 |

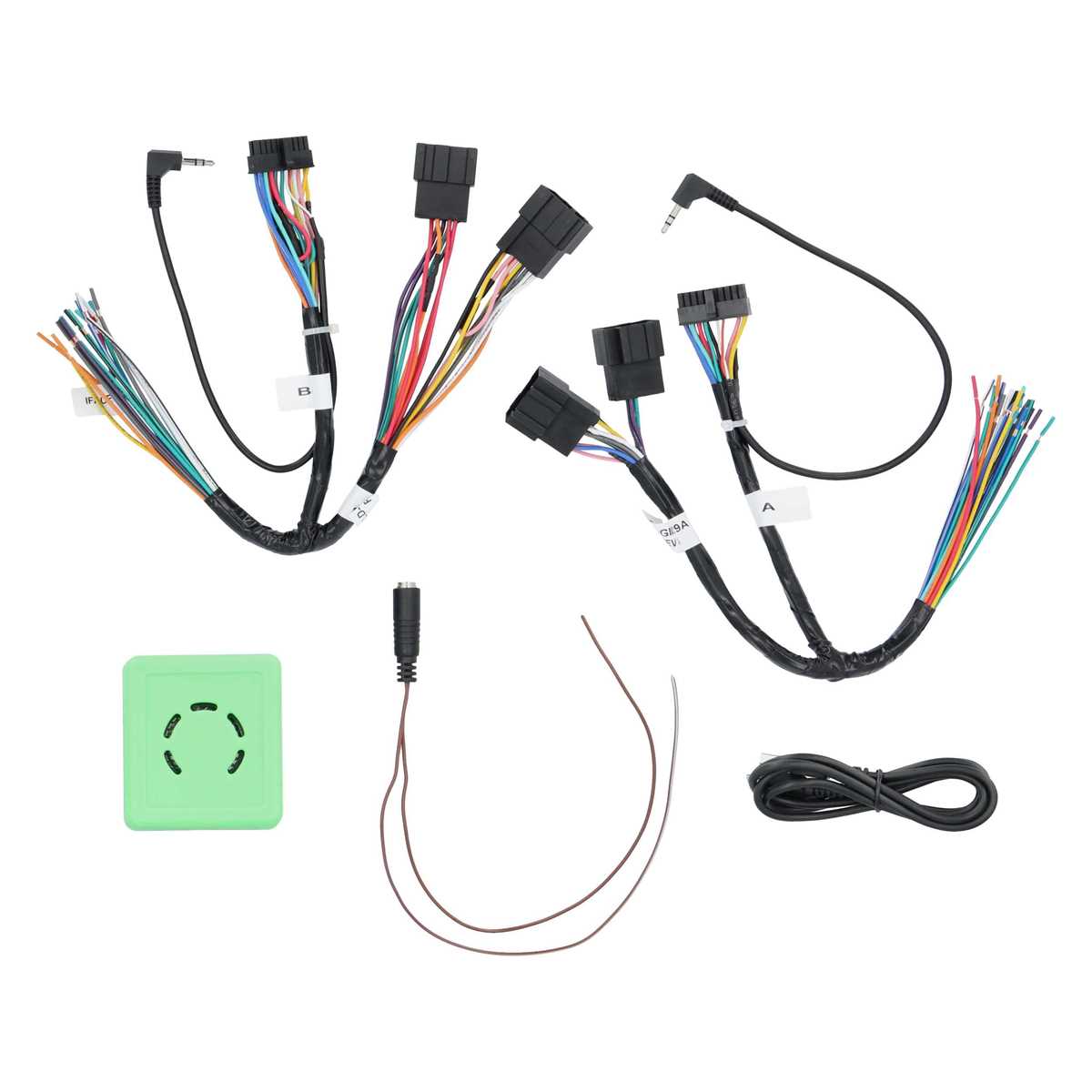

If the plug doesn’t detach easily, check for a small plastic tab or screw securing it–release it with a flathead screwdriver. Label each wire with masking tape before cutting or splicing to prevent misconnections. For aftermarket compatibility, note that the factory plug may require an adapter (Metra 70-1761 or equivalent) to match standard ISO or harness outputs.
Hidden clips may also secure the harness to the chassis. Follow the bundle downward–it often routes behind the glove box or under the drivers-side kick panel. If corrosion or damaged pins are present, clean contacts with electrical contact cleaner and a toothbrush; avoid excessive force to prevent breaking the plastic housing.
Decoding Audio System Cable Hues and Their Utility
Start by locating the constant power lead–distinctively clad in yellow. This strand maintains memory functions and clock settings even when the ignition is off. Verify with a multimeter set to DC voltage; it should register 12 volts at all times.
The red ignition-switched feed activates the sound unit when the key turns. Treat this as your primary safety check–if absent, the system remains inactive regardless of other connections. Probe for voltage only during ignition-on cycles to confirm proper relay engagement.
Ground cables appear in black or occasionally brown. These must terminate directly to chassis metal, never spliced through another wire. Poor grounding introduces alternator whine or sporadic shutdowns. Sand paint from mounting points until shiny metal surfaces appear.
Speaker outputs follow this pattern: gray/black (front right positive/negative), white/black (front left ±), purple/black (rear right ±), and green/black (rear left ±). Reverse polarity on any pair reduces bass output by 30%. Test each channel individually with a 1 kHz sine wave to isolate faults.
An orange stripe denotes illumination control. This dims the display in sync with dashboard lights–normally 1-4 volts depending on rheostat position. If LED backlighting flickers, inspect for corrosion at the instrument cluster connector.
Factory harnesses often include an orange/white antenna trigger. This powers motorized antennas or amplifier turn-on circuits. Absence of this signal leaves aftermarket amplifiers dormant. Mock-test by bridging this cable to the yellow constant power lead to verify external amp activation.
For steering wheel controls, seek light blue/white or light green/black resistively encoded strands. These require a specialized interface module–universal adapters seldom match the original resistance values. Measure voltage drops across button presses to confirm expected 50–200 ohm ranges between commands.
Removing the Head Unit Without Harming Surrounding Panels
Begin by disconnecting the negative terminal of the vehicle’s battery to prevent electrical shorts or airbag deployment. Locate the trim release points–typically two spring clips at the top of the stereo bezel and two at the bottom–by gently prying along the edges with a plastic pry tool. Insert the tool into the seam between the bezel and the dashboard fascia at a 45-degree angle, applying minimal force to avoid snapping the clips. Work in small increments, alternating sides to release the clips evenly without warping the plastic.
Disconnecting Harnesses and Antenna
Once the bezel is free, tilt the installed unit forward to access the rear connections. Press the tab on each wiring harness connector while pulling straight out–never twist or yank, as this can damage pins or the unit’s input jacks. The antenna lead may have a threaded collar; unscrew it by turning counterclockwise until it detaches. Label each connector with masking tape if reinstalling a different device to avoid confusion during reassembly.
Slide the removal keys (U-shaped metal tools) into the slots on either side of the main casing until they click, then pull outward to release the internal locks. If the keys aren’t available, use two small flat-head screwdrivers wrapped in electrical tape to prevent scratches. Ease the unit out slowly, checking for any remaining cables or clips that may still be attached. Store the head unit face-down on a soft cloth to protect the display and buttons from scratches.
Integrating a Third-Party Head Unit with Factory Harness Schematics
Match the aftermarket audio system’s power lead to the vehicle’s ignition-controlled orange wire (typically 12V accessory). Verify wire gauge–factory harnesses often use 18-20 AWG, while replacement units may require 16 AWG for stable current delivery. If the new unit lacks a built-in amplifier, splice the factory blue/white remote turn-on wire to the head unit’s corresponding lead to prevent parasitic drain.
Locate the speaker outputs in the original connector–usually four sets of paired wires (front left, front right, rear left, rear right) with polarity marked by striped and solid colors. Strip 5mm of insulation and use crimp connectors or solder joints; avoid twist-and-tape methods as vibrations degrade connections over time. For premium sound systems, retain the original amplifier by bridging its inputs instead of bypassing it entirely.
Identify the ground lead–typically a black wire terminating at the chassis or a dedicated bolt. Scrape paint off the mounting surface to ensure a low-resistance path; a poor ground causes buzzing or intermittent operation. If the factory harness uses a floating ground (common in older models), install a dedicated ground wire directly to the vehicle’s frame within 18 inches of the head unit.
For vehicles with factory antennas, retain the original coaxial cable if its impedance matches the aftermarket unit (75Ω for most systems). If replacing, use a 3.5mm bullet connector for quick disconnection and avoid stretching the new cable near sharp edges or moving parts. Test the antenna signal strength before finalizing the dash installation–weak reception often traces back to improper shielding or grounded coax.
If the vehicle includes steering wheel controls, use an adapter module (e.g., Metra ASWC-1) wired inline between the factory harness and the new head unit. Connect the module’s data wire to the vehicle’s yellow/red wire (if present) or the CAN bus circuit; incorrect pairing results in laggy or non-responsive buttons. Check the module’s compatibility list–some midsize sedans require firmware updates for full functionality.
Secure all splices with marine-grade heat shrink tubing to prevent corrosion from moisture ingress. Route wires away from heat sources (exhaust manifolds, HVAC ducts) and moving components (steering column, pedal assemblies). Use loom or spiral wrap to bundle excess length, leaving 2-3 inches of slack at connection points for future servicing.
Before powering on the new system, confirm fuse ratings–most head units require a 10-15A fuse on the constant 12V line (yellow wire). If the vehicle has anti-theft features, program the new unit with the original security code to avoid immobilization; some systems store this in the ECM and will not reset without dealer intervention.
Test each function methodically: power cycling, volume adjustments, tone settings, and media inputs. If distortion occurs at high volumes, downgrade the speaker impedance or add a capacitor (20,000μF minimum) to stabilize voltage drops. For persistent noise, separate audio cables from power wires by at least 8 inches and avoid running them parallel to ignition or fuel injector harnesses.
