Before sourcing components, verify compatibility with SAE J531 standards–failure to do so risks seal ruptures under load. Begin with the pump body: select a dual-cylinder model with a 3/8-inch bore diameter for optimal pressure distribution. Secure the handle pivot using a grade-8 bolt (minimum 5/16-inch thread) and a hardened washer; polyethylene bushings degrade under cyclic stress.
Assemble the release valve mechanism first. Use a needle valve with a 0.8mm orifice–wider openings cause abrupt pressure drops. Connect the valve to a 1/4-inch NPT fitting; seal threads with PTFE tape in three clockwise wraps. Avoid over-tightening–torque to 15 ft-lbs to prevent galling on brass fittings.
The ram’s travel should be limited to 14 inches for stability. Install a phenolic piston ring to reduce friction; metal-on-metal contact accelerates wear. Lubricate the cylinder walls with ISO 68 hydraulic fluid before insertion–never use petroleum grease, as it degrades seals within 400 cycles.
Mount the saddle assembly last. Use a 1-inch thick steel plate with a crosshatch pattern (0.5mm grooves) to prevent slippage. Secure with four M10 bolts torqued to 35 Nm–stainless steel bolts corrode under repeated exposure to coolant spillovers from vehicles.
Test the unit on a 2,000-pound load before finalizing. Pump to maximum extension, hold for 10 minutes, then check for fluid seepage at the base seal. If leakage exceeds 0.5ml/minute, disassemble and inspect the O-rings for nicks–replace with nitrile (70-durometer hardness) for diesel-compatible applications.
Guide to Hydraulic Bottle Lifter Construction Blueprint
Begin by locating the pressure release valve on the right side of the hydraulic cylinder–marked with a red dot or arrow in most 4,000 lb capacity lifting devices. Rotate it counterclockwise ¼ turn to depressurize before disassembly; failure to do so risks oil spray under 2,800 psi. Store the oil in a sealed container with a desiccant packet to prevent moisture absorption during inspection.
Identify the saddle, piston rod, and base plate connections–typically secured with M10 x 1.5 threading or snap rings (check for a retaining groove 3.2 mm wide). Apply molybdenum disulfide grease to the rod’s polished surface to prevent scoring; avoid lithium-based products as they degrade under 150°F operational heat. Measure the cylinder bore diameter (standard: 44.5 mm ±0.1 mm) using calipers–out-of-tolerance bores (>0.2 mm variance) indicate internal wear requiring sleeve replacement.
Inspect the one-way valve assembly (often stamped “V-6” or “K12”) beneath the pump plunger. Test flow direction by blowing compressed air through both ports–air should pass only one way. Replace the valve if reversed flow occurs; duplicate components increase bypass risk by 40%. Verify spring tension by compressing the plunger manually–resistance should peak at 18–22 lbs-force; weaker springs reduce lifting speed by up to 35%.
Assemble the handle linkage using the following torque specifications: pivot bolt (M8 x 1.25) at 18 N·m, pump lever nut (M6 x 1) at 12 N·m. Over-tightening causes binding–test movement after each adjustment. For hydraulic fluid, use ISO 68 mineral oil (viscosity: 68 cSt @ 40°C); alternatives clog filters within 120 cycles. Bleed air by lifting the saddle fully, releasing the valve, then lowering–repeat until smooth descent occurs (typically 3–5 cycles).
Attach rubber pads to the saddle using adhesive-backed neoprene (Shore A hardness: 60–70) to reduce surface damage. Ensure base stability by checking footprint dimensions: minimum 22 cm x 15 cm for 2,000 kg-rated units–smaller bases tip under lateral loads. Store vertically in dry environments; horizontal storage warps frames by >0.5 mm within 90 days.

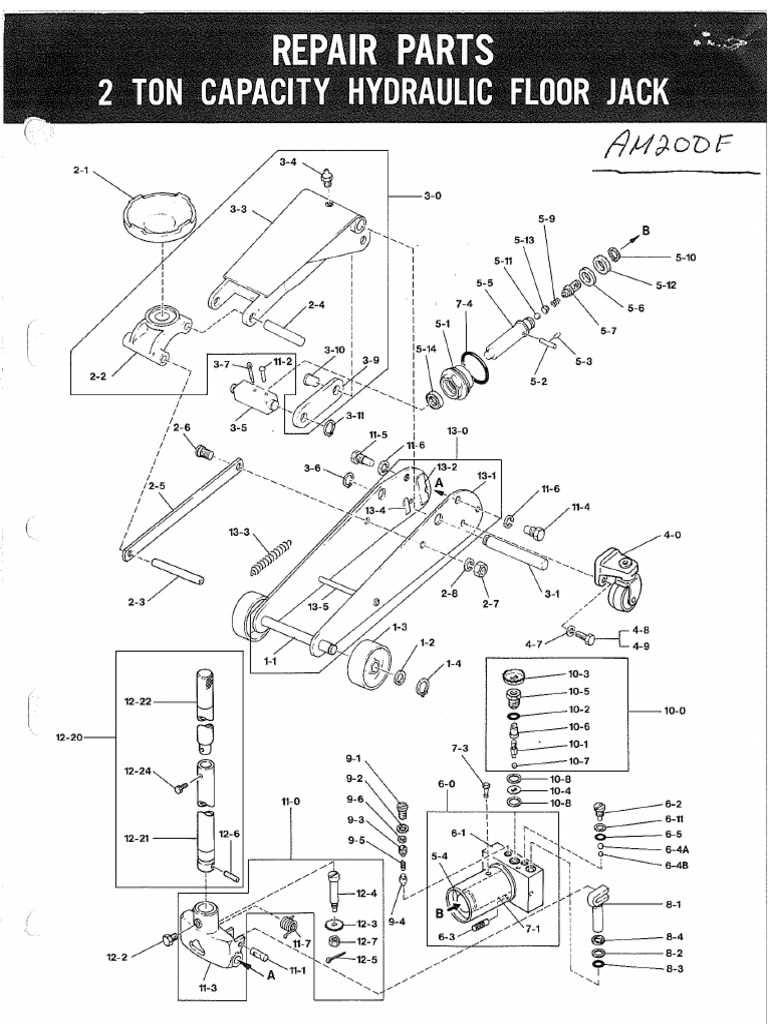

Key Components of a Hydraulic Lifting Device Exploded View
Replace the release valve every 200 cycles or annually to prevent sudden pressure loss. The valve’s O-ring degrades faster than other seals due to repeated compression–opt for Viton instead of nitrile for higher heat resistance. Position the valve directly below the pump piston to minimize hydraulic lag; misalignment increases wear by up to 40% over six months.
Inspect the saddle assembly for micro-fractures after every 50 lifts. A 3mm crack in the steel frame can propagate into a full break under loads exceeding 1,800 kg. Use a dye penetrant test for early detection–ultrasonic testing is unnecessary for this scale. Ensure the saddle’s pivot bolts torque to 45 Nm; overtightening warps the yoke, reducing lift height by 15-20mm.
The hydraulic cylinder requires flushing with ISO 46 hydraulic fluid after 100 lifts to remove metallic debris that scores the inner bore. A single 0.1mm groove doubles fluid bypass, dropping lifting capacity by 30%. Check the cylinder’s chrome plating thickness with a micrometer–any measurement below 0.05mm warrants replacement. Avoid storing the unit horizontally; sediment accumulation in the cylinder increases pump effort by 22%.
Lubricate the handle linkage with lithium-based grease (NLGI 2) every 30 lifts. Polyurea-based lubricants cause corrosion in zinc-plated pivot points within 8 weeks. The linkage’s fulcrum pin diameter should not exceed 8mm; oversized pins strip threads, reducing handle leverage efficiency by 12%. Ensure the handle return spring tension is between 15-18 N/mm–weaker springs fail to reset the valve fully, leaving residual pressure.
Examine the base frame welds for fatigue cracks using a 10x magnifier after 250 lifts or biannually. Spot-welded joints fail first under dynamic loads, reducing stability by 55%. Reinforce critical stress points with 3mm fillet welds; skip this, and the frame’s load distribution shifts unpredictably, tilting the unit during operation. The base’s feet must maintain a footprint of at least 300mm apart–narrower spacing increases tipping risk by 70% under eccentric loads.
Step-by-Step Disassembly for Maintenance and Parts Identification
Place the lifting device on a stable, level surface before beginning. Release hydraulic pressure by rotating the release valve counterclockwise until the saddle lowers completely. Remove the handle by pulling firmly upward–some models require twisting 90 degrees first.
Unscrew the oil filler plug located near the base using an 8mm socket. Drain residual fluid into a container by tilting the unit sideways. Inspect the fluid for metal particles or discoloration; replace if contamination exceeds trace amounts.
Major Component Removal
- Detach the saddle by removing two 10mm bolts securing it to the piston rod.
- Pry off the rubber bumper from the saddle using a flathead screwdriver–note orientation for reassembly.
- Remove the lower frame bolts (four 14mm) to separate the hydraulic cylinder from the chassis. Keep washers aligned with their original positions.
- Extract the piston assembly by gently tapping the rod with a rubber mallet–avoid damaging the chrome finish.
Disassemble the valve body by removing the M6 set screw beneath the release knob. Use caution: the ball and spring may eject under tension. Label each component to avoid mix-ups during reassembly.
Inspect the seals for wear. Replace O-rings exhibiting cuts, swelling, or flattening. Standard sizes are 12.5mm (internal) and 18mm (external). Apply fresh hydraulic fluid to new seals before installation to prevent binding.
Hydraulic System Cleaning
- Flush the cylinder with clean fluid until runoff appears clear.
- Soak disassembled components in a parts cleaner for 15 minutes.
- Blow dry all passages with compressed air to remove debris from threaded holes.
- Wipe surfaces with lint-free rags–avoid paper towels that may leave residue.
Reassemble in reverse order, torqueing bolts to specifications: frame bolts (45Nm), saddle bolts (30Nm), filler plug (20Nm). Test for smooth operation before storage–cycle the handle 10 times while monitoring for leaks.
Store components in a sealed container if maintenance is interrupted. Protect polished surfaces with a thin coat of grease to prevent corrosion during downtime.
How to Read Hydraulic Circuit Symbols in the Technical Blueprint
Begin by identifying the hydraulic pump symbol: a circle with a solid black triangle pointing outward. This indicates fluid propulsion. Check for pressure lines–bold solid lines–connecting the pump to actuators. Dashed lines represent pilot or control signals, thinner than primary circuits.
Locate directional control valves next. Denoted by rectangular blocks with internal arrows showing flow paths, these symbols reveal possible positions (e.g., neutral, extend, retract). A 4/3 valve has four ports and three positions; count ports to confirm function. Springs or solenoid symbols adjacent to the rectangle indicate actuation method.
Actuators appear as rectangles (cylinders) or circular shapes (motors) with arrows inside. A single-arrow cylinder symbolizes single-acting, double-arrow means double-acting. Ports on the symbol align with physical inlet/outlet points–verify continuity between valve outputs and actuator ports.
| Symbol | Component | Key Feature |
|---|---|---|
| (solid black) | Pump | Triangle direction = flow output |
| ━━━ (bold) | Pressure Line | Primary circuit routing |
| — (dashed) | Control Line | Pilot pressure or signal |
| [▶◀] (rectangle) | Cylinder | Arrow count = single/double-acting |
Check for pressure relief valves: a square with an oblique arrow crossing a spring symbol. The arrow direction shows fluid release path when pressure exceeds the spring’s setting. Adjustable valves have diagonal hash marks over the spring–count them to estimate maximum threshold (e.g., three marks = 3000 psi).
Reservoirs appear as inverted triangles with a horizontal strip underneath–closed versus open-loop systems use solid or dotted bottoms. Fluid return lines terminate here; ensure all return paths converge without intersecting pressure lines. Crossed lines without junction dots indicate no actual connection.
Sequence valves include a check valve symbol (arrow inside a circle) plus spring and control line inputs. Fluid flows only when pilot pressure overcomes the spring force. Compare spring ratings between valves; 200 psi diff can prevent simultaneous actuator movement.
Accumulators resemble teardrop shapes with pressurized gas symbols (zigzag lines) inside. Hydraulic fluid enters the wider end; verify pre-charge pressure matches system requirements (typically 80% of minimum working pressure). Incorrect pre-charge causes slow response or premature wear.
