For a dual-control setup, use a three-way circuit with neutral and traveler wires. The first controller connects to the power source via a hot wire (typically black or red) and a neutral (white). The second device links to the first through traveler conductors (often red and white with colored tape). The fixture attaches to the common terminal of one controller with a switched hot wire (black or another marked color) and neutral.
Wire gauge must match the circuit’s amperage–14 AWG for 15A circuits, 12 AWG for 20A. Secure all connections with wire nuts, then wrap them with electrical tape to prevent corrosion. Test continuity with a multimeter before restoring power.
Use UL-listed components only–cheap alternatives risk overheating. Label all wires at both ends to avoid confusion. If the fixture draws more than 80% of the circuit’s capacity, upgrade to a dedicated line to prevent tripping breakers.
For a safer approach, install dimmer-compatible models if working with LED bulbs–standard toggle types may cause flickering. Verify the traveler wire paths by turning off power and probing terminals with a non-contact voltage tester.
In unfinished spaces like basements, use armored cable (AC) or conduit. For retrofit projects, fish tape helps route wires through walls without excessive drywall removal. Always shut off the main breaker before handling live terminals.
Dual Control Device Circuit Setup Guide

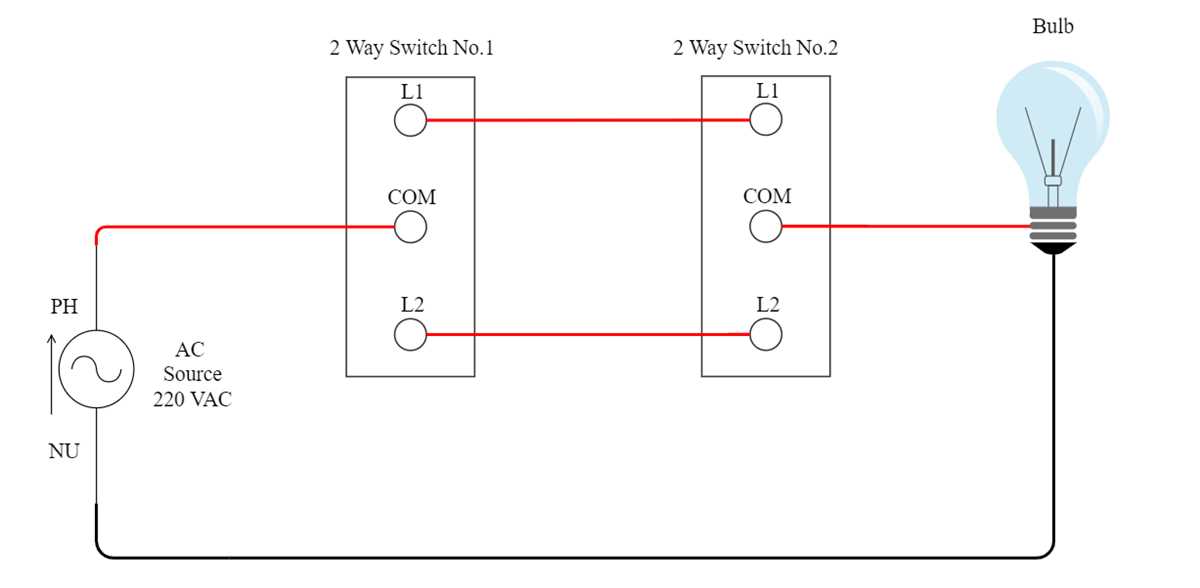

Begin by connecting the neutral conductor directly to the luminaire terminal, bypassing both regulators entirely. Use a 2.5 mm² solid copper wire for this segment to ensure minimal voltage drop. The live feed should enter the first regulator via its common terminal–marked “C” or “COM” on most models. Verify this with a multimeter set to continuity mode before proceeding.
- From the first regulator’s L1 terminal, run a 1.5 mm² wire to the L1 terminal of the second regulator.
- Repeat for the L2 terminals, maintaining consistent polarity throughout.
- Connect the second regulator’s common terminal to the luminaire’s live input using a 2.5 mm² wire.
For installations exceeding 10 meters between components, upsize the interconnecting conductors to 4 mm² to prevent overheating. Secure all connections with crimp ferrules before tightening terminal screws–torque to 1.2 Nm for brass terminals, 0.8 Nm for steel. Avoid backstab connections; they fail under cyclic loads.
Test the configuration in both positions before finalizing. If the fixture remains inactive when toggling either regulator, check for:
- Reversed L1/L2 conductors between devices
- Broken continuity in the live feed to the first regulator
- Loose terminal screws (re-torque if necessary)
Color-code all conductors for troubleshooting: neutral (blue), live feed (brown), traveler conductors (black and gray). Label each regulator’s terminals with heat-shrink tubing to streamline future maintenance. For dimmable setups, replace standard regulators with electronic modules rated for the fixture’s wattage–consult the manufacturer’s derating curve if combining LED and incandescent loads.
Install a dedicated 10A circuit breaker for clusters of three or more luminaires controlled this way. Omit daisy-chaining; each fixture requires direct connections from both regulators to prevent flickering caused by shared return paths. Ground the metallic housing of all devices using 6 mm² wire bonded to the panel’s earth bar.
Installing Dual-Control Mechanism for a Single Fixture: Practical Guide
Start by identifying the power source at the circuit breaker, ensuring it is de-energized before handling any conductors. Use a non-contact voltage tester to confirm all feed lines are inactive. Connect the incoming live wire to the common terminal of the first control unit–this terminal is typically marked differently or located apart from the traveler screws. Secure the connection firmly to prevent loosening under load.
Run a pair of 14-AWG or 12-AWG conductors (depending on circuit amperage) between the two control devices, linking their traveler terminals with matching color coding (e.g., red and black). Avoid using standard white or green wires for this purpose to maintain compliance with NEC Article 200.7(C). Each traveler wire must terminate at the corresponding traveler terminal on the opposite unit–crossing wires will disrupt operation.
At the second control device, attach the remaining common terminal to the load side of the fixture’s hot conductor. If the device lacks a dedicated grounding screw, bond the grounding conductor to the metal yoke or an external pigtail spliced within the junction box. Twist all splices with lineman’s pliers, then cap with a listed wire nut, ensuring no exposed copper remains visible.
Restore power at the circuit breaker and test each control device independently. Toggle both to verify the fixture responds correctly in all positions. If inconsistent behavior occurs, recheck traveler connections–miswired terminals are the most frequent failure point. For added safety, loop each conductor clockwise around terminal screws to ensure optimal contact under torque.
In rooms exceeding 20 feet in length or featuring multiple entry points, consider installing a dedicated neutral conductor alongside the traveler wires for potential future smart-device integration. Cap unused neutrals in the junction box with a plastic wire connector to prevent accidental short circuits. Label all conductors at both ends with adhesive markers for maintenance clarity.
Required Tools and Materials for Dual Control Installation
Begin with a non-contact voltage tester (minimum 500V sensitivity) to verify circuit deactivation before handling terminals. Models like the Fluke 1AC II or Klein NCVT-3 detect live wires at a safe distance, eliminating false negatives from weak batteries or damaged probes. Pair this with insulated screwdrivers (shaft thickness ≤4mm) rated for 1000V; VDE-certified options from Wera or Wiha prevent arcing when adjusting tight terminal screws in metal junction boxes.
| Tool/Material | Specification | Purpose |
|---|---|---|
| Wire strippers | 18-10 AWG, auto-adjusting jaws | Clean ½” insulation removal without nicking conductors |
| Fish tape | 1/8″ steel, 25′ length | Pulling 14/2 NM-B through ½” EMT conduits |
| Junction box | 4 × 4 × 2 ⅛” deep, metal | Housing splices for two three-way controllers with 6″ wire allowance |
| Wire nuts | Red (1.5–4 #14) or tan (2–3 #12) | Joining common travelers with ≥8 twists per connection |
A multimeter set to Ω mode (resistance range: 0–200Ω) confirms continuity across traveler pairs after installation–values should read
Select toggle mechanisms with brass terminals (≥12 AWG capacity) and UL-listed marking for 20A circuits; Decora-style plates (single-gang mud rings) simplify alignment in old work boxes. Pre-twist copper conductors clockwise (matching wire nut threading) to prevent separation under torque–apply anti-oxidant compound (e.g., Ideal Noalox) on aluminum traveler wires in retrofits. Store spare 14/3 NM-B cable (minimum 50′ spool) for repairs; label each conductor with shrink tubing per NEC Article 404.2(C) before energizing.
Identifying Common, Traveler, and Ground Conductors in a 3-Way Circuit
Locate the common terminal first–it’s typically marked in black or copper and sits apart from the other screws on the device. In most configurations, this conductor carries the line or load voltage, so test it with a multimeter set to AC voltage (120V/240V range) while the circuit is live. If reading zero, flip one of the toggles to confirm voltage presence; the common will show consistent power regardless of toggle position, while the others will alternate.
Distinguishing Travelers from Other Conductors
The traveler terminals are usually brass-colored and positioned opposite each other, often labeled as “L1” and “L2” or simply left unmarked. These carry the switched current between devices and will show voltage only when toggled to the matching position. To verify, disconnect power, label both wires, and use a continuity tester: travelers will complete the circuit when one toggle is up and the other down, while the common will remain disconnected. Avoid relying solely on wire color–while red and black are common, local codes or previous work may vary.
Ground conductors–bare copper or green-sheathed–require no complex diagnosis. They attach to the green grounding screw or clipped tab on the device frame, ensuring a low-resistance path to the panel. Confirm their role by checking for continuity to the metal box or grounding bus; if absent, investigate for loose connections or missing bonding jumpers in conduit installations. Never omit grounding, as it prevents shock hazards during faults or short circuits.
Critical Errors in Multi-Control Circuit Installation
Skipping polarity verification on travelers between the two control points ranks as the most frequent oversight. Misaligned terminals on either end of a three-way connection create an open loop, forcing the entire setup to fail silently until diagnostics reveal swapped wires. Label each conductor before disconnecting any existing joinery–white for neutrals, unmarked travelers for intermediates, and colored sleeves on commons to prevent misidentification during reconnection.
Using 14-gauge wire for a 15-amp breaker may seem adequate, yet load-sharing across two toggle points doubles current draw during simultaneous adjustments. Upgrading to 12-gauge copper eliminates nuisance tripping during bulb warm-up surges, especially with LED fixtures that exhibit transient inrush currents exceeding tenfold steady-state values. Verify conduit fill limits if retrofitting; exceeding 40% fill with oversized conductors risks overheating insulation.
- Omitting grounding connections at both control locations leaves exposed metal parts vulnerable to leakage faults.
- Bypassing junction boxes for splice access violates NEC 314.16, inviting corrosion from humidity and physical strain on unsupported cables.
- Mixing brass screws for traveler terminals with silver screws for neutrals guarantees misplaced conductors under dim light.
Relying on push-in connectors instead of pigtail splices introduces intermittent failures months later when thermal cycling loosens spring tension. Twist-wire splices paired with strain-relief clamps inside junction boxes maintain conductivity even after repetitive toggling stresses test mechanical connections. Secure each splice with a torque screwdriver set to 12 in-lbs; overtightening crushes stranded conductors, while undertightening permits oxidation.
Incomplete insulation stripping exposes bare wire within terminal clamps, where vibration from adjacent toggle action abrades sheathing over time. Remove exactly 0.5 inches of jacket–less risks poor contact, more invites short-circuit arcing during transient voltage spikes from neighboring loads. Use a dedicated wire stripper with 12-gauge slots to prevent nicking underlying conductors that compromise structural integrity.
Ignoring local code amendments regarding arc-fault protection voids insurance coverage during post-installation incidents. Install combination-type AFCI breakers that monitor both series and parallel arcs across the entire circuit path, not just downstream of the first control. Test each breaker with a handheld arc simulator before energizing; faulty units fail silently, offering no protection during actual events.
- Verify dimmer compatibility with LED bulb specifications–exceeding wattage derating curves on electronic dimmers triggers premature failure.
- Seal outdoor conduit entries with duct seal compound rated for -40°C to +120°C temperature swings, preventing moisture infiltration.
- Confirm screwless wall plates fit snugly against rough-in boxes; gaps allow dust accumulation that increases contact resistance over time.
Assuming neutral continuity across split-phase circuits without physical verification causes phantom loads that drain 5-8 watts continuously, even when off. Utilize a non-contact voltage tester on each conductor segment to isolate discontinuities before connecting any toggles. Document splice locations on as-built drawings for future troubleshooting; undocumented junctions lead to accidental circuit severance during later renovations.
