Start by verifying the circuit’s voltage rating–most two-slot configurations handle 120V AC (North American standard) or 230V AC (European outlets). Confirm the appliance’s power requirements match the socket’s capabilities before proceeding. Use a multimeter to test for live current if the fixture lacks visible markings.
Identify the hot (live) and neutral terminals by color: black or red wires typically carry current, while white denotes neutral in US systems. In Europe, brown is live, blue is neutral. For unmarked wires, trace them to the appliance’s switch–hot wires connect to brass screws, neutrals to silver. Ground connections (green/yellow) won’t appear in this setup but check for stripped-back insulation where a ground might have been removed.
Strip no more than 6mm of insulation from each conductor using wire strippers calibrated for the gauge (usually 14 or 12 AWG). Twist strands clockwise to prevent fraying, then loop each wire around its screw terminal in the same direction as the screw tightens. Apply firm pressure (1.2–1.5 Nm torque) to avoid loose connections–overheating from poor contact causes 28% of residential electrical fires.
Polarity matters: reverse hot/neutral wiring risks shocks and appliance damage. For polarized connectors (one slot wider), ensure the neutral wire aligns with the wider prong’s terminal. Test with a voltage tester–probes should show 120V between hot and neutral, 0V between neutral and ground.
Insulate exposed terminals with electrical tape or a heat-shrink sleeve before enclosing the housing. Secure all screws, then plug the device into a known-good receptacle to verify functionality. If the appliance hums but doesn’t power on, recheck connections for loose strands or reversed wires.
For temporary setups, use a three-to-two adapter–never remove the ground prong. Permanent modifications require replacing the two-slot outlet with a three-slot variant or consulting an electrician if the circuit lacks grounding. Always shut off the breaker (test with a non-contact voltage detector) before handling exposed conductors.
Connecting a Two-Pin Connector Safely
Strip 6-7 mm of insulation from each conductor using wire strippers, ensuring no copper strands are severed–damaged strands reduce current capacity. Twist the strands gently to prevent fraying, then loop the wire clockwise around the terminal screw to match the screw’s tightening direction. Tighten screws firmly: loose connections cause overheating, while overtightening can strip threads. For polarised configurations, attach the hot wire (smooth or ribbed, depending on regional standards) to the brass-coloured screw and the neutral (typically marked or wider) to the silver screw.
Verify compatibility with the appliance’s voltage requirement. European two-pin attachments usually handle 220-240V, while North American variants support 110-120V–misapplication risks equipment damage or fire. Check the cable’s gauge: 18 AWG suits low-power devices (up to 10A), while 16 AWG or thicker is needed for higher loads. Test continuity with a multimeter after assembly: infinite resistance indicates a faulty connection, while near-zero resistance confirms proper contact. Isolate terminals with electrical tape if the connector lacks a protective cover to prevent accidental shorts.
Replace worn connectors immediately if terminals show discolouration, pitting, or corrosion–these defects increase resistance and heat buildup. Avoid adapting two-pin setups for three-pin sockets by removing the grounding pin; this bypasses critical safety features like grounding for fault currents. For temporary solutions, use a properly rated adapter rather than jury-rigging connections. Never daisy-chain multiple high-draw appliances (e.g., heaters, microwaves) onto a single two-pin split connector, as this exceeds the cable’s ampacity limits.
Identifying the Neutral and Hot Conductors in a Two-Pin Connector
Examine the insulation color codes–older two-pin connectors frequently use a white or light-colored wire for the neutral conductor, while the hot conductor is typically black, red, or occasionally brown. If colors are faded or non-standard, trace the wiring back to the source: the neutral conductor connects to the wider slot in polarized outlets or the silver screw in terminal blocks. For unmarked wiring, a non-contact voltage detector can confirm the live line without exposing conductors; the hot wire will trigger the sensor.
Check conductor thickness–neutral wires often have slightly larger gauge due to safety standards, especially in 120V circuits where current returns through the neutral path. Verify this by comparing diameters under direct light or using calipers. In older cloth-insulated wiring, the neutral may appear flattened or have a smoother surface from prolonged contact with outlet contacts, while the hot wire retains sharper edges from insulation wear near the terminal.
Test continuity with a multimeter: set the device to resistance mode (Ω) and probe between the suspected neutral and the ground reference–a reading below 1Ω confirms the correct identification. For split-phase systems, the neutral-to-neutral continuity test will show near-zero resistance, while probing neutral-to-hot will display the circuit’s voltage. Always de-energize the circuit before handling; even low-voltage systems can cause hazardous short circuits if misidentified.

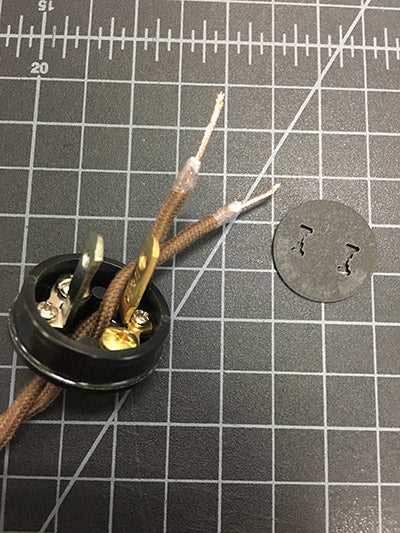

Step-by-Step Guide to Stripping and Preparing Conductors for Attachment
Use a wire cutter with a built-in stripper for diameters between 14 and 10 AWG–this ensures clean removal of insulation without nicking the metal strands. Hold the conductor steady with one hand while applying light pressure to the tool’s jaws, rotating slightly if resistance is felt.
Measure 6–8 mm of exposed metal from the end of the jacket. For stranded cores, twist the bare section clockwise with your fingers or needle-nose pliers to prevent fraying. Solid cores require no twisting but must lie straight for even insertion into terminals.
Avoid leaving loose strands; they can cause shorts or poor conductivity. If strands separate, trim 1–2 mm and restrip. Check that no insulation fragments remain stuck to the metal–tiny flecks act as insulators between the connection points.
Test the stripped section by gently pulling it through your fingers. If resistance is felt, remaining insulation is likely present. A magnifying glass or bright light helps identify stubborn remnants on transparent jackets like PVC or Teflon.
- For copper, use rosin flux before soldering to remove oxidation.
- For aluminum, apply antioxidant paste immediately after stripping to prevent corrosion.
- For thin gauges (18–22 AWG), employ a precision stripper with depth stops to prevent cutting into the core.
When preparing multiple conductors, label each end with masking tape or colored sleeves to match corresponding connection points. Misidentification during assembly leads to reversed polarity or incomplete circuits, especially in polarized setups.
Handling Special Insulation Types
Silicon-jacketed wires fray easily; use a heat gun to shrink back the jacket slightly before stripping. Fiberglass-insulated conductors shed tiny glass fragments–work over a tray or disposable surface to contain debris. Twisted pair cables require splitting apart the pairs first, then stripping each individually to maintain pair integrity.
Once stripped, bend a 1–2 mm hook at the end of each conductor for screw-down terminals. This increases surface area contact for screws and prevents slippage under torque. For crimp connectors, slide the barrel onto the core before twisting stranded ends–this prevents strands from folding back during crimping.

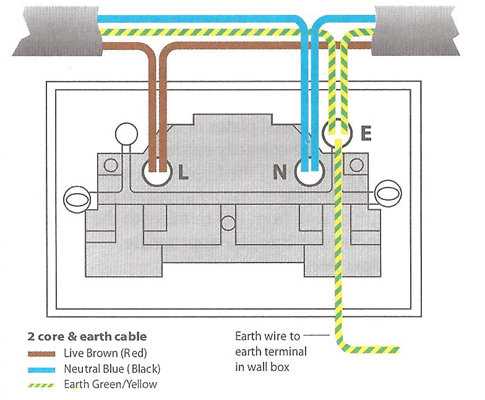

Correct Polarity: Which Screw Terminal Corresponds to Each Wire
Always connect the hot (live) conductor to the brass-colored or gold-toned terminal screw. This wire typically carries the electrical current from the source and is often insulated in black, red, or another non-white color. Failure to attach it correctly risks reversed polarity, which can damage sensitive electronics or create a shock hazard.
The neutral conductor must terminate at the silver-colored screw. This wire completes the circuit by returning current to the source and is usually white or light gray. Verify the terminal’s marking–some devices label it with an “N” or a sideways “T” symbol. Reversing neutral and hot connections may not trip a breaker but can cause subtle malfunctions in appliances like lamps or motors.
Key Terminal Markings and Wire Identification
- Brass/gold screw: Hot (live) wire–black, red, blue, or any non-white/green insulation.
- Silver screw: Neutral wire–white or light gray.
- Green screw (if present): Ground wire–bare copper or green insulation.
For polarized connectors (e.g., Type A or Type C standards), the wider slot corresponds to the neutral wire, while the narrower slot accepts the hot wire. Use a multimeter set to AC voltage to confirm polarity before finalizing connections. Measure between the hot terminal and a known ground–expect ~120V (or local standard) for correct polarity. If reading shows near zero, swap the wires immediately.
Troubleshooting Reversed Connections
- Disconnect power at the circuit breaker before inspecting.
- Check terminal screws for loosening–tighten to 12–15 inch-pounds of torque.
- Strip wire insulation to expose 3/8″ of copper for a secure grip.
- If terminals lack color coding, refer to the device’s manual or engravings (e.g., “+” for hot, “-” for neutral).
- After corrections, test with a non-contact voltage detector before handling.
