Begin by identifying the power source terminals on the control unit. Most modern systems require a dedicated 220V circuit with a minimum 30-amp breaker. Connect the line (hot) wire to the primary input, ensuring proper insulation to prevent voltage leaks. The neutral and ground wires must follow local electrical codes–ground loops are a leading cause of equipment failure in automotive workshops.
Trace the wiring harness from the control box to the hydraulic pump motor. The red conductor typically carries live current, while the black serves as the common return. Verify resistance values across each winding with a multimeter; readings outside 5-15 ohms indicate potential coil degradation. Avoid splicing wires near moving parts–use insulated crimp connectors rated for 90°C minimum.
Install limit switches at both the upper and lower travel positions. Mount them securely to avoid misalignment during operation. The normally-open contacts should close when triggered; test this with a continuity meter before finalizing connections. Failure to calibrate switches can result in over-extension damage to structural components.
For safety circuits, integrate a dual-button start system with a maintained-contact relay. This prevents accidental activation during maintenance. Wire the emergency stop button in series with the primary power feed–it must cut power to both the motor and control circuits. Always use 12-gauge or thicker wire for low-voltage signaling paths to minimize signal loss.
Label every terminal connection using heat-shrink tubing or adhesive markers. Color-coding alone is insufficient for troubleshooting. Document the configuration in a schematic specific to your hoist’s serial number–manufacturer wiring differs even between models of the same series.

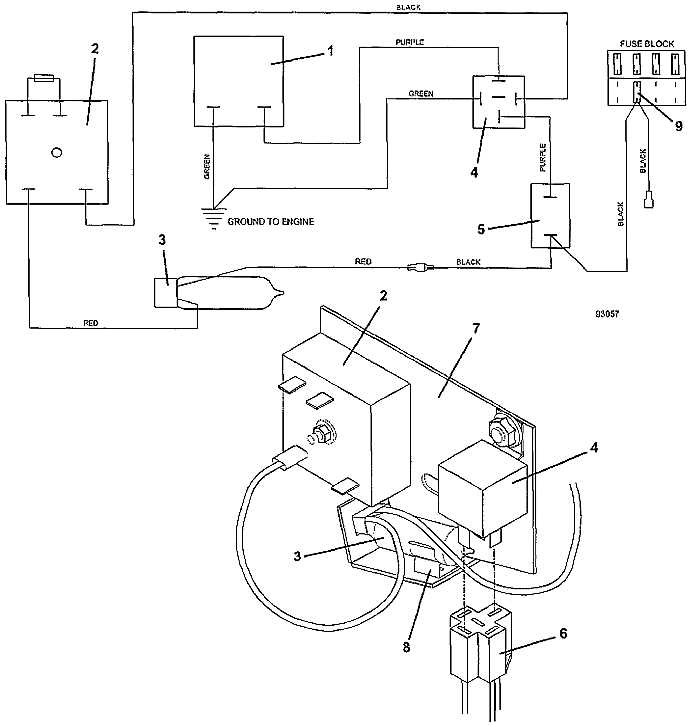

Electrical Schematic for Dual-Column Vehicle Hoist Systems
Ensure the power supply unit matches the hoist’s voltage and current specifications–most commercial models require a dedicated 220V circuit with a 30A breaker. Mismatched voltage causes motor burnout or insufficient lifting capacity. Check the manufacturer’s label for exact requirements before connecting wires.
Connect the control panel wires in this sequence:
- Red to the “UP” terminal
- Black to the “DOWN” terminal
- White or green to the ground busbar
- Blue (if present) to the emergency stop circuit
Label each wire with heat-shrink tubing to prevent misconnections during maintenance.
Install dual-phase protection relays if the system lacks built-in overload sensors. These relays prevent arm asymmetry by cutting power when imbalance exceeds 15% between columns. Mount relays near the motor housing for optimal response time.
Test safety locks before each use–engage the mechanical latch and verify the electric interlock confirms engagement via a flashing LED on the panel. A faulty interlock voids the safety certification and risks structural failure under load.
Route cables through conduit or flexible tubing to shield them from oil, hydraulic fluid, and metal shavings. Exposed wires lead to short circuits; replace any insulation showing cracks or fraying immediately. Use waterproof connectors for outdoor installations.
For troubleshooting, refer to this voltage reference at key points:
- Motor terminals: 210–230V AC
- Control panel input: 110–120V AC
- Limit switch outputs: 24V DC
- Emergency stop circuit: 0V when activated
Deviations indicate a component failure; isolate the segment with a multimeter before proceeding.

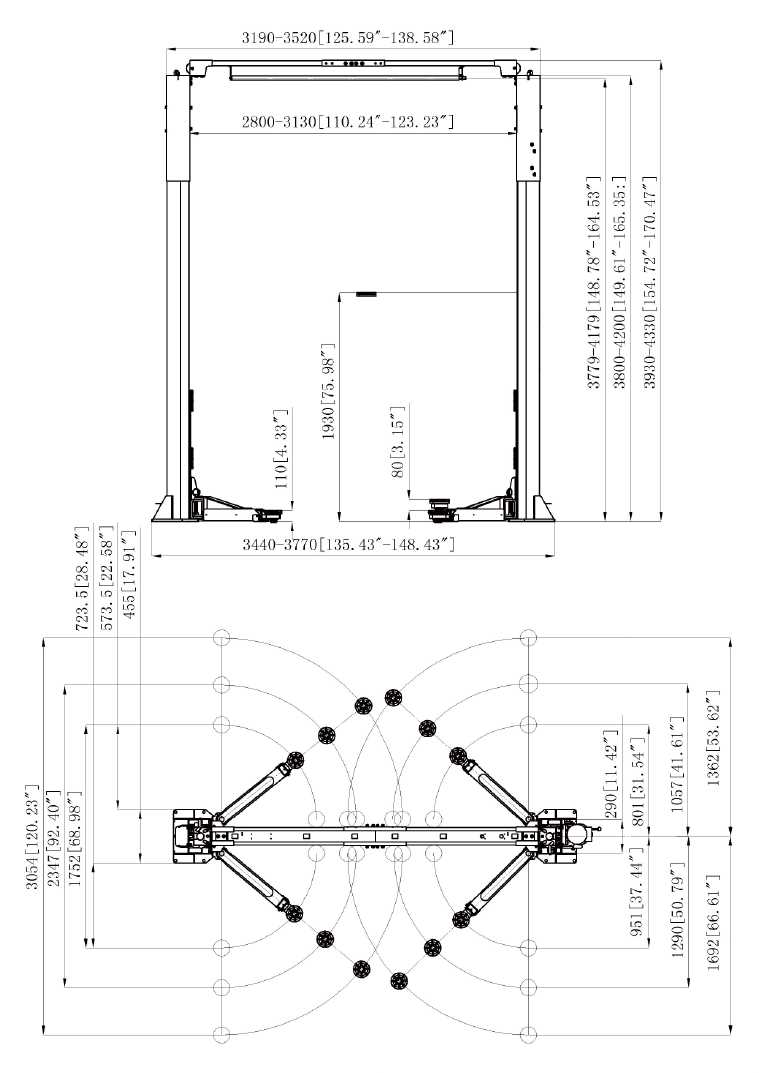

Critical Elements in Dual-Column Elevator Electrical Schematics
Start by locating the power distribution block–typically a metal-enclosed box with multiple terminal studs. This component consolidates incoming mains voltage and splits it into branch circuits for safety devices, motors, and control relays. Verify each terminal is labeled with VAC ratings (often 220–480V) and torque specifications (15–20 lb-ft) to prevent loose connections that cause arcing or voltage drops during operation.
Inspect the hydraulic pump solenoid valve section next. The schematic should map a dedicated circuit with a 24VAC coil, protected by a 3–5A fuse or miniature circuit breaker. Ensure the wiring gauge aligns with ampacity tables (minimum 14AWG for 24V, 10AWG for high-current lines). A color-coded overlay–usually red for power, blue for neutral–eliminates miswiring risks during maintenance.
Identify limit switches and their micro-switches marked on the plan. These snap-action devices halt carriage travel at upper/lower bounds, requiring precise calibration (adjust lever tension to 1.5–2.5mm actuation gap). Verify the schematic shows normally-open/normally-closed contacts clearly, as reversed wiring will disable automatic shutoff, risking structural overload.
Trace the emergency stop loop wiring–a series-connected chain of pushbuttons and center-tapped relays. Each button must break the control circuit completely when pressed, necessitating redundant paths (parallel configuration) for fail-safe operation. Test continuity with a multimeter under load (expected resistance <1Ω) to confirm integrity after installation.
Examine the motor starter assembly: look for a three-pole contactor paired with overload heaters sized per motor nameplate (e.g., Class 10 for NEMA-rated pumps). The schematic should detail starter coil voltage (typically 120VAC) and separate wire runs for line, load, and auxiliary contacts. Cross-reference heater amperage ratings with motor FLA to prevent nuisance tripping during startup surges.
Check the control panel’s transformer section. The step-down unit (often 480→120V or 220→24V) must have primary/secondary taps labeled with VA ratings (minimum 50VA for relay loads). Shielded twisted-pair (STP) cables link the transformer to PLC inputs–ground shielding at one end only to avoid ground loops that disrupt sensor feedback.
Locate auxiliary interlock relays–these coordinate secondary functions like fluid level sensors or door latches. Each relay’s coil and contacts appear on the schematic with pin designations (e.g., 87/87a for Form C contacts). Label every wire with heat-shrink sleeves corresponding to the diagram’s alphanumeric tags (A1–A4 for coils, 13–14 for contacts) to streamline troubleshooting.
Confirm grounding pathways–equipotential bonding straps connect all metal enclosures to a single ground busbar. The diagram should indicate bare copper conductors (6AWG minimum) terminating at a dedicated earth ground rod or building steel. Measure ground impedance (<5Ω) periodically; corrosion-resistant lugs (tin-plated) are essential in damp environments.

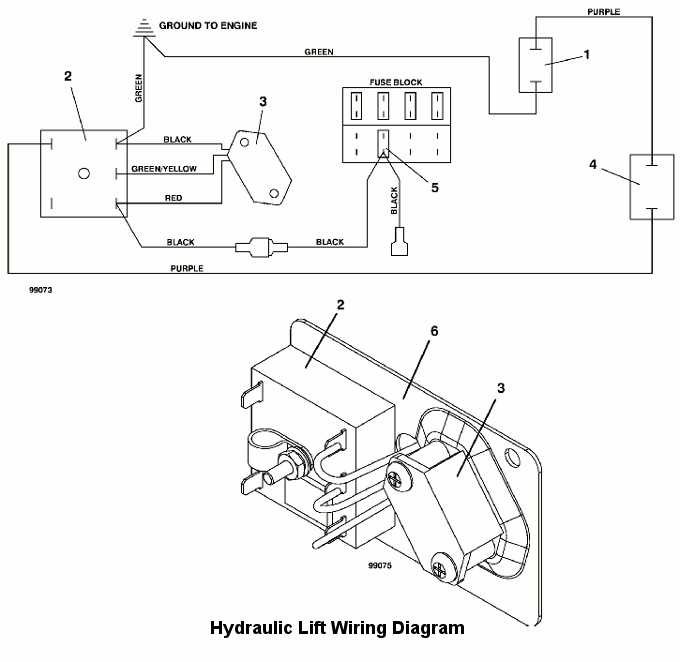

Step-by-Step Electrical Hookup for Hydraulic Equipment and Operator Interface
Begin by securing the main power feed to the hydraulic motor’s terminal block. Use 10 AWG copper conductors for systems rated up to 220V, 20A, and strip exactly 12mm of insulation from each end. Connect the black (live) wire to the L1 terminal, white (neutral) to L2, and green (ground) to the dedicated grounding lug. Verify torque specifications: 7 lb-in for terminal screws. For dual-voltage units (110V/220V), ensure the selector switch is set to the correct voltage before energizing–incorrect settings will trip breakers or damage components within 30 seconds of activation.
Control Panel Terminal Mapping
| Interface Terminal | Wire Color | Gauge (AWG) | Destination Component | Connector Type |
|---|---|---|---|---|
| UP (A) | Red | 18 | Solenoid Valve Coil #1 | Spade, 0.187″ |
| DOWN (B) | Blue | 18 | Solenoid Valve Coil #2 | Spade, 0.187″ |
| COM | Black | 18 | Common Solenoid Return | Screw terminal |
| SENSE | Yellow/Green | 22 | Pressure Switch (Normally Open) | Pin terminal, 2mm |
Route control cables through ½” flexible conduit to prevent pinching–sharp bends under 6x cable diameter cause signal loss. For solenoid valves, use 18 AWG stranded wire with PVC insulation rated for 300V; solid wire risks fatigue fractures at connection points. Label each conductor at both ends with heat-shrink tubing to match the schematic identifiers (A, B, COM). Ground the control panel chassis to the main frame using a 6 AWG bare copper wire, terminating in a star washer to ensure
Before energizing, test all circuits with a multimeter in continuity mode. Probe between each solenoid terminal (A, B) and COM–values should read 20-50Ω for intact coils and infinity for open circuits. Check pressure switch contacts: with no load, the switch should show open; under 1500 psi, it must close. If resistance exceeds 50Ω or contacts fail, replace the solenoid or switch–do not bypass, as this compromises safety interlocks. For 24VAC systems, confirm the transformer’s secondary tap delivers 24V ±5% with the primary energized.
Finalize connections by securing all terminals with nylon cable ties, positioned 25mm from connectors to reduce vibration stress. Apply dielectric grease to screw terminals to prevent oxidation, especially in high-humidity environments. Power the system via a dedicated 20A circuit breaker with AFCI protection for control circuits to prevent nuisance tripping. For automated shutdown sequences, wire the emergency stop button in series with both the UP and DOWN circuits, ensuring it cuts power to both solenoids within 200ms of activation. Calibrate the pressure relief valve to 10% above operational limit (typically 2000 psi) using a gauge with ±3% accuracy.
Standard Cable Color Codes and Their Roles in Automotive Hoist Control Circuits
Always verify ground connections first–black cables (or brown in some European designs) must terminate directly to the frame or a dedicated grounding bus. Poor grounding causes erratic behavior like slow retraction or intermittent safety lock engagement. Use a digital multimeter to check for less than 0.1 ohms between the black conductor and the nearest metal contact point before proceeding.
Red leads typically carry the main 12V or 24V supply from the battery. In dual-column setups, two separate red feeds may run to each motor controller; label them “Column A” and “Column B” with heat-shrink markers to prevent swapping. On older models, a red wire with a white stripe often feeds auxiliary functions like emergency stop relays–this variant requires 10–15 amp fuse protection.
Secondary Voltage and Safety Circuit Colors
Yellow wires usually transport lower-voltage signals, commonly 5V or 12V, to control solenoids or proximity sensors. If replacing a sensor, match the existing gauge–22 AWG for digital signals, 18 AWG for inductive sensors near arm pivots. Green or blue cables frequently manage safety interlocks; connecting them incorrectly can bypass critical checks like arm alignment before ascent.
Orange paths are almost always dedicated to communication protocols between the control panel and hydraulic pump. Cutting or extending orange wires without a shielded twisted pair introduces interference that corrupts CAN bus messages, causing erratic height readings. Strip only 3–5 mm of insulation when splicing, using crimp connectors rated for the same wire gauge.
White wires frequently serve as neutral returns for 120V AC circuits if the hoist includes a compressor or lighting. Never connect a white lead to the DC system–even a brief cross can destroy the control board. For AC circuits, pair white with black (hot) and green/yellow stripe (ground) following NEC standards; use a non-contact voltage tester to confirm power is off before handling.
Striped variations indicate redundancy or dual-function roles. A black wire with orange tracer, for instance, might combine ground with a secondary sensor signal; verify its role through the manufacturer’s schematic rather than assumptions. For temporary troubleshooting, attach alligator clips to a breakout board–but avoid leaving them connected longer than 30 minutes to prevent heat buildup.
In imported European or Asian models, purple may replace blue for actuator controls, and gray often handles neutral in 220V setups. Always cross-reference colors with the terminal block labels; a single incorrect connection can trip overload protection and require manual reset of the thermal breaker inside the motor housing.
