For reliable operation in motion-controlled systems, install dual-position detection devices using a normally closed (NC) circuit configuration when connecting to a controller input. This setup ensures fail-safe behavior by triggering an immediate stop if the sensor opens or loses power. Use low-voltage DC (typically 24V) for signal lines to minimize interference and maintain signal integrity over long cable runs–keep conductor lengths under 100 meters to prevent voltage drop. Shielded twisted pair cables should be grounded at a single point to reduce electromagnetic noise, with the shield connected to the equipment chassis, not the signal ground.
Apply pull-up resistors (1kΩ–4.7kΩ) between the sensor output and supply voltage when interfacing with open-collector devices. This prevents floating inputs and false triggering. For dual-channel redundancy on high-risk axes like robotic arms or gantry cranes, wire each detection device to separate controller inputs and configure logical AND operation–this guarantees both sensors must confirm position before motion resumes. Always verify sensor polarity before energizing: red lead to positive, black to ground, and white (or yellow) to the signal terminal. Test continuity with a multimeter before powering the system to confirm no short circuits exist.
Label all wiring at both ends with heat-shrink tubing and use strain-relief connectors to prevent cable flex damage in moving applications. For high-temperature environments, specify silicone-insulated conductors and sealed connectors rated for IP67 or higher. When integrating with PLCs, ensure input modules support sinking or sourcing configurations to match sensor output type–most industrial sensors are sinking (NPN) and require PLC inputs configured for PNP compatibility. Avoid mixing signal types on the same bus to eliminate risk of cross-talk.
Document every connection in a schematic showing wire gauges, colors, terminal numbers, and controller I/O addresses. Use separate 22–20 AWG conductors for power and signal lines–never combine them. For AC-powered machinery, isolate detection devices from motor circuits using optocouplers or relays to prevent back-EMF damage. Always include a manual override bypass switch in the control circuit for emergency maintenance access.

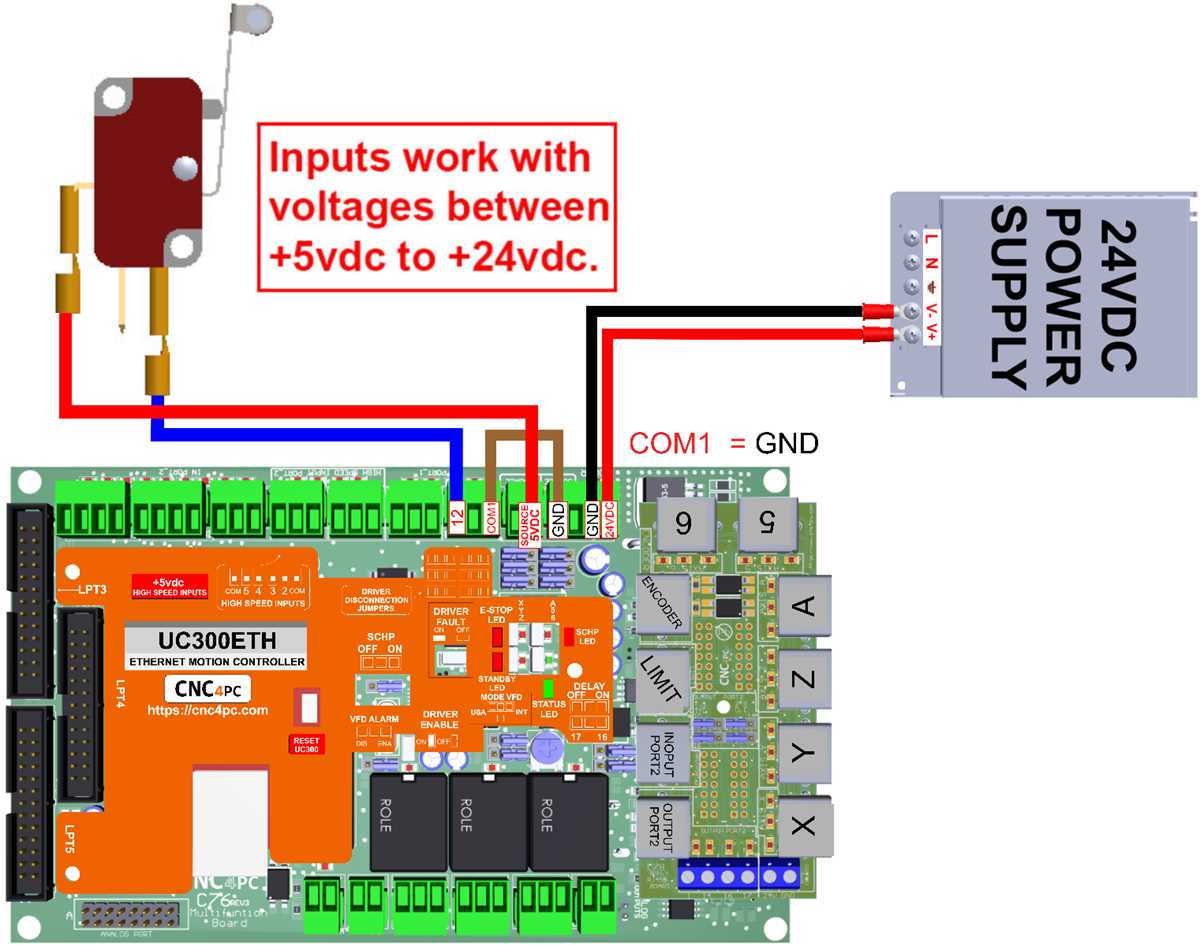

Dual Endstop Connection Guide for Automated Systems
Connect both boundary detectors in series to the control module using 24 AWG shielded cable for noise immunity, especially in high-EMF environments. Terminate the positive lead of the first sensor to the NO (normally open) contact and the common lead to the shared power bus–this ensures fail-safe operation when the mechanism reaches either extreme.
For parallel configurations in bidirectional applications, split the signal path into two branches: one for each direction. Use a SPDT (single pole double throw) relay to toggle between the forward and reverse circuits, preventing false triggers during rapid position changes. The relay coil should be rated for at least 5V DC to match standard microcontroller outputs.
Ground the shield at a single point–preferably the control panel–to avoid ground loops. If grounding at the panel isn’t feasible, use a 0.1µF capacitor between the shield and chassis ground near the power source to suppress transient interference. Verify continuity with a multimeter before powering the system to rule out shorts in the shielding.
Key components for reliable integration:
- 24 AWG shielded cable (minimum 300V insulation rating)
- SPDT relay (e.g., Omron G5LE, 10A contact rating)
- Flyback diode (1N4007 for inductive loads)
- 0.1µF ceramic capacitor (for EMI filtering)
- 120Ω resistor (current-limiting for LED indicators)
When interfacing with PLCs, assign dedicated digital inputs for each sensor. Configure the PLC ladder logic to trigger an immediate stop if either input changes state, with a 50ms debounce delay to filter mechanical bounce. For Arduino-based systems, use attachInterrupt() with CHANGE mode for real-time response, but ensure the attached function executes in under 10µs to avoid missing subsequent triggers.
Test the setup under worst-case conditions: simulate extended operation at 120% of the rated load and verify the sensors maintain accuracy within ±0.5mm of the target position. If repeatability drifts, inspect the actuator’s linear bearings for wear or misalignment, as mechanical play often masquerades as electrical faults.
Troubleshooting Common Failures
- Intermittent false triggers: Replace the cable with twisted-pair wiring and add ferrite beads near the control board.
- Unresponsive sensors: Check for voltage drop across the contacts with a voltmeter–clean oxidation with contact cleaner if >0.2V.
- Relay chatter: Swap the relay for a solid-state model (e.g., Crydom D06D) with zero-crossing turn-on.
- PLC input errors: Lower the input impedance by adding a 1kΩ pull-down resistor to each sensor line.

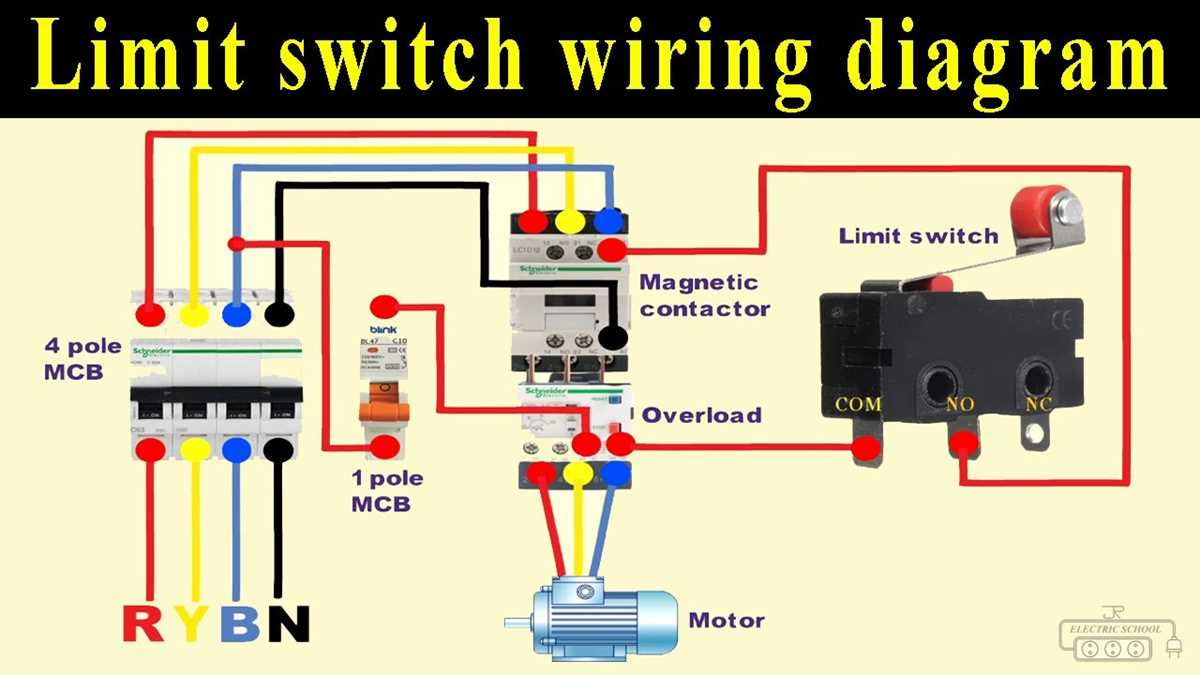

How to Connect Normally Open and Normally Closed Safety Detectors
Start by identifying the control circuit’s voltage requirements–typically 24V DC, 120V AC, or 230V AC–and match the sensor’s terminal markings. For momentary-contact devices labeled COM (common), NO (normally open), and NC (normally closed), connect the power source to the COM terminal. If the application demands a fail-safe response, route the load through the NC contact to ensure the circuit remains closed during standby. For monitoring operations where interruption signals a fault, wire the LOAD through the NO contact.
Use a multimeter to verify continuity before energizing the system. Set the meter to continuity mode and probe the NO and COM terminals: no beep indicates an open circuit in standby. Probe NC and COM–the beep confirms the circuit is complete until activated. If the readings fail, inspect the contacts for debris or oxidation, clean with contact cleaner, and retest. A faulty sensor will leak current or refuse to toggle states; replace units showing >1Ω resistance across NO or intermittent readings.
Choosing Conductors and Protecting the Circuit
Select wire gauges based on current draw and distance: 18 AWG for 2A over short runs. Use stranded copper conductors in vibrating environments; solid conductors risk fatigue breaks. Route conductors away from electromagnetic interference sources–stepper motors, variable-frequency drives–shielding cables with foil braid reduces stray voltage spikes. Mount inline fuses or circuit breakers rated at 150% of expected current to prevent overload damage.
Grounding requirements differ for DC and AC setups. For 24V DC, connect the COM terminal to the negative bus; in AC systems, isolate COM from ground unless equipment mandates neutral bonding. Confirm with a ground loop impedance tester–excessive leakage (>0.5Ω) signals poor grounding. In wet environments, use waterproof junction boxes and dielectric grease at terminals to prevent corrosion; indoors, standard terminal strips suffice with anti-vibration washers to prevent loosening.
Testing and Calibration After Installation
Actuate the device manually while monitoring the control circuit with a voltmeter. For NO contacts, voltage should drop to zero when activated; NC contacts should show source voltage until tripped. Check response times–most industrial detectors toggle in
Document the installed base by labeling each conductor with its function (e.g., “X-Axis Overrun NC”) and cross-reference with the schematic. Store spare units of the same model; firmware or tolerance variances between brands can disrupt calibration. Replace sensors exhibiting hysteresis–differences between trip and reset points–greater than 5% of operational range, as drift degrades precision over time.
Step-by-Step Connection Guide for Single-Phase and Three-Phase Motors
Begin by identifying the motor’s terminal box layout–labeling each post with its proper designation. For single-phase 230V motors, locate the main winding (U1, U2) and auxiliary winding (Z1, Z2), along with the capacitor’s two terminals if included. Ensure the power source matches the motor’s voltage rating before proceeding. Use 1.5 mm² copper cables for currents under 10A and 2.5 mm² for currents up to 16A to prevent overheating.
For a single-phase motor with a start capacitor, connect the main winding directly to the power lines (U1 to L1, U2 to N). Attach the capacitor between Z1 and U2, then route a jumper from Z1 to the start relay if fitted. Verify the relay’s action–it should disengage the auxiliary circuit once the motor reaches 75% of rated speed. Test continuity across all connections with a multimeter to confirm zero resistance in closed circuits and infinite resistance between live and ground.
Three-phase motors require matching the supply configuration (delta or star) to the motor’s voltage tolerance. A 400V star-connected motor must not be wired in delta–this would apply 690V, exceeding insulation limits. For delta wiring, connect L1 to U, L2 to V, and L3 to W, ensuring the jumper links (U-V-W) are in place for the neutral point. Star wiring instead ties U, V, and W together at the neutral, leaving L1, L2, and L3 to each terminal.
Protective elements must be sized precisely. Overload relays should trip at 110-120% of the motor’s full-load current. Fit a 10A fuse for motors drawing 5-7A, and a 16A fuse for 8-10A loads. Use a contactor with coil voltage matching the control circuit–24V DC, 110V AC, or 230V AC. Ensure the contactor’s contact rating exceeds the motor’s starting current surge, typically 6-8 times the rated current for three-phase motors.
| Motor Type | Cable Size (mm²) | Fuse Rating (A) | Contactor Size |
|---|---|---|---|
| 0.37kW 230V Single-phase | 1.5 | 6 | 9A |
| 1.1kW 400V Three-phase | 2.5 | 10 | 12A |
| 3kW 400V Three-phase | 4 | 16 | 25A |
Grounding is non-negotiable–connect the motor’s chassis terminal (⏚) to the earth busbar using green-yellow striped 2.5 mm² cable. Measure earth continuity; readings above 0.5 ohms indicate corrosion or loose connections. Separate control circuits from power circuits using distinct color codes–red for power, blue for neutral, black for control, and orange for secondary elements.
After completing connections, energize the circuit in stages. First, apply control voltage to the contactor coil–listen for a crisp mechanical engagement. Next, close the main power breaker while monitoring the motor’s idle current via a clamp meter. Expected values: 1.5-2A for a 0.75kW motor, 4-5A for 2.2kW. If currents exceed 150% of rated, disconnect immediately–this signals reversed poles or internal shorting.
Final validation includes thermal testing–run the motor under load for 30 minutes, checking terminal temperatures. Safe limits: 60°C for Class B insulation, 80°C for Class F. Document all readings, noting ambient temperature for baseline reference. Replace any component showing discoloration or thermal deformation to avert future failures.
