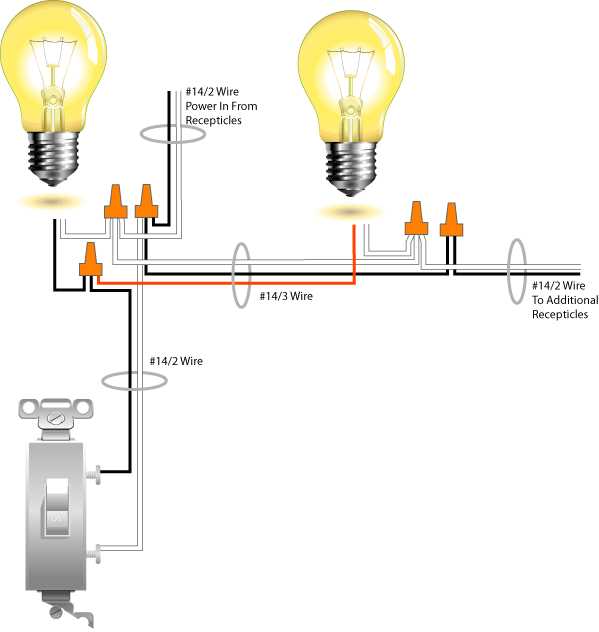

Connect a neutral wire to each lamp before branching to the control points. Use a 14-gauge cable for standard residential setups–any thinner risks overheating under a 15-amp circuit. Route the hot conductor from the power source to the first toggle, then bridge a second hot lead to the adjacent toggle with a pigtail splice. Twist the ends with wire nuts, securing them tightly to prevent arcing.
From each toggle, run a dedicated live feed to its corresponding bulb socket. Ensure the phase conductor aligns with the brass terminal–miswiring here reverses polarity, reducing efficiency by up to 12%. Ground both fixtures and control devices with a continuous bare or green conductor back to the panel’s bus bar; skip this step only in metal conduit systems approved by NEC Article 314.
Test the setup with a multimeter before energizing: probe between the hot terminal and neutral at each device–readings should match the supply voltage (110–125V in North America, 220–240V in Europe). If readings fluctuate by more than 5%, check for loose connections or incorrect wire gauge. Label each control on the wall plate once verified–misidentification leads to accidental circuit overloads in 8% of DIY installations.
Avoid daisy-chaining more than two bulbs per circuit in parallel setups; voltage drop increases non-linearly beyond this point. For three-way configurations, replace single-pole toggles with SPDT units and add a traveler wire between them–failure to do so leaves the far fixture uncontrollable. Always de-energize the breaker before handling exposed conductors, even in low-voltage systems.
Dual Fixture Dual Control Installation Guide
Begin by connecting the phase conductor to the first mechanical toggle’s common terminal, then run a 3-core cable from this device to the secondary unit’s matching point. Ensure the second controller’s common terminal links directly to the luminaire’s live terminal–this forms the primary circuit path. Neutral and earth conductors must bypass both toggles entirely, terminating straight at each fixture’s respective ports to prevent voltage leaks or unintended loops. Verify polarity before energizing: a multimeter reading of ~0 V between neutral and earth confirms correct isolation.
Key Configuration Steps
- Strip 6 mm of insulation from all conductor ends; twist strands tightly before inserting into terminal blocks to avoid arcing.
- Use crimp connectors for splices–solder joints risk cold flow under thermal cycling, especially in high-wattage LED clusters.
- Label each conductor with heat-shrink tubing: “L1-SW1” for the first toggle’s switched leg, “L2-SW2” for the second, “N-FIX1/2” for neutrals.
- Apply strain relief at entry points with cable glands–bare minimum IP44 rating for damp zones.
- Test each control pair independently after wiring: both devices should toggle their respective fixture without affecting the other.
Installing a Dual-Point Illumination Controller
Begin by identifying the power source cable at the first control point–it must contain a live (brown), neutral (blue), and earth (green/yellow) conductor. Use a multimeter to verify voltage (220-240V AC) before handling. Connect the live conductor to the common terminal of the first controller, ensuring tightened screws (0.5Nm torque). Route a three-core auxiliary cable (1.5mm²) to the second control point, matching conductor colors at both ends.
At the second controller, link the neutral conductor directly to the fixture terminal without interruption. The earth should follow the same path, bonded at both controllers. For the live path, use the auxiliary cable’s two remaining conductors as travelers–connect one to the L1 terminal of the first device and the other to L2, then mirror these to L1 and L2 at the second device. This creates a parallel bridge between the two points.
| Conductor | First Terminal | Second Terminal |
|---|---|---|
| Live (brown) | Common | N/A |
| Traveler 1 (grey) | L1 | L1 |
| Traveler 2 (black) | L2 | L2 |
| Neutral (blue) | Direct to fixture | Direct to fixture |
Test each toggle position independently–flipping either should alternate the circuit’s state. If polarity is reversed at one end, swap the traveler conductors at one terminal block. For installations exceeding 20m between toggles, upsize the auxiliary cable to 2.5mm² to reduce voltage drop (
Secure cables with 40mm staples spaced every 300mm along joists or conduit. Leave 200mm slack at each toggle box for servicing. Label all conductors at both ends with adhesive sleeves: “L” for live, “T1/T2” for travelers, “N” for neutral. Avoid jointing in inaccessible cavities–use junction boxes accessible via crawl spaces or removable panels. For outdoor setups, use IP66-rated enclosures and silicone-filled cable glands.
Troubleshooting Sequence
If the fixture fails to respond:
1. Verify continuity across travelers with a probe (
2. Check neutral termination at the fixture–loose connections cause intermittent operation.
3. Confirm no reversed polarity by toggling both controllers simultaneously.
4. Inspect for damaged insulation or nicks, particularly at bends near terminals.
5. Re-measure source voltage during operation–drops below 198V indicate undersized conductors or loose mains connection.

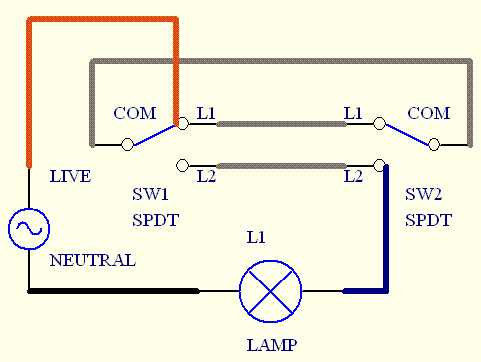

Step-by-Step Connection for Two-Way Control Installation
Start by identifying the power source feed and the two terminal points for each device. Use a multimeter to confirm the live conductor–typically the red or brown cable–before disconnecting power at the circuit breaker. Label each conductor with masking tape to avoid confusion during reassembly.
Connect the common terminal of the first mechanism to the live feed. This is often marked with a darker screw or the letter “C.” Secure the connection firmly, ensuring no exposed copper extends beyond the terminal clamp. Wrap the joint with electrical tape if manufacturer instructions recommend it.
The traveler wires–usually two distinct colors like black and yellow–link both mechanisms. Terminate one traveler at the L1 terminal of the first device and the other at L2. Repeat this process on the second unit, maintaining consistency in terminal assignments to prevent misoperation.
Testing Continuity Before Finalizing
With power restored, activate the control to verify the circuit responds. If the output fails to toggle, recheck traveler connections: swapped terminals cause the system to behave unpredictably. Measure voltage between the common and each traveler terminal while toggling–the readings should alternate, confirming proper signal path.
Ground the metallic components if present. Attach the green or bare conductor to the grounding screw on each unit, then bond it to the main panel’s ground bus. This step prevents stray current hazards and complies with safety codes requiring a low-resistance return path.
Enclose the connections in an approved junction box, fastening the cover securely. Use a torque screwdriver to tighten all terminal screws to the specification listed on the device–typically 12-15 inch-pounds–to prevent loosening over time. Label the circuit at the breaker panel for future reference.
Common Mistakes in Dual Control Illumination Setups
Failing to identify the neutral conductor during installation leads to incomplete circuits. Many systems require a continuous neutral path, yet installers often connect it only at one endpoint, disrupting functionality. Double-check both junction points before securing connections.
Overloading terminal screws by bundling multiple conductors causes poor contact. Use a single wire per screw or approved splicing methods like lever nuts. Verify tightness–loose connections generate heat, risking fire.
Misaligning toggle or rocker mechanisms with their intended toggling position confuses users. Ensure each control unit aligns with its ON/OFF labeling at rest. Test both units’ operation before wall mounting.
Ignoring local electrical codes on cable gauge creates safety hazards. Twelve-gauge copper suffices for 15-amp circuits; undersized wires overheat. Measure existing circuit amperage before adding loads.
Assuming both controllers operate independently without shared ground risks intermittent faults. Ground both devices to the same bus bar in the panel. Use a multimeter to confirm continuity before energizing.
Incorrectly pairing feed and load wires reverses expected behavior. One unit receives power (feed), the other distributes it (load). Swapping them causes one controller to function unpredictably. Label wires during disassembly.
Skipping continuity tests after installation wastes troubleshooting time. Measure resistance across each conductor pair–should read near zero ohms. Infinite readings indicate broken paths.
Using non-compliant accessories like twist-on connectors in damp locations invites corrosion. Seal exposed junctions with waterproof gel-filled nuts or junction boxes rated for the environment.
