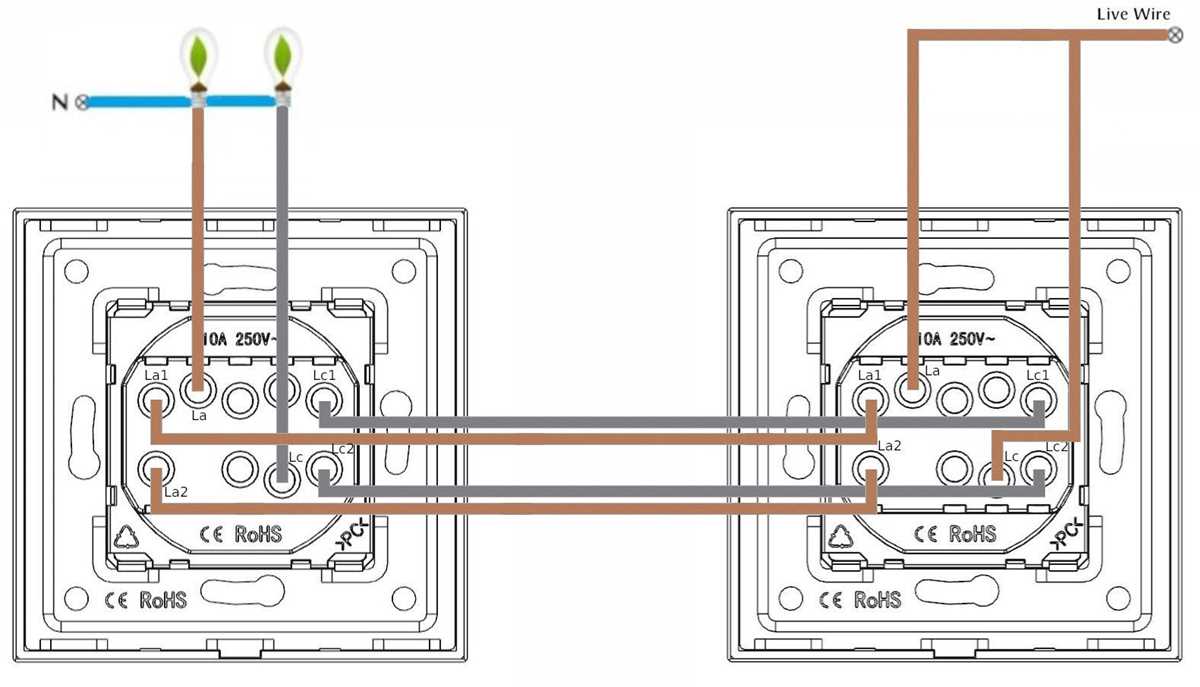

Connect the live conductor to the common terminal (marked COM) of the first control unit. Route phase wires from the remaining terminals (L1 and L2) to the matching terminals on the second device–never cross these conductors or link them directly. For UK installations, comply with BS 1363 standards by using 1.0 mm² minimum solid copper wire; North American setups require at least 14 AWG stranded conductors rated for 90°C. Verify circuit integrity with a multimeter set to 200 V AC range before energizing.
Mark both devices with identical labels (e.g., SW-A TOP / SW-A BOTTOM) to prevent wiring mismatches during maintenance. Use twist-to-lock cable glands at entry points to prevent strain on terminals–screw-fix types outperform snap-in variants for long-term reliability. Earth continuity must be established through a green/yellow sleeved conductor (minimum 1.5 mm²) routed separately and terminated at the metal backbox. For surface-mounted enclosures, ensure 6 mm minimum clearance from combustible materials.
For three-core-and-earth cable, pair the red and black cores to L1/L2 and reserve the blue core as a redundant neutral–do not link it to any functional terminal. When retrofitting older installations, check for obsolete 250 V rated components and replace them with 400 V equivalents if the supply exceeds 230 V. LED indicator lamps must be wired in parallel with limited current (
In multi-point circuits, stagger phase connections between paired controls to prevent parallel current paths–use a dedicated 3-pole isolator for safe isolation during repairs. For humid environments, apply dielectric grease to terminal screws and opt for IP65-rated faceplates. Document wiring layout with labeled photographs and store them with the property’s electrical certification records.
Dual-Control Pair Installation Guide
Start by connecting the live wire to the common terminal of the first control unit. Use a 1 mm² brown cable for the permanent feed–secure it firmly with the terminal screw. For UK installations, adhere to BS 1363 standards; verify voltage tolerance for the selected cable gauge to prevent overheating.
Link the corresponding common terminal of the second device using a separate 1 mm² black wire. Ensure polarity consistency–trace both wires with a multimeter set to continuity mode before energising the circuit. Misalignment here causes flickering or non-operation.
Attach the traveller wires between the two devices using 1 mm² grey cables. Label each end to avoid confusion during testing. In most configurations, these wires form an intermediate bridge–position them horizontally in junction boxes to reduce interference from adjacent cables.
For three-core cabling, use the red wire as the second traveller if brown/black are already assigned. Check local regulations–some regions mandate specific colour codes for safety compliance. Ground both units to a 4 mm² bare copper earth wire, connected to the circuit’s protective conductor terminal.
Test each position by toggling both controls independently. If only one side activates, re-examine the traveller connections–common errors include swapped wires or loose terminals. Use a non-contact voltage tester to confirm de-energised status before adjustments.
Seal all connections with insulated terminal blocks rated for 10 A. For outdoor setups, apply silicone gel to terminals to prevent moisture ingress. Document the layout with labels or a schematic reference for future troubleshooting.
Essential Equipment and Supplies for Installing Dual-Controller Circuits
Use insulated screwdrivers with a flat and Philips head–sizes #1 and #2 cover most terminal screws. Non-conductive handles prevent accidental shorts when working near live circuits. Test voltage with a non-contact detector rated for 90–600V AC before touching any wires to confirm power isolation.
Wire strippers must handle 12–14 AWG solid copper conductors, the standard for residential lighting feeds. Adjustable blades ensure clean cuts without nicking strands, which causes weak points under screw terminals. Choose models with built-in crimping notches if combining circuits with push-fit connectors later.
Necessary Components
| Item | Specification | Quantity per Circuit |
|---|---|---|
| Cable (NM-B) | 12/3 or 14/3 AWG with ground | 1 roll (~25 ft typical) |
| Device plates | Single or stacked 2-device cutout | 2 units |
| Connecting clips | Brass 18–22 AWG | 6–8 pieces |
| Grounding pigtails | Green 14 AWG stranded copper | 2 pieces (6″ lengths) |
Cable clamps secure 12/3 or 14/3 NM-B cable entering boxes without damaging sheath insulation. Plastic clamps suit PVC boxes; metal clamps require grounding if using metallic conduit. Cable supports every 4.5 ft prevent sagging in exposed runs such as basements.
Mounting hardware includes drywall anchors rated for 25 lbs if attaching to hollow walls. Metal studs require fine-thread screws; wood studs accept coarse-thread screws. Box depth impacts device compatibility–ensure 4″ square or 4-11/16″ boxes for proper spacing behind multi-device configurations.
Utilize terminal screws that match the circuit rating–typically brass for copper, tin-plated for aluminum if mixed systems exist. Torque to 12–15 in-lbs to prevent loosening under vibration or thermal cycling. Avoid backstab terminals; they fail under repeated stress.
Verification Supplies
After installation, a continuity tester verifies circuit paths before energizing. Multimeter probes set to resistance mode should show near-zero ohms across traveler terminals when toggled. If readings exceed 1 ohm, recheck connections for cold joints or frayed strands.
Cover plates must align with device openings–decorative finishes like brushed nickel or matte black require exact sizing. Inspect gasket seals if devices are installed outdoors or in damp locations. Secure plates with short screws to prevent stripping in plastic boxes or over-tightening in metal boxes.
Step-by-Step Terminal Connection Guide for Dual-Control Panel Installation
Turn off the power at the circuit breaker before handling any electrical components. Verify absence of voltage using a non-contact tester on both the live feed and neutral lines to prevent accidental shorts or shocks.

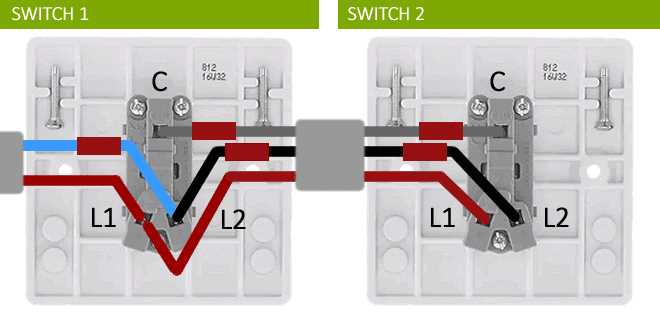

Identify the three core cables entering each control box: one common (marked “COM” or colored red/dark brown), and two travelers (typically yellow or light brown). Label them immediately with masking tape to avoid confusion during connection.
- First box: Attach the common wire to the COM terminal. Connect the two traveler wires to the L1 and L2 terminals.
- Second box: Match identical traveler wires to their corresponding L1 and L2 terminals. The common wire here links to the lighting load (e.g., a fixture’s live terminal).
Securely fasten all terminal screws–loose connections generate heat and create fire hazards. Tug gently on each conductor to confirm they’re properly seated. Avoid overtightening, which can strip threads or damage wire strands.
For metal enclosures, attach a grounding cable (green/yellow) to the designated earth terminal. Ensure continuity by bridging the earth between both panels if they share a metallic backbox. Plastic enclosures require no earth connection to the panel itself.
Re-examine the entire setup against the control schematic before energizing. Cross-checked:
- Correct common wire placement at both ends.
- Travelers paired accurately (L1 to L1, L2 to L2).
- No bare conductors exposed outside terminals.
Restore power at the breaker, then test functionality by toggling each panel independently. The load should activate/deactivate smoothly from either location. If flickering or erratic behavior occurs, recheck traveler continuity and terminal tightness.
Seal the enclosures with the provided faceplates, ensuring no wires become pinched. Use insulating bushings where cables enter knockout holes to prevent abrasion from sharp edges. Store the schematic nearby for future reference–label it clearly.
Critical Errors in Dual-Control Electrical Pair Installation
Mislabeling conductor terminals is the most frequent and hazardous error. Each modular device in a dual-set arrangement requires precise identification of common, traveler, and neutral lines. The common terminal–often marked with a darker screw or labeled “COM”–must connect to the power source or load, not the travelers. Swapping these wires results in erratic operation, where only one button functions intermittently or fails entirely. Always triple-check terminal labels before securing connections, especially under poor lighting or in cramped junction boxes.
Omitting a neutral link in a dual-control pair causes imbalance in modern circuits. LED-compatible installations require neutrals at both ends for stable operation; bypassing this leads to flickering or premature bulb failure. Verify the presence of a neutral wire at each box before starting. If absent, use a three-wire cable between units and install a jumper at one end to share the neutral. Never assume older installations include neutrals–measure with a multimeter to confirm.
- Using mismatched cable gauges triggers overheating. A 14 AWG conductor suffices for 15A circuits, but mixing 12 AWG with 14 AWG in the same run creates hotspots at connection points. Ensure uniform gauge throughout the entire run, especially when extending from an existing junction.
- Ignoring box fill calculations violates safety codes. A standard single-gang receptacle box accommodates six 14 AWG conductors; exceeding this strains connections. For a dual-set setup with travelers, common, neutral, and ground, use a deep box or upgrade to a 4×4 square box with mud ring.
- Twisting aluminum wires with copper terminals guarantees corrosion. Use dielectric grease and approved connectors; never rely on simple twist caps. Apply torque specifications–typically 12–14 in-lbs–to prevent loose connections.
Skipping continuity tests after installation risks latent failures. Use a multimeter to verify each traveler path between units; open circuits often remain undetected until operated. Set the meter to resistance mode–expected reading is near 0 ohms. A high reading indicates a broken conductor or loose terminal; revisit and re-secure immediately. Additionally, confirm proper grounding by testing between the ground screw and neutral–should read 0V for safety.
Grounding Oversights in Multi-Point Controls
Neglecting to bond grounding conductors in a dual-set system creates shock hazards. Each device must connect to the grounding bus, either via the box (if metal) or a dedicated green conductor. For plastic enclosures, run a continuous ground wire through both units, terminating at the main panel. Never splice grounds inside devices–use a listed grounding clamp or dedicated terminal strip in the box.
Polarity reversals in travelers disrupt proper operation. Although the system may appear functional, reversed travelers cause unintended paths, where turning off one device activates the other. After wiring, label each traveler at both ends with colored tape (e.g., red, black). Before closing the box, use a voltage tester to confirm each traveler carries the same potential on both ends when the circuit is in a specific state–this ensures correct pairing.
- Installing incompatible dimmers with LEDs causes buzzing and damage. Only use “CL” rated modules–check the device datasheet against bulb specifications.
- Over-tightening terminals strips insulation, leading to intermittent failures. Apply calibrated torque–typically 12–14 in-lbs for most devices.
- Failing to secure cables in boxes creates loose connections under mechanical stress. Use plastic cable clamps or metal NM connectors; avoid relying on friction alone.
