For a seamless installation, begin by locating the transformer supplying power to your existing signal mechanism. Most setups operate on 16-24V AC, but verify the voltage rating printed on the transformer’s label–incorrect voltage will damage the unit. If upgrading, replace the transformer with a 30VA model to support additional features like video recording or extended runtime.
Identify the terminals on your home’s alert module: typically marked Front (F), Trans (T), and Rear (R) if applicable. For single-button setups, connect the button’s wires to F and T. For two-button configurations–common in properties with front and back entry points–assign the secondary button to R and T. Ensure bare wires are fully inserted and secured under terminal screws to prevent intermittent alerts.
If integrating with a low-voltage system, use 18 AWG solid copper wire for connections between the transformer, alert module, and push button. Avoid aluminum wire, as it corrodes over time and can cause signal failures. For outdoor installations, wrap connections in weatherproof wire nuts or use silicone-filled splice caps to protect against moisture. Test each connection with a multimeter before closing the circuit–voltages should read within ±2V of the transformer’s rating.
Advanced setups may require a resistor (typically 22Ω, 25W) wired in parallel with the push button to prevent false triggers from lightning surges or electrical interference. Place the resistor near the alert module’s terminals for optimal performance. For homes with lengthy wiring runs (over 100 feet), upsize to 16 AWG wire to minimize voltage drop, which can weaken the signal strength.
Video-enabled units demand separate power sources. A dedicated 24V DC adapter (minimum 2A output) ensures stable operation without overloading the existing transformer. Split the circuit: connect the AC side to the alert module as described, and feed the DC adapter directly to the video device’s power input–never mix AC and DC connections. Ground the DC adapter to the same earth point as the transformer to avoid electrical noise disrupting video feeds.
Troubleshooting? Start with the simplest checks: confirm the transformer’s voltage, inspect wire terminals for corrosion, and ensure the push button isn’t stuck. If the alert module emits a weak or distorted tone, the issue likely lies in the button circuit–swap the wires between F and R terminals to isolate the fault. For silent failures, use a continuity tester on the push button’s contacts while pressing; no reading indicates a broken wire or faulty button.
Connecting Dual-Tone Front Entry Signal Devices

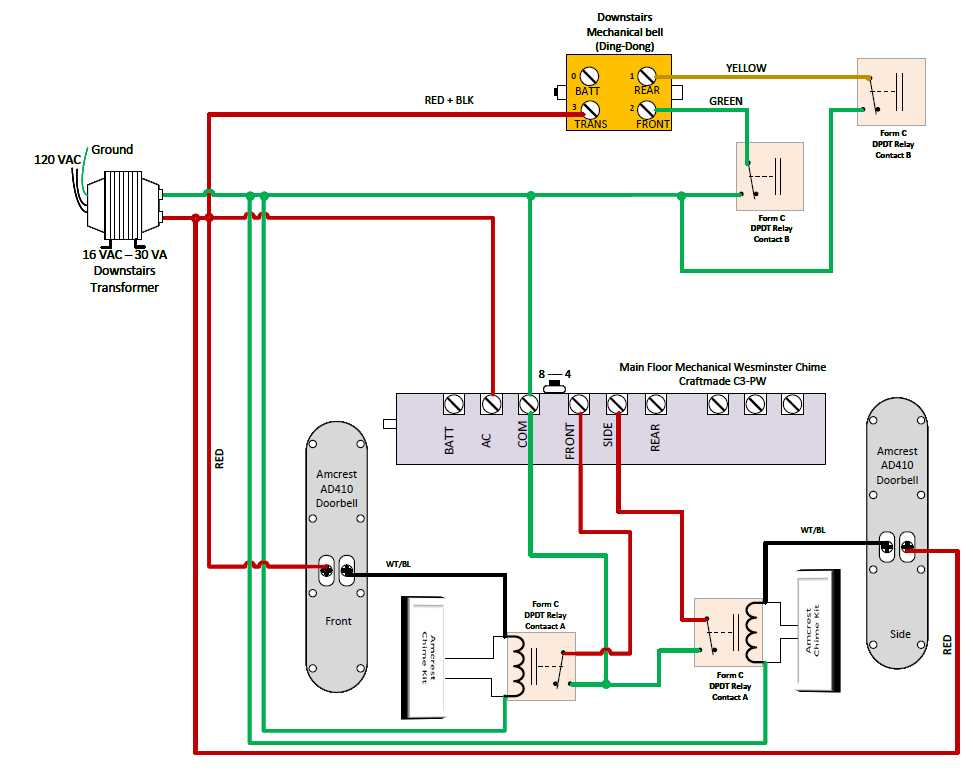

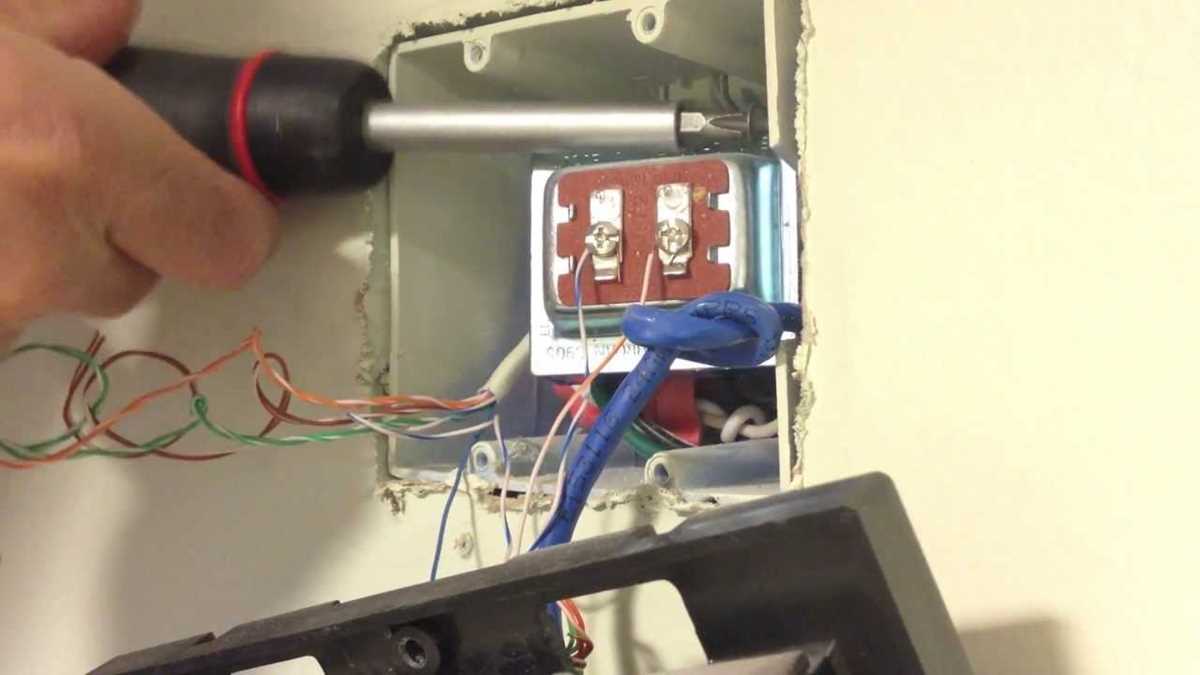

Before handling any terminals, switch off the circuit breaker supplying power to the transformer. Most residential setups operate at 16–24 VAC, but verify the voltage rating printed on your existing power adapter to avoid equipment damage. Locate the transformer–usually mounted near the electrical panel or inside a utility closet–and confirm the output matches the input requirements of both signal emitters.

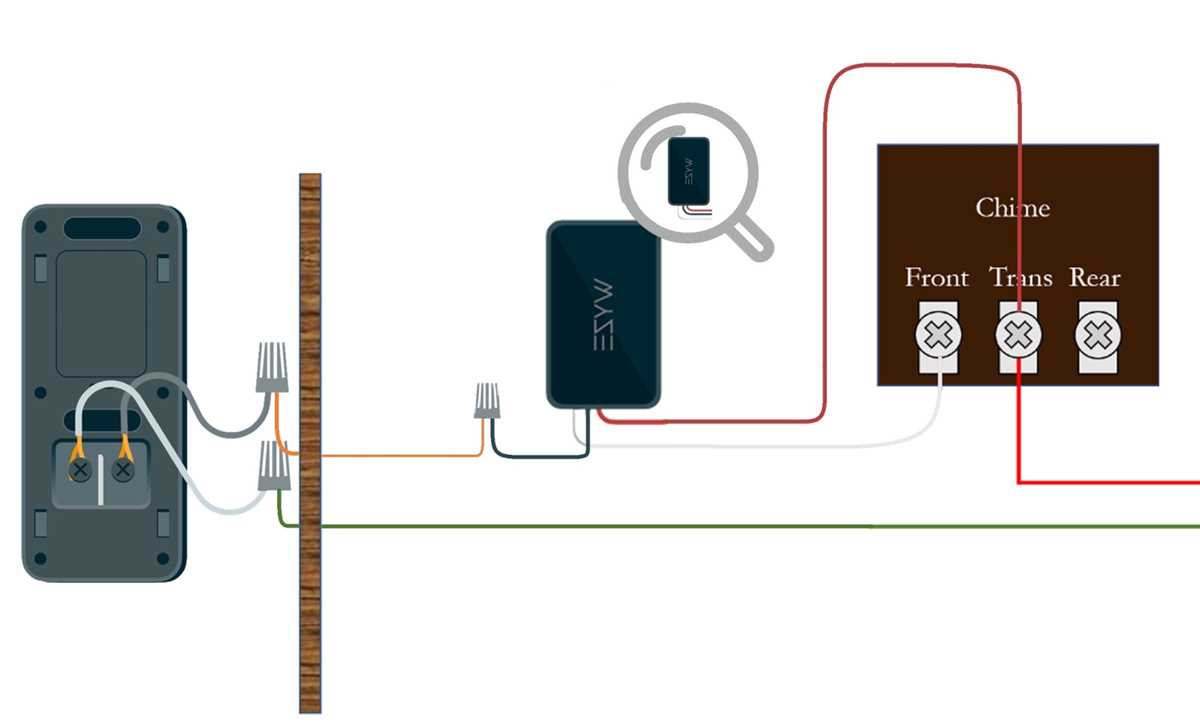

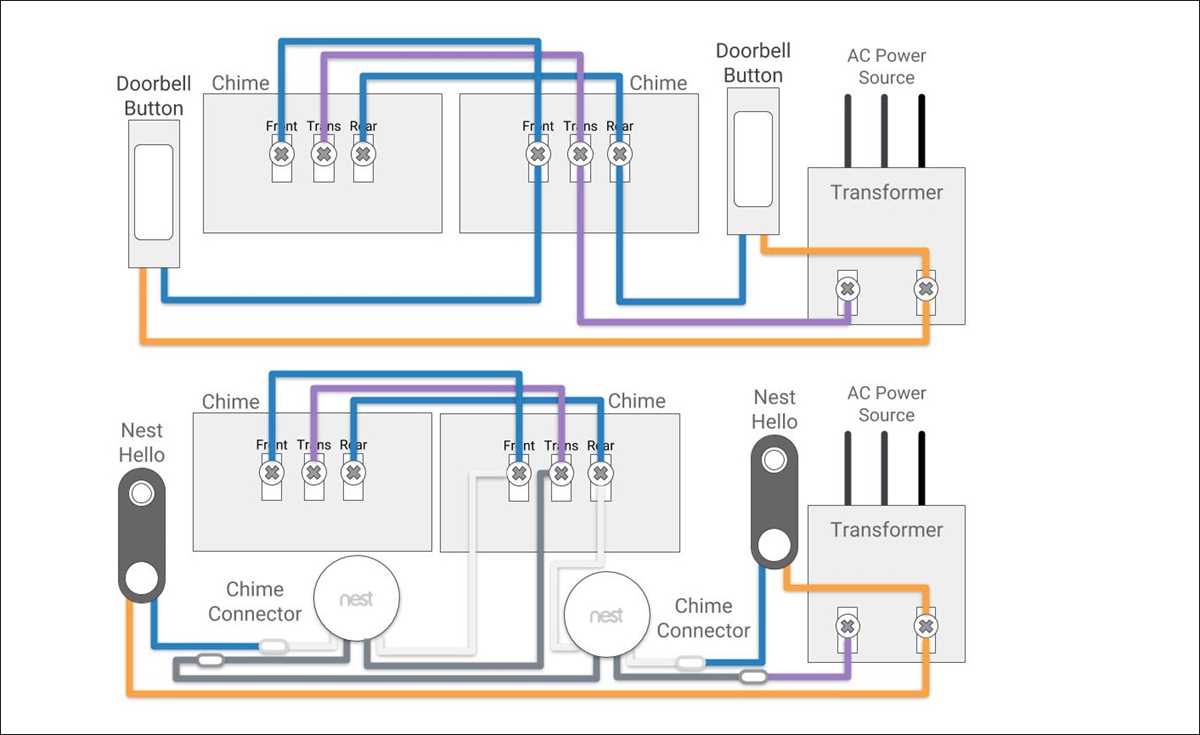

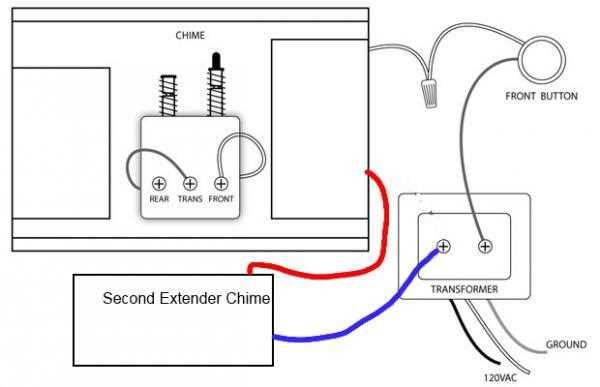

Identify the three critical contact points on each tone generator: Front, Trans (or transfer), and Rear. For dual-signal operation, connect the transformer’s hot lead to the front unit’s Front terminal. Run a jumper wire from the Front terminal of the primary emitter to the Front terminal of the secondary one. The Trans terminal on the first device links to the Trans terminal on the second, ensuring synchronized tone activation.
Attach the return wire (typically colored white or silver) from the button outside to the Rear terminal of the furthest signal device. If your setup includes a mechanical push-button, confirm it lacks a built-in diode–these require direct wiring to prevent false triggers. For digital models, follow the manufacturer’s polarity guidelines, as reversing leads can disable the entire system.
Test the configuration by restoring power and pressing the external activator. Both emitters should produce distinct sounds in sequence–common pairings include ding-dong followed by a chime tone or a melodic phrase. If only one device responds, inspect the jumper connections between terminals; loose strands often interrupt the signal path. Use a multimeter set to AC voltage mode to measure across the Front and Trans terminals–readings should match the transformer’s output.
For installations where the tone generators are separated by distance (e.g., front and back entries), use 18-gauge solid copper wire rated for low-voltage applications. Avoid daisy-chaining more than two devices–excessive load degrades sound quality and risks overheating the transformer. If extended wiring is unavoidable, calculate voltage drop using the formula: VD = 2 x L x I x R / 1000, where L is length in feet, I is current in amps, and R is resistance per 1000 feet. Keep VD below 3% of the transformer’s output for consistent performance.
Mount the signal emitters on fire-resistant mounting blocks if installing near wooden studs or insulation. Secure all terminal screws tightly–vibration from frequent use can loosen connections over time. For outdoor button installations, use a weatherproof junction box and seal entry points with silicone to prevent moisture ingress. Label each wire at the transformer and tone generators during setup to simplify future troubleshooting.
Essential Gear for Installing a Two-Tone Entry Alert System
Begin with a multimeter capable of measuring 12–24V AC to confirm transformer output before attaching any connections. A non-contact voltage tester is critical for verifying live circuits without exposing wires, reducing accidental shorts or shocks. Opt for a model with audible alerts–these provide immediate feedback in noisy workspaces.
For securing components, insulated staple guns or cable clips rated for 14–18 AWG solid wire prevent sagging over time. Heat-shrink tubing in 3/16″ and 1/4″ diameters offers superior protection compared to electrical tape, especially in outdoor or high-moisture environments. Use a heat gun with adjustable airflow to avoid overheating sensitive points.
Recommended Hand Tools
| Tool | Specification | Purpose |
|---|---|---|
| Wire strippers | Automatic, 16–22 AWG | Cleanly removing insulation without nicking conductors |
| Needle-nose pliers | 4–6″ with serrated jaws | Bending loops for secure terminal attachments |
| Torx driver | T10, T15 | Accessing modern low-voltage power supplies |
| Fish tape | 1/4″ steel, 25 ft | Routing conductors through finished walls |
Low-voltage cable should match the manufacturer’s requirements–typically 18-gauge, two-conductor bell wire for most residential setups. For longer runs (>50 ft), upgrade to 16-gauge to mitigate voltage drop. Pre-tinned copper conductors resist corrosion better than bare copper when exposed to humidity. Avoid solid-core wire in high-vibration areas like door frames–stranded wire (7×26) flexes without breaking.
Mounting brackets designed for outdoor use must feature stainless steel hardware to prevent rust. Apply dielectric grease to screw terminals before securing connections to inhibit oxidation. For smart models requiring Wi-Fi antennas, position the transmitter at least 3 ft from metal surfaces to avoid signal interference. Always label both ends of each conductor during installation–masking tape with permanent marker resists smudging better than paper tags.
Step-by-Step Guide to Locating Power Supply and Signal Device Terminals
First, shut off the main circuit breaker to eliminate any risk of electrical shock before inspecting the low-voltage system. Trace the thin wire from the external button or camera unit back to its origin–typically a compact rectangular or cylindrical power adapter, often mounted near the electrical panel or inside a utility closet. Verify its output specifications by examining the label: most residential units deliver 16–24V AC, though some older models may supply 8–12V AC. Use a multimeter set to AC volts to test the terminals directly–probes on the two screw posts should display the rated voltage. If readings fluctuate or drop below 80% of the labeled value, the adapter may require replacement.
Next, follow the paired wires from the adapter to the signaling mechanism, which is usually wall-mounted in a central hallway or near entryways. The mechanism will have two or three unmarked connectors; the front terminal corresponds to the wire leading to the exterior call button, while the trans terminal (when present) connects to the adapter’s secondary output. Some models include a rear terminal for optional accessory buttons. To avoid misconnections, label each wire with masking tape before disconnecting–high-side (usually red or white) carries voltage, while low-side (black or green) completes the circuit. Check for continuity with the multimeter; resistance should measure below 1 ohm between the high-side and low-side if the system is intact. If readings exceed 5 ohms, inspect for corrosion at terminals or breaks in the wire insulation.
Finally, confirm proper operation by reconnecting the circuit temporarily–press the external call button and listen for a distinct tone from the signaling device; absence of sound indicates miswiring or a faulty power adapter. If multiple call stations exist, ensure all buttons share a common high-side connection to prevent erratic behavior. For systems with integrated cameras, verify that the adapter’s wattage rating exceeds the combined draw of LED lights, sensors, and Wi-Fi transmitters–most smart units require 10–40VA, while basic models function with 5–10VA. Re-secure all connections with wire nuts and re-test under load before restoring power at the breaker.
