Bridge the secondary output pair to double the available power for the rear acoustic units. This method distributes signal from one amplifier section to two drivers–front components stay on dedicated terminals, while the rear pair shares a single bridged output. Verify the power module’s impedance range: bridging typically halves the load tolerance (e.g., if the unit handles 4 ohms stereo, bridged mode requires 8 ohms minimum). Mismatch risks overheating.
Use 16-gauge oxygen-free copper cable for runs under 5 meters; step up to 12-gauge for longer spans or high-wattage setups. Strip insulation precisely–exposed strands cause short circuits, while nicked wire reduces current capacity. Twist each pair clockwise before inserting into terminals to prevent stray strands bridging contacts.

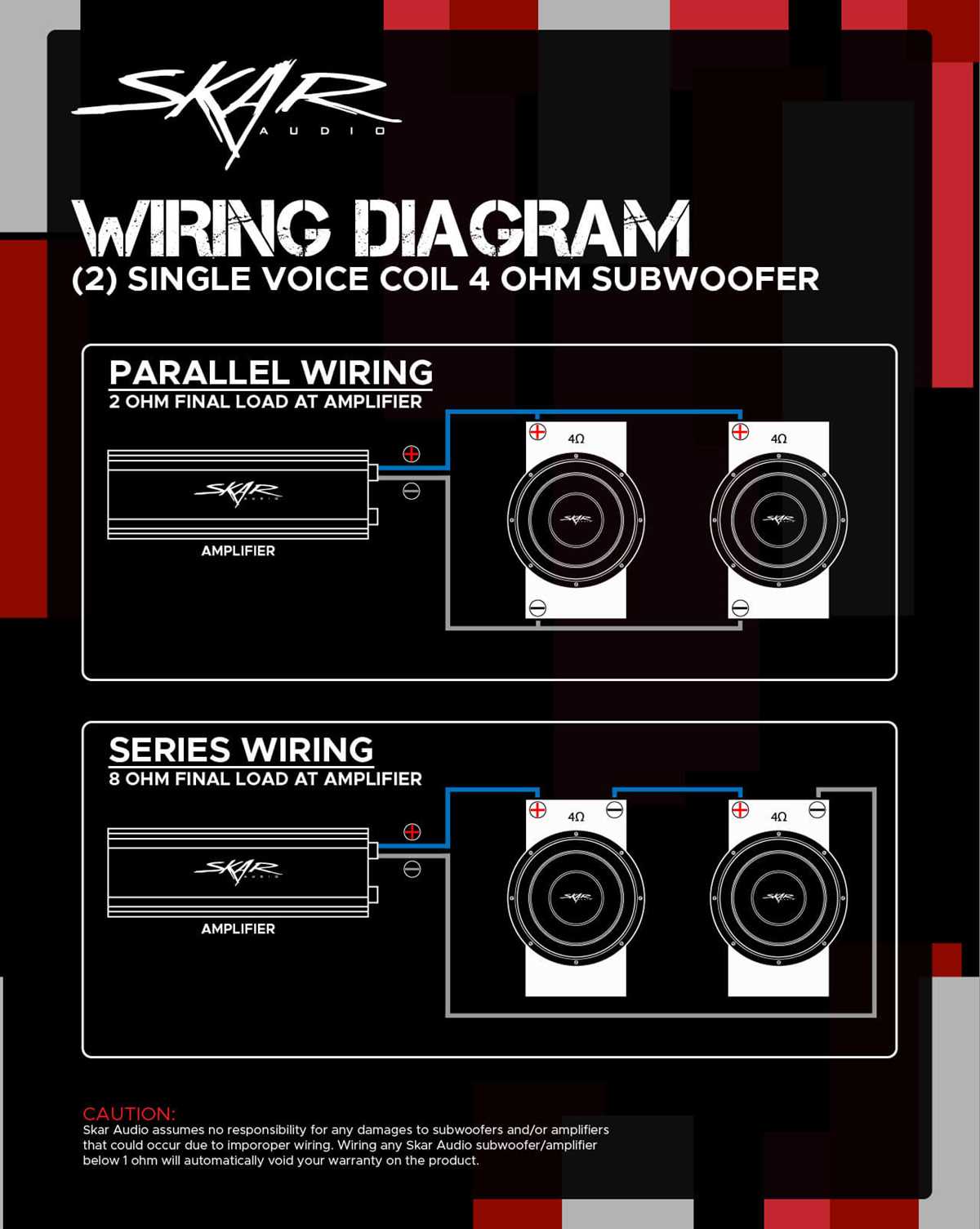

Series-parallel arrangement splits four units into two 8-ohm pairs if the power source can’t drive 4-ohm loads. Each pair connects in series (doubling impedance), then both pairs run in parallel (halving total load). Measure total resistance with a multimeter before powering–readings below 3.5 ohms risk amplifier shutdown.
Ground loops introduce noise–always route signal cables away from power leads and use ferrite chokes on RCA interconnects. Secure connections with crimp connectors or solder; tape alone frays under vibration and thermal cycling. Label every cable run: Front Left +/-, Rear Bridged +/––prevents mis-wiring during future maintenance.
Connecting a Stereo Output Device to Four Acoustic Units
Use series-parallel bridging for optimal load distribution when pairing two sets of dual acoustic outputs. A 4-ohm stable stereo power source delivers 200 watts RMS per pair if wired in parallel (2-ohm final impedance), but drops to 120 watts RMS per pair in series (8-ohm load). Verify impedance ratings on the rear panel–most modern stereo amplifiers tolerate 2 ohms minimum, though older Class AB models may require 4 ohms.
Wire front drivers in parallel and rear drivers in series to maintain consistent audio pressure. Connect positive terminals of front left and right to a single amplifier output, then run separate runs from the amplifier ground to each front unit. For rear units, join negative terminals together, then attach to the amplifier output, while leaving the positives disconnected from the front circuit. Keep cable gauge above 12 AWG for runs under 15 feet; switch to 10 AWG for longer distances to reduce voltage sag.
Impedance Matching Guidelines
| Acoustic Configuration | Front Pair Impedance | Rear Pair Impedance | Final Load |
|---|---|---|---|
| Both pairs parallel | 2 Ω | 2 Ω | 1 Ω |
| One pair parallel, one pair series | 2 Ω | 8 Ω | 1.6 Ω |
| Both pairs series | 8 Ω | 8 Ω | 4 Ω |
| Front series, rear parallel | 8 Ω | 2 Ω | 1.6 Ω |
Install 25-amp ATO fuses within 18 inches of the power terminals if the stereo unit lacks built-in protection. Class D stereo power sources often feature thermal shutdown, but bridging risks overheating without fuses. Shield signal cables with aluminum foil if noise persists–avoid twisting RCA cables into tight coils, as this increases capacitance and degrades high-frequency response.
Balance volume levels by adjusting gain controls in 1/8-turn increments. Begin with rear acoustic signals 2 dB softer than front signals to prevent listening fatigue during extended playback. Measure SPL at the listening position with a calibrated meter–target 85 dB at 1 meter for accurate tuning. If phase cancellation occurs, reverse polarity on one acoustic pair temporarily to diagnose; if improvement is audible, permanently flip the leads on the problematic unit.
Troubleshooting Common Issues
Distortion at high volumes: Verify the final impedance matches the stereo unit’s published minimum. Lower impedance draws excessive current, clipping the waveform. Switch to thicker cables or reduce volume by 3 dB.
Uneven frequency response: Cross-drive acoustic signals if tweeters emit harsh tones. Add a 0.1 µF capacitor in series with tweeters rated below 100W to filter sub-1kHz signals.
Battery drain: Install a relay-triggered capacitor across the power terminals if bass impact drops during engine idle periods.
Choosing the Right Electrical Layout for Parallel or Sequential Hookups
Opt for a parallel layout when matching low-impedance drivers to a single output stage with sufficient current delivery. Most modern receivers or signal amplifiers designed for home audio handle 4-ohm loads without strain, but verify the manufacturer’s continuous power ratings per impedance bracket. Connecting twin 8-ohm units in parallel halves the load to 4 ohms, which demands roughly double the current draw at the same voltage–ensure the unit’s rail supply can sustain the surge during transient peaks typical of dynamic music passages.
Sequential connections suit high-impedance drivers or scenarios where system stability under fluctuating signal levels is critical. Pairing two 8-ohm transducers sequentially yields a 16-ohm load, effectively reducing power consumption while maintaining signal integrity–ideal for passive crossovers or long cable runs where resistance losses degrade high-frequency response. Check that the total impedance remains above the minimum recommended for the signal source; solid-state units often specify a 4-ohm floor, while vacuum-tube designs may tolerate 2 ohms but exhibit higher distortion at elevated volumes.
Compare distortion curves before finalizing the layout. Parallel groupings sum the driver distortions, often increasing harmonic artifacts at lower volumes due to phase interactions. Sequential arrangements minimize this effect, preserving midrange clarity but risking clipping if the signal source lacks sufficient voltage headroom. For hybrid setups mixing different driver types (e.g., tweeter and woofer), use a sequential branch for the woofer to protect it from the tweeter’s lower impedance during crossover roll-off.
Measure voltage drops across each branch with a multimeter under real-world listening conditions. A parallel hookup between mismatched drivers (e.g., 6 Ω and 8 Ω) redistributes current unevenly, potentially causing premature failure of the lower-impedance unit. Balance load distribution by adding a small series resistor (0.5–1 Ω, non-inductive) to the parallel path, but account for its power dissipation–4 watts for a 10-volt signal at 4 ohms. Avoid carbon resistors; metal-film types withstand heat and preserve frequency neutrality.
Document final resistance values at 1 kHz using an impedance analyzer. Sequential paths show cumulative phase shifts, while parallel branches exhibit flattening of impedance dips. Prioritize the layout that aligns with the amplifier’s power bandwidth–parallel for extended low-end response, sequential for midrange accuracy. Replace unshielded cables longer than 3 meters with twisted-pair wiring to reduce inductance; ensure connectors exceed the system’s peak current rating by at least 20%.
Step-by-Step Guide to Bridging a Dual-Output Amplifier for Quad Drivers
Verify the device’s bridging capability before connecting. Locate the terminal markings–often labeled A+, A-, B+, and B-–on the rear panel. Check the owner’s manual for bridging instructions; if absent, measure the impedance of each driver. Bridging doubles power output only if the total impedance remains above the unit’s minimum threshold, typically 4 ohms.
Pair two drivers per bridged section. Connect the positive terminal (A+) of the first driver to the A+ binding post on the device. Attach its negative terminal to the B- post–this completes the first parallel circuit. Repeat for the second pair: route the positive lead of the third driver to B+ and its negative lead to A-. Ensure all spade connectors are crimped and fully seated.
- Set multimeter to ohms, confirm each driver reads 4 or 8 ohms.
- Combine driver pairs–match impedances to avoid overheating.
- Secure all terminals with a torque screwdriver; loose connections cause distortion.
- Avoid exceeding the unit’s continuous power rating–bridging increases strain.
Test incrementally. Start with low volume, listen for buzzing or dropout. Gradually raise gain while monitoring the device’s thermal indicator–if it exceeds 65°C, recheck connections or reduce volume. Final step: reconfirm impedance with the meter post-installation. Incorrect pairing risks damaging both drivers and the unit.
Critical Impedance Calculations for Safe Bridging
Combine two 4-ohm drivers in parallel: total drops to 2 ohms. Bridging halves the effective impedance load; if the unit’s minimum is 4 ohms, this violates specifications. Instead, pair two 8-ohm drivers: parallel result is 4 ohms, bridging yields 2 ohms–safe for a unit rated down to 2 ohms. Always cross-reference manual tolerances.
- Identify driver impedance.
- Calculate parallel result: (R1 × R2) ÷ (R1 + R2).
- Halve for bridged load: confirm against unit’s minimum rating.
- If the result exceeds the limit, switch to series pairing or choose higher-impedance drivers.
Proper Impedance Load Calculations for Four-Output Audio Systems
Begin by verifying the minimum impedance rating on your power section’s specification label–most modern units support 4 ohms, though some tolerate 2 ohms. If connecting multiple drivers, the combined resistance must never drop below this value. Example: pairing two 8-ohm drivers in parallel equals 4 ohms (8 ÷ 2 = 4); two 4-ohm drivers in series totals 8 ohms (4 + 4 = 8). Confirm exact driver ratings with a multimeter before proceeding.
Series-parallel configurations require precise math. Grouping four 6-ohm drivers involves creating two series pairs of 12 ohms each (6 + 6), then bridging those pairs in parallel, yielding 6 ohms (12 ÷ 2). Any miscalculation risks overheating–the power section may shut down or fail permanently. Label connections clearly to prevent errors.
- For two-way front/rear setups: ensure front and rear outputs match. Mixed impedance (e.g., 4 ohms front, 8 ohms rear) can cause uneven power distribution.
- Bridgeable outputs halve impedance–four 4-ohm drivers bridged become two effective 2-ohm loads. Verify bridging compatibility in the manual.
- Car audio systems with independent front/rear adjustments should use identical resistance values on both sides to prevent power starvation.
Test with a dummy load resistor before final connection. Use resistors matching your calculated impedance–e.g., a 4-ohm power section should use a single 4-ohm resistor or two 8-ohm resistors in parallel. Monitor temperature; excessive heat indicates overload. If temperatures exceed 70°C, recalculate or redistribute load.
Factors affecting real-world impedance include wire gauge, terminal corrosion, and crossover components. Thinner cables increase resistance; 16-gauge wire adds ≈0.005 ohms per foot–negligible individually but cumulative across long runs. Clean terminals annually, and replace degraded crossover capacitors to maintain stability.
- Measure driver impedance precisely–nominal ratings often deviate ±10%.
- Use Ohm’s Law (R = V²/P) to cross-verify compatible setups. Example: 50W @ 4Ω = 1.41A; 50W @ 2Ω = 2.82A–double the current demands thicker wiring.
- Avoid “hot wiring” common grounds–each driver should share only the ground return, not the input signal path.
Final step: verify with a multimeter while powered. Set volume to 50% and play a 1kHz test tone. Confirm voltage aligns with expected calculations–significant deviations signal incorrect configuration. Recheck connections if readings vary by >5%.
