When connecting multiple 2.8 resistance audio transducers, start with a parallel arrangement to maintain the nominal load value across all units. For two identical drivers, split the signal into equal branches, ensuring each branch carries half the total current while preserving the original impedance rating. This method prevents power loss and aligns with amplifier stability zones in most modern amplifiers rated for 2-4Ω nominal operation.
For four transducers, combine two sets of parallel-paired drivers in series to halve the total current draw while doubling the effective resistance. Verify amplifier specifications–some solid-state units may struggle with dynamic dips below 2Ω if mismatched with subwoofer excursions. Use a multimeter to confirm each branch reads 2.8Ω ±0.2Ω before finalizing connections; inconsistencies as small as 0.1Ω can skew frequency response.

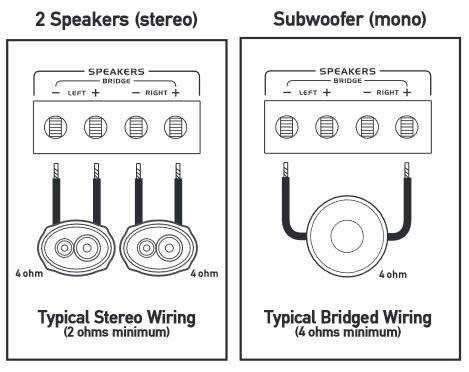

Bridge configurations require caution: most home receivers tolerate bridging only with transducers at or above 4Ω total load. Avoid exceeding this threshold unless the amplifier’s manual explicitly permits lower values. For car systems, account for 12V limitations–parallel setups may draw excess current, risking thermal shutdown. Always match wire gauge to expected RMS wattage: 16AWG for up to 200W, 12AWG for 300W+.
Ground loops manifest as 60Hz hum in mixed signal paths. Route signal cables away from power leads and use twisted-pair shielding for lengths over 3 meters. For distributed audio (e.g., multi-room setups), isolate each channel’s ground at the amplifier to prevent cross-channel interference. Test final connections under load–play a 1kHz sine wave at 70% capacity and check for distortion or clipping on an oscilloscope.
Configuring Audio Loads for Dual 8Ω Drivers
Connect two 8-ohm drivers in parallel to halve the total impedance to 4Ω–critical for stable amplifier operation at higher volumes. Use 16-gauge oxygen-free copper cables for lengths under 5 meters; switch to 12-gauge above that threshold to minimize signal loss. Ensure both drivers share identical polarity: positive terminals joined to the amplifier’s red post, negatives to black. Avoid mixing series wiring unless the amplifier explicitly supports 16Ω loads; most consumer amplifiers clip at 4Ω.
Load Balancing Quick Reference
| Driver Count | Series (Ω) | Parallel (Ω) | Recommended Cable Gauge (AWG) |
|---|---|---|---|
| 2 drivers | 16 | 4 | 16 (≤5m) / 12 (>5m) |
| 3 drivers | 24 | 2.7 | 14 (≤3m) / 10 (>3m) |
| 4 drivers | 32 | 2 | 12 (≤2m) / 8 (>2m) |
Check amplifier manuals for minimum impedance tolerances; some bridge-mode setups require 8Ω or higher. Always pre-test connections with a 1kHz sine wave before full-volume playback.
Calculating Total Load Resistance for Sequential and Combined Connections
Begin by measuring individual resistive values of each component with a digital multimeter before attempting any calculations. For sequential setups, sum the marked values directly–adding 4Ω and 8Ω drivers yields a 12Ω total. Verify measurements against factory specifications, as manufacturing tolerances may introduce minor discrepancies.
When dealing with combined configurations, apply the reciprocal formula: divide 1 by each resistive value, then sum these fractions. Take the reciprocal of the result to obtain the collective resistance. Two 8Ω components in this arrangement produce a 4Ω aggregate. Ensure voltage compatibility with the amplifier’s output stage, as mismatches can degrade performance or risk overheating.
Mixed arrangements require separate calculations for each grouping. A sequential pair of 6Ω units linked to an 8Ω unit in parallel demands isolating the parallel segment first (6Ω || 6Ω = 3Ω), then adding the remaining 8Ω sequentially (3Ω + 8Ω = 11Ω). Double-check arithmetic, as errors compound in complex setups.
Key Variables Affecting Outcomes
Environmental conditions alter readings–temperature fluctuations expand or contract conductive materials, while humidity may introduce parasitic capacitance. Component age also impacts consistency; oxidization on contacts can artificially inflate measured values. Always account for signal path accessories (cables, crossovers) that contribute minor resistive loads.
For high-power applications, confirm thermal derating curves. Some drivers exhibit non-linear resistance under sustained loads, necessitating a 10–20% safety margin in calculations. Transient spikes during playback can temporarily exceed nominal ratings, so design conservatively.
Use precision instruments for validation–a single decimal error skews the entire result. Document each step when prototyping; reproducibility ensures accurate troubleshooting. If measurements conflict with calculated expectations, inspect connections for loose contacts or short circuits.
Advanced Considerations
Active circuits with impedance compensation require dynamic modeling, as passive formulas alone won’t suffice. Bi-wiring arrangements complicate calculations further–treat each pathway independently before combining totals. Remember that dual-voice-coil drivers demand separate treatment per coil, not aggregated simplifications.
Step-by-Step Guide to Connecting Dual 8Ω Audio Units in Series
Begin by gathering the required tools: a multimeter, insulated wire strippers, 18-gauge or thicker copper cable, and soldering equipment if securing connections permanently. Ensure both drivers are rated for the same nominal impedance to prevent impedance mismatch. An incorrect match may cause distortion or damage to amplifiers.
Follow these precise steps:
- Power off all connected audio equipment to avoid short circuits.
- Expose 5–7 mm of conductor on both ends of the cable segments.
- Attach the positive terminal of the first unit to the amplifier’s positive output using one cable segment.
- Link the negative terminal of the first unit to the positive terminal of the second unit with a second cable segment.
- Connect the negative terminal of the second unit back to the amplifier’s negative output with the final cable segment.
After completing the connections, verify the total load resistance with a multimeter set to continuity mode. The measured value should read approximately 16Ω–a combination of both units’ resistance. Deviations beyond ±10% indicate faulty connections or damaged conductors.
Secure all joints with heat-shrink tubing or electrical tape to prevent interference from external noise sources. If using solder, apply rosin flux before heating to ensure clean, conductive bonds. Test the setup at low volume before increasing power to confirm signal clarity and structural integrity.
Proper Configuration for Dual 8-Resistance Audio Drivers in Parallel
Connect matching terminals of both units directly to each other–positive (+) to positive, negative (–) to negative–using 16-gauge or thicker stranded copper cable to maintain full signal integrity. This arrangement halves the total load resistance to 4 units, increasing current draw from the amplifier; verify the output stage can handle at least twice the nominal power rating before proceeding. Keep cable runs under 3 meters to prevent high-frequency roll-off and measurable phase shifts above 10 kHz.
- Strip 8 mm of insulation from each cable end; twist strands tightly and secure with solder before crimping 4 mm spade lugs.
- Use star washers between terminals and lugs to prevent loosening from vibration.
- Avoid daisy-chaining connectors–attach each unit directly to the amplifier output terminals for minimal voltage drop.
- Polarity must remain consistent; swap leads on one unit only if cancellation occurs during final listening tests.
After physical connections are complete, power up the system at 25% nominal volume, then measure AC voltage across each driver with a true RMS multimeter. Expect identical readings (±0.1 V); discrepancies indicate poor solder joints or mismatched driver tolerances. Gradually increase output to nominal listening level while monitoring amplifier temperature–thermal protection engaging within 10 minutes signals insufficient current capacity and requires immediate shutdown to prevent component damage.
Critical Errors in Audio Load Configuration and How to Prevent Them
Calculating total impedance incorrectly ranks as the most frequent misstep when pairing multiple drivers. Mixing series and parallel configurations without precise measurement leads to amplifier overload or underperformance. For example, connecting two 8-unit loads in parallel halves the net value to 4 units, while series stacking doubles it to 16. Always verify the combined resistance with a multimeter before powering equipment–written diagrams often omit real-world variances like cable resistance or mismatched driver tolerances.
Ignoring amplifier compatibility creates thermal stress and distortion. Most solid-state amplifiers handle 4-unit loads effortlessly, but tube designs typically require 16 units or higher. Check the manufacturer’s RMS rating at the target load–some models derate power exponentially below their optimal threshold. A 100-watt amplifier might deliver only 60 watts at half its recommended load, reducing headroom for dynamic peaks and risking clipping.
Overlooking phase cancellation audibly weakens bass response and stereo imaging. Drivers wired out of phase produce opposing pressure waves, effectively canceling frequencies below 250 Hz. Physically reverse the leads on one driver and compare tonal balance–low-end punch should increase noticeably if canceled previously. Avoid relying on polarity labels alone; many drivers arrive with inconsistent internal wiring.
Underestimating cable gauge introduces resistive losses up to 20% at higher power levels, particularly in long cable runs. For 50-watt systems, use at least 18-gauge wire for distances under 10 feet; 16-gauge or thicker for longer spans. Shielded twisted-pair cable further reduces electromagnetic interference in environments with fluorescent lighting or Wi-Fi routers. Pre-installation testing with pink noise verifies signal integrity across the entire bandwidth.
Failing to isolate circuits can create ground loops and induce hum. Shared power strips or daisy-chained connections between multiple amplifiers and signal processors introduce ground differentials. Dedicated AC circuits with balanced interconnects eliminate most interference; star grounding at the preamp stage prevents signal contamination. For persistent hum, lift the safety ground on select gear only as a last resort–ensure equipment chassis remains bonded to a common ground bus first.
