Start by locating the fuse box layout under the dashboard–this is ground zero for diagnosing power distribution issues. The driver-side panel houses relays for the headlight circuit, ECU, and fuel pump; verify connections with a multimeter set to 20V DC before assuming component failure. Corrosion on terminal 30 of the ignition switch (labeled “IG1” in service manuals) often mimics starter problems–clean with DeoxIT or replace the pigtail if resistance exceeds 0.5 ohms.
For lighting systems, note that the park and tail lights share a common ground at G401 (near the driver-side kick panel). A single burnt socket here can trigger both circuits to fail intermittently–replace the bulb holder assembly rather than individual sockets. The turn signal flasher is integrated into the combination meter; if signals flash rapidly, inspect the hazard switch contacts before condemning the flasher unit itself.
Tracing engine bay harnesses, follow the main loom from the battery to the alternator–the thick red wire (terminal B) should read 13.5–14.5V at idle. If voltage drops below 12.8V, check the fusible link (a 50A strip near the starter) for discoloration. The oxygen sensor heater circuit uses a dedicated relay in the engine compartment fuse box; a P0135 code often points to a failed relay rather than the sensor itself. Use a wiring diagram that includes color codes (e.g., L-Y for light-yellow) and connector pinouts–the aftermarket Haynes manual provides clearer schematics than the factory service literature.
When troubleshooting dashboard gauges, focus on the instrument cluster plug (C8): pins 2, 3, and 4 correspond to the fuel level sender, while pin 12 carries the tachometer signal. A faulty ground at G203 (behind the glove box) can cause erratic readings; secure the ground strap with a 10mm bolt and dielectric grease. For air conditioning issues, test the pressure switch continuity before replacing the compressor–faulty wiring at the low-pressure port mimics refrigerant leaks.
Keep a pinout reference for common connectors: the MAF sensor uses a 6-pin plug with power on pin 1 (red/black) and ground on pin 6 (black/white). The Throttle Position Sensor shares a 4-pin connector where pin 1 is 5V reference–measure voltage drop across pin 3 (signal) and ground while rotating the throttle plate; a smooth sweep from 0.5V to 4.5V excludes sensor failure. For short circuit detection, unplug components one at a time while monitoring fuse voltage–a sudden voltage return indicates a compromised harness somewhere between the fuse and the component.

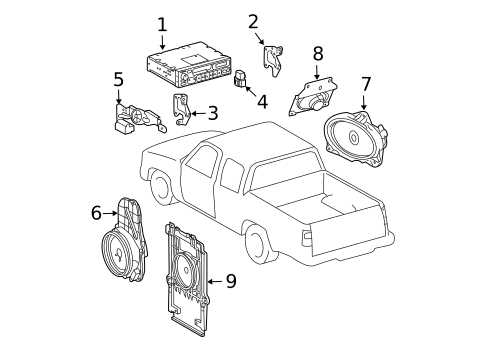

Electrical Schematic for Your Pre-2000 Pickup: Hands-On Repair Tips

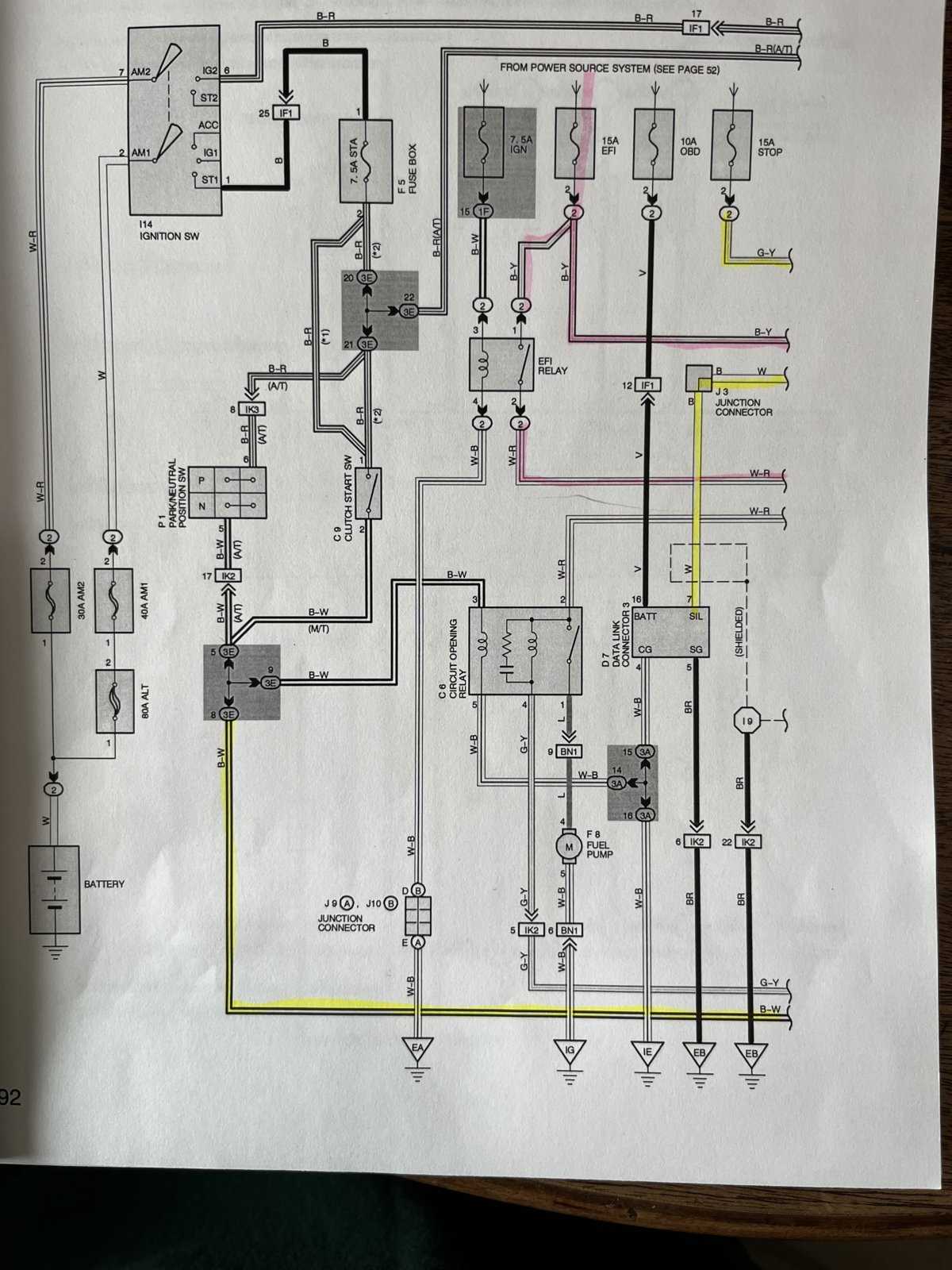

Start by locating fuse box under the dashboard–label F-1 powers the ignition system, while F-15 handles interior lights. If the engine cranks but won’t start, probe the ECM relay connections at pins 1 and 3 with a multimeter; voltage should read 12V when the key is in the “ON” position. For intermittent power windows, trace the orange wire from the driver’s door switch to the passenger door–corrosion often occurs near the hinge area, requiring splicing with marine-grade heat shrink tubing.
Ground Faults and Fixes
Common failure points include the G-1 ground near the battery tray and G-104 behind the left kick panel. Scrape paint off mounting surfaces with a wire brush before reattaching–resistance should drop below 0.2 ohms. If the radio cuts out when the brake pedal is pressed, inspect the brown/black wire at the rear light assembly; replace the socket if melted contacts are visible. For A/C issues, check the black/yellow wire at the compressor clutch relay–no power indicates a faulty pressure switch, not the wiring.
Finding Electrical Schematics in Official Repair Guides
Begin by identifying the specific section labeled “Electrical Troubleshooting” or “Vehicle Circuit Reference” in the printed manual. These segments are typically positioned toward the latter third of the volume, often following mechanical repair procedures. Year-specific editions place schematic layouts on pages 12-45 through 12-78, clearly marked with bold headers indicating system coverage–lighting, powertrain sensors, or instrumentation clusters.
The wiring illustration index appears as a two-page spread with numbered system references corresponding to detailed foldout sheets at chapter end. Look for a shaded tab system along the book’s edge–color-coded green for body electrical, blue for engine controls, and red for chassis circuits. These tabs correlate directly to numbered schematic sheets, eliminating unnecessary page-flipping.
When handling physical manuals, locate the expandable gatefold pages that contain full-system visuals. These oversized layouts, often exceeding standard dimensions, depict pin assignments for every connector in the 22-pin engine harness and 16-pin instrument cluster plug. Manufacturer originals feature silkscreened color codes–BR for brown, SB for sky blue–that persist across component locations, not just terminal markings.
Check the appendix labeled “Connector Pinout Reference” for cross-referenced identifiers like C101 or E43. These codes appear both on the gatefolds and within troubleshooting flowcharts, enabling quick jumps between diagnostic steps and corresponding circuit positions. Digital PDF versions maintain identical page numbering, though zoom functionality requires manual scaling to discern thin trajectory lines.
Alternative Identification Methods
If page numbers or gatefolds are absent, utilize the component index grouped by functional area–“Headlamp Assembly” entries list associated gatefold sheet numbers in brackets. Physical manuals sometimes include translucent overlay bookmarks pre-printed with grid coordinates matching the schematic’s layout; these overlays align with edge perforations to pinpoint exact wire pathways.
Manufacturers embed alpha-numeric zoom guides at schematic corners, splitting large illustrations into quadrants like 3A, 3B, 4A. Each quadrant reference appears beside individual wiring junctions described in diagnostic texts, bridging visual elements with textual repair sequences. Ground point illustrations, critical for troubleshooting, receive distinctive triangular symbols with coded labels–GND1 or GND3–mapping to numbered chassis attachment bolts shown separately.
Verify found schematics against the “Revision Notice” page inserted directly after the title sheet. Updates to terminal assignments post-publication are documented here, specifying exact wire reroutes with changed color-coded highlighter indications that must be manually transferred onto gatefolds. Replacement connector identifications (e.g., C101-A1 changing to C101-B2) are listed in correction tables without visual updates until subsequent printings.
Pinpointing Critical Engine Bay Wire Harness Attachments
Begin with the main fuse block under the hood–locate the red-and-white striped cable (B+ power feed) and verify its 10-gauge thickness. This lead connects directly to the battery’s positive terminal via a 100A fusible link; corrosion here mimics intermittent electrical failures. Test for voltage drop across this path with a multimeter under load (headlights on high beam), ensuring readings stay above 11.8V.
| Connector Type | Wire Color (Primary) | Terminal Pinout | Function |
|---|---|---|---|
| ECU Plug C | Black/Yellow | 18 (VCC), 32 (Sensor Ground) | Oxygen sensor heater control |
| Ignition Coil Connector | White/Black (coil 1), White/Red (coil 2) | 1 (Ignition signal) | Direct fire input |
| Throttle Position Harness | Light Green/Black | VC (5V ref), E2 (Ground) | Potentiometer output |
Inspect the alternator’s two-wire plug: the L-terminal (black/white) carries excitation current from the charge control module, while the B-terminal (bare copper braid) handles output. A frayed braid strand here can arc against the engine block, causing erratic voltage spikes. Re-terminate with a crimped ring lug (sized 8 AWG) and heat-shrink tubing containing adhesive.
Trace the ground strap from the intake manifold to the chassis–this path grounds critical sensors like the mass airflow meter. Use a wire brush to remove oxidation at both ends, then apply dielectric grease before reassembly. For the coolant temp sensor, note its dual-pin connector (black body): pin A (green/white) sends signal voltage; verify continuity to ECU pin 20 with the key ON.
Check the starter solenoid’s S-terminal (small red/black pigtail): a loose nut here creates voltage sag during cranking. Apply thread-locking compound to the 8mm retaining nut after tightening to 8 lb-ft. For the fuel injector harness, focus on the common rail’s black/orange lead–this shared power feed demands 12V; a break will disable all injectors without triggering codes.
Validate the MAP sensor’s vacuum line before suspecting its harness–unplug the three-wire connector and back-probe pin C (blue/white) for 5V reference with KOEO. If absent, inspect the shared splice cluster behind the throttle body, where the ECU’s VCC splits to 17 sensors. Repair nicks in the insulation with liquid electrical tape, ensuring no exposed copper contacts nearby components.
Tracing Electrical Paths for Illumination Components: Headlamps, Rear Lamps, and Indicators
Begin by isolating the fuse panel under the dashboard on the driver’s side. Locate fuse #15 (10A) for the headlamp circuit and fuse #22 (7.5A) for the taillight and signal cluster. Use a multimeter set to 12V DC to verify voltage at the fuse terminals with the ignition on and the corresponding lamp switch engaged. No reading indicates a blown fuse or corroded contact; clean terminals with a wire brush before replacement.
For headlamps, follow the primary black/yellow striped cable from the fuse box to the combination switch behind the steering column. Disconnect the connector and probe the terminals: terminal 1 should show battery voltage when the high-beam switch is activated, terminal 3 for low beams. If voltage is absent, inspect the relay (labelled “HEAD”) in the engine bay relay box–swapping with a known-good relay (e.g., horn relay) confirms failure.
Trace taillight circuits via the light green and brown wires extending from the fuse block to the rear of the vehicle. At the trailer connector or tail lamp assembly, splice into these wires with a test light–illumination should mirror the headlamp switch position. Dim outputs suggest a faulty dimmer module or resistance in the circuit; measure voltage drop across switches (should not exceed 0.2V).
Signal lamps rely on the hazard flasher module (white plastic box under the dash). Probe the flasher’s input (light blue/red wire) for steady 12V when the turn signal lever is activated–intermittent voltage indicates a faulty module, while consistent voltage with no flash points to a burnt bulb or broken filament. For bulbs, check resistance (should read 2-5 ohms for a 1157 bulb); higher resistance means internal failure.
Ground paths are critical. Headlamp grounds cluster near the left front strut tower (black wire bolted to chassis), while taillights ground at the rear frame rail. Scrape paint from grounding points and reassemble with dielectric grease to prevent corrosion; a weak ground will cause dim or flickering illumination. Test continuity from the lamp socket to chassis ground–readings above 1 ohm require cleaning or relocation of the ground point.
Harness routing must be inspected for chafing, especially near suspension components and sharp metal edges. The headlamp harness runs along the inner fender; flex the wiring near the bulkhead to reveal cracked insulation or broken strands. Taillight wires pass through grommets into the rear quarter panels–pull back carpeting to check for rodent damage or moisture intrusion, which causes shorts. Replace damaged sections with heat-shrink butt connectors and electrical tape for waterproofing.
Diagnose LED upgrades carefully. Retrofit LED bulbs often trigger hyper-flash due to low current draw. Bypass the flasher module with a load resistor (3-6 ohms, 50W) wired in parallel to the bulb socket, or replace the flasher with an electronic solid-state unit (SPDT). For HID conversions, ensure ballasts are grounded separately from the lamp circuit to avoid electromagnetic interference with signal operation.
