Locate the main harness connector behind the factory radio–it’s a 12-pin plug labeled A and B. Pin 6 (yellow) delivers constant 12V power; pin 7 (red) supplies switched ignition power. Ground connects to pin 3 (black). Verify voltages with a multimeter before proceeding–reverse polarity risks frying the head unit’s circuitry.
Aftermarket units typically include an adapter harness–match these wires by function, not color. The factory speaker wires run: front left (+) purple/light blue, front left (-) purple/brown, front right (+) gray/red, front right (-) gray/white. Rear speakers follow: right (+) dark blue/orange, right (-) dark blue/white. Twist each connection with solder or crimp caps, then wrap in electrical tape–exposed splices corrode quickly under dash moisture.
If retaining the factory amplifier (mounted near the glove box), connect pink wire (pin 8) to the amplifier’s trigger input–skipping this step mutes the system. For vehicles with automatic lights, the dimmer wire (blue/white, pin 10) adjusts display brightness. Test all functions before final assembly: power, balance/fade, equalizer presets, and antenna control (pin 4, blue).
Common pitfalls include mismatched impedances–factory speakers are typically 4-ohm, aftermarket units often 2-ohm. Using a wiring harness bypasses this issue but adds connection points; solder each joint for reliability. If static persists, check the alternator for noise interference–install a ground loop isolator inline with the RCA cables. For vehicles with chimes, the speaker output (pin 9, green) must remain connected to retain warning tones.
Audio System Wire Guide for ’98 Pickup Trucks
Locate the harness behind the factory radio unit–cutting into the original connectors risks signal loss or fuse damage. The main power wire (solid yellow) connects to the ignition harness (pink/light green) for constant 12V; grounding (black) requires direct chassis contact away from paint or rust. Speaker outputs follow this color code:
- Left front (+): white
- Left front (-): white/brown stripe
- Right front (+): gray
- Right front (-): gray/red stripe
- Left rear (+): green
- Left rear (-): green/yellow stripe
- Right rear (+): purple
- Right rear (-): purple/black stripe
Bypass the factory amplifier (if present) by tapping the non-striped wires directly–aftermarket units often label these as “front/rear” outputs, but the original layout prioritizes phase consistency.
For remote antenna activation, connect the blue/white wire to the car’s power antenna trigger or aftermarket amplifier turn-on lead–failure here mutes FM signals. Test each connection with a multimeter (11-14V DC expected) before reassembling the dash; corroded contacts are the primary cause of intermittent audio dropout in high-mileage trucks.
Finding the Original Audio System Connector in Your Late-Model Compact Pickup
Start beneath the dashboard on the driver’s side. Remove the lower knee bolster panel–three 7 mm screws secure it. Behind this panel, two inches above the parking brake release, you’ll see a white 12-pin rectangular plug with colored leads; this is the main OEM radio harness. No cutting or splicing is needed here–simply disconnect the plug by pressing the small tab on its side while pulling upward.
Key Pin Identifiers for Quick Confirmation
Examine the connector’s wire colors against these functions: solid dark green (right rear speaker +), solid gray (left rear speaker +), violet stripe (right front speaker +), tan stripe (left front speaker +). Solid orange supplies constant 12 V, while orange with a white stripe delivers ignition-switched 12 V. Any deviation suggests a tampered harness or aftermarket modification.
Trace every wire to its termination before connecting any new unit. For instance, the solid brown lead feeds the antenna amplifier, not ground; mistakenly linking it to ground can blow the factory fuse #27 (15 A) located in the auxiliary fuse panel beneath the steering column.
If the original plug is missing, the harness likely terminates behind the HVAC control module. Gently pry off the climate control faceplate using a trim tool–two hidden clips at the top corners hold it. Directly behind this, the harness drops vertically; follow it upward to locate the severed ends or dangling connectors.
Always verify each lead with a multimeter set to continuity mode. Never rely solely on color codes; factory repaints or regional variants may alter them. Record every measurement–mistakes in this compact cab can damage the integrated circuit governing door chimes and fuel gauge warnings.
Decoding Harness Wire Colors for the Pickup’s Audio Integration
Begin by locating the factory connector behind the head unit–typically a 10-pin plug with a distinct lock tab. The first wire to confirm is the yellow (B+), delivering uninterrupted power from the battery to retain memory settings; verify this with a multimeter showing 12V even when the ignition is off. If missing, trace back to the fuse box under the dash (fuse #13, 10A) or splice directly to the battery positive terminal with an inline fuse.
Next, red (ignition-switched power) must register voltage only when the key is in the “ACC” or “RUN” position. If it doesn’t, check the ignition harness near the steering column or piggyback off the radio fuse (fuse #7, 15A). Avoid hooking both yellow and red to constant power, as this drains the battery–only yellow should remain hot at all times.
| Wire Color | Function | Voltage Test (Key Off/On) | Common Failure Points |
|---|---|---|---|
| Yellow | Constant power (memory) | 12V / 12V | Blown fuse #13, corroded battery terminal |
| Red | Switched ignition | 0V / 12V | Faulty ignition switch, broken fuse #7 |
| Black | Ground | 0V / 0V | Loose chassis connection, painted bolt surfaces |
| Blue/White | Remote amp turn-on | 0V / 12V | Aftermarket amp not receiving signal |
Ground issues often disguise themselves as power problems–ensure the black wire makes solid contact with a bare metal chassis point, preferably near the factory ground strap. Scrape away paint or rust, use a star washer, and tighten securely. If the system powers on but cuts out, suspect a high-resistance ground; test by jumping a secondary ground from the battery’s negative terminal.

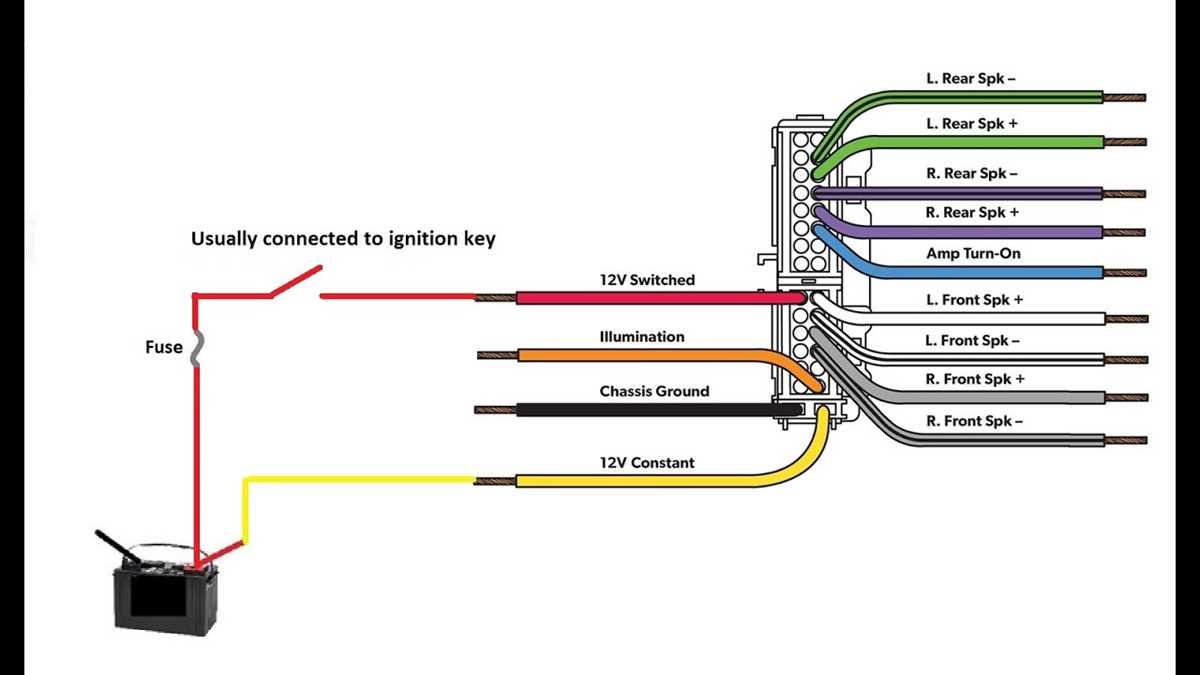

Speaker outputs follow a standardized pairing: gray (+) / gray-black (-) for front right, white (+) / white-black (-) for front left, purple (+) / purple-black (-) for rear right, and green (+) / green-black (-) for rear left. Test each with a 9V battery–positive to the solid color should produce a faint pop from the speaker. If no sound, check for severed wires behind kick panels or door jambs, common failure points for brittle insulation.
The blue/white stripe controls aftermarket amplifiers, sending a 12V trigger when the head unit powers on. If your amp fails to activate, probe this wire with the ignition on; if voltage is present but the amp remains off, inspect the remote turn-on input on the amp itself for corrosion or miswiring. Some installations require splicing this to the radio’s yellow wire for constant power, but this risks draining the battery–use a relay for safer activation.
For vehicles with factory premium sound, an orange/white stripe (illumination/dimmer) adjusts display brightness with the dash lights. If the radio screen stays fully bright at night, this wire may be disconnected–reconnect to the dimmer circuit or the tail light fuse (fuse #15, 7.5A). When adding an aftermarket unit, match this to the new harness’s dimmer wire, typically brown or orange, to ensure consistent behavior.

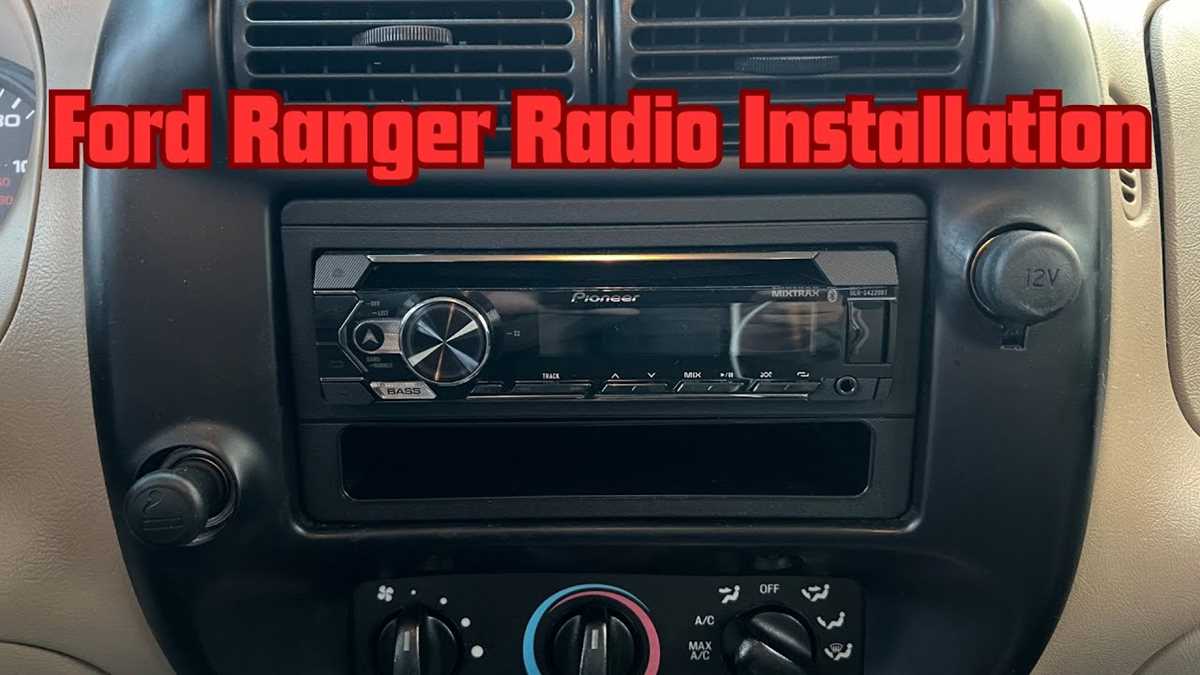

Installing Third-Party Sound Systems in the Late-90s Pickup Truck
Begin by locating the factory harness behind the dash cluster–it’s a 12-pin connector with color-coded wires. Match the aftermarket head unit’s power cables to the corresponding truck leads: the yellow constant (12V memory) connects to the white/light green wire, red ignition-switched (accessory) to the dark green/red, and black ground to the bare or black/chassis point. Use a multimeter to verify voltages before connecting–factory systems often supply 10-12V on memory and accessory lines, but variations exist.
For speaker outputs, identify the truck’s native harness wires: front left (+) is gray/light blue, front left (-) gray/yellow, front right (+) white/light blue, front right (-) white/brown, rear left (+) brown/light blue, rear left (-) brown/yellow, rear right (+) green/light blue, and rear right (-) green/red. Solder or use crimp connectors rated for 16-18 AWG wire, then wrap each joint with heat-shrink tubing to prevent corrosion or short circuits. Avoid twisting wires without proper connectors–this leads to intermittent signal loss.
Install an inline fuse (10A) on the constant power wire within 18 inches of the battery terminal. Factory harnesses may lack this protection, risking damage to the head unit or vehicle electronics during power surges. If adding an amplifier, tap into the truck’s blue/white remote turn-on wire (pin 2 or 3 on the factory harness) and route power directly from the battery with an additional 4-6 AWG cable and a 30-40A fuse near the terminal.
Test all functions before reassembling the dash: memory retention, volume control, and tone adjustments. If static or distortion occurs, check ground connections–paint or rust on the chassis mounting point interferes with signal clarity. For vehicles with factory tweeters, retain the original crossover network; bypassing it causes harsh treble. Some aftermarket units require a 1-kΩ resistor on the illumination wire (orange/light blue) to dim properly with dashboard lights.
Route new cables away from sharp edges, moving parts, and heat sources like the exhaust manifold. Secure them with zip ties or loomed sleeves every 12 inches to prevent abrasion. If the truck has an anti-theft system, disconnect the battery negative terminal for 10 minutes after installation to reset modules–failure to do this triggers false alarms or erratic gauge behavior.
For steering wheel controls, use an adapter specific to the pickup’s make–ASWC-1 or Metra Axxess ASWC work with most aftermarket brands. Connect it to the head unit’s data input (typically a 3.5mm jack or proprietary connector) and follow the adapter’s instructions to program button functions. Calibration takes 5-10 minutes, but saves rewiring the entire control module.
