Locate the primary relay adjacent to the battery tray–this component channels power directly from the ignition switch to the engagement coil. Ensure the red cable with a 10-gauge thickness connects without intermediary splices; corrosion at this junction causes intermittent failures under load.
Verify the ground path through the starter housing. The braided strap must terminate at the engine block, not chassis points, to prevent voltage drop during cranking cycles. Use a multimeter to confirm resistance below 0.2 ohms between the mounting bolts and negative terminal.
Trace the purple trigger wire from the control module. This conductor carries 12V during start position but lacks current for sustained operation–replace if brittle insulation exposes copper. Connect a diode across the relay coil to suppress back EMF; failure to do so risks damaging the ignition switch contacts.
For diesel variants, inspect the glow plug relay integration. The heavy-duty models route auxiliary current through the same solenoid contacts, requiring an 80-amp fuse upstream of the glow plug circuit. Skip this step only if the compression-ignition system has been retrofitted with standalone pre-heating controls.
Test the circuit by bridging the large terminals momentarily. A functional setup should engage the pinion gear with minimal delay–any hesitation indicates internal wear or weak battery voltage. Replace the entire assembly if arcing occurs at the contacts during repeated starts.
Understanding the Electrical Relay Layout for Heavy-Duty Pickup Trucks

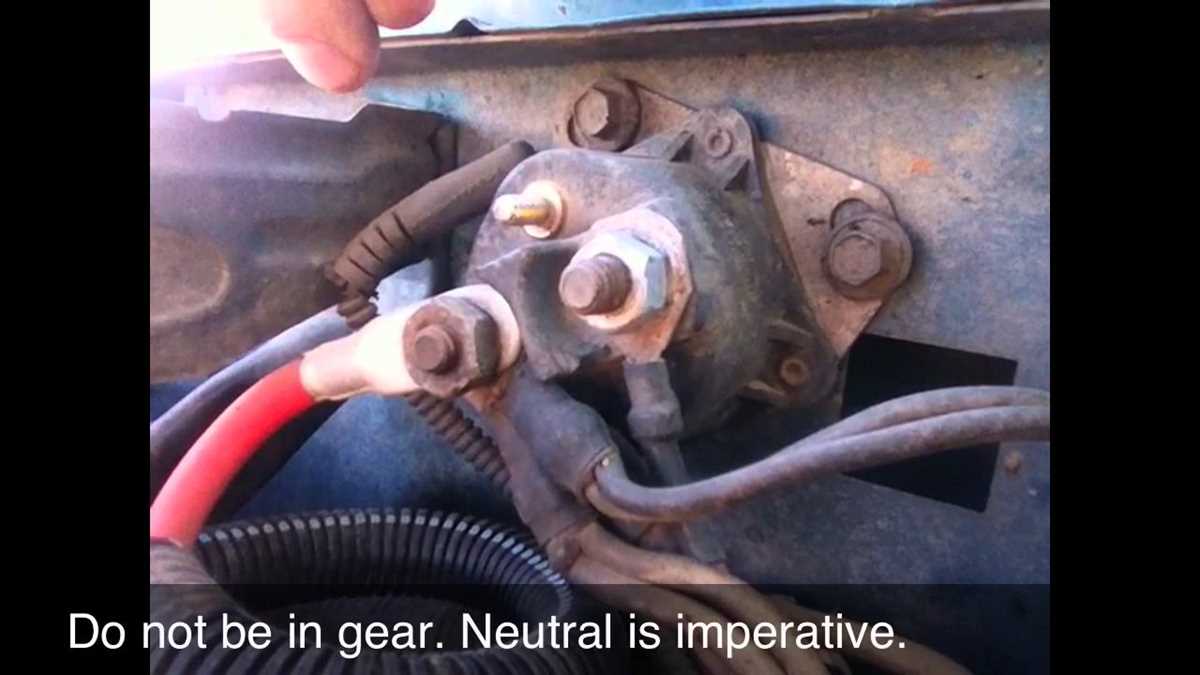

Locate the relay box under the hood near the driver’s side fender–most models place it adjacent to the battery. Pinpoint the connector marked “S” (small terminal) on the engagement coil; this triggers the high-current circuit when 12V is applied from the ignition switch. Verify continuity between the “S” terminal and the ignition wire using a multimeter–readings should drop below 0.5 ohms to confirm proper activation.

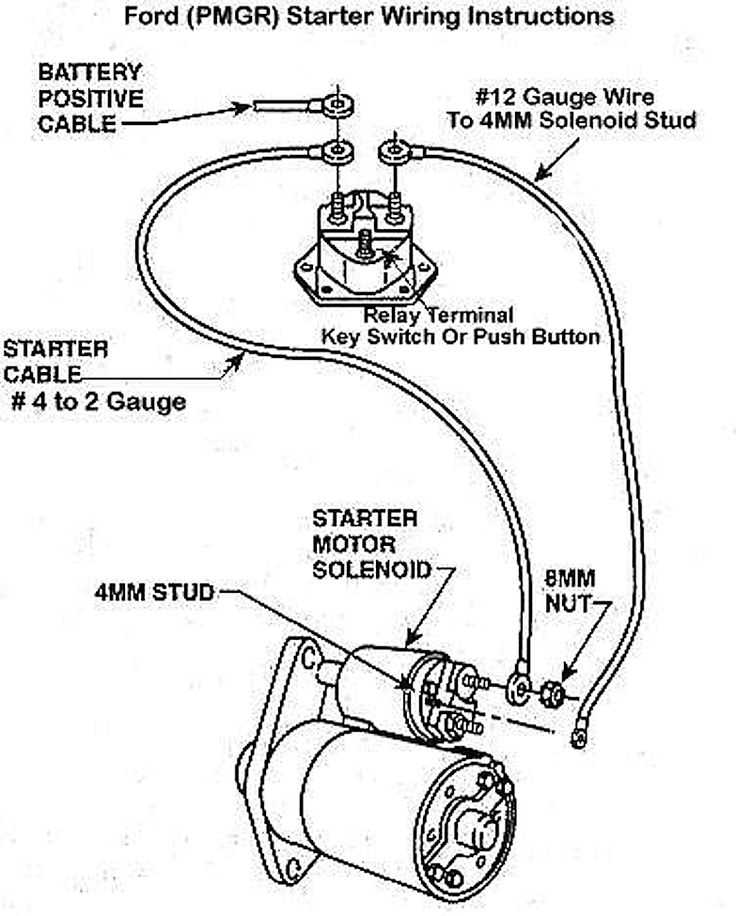

The primary power feed arrives via a red cable (4 AWG minimum) directly from the positive battery post. This line splits into two paths: one enters the main contact point, the other branches off to the magnetic switch’s high-amperage side. Ensure the battery-side connection uses a 200-amp fuse or fusible link to prevent catastrophic failure during relay closure.
- Inspect the ground strap–secure it to the engine block with a 6 AWG braided wire, avoiding paint or corrosion on contact surfaces.
- Check the push-on connectors for heat damage; melted insulation suggests recurring overloads.
- Label each wire with its function before disconnecting: “I” (ignition input), “B” (battery feed), “M” (motor lead).
Test the relay’s operation with a remote starter button: jump 12V to the “S” terminal while monitoring voltage at the “M” terminal. A healthy unit will deliver full system voltage (13.8–14.4V) to the motor lead within 200 milliseconds of activation. Persistent voltage drops indicate worn contacts requiring immediate replacement.
Clean all connection points with a wire brush and apply dielectric grease to prevent oxidation. Reassemble using torque specifications: 12 Nm for M6 bolts, 22 Nm for battery terminals. Over-tightening risks thread stripping, while under-tightening leads to voltage drops.
For trims equipped with automatic transmissions, a neutral safety switch interrupts the “I” circuit unless the selector is in Park or Neutral. Bypass this temporarily by bridging the switch contacts with a 16 AWG jumper wire–only for testing, as this removes critical safety protection.
If the vehicle has aftermarket accessories (winches, high-output alternators), confirm the relay’s continuous-duty rating meets the total current demand. Standard OEM units handle 400 amps intermittently; upgrade to a 600-amp version if accessory loads exceed 300 watts.
Pinpointing the Right Leads for Your Crank Relay Setup
Locate the power feed terminal first–it’s the thickest cable, usually red with a heavy gauge, connecting directly from the battery positive. This lead delivers the primary current to engage the high-current switch and must be isolated from thinner control wires during testing. Use a multimeter to verify 12V+ at this point before proceeding; failure here identifies a dead battery or corroded connections rather than a relay issue.
Trace the control wire, typically a thin purple or yellow lead, back to the ignition switch. This conductor carries the low-current signal that triggers the relay operation. Disconnect the plug at the relay and probe this wire with the ignition in the “start” position–you should read 8-12V. Absence of voltage signals a faulty ignition switch, blown fuse, or broken lead between the switch and relay.
| Wire Color | Typical Function | Voltage Reading (Key On) | Troubleshooting Step |
|---|---|---|---|
| Red (thick) | Battery feed | 12V+ | Check battery terminals and cable integrity |
| Purple/Yellow (thin) | Ignition control | 8-12V | Test continuity to switch, inspect fuse #8 (30A) |
| Black/White stripe | Ground return | 0V | Scrape chassis connection, ensure bolt torque > 10 Nm |
| Brown (braided) | Motor connection | N/A (high current) | Inspect for heat damage or loose lugs |
Identify the ground return–this black/white striped lead should attach to the chassis near the relay mount. A weak or corroded ground causes intermittent operation. Remove paint or rust from the mounting surface and use a stainless-steel bolt; aluminum corrodes quickly under heavy current loads. Tighten the bolt to the manufacturer’s spec of 10-12 Nm to prevent future high-resistance failures.
Examine the braided brown cable linking the relay to the cranking motor. This pathway carries the highest current in the circuit–inspect for heat discoloration, frayed strands, or loose terminal lugs. Replace any damaged leads with equal or larger gauge wire; undersized replacements overheat and melt insulation. Secure all connections with crimped ring terminals, never solder alone, as vibration breaks soldered joints over time.
For relays with additional small terminals, note their purpose: one may connect to the neutral safety switch (manual transmissions) or the clutch pedal switch (diesel engines). These safety circuits prevent operation unless the transmission is in park/neutral or the clutch is fully depressed. Use a wiring schematic specific to your vehicle configuration–universal diagrams often omit these auxiliary leads, leading to mistaken diagnoses.
How to Pinpoint the Relay Switch on Your Heavy-Duty Pickup
Park the vehicle on a level surface and engage the parking brake. Open the hood and disconnect the negative battery terminal using a 10mm wrench–this prevents accidental shorts while probing connections.
The relay switch sits adjacent to the powerplant’s rear, mounted on a cylindrical component bolted to the engine block. Locate the thick red cable leading from the battery’s positive terminal; follow it until it terminates at a small metallic or plastic box, roughly 3 inches in diameter, secured by two hex bolts.
Identify the relay’s structure: a rectangular housing with four posts. The top two posts carry the high-current circuit–one connects to the battery, the other to the electro-mechanical drive. The lower two posts handle the control signal, typically wired with thinner 16-gauge leads from the ignition switch.
Trace the wiring harness entering the relay’s side. A single harness plug with two wires will confirm the control side; if additional wires are present, disregard them–they belong to auxiliary systems like the glow plug module.
To verify the relay’s location, turn the key to the “start” position without cranking. The relay should emit a distinct metallic click. If no sound occurs, the fault may lie upstream in the ignition circuit or within the relay itself.
Remove the relay by unfastening the two mounting bolts with an 8mm socket. Observe the orientation: the battery-positive post is marked with a red boot or “B” stamp, while the motor feed post is unmarked but thicker. Label both with masking tape before detaching wires to avoid misreconnection.
Inspect the relay’s underside for corrosion on the contact plates. A fine-grit sandpaper removes oxidation; if pitting exceeds 0.5mm depth, replace the unit. Clean the mounting surface on the drive assembly with a wire brush to ensure proper grounding upon reinstallation.
Reattach wires in reverse order: control leads last to prevent accidental contact with live terminals. Torque bolts to 18 ft-lbs. Reconnect the battery, then test the relay’s operation three consecutive times–each engagement should produce a crisp, singular click, indicating proper electrical flow.
Testing Relay Switch Contacts with a Digital Meter
Set the multimeter to the 200-ohm range. Probe the primary control terminals–the smaller spade connectors on the relay housing–with the meter leads. A reading below 2 ohms confirms the winding circuit is intact; values above 5 ohms indicate internal corrosion or broken strands. Rotate the key to the crank position while monitoring voltage at the same terminals: battery voltage should appear instantly, dropping back to zero when the key is released.
Move to the high-current lugs–thick posts typically marked “B” and “M”–with the meter set to continuity mode. A sharp beep and near-zero resistance reading verify the contacts close fully; silence or inconsistent clicks suggest pitted surfaces or overexcited coil plungers preventing full engagement. Disconnect the main battery lead first, then apply 12V directly to the control coil terminal while measuring across the high-power lugs; lack of conduction mandates relay replacement.
Flick the meter to DC voltage and back-probe the motor feed terminal during a cold start attempt. Expect battery voltage drop no lower than 9.6V–readings below 8V signal excessive resistance in either the relay contacts, ground strap, or motor armature. Replace any relay where contact bounce exceeds 150ms when viewed on a scope or where static resistance across closed contacts rises above 0.01 ohms after ten consecutive activation cycles.
